Weiler Soil Stabilizers

cOMMERCIAL SOIL STABILIZERS

S200

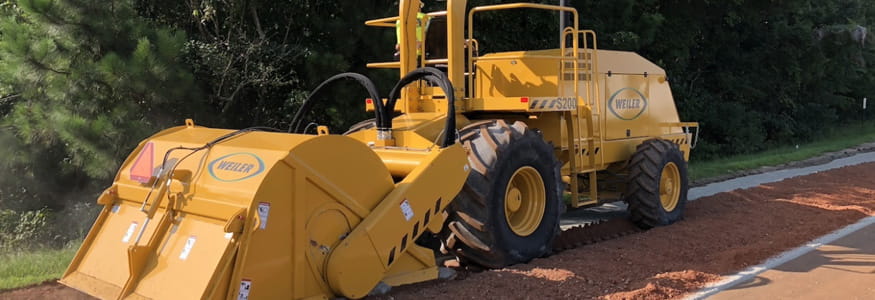

Weiler Soil Stabilizer S200

ROTOR OPTIONS

Available with either a soil or combination rotor powered by dual planetary drive motors with a max drum speed of 150 rpm. The 78” (1981 mm) wide drum has a max working depth of 14” (355 mm).

AUTO DEPTH SET POINT

The automatic depth set point feature allows the operator to set the desired rotor depth and return to that same depth with the push of a button on the joystick. Depth reading is visible to the operator on the full colour display.

AUTO LOAD CONTROL

The automatic load control feature monitors system pressures to set ground speed to maximize efficiency of the machine and eliminate overloading the mixing chamber and stalling the rotor.

REAR STEER OPTION

The optional rear steer reduces the turning radius from 37’ (11.3 m) to 23’ (7 m) for high maneuverability on tight jobsites. The rear steer provides four steering modes: front steer, rear steer, crab steer and coordinated steer and features an auto return to center.

MACHINE TILT OPTION

The optional machine tilt feature allows the S200 to tilt up to 5° in either direction to match grade conditions and provide excellent gradation in varying applications.

COMFORT AND CONTROL

The operator seat slides across the platform and rotates 357° providing excellent visibility for the operator. High-back, suspension seat and easy-to-reach controls provide a comfortable working environment with angled ladder access from both sides of the machine.
