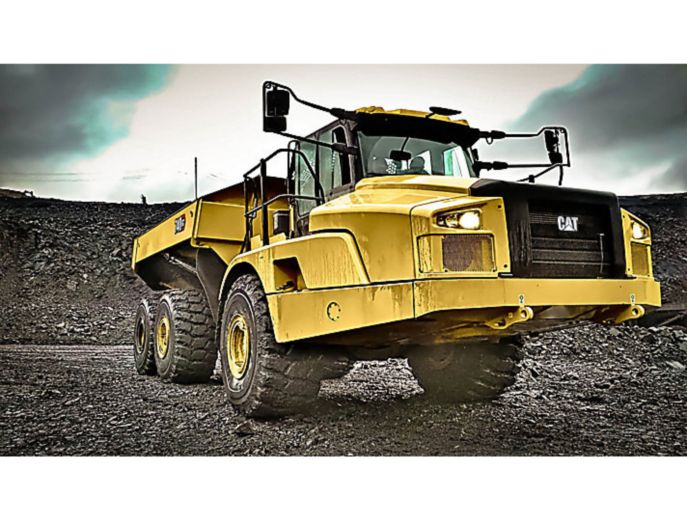

The Cat® 740 GC features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.
The Cat 740 GC with a 22.7 m³ (29.7 yd³)/36.3 tonne (40 ton) capacity, offers reliability, durability and efficient performance, including the latest, world-class operator’s station found on other Cat Articulated Trucks.<br>The 740 GC offers a highly efficient value proposition within the 40 ton AT size class. Automated, assisted and intuitive controls bring Safety and Ease of Operation to the forefront – helping reduce operator workload and training. Ideally matched to popular loading tools, the 740 GC is a productive machine in any fleet.
Engine Model | Cat® C15 | Cat® C15 |
Bore | 137 mm | 5.4 in |
Stroke | 171.5 mm | 6.75 in |
Displacement | 15.2 l | 926 in³ |
Emissions | The C15 engine emits either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emissions. | The C15 engine emits either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emissions. |
Net Power - SAE J1349 | 324 kW | 434 HP |
Net Power - ISO 14396 | 330 kW | 443 HP |
Gross Power - SAE J1995 | 335 kW | 449 HP |
Peak Engine Torque Gross (SAE J1995) | 2320 N·m | 1711 ft·lbf |
Peak Engine Torque Net (SAE J1349) | 2264 N·m | 1670 ft·lbf |
Peak Engine Torque Speed | 1200 r/min | 1200 r/min |
No Engine De-rating Below | 3050 m | 10000 ft |
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent | Cat C15 | Cat C15 |
Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
Note (1) | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. |
Note (3) | Net power when the fan is at maximum speed is 324 kW (434 hp) per the SAE reference conditions. | Net power when the fan is at maximum speed is 324 kW (434 hp) per the SAE reference conditions. |
Weights
Rated Payload | 36.3 t | 40 ton (US) |
Body Capacities
Heaped (SAE 2:1) | 22.7 m³ | 29.7 yd³ |
Struck | 17 m³ | 22.2 yd³ |
Tailgate Heaped SAE 2:1 | 24.4 m³ | 31.9 yd³ |
Tailgate Struck | 17.9 m³ | 23.4 yd³ |
Transmission
Forward - 1 | 6.4 km/h | 4 mile/h |
Forward - 2 | 8.5 km/h | 5.3 mile/h |
Forward - 3 | 11.5 km/h | 7.3 mile/h |
Forward - 4 | 14.8 km/h | 9.2 mile/h |
Forward - 5 | 19.7 km/h | 12.2 mile/h |
Forward - 6 | 24 km/h | 14.9 mile/h |
Reverse - 1 | 6.8 km/h | 4.2 mile/h |
Forward - 9 | 57.5 km/h | 35.7 mile/h |
Forward - 7 | 33.1 km/h | 20.6 mile/h |
Reverse - 2 | 15.7 km/h | 9.8 mile/h |
Forward - 8 | 39.8 km/h | 24.7 mile/h |
Sound Levels
Interior Cab | 72 dB(A) | 72 dB(A) |
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
Operating Weights
Rear Axle - Loaded | 23020 kg | 50750 lb |
Center Axle - Empty | 6709 kg | 14791 lb |
Center Axle - Rated Load | 16534 kg | 36451 lb |
Total - Loaded | 68257 kg | 150480 lb |
Front Axle - Loaded | 21994 kg | 48488 lb |
Front Axle - Rated Load | 3233 kg | 7128 lb |
Rear Axle - Rated Load | 16534 kg | 36451 lb |
Total - Empty | 31956 kg | 70451 lb |
Total - Rated Load | 36301 kg | 80030 lb |
Rear Axle - Empty | 6486 kg | 14299 lb |
Center Axle - Loaded | 23243 kg | 51242 lb |
Front Axle - Empty | 18761 kg | 41361 lb |
Service Refill Capacities
Fuel Tank | 550 l | 145.3 gal (US) |
Cooling System | 90 l | 23.7 gal (US) |
Engine Crankcase | 52 l | 13.7 gal (US) |
Steering/Hoist Hydraulic System | 140 l | 36.9 gal (US) |
Brake Cooling Tank | 67 l | 17.7 gal (US) |
Final Drive - Each | 5 l | 1.3 gal (US) |
Transmission - OTG | 75 l | 19.8 gal (US) |
Axles - Each | 60 l | 15.8 gal (US) |
Body Hoist
Raise Time | 12 s | 12 s |
Lower Time | 12 s | 12 s |
Steering
Lock to Lock | 4.75 seconds @ 60 rpm | 4.75 seconds @ 60 rpm |
Standards
Brakes | ISO 3450 – 2011 | ISO 3450 – 2011 |
Cab - FOPS | ISO 3449 Level II – 2005 | ISO 3449 Level II – 2005 |
Cab - ROPS | ISO 3471 – 2008 | ISO 3471 – 2008 |
Steering | ISO 5010 – 2007 | ISO 5010 – 2007 |
Body Plate
Type | High strength Brinell HB450 wear resistant steel | High strength Brinell HB450 wear resistant steel |
Turning Circle
Turning Dimensions - Steer Angle - Left/Right | 45° | 45° |
Turning Dimensions - Aisle Width | 5595 mm | 220 in |
Turning Dimensions - Inside Radius | 3960 mm | 156 in |
Note | Dimensions are for machines equipped with 29.5 R25 tires. | Dimensions are for machines equipped with 29.5 R25 tires. |
Turning Dimensions - Clearance Radius | 8395 mm | 330 in |
Turning Dimensions - SAE Turning Radius | 7698 mm | 303 in |
Body Plate Thickness
Side Plates | 11 mm | 0.43 in |
Front Plate | 7 mm | 0.28 in |
Base Plate | 13 mm | 0.51 in |
Optimal Loader/Truck Pass Matching
Note | An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374F and 352F Hydraulic Excavators; and Cat 972M, 966M, and 962M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. | An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374F and 352F Hydraulic Excavators; and Cat 972M, 966M, and 962M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Wheel Loader: 966M - Passes | 4–5 | 4–5 |
Hydraulic Excavator: 352F - Passes | 5–6 | 5–6 |
Wheel Loader: 972M - Passes | 3 | 3 |
Wheel Loader: 962M - Passes | 5 | 5 |
Hydraulic Excavator: 374F - Passes | 3–4 | 3–4 |
Every Tier 2/Stage II or Tier 3/Stage IIIA equivalent Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components. The right technologies fine-tuned for the right applications result in:
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted |
Two seats both with seat belts, operator’s retractable |
Mirrors: extensive arrangement for improved visibility |
Touchscreen display incorporating the rearview camera video feed |
Tilt and telescopic steering wheel |
Heater and defroster with four-speed fan |
Windshield wiper and washer, two speed, intermittent (front) |
Air conditioning with R134A refrigerant |
Combined gear selection and hoist control lever |
Secondary steering – electro hydraulic |
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Operation and Maintenance Manual (OMM) – Primary steering failure (warning) – Seat belt warning – Secondary steering failure – Machine Security System (MSS) – Secondary steering energy source engaged – Hour meter – Retarder active |
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt |
Storage: – Cup holder – Flask receptacle (under the secondary seat) – Under seat storage – Door pocket – Behind seat storage – Coat hook |
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Hoist control – Hydraulic system – Charging system – Transmission fault – Traction control system – Check engine lamp |
Sun visor |
Adjustable air vents |
Windows (tinted) opening both sides |
Windshield wiper and washer, two speed (rear) |
CAT TECHNOLOGIES
Cat Detect with Stability Assist |
Product Link: PL631E or PL641E dependent on location and licensing agreement |
ELECTRICAL AND LIGHTING
Batteries (two) maintenance free |
Remote starting receptacle (cables not included) |
Electrical system: 24-volt, 10A 24- to 12-volt converter |
Horn |
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators |
Main disconnect switch |
POWER TRAIN
Auto shift nine-speed forward and two reverse transmission |
Differentials: standard with automatic clutched inter- and cross-axle differential locks |
Cat C15 engine |
Retarder: engine compression brake |
Dual circuit oil immersed, enclosed brakes – all wheels |
Three axle, six-wheel drive |
Three axle, six-wheel drive |
SAFETY
Reverse alarm |
Rearview camera |
ROPS/FOPS cab |
GUARDS
Crankcase |
Axle |
Front dump body spill guard, integral part of fabricated body |
Radiator |
Rear window |
OTHER STANDARD EQUIPMENT
Mud flaps: wheel arch and body mounted with transportation tiebacks |
Tires, six 29.5 R25 |
Vandalism protection: lockable caps |
S·O·S sampling valves |
Sound suppression (only standard in Europe) |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
