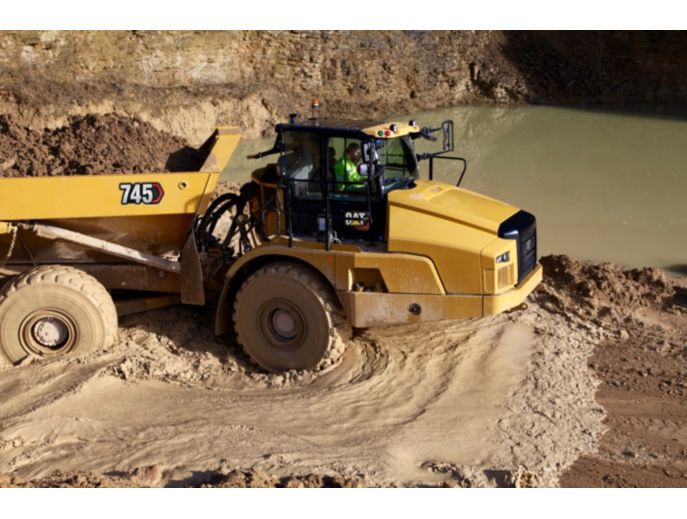

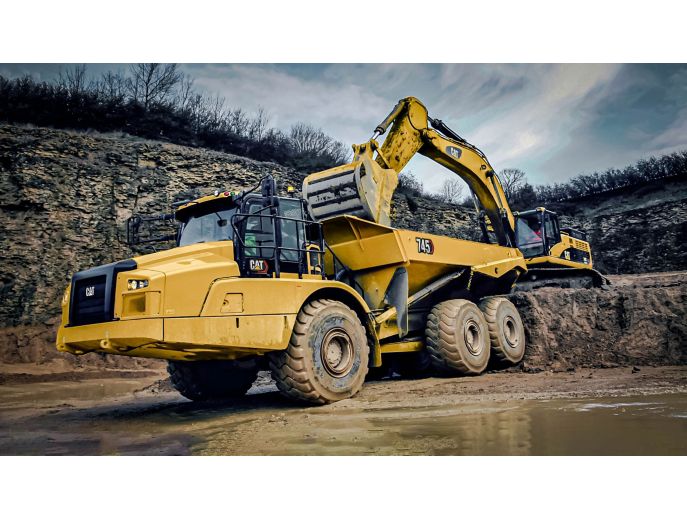

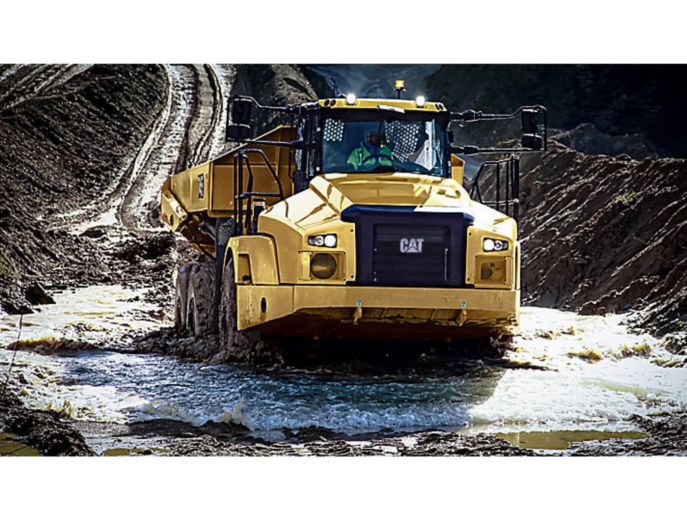

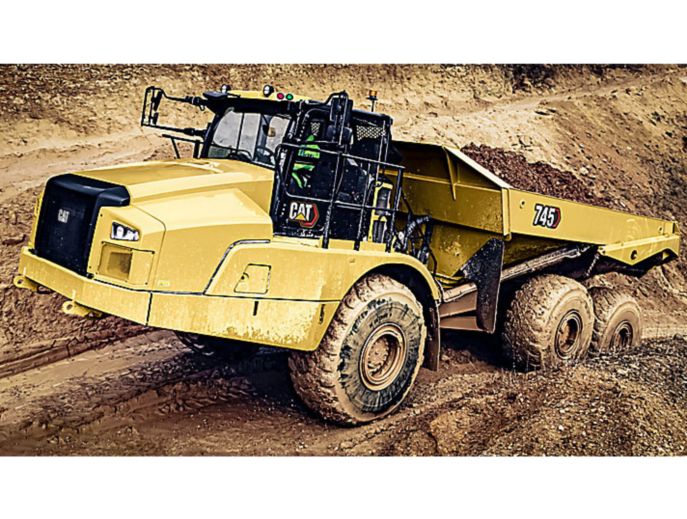

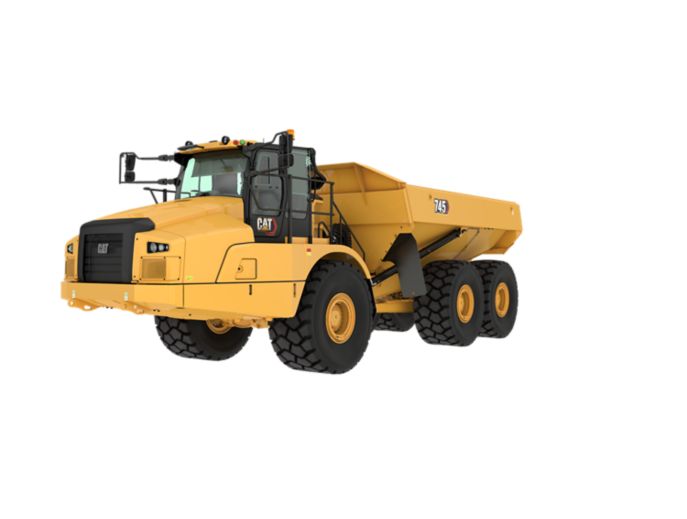

The Cat® 745 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.
The Cat 745 with a 25 m3 (32.7 yd3) 41 tonnes (45.2 tons) capacity brings a new level of operator comfort and features to the market in addition to the durability, high productivity and lower operating costs Cat Articulated Trucks are known for.
The all-new operator cabin is a leap into the next generation for Articulated Trucks, providing our operators the best place to help build the future.
Engine Model | Cat® C18 | Cat® C18 |
Bore | 145 mm | 5.7 in |
Stroke | 183 mm | 7.2 in |
Displacement | 18.1 l | 1106 in³ |
Net Power - ISO 14396 | 376 kW | 504 HP |
Engine Model - Equivalent to U.S. EPA Tier 2 and EU Stage II | Cat C18 | Cat C18 |
Gross Power - SAE J1995 | 381 kW | 511 HP |
Net Power - SAE J1349 | 370 kW | 496 HP |
Peak Engine Torque Net (SAE J1349) | 2558 N·m | 1887 ft·lbf |
No Engine De-rating Required Below | 3050 m | 10000 ft |
Note (3) | Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions. | Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions. |
Note (1) | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. |
Emissions | Equivalent to Tier 2/Stage II. | Equivalent to Tier 2/Stage II. |
Peak Engine Torque Gross (SAE J1995) | 2618 N·m | 1931 ft·lbf |
Peak Engine Torque Speed | 1200 r/min | 1200 r/min |
Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
Weights
Rated Payload | 41 t | 45.2 ton (US) |
Body Capacities
Heaped (SAE 2:1) | 25 m³ | 32.7 yd³ |
Struck | 18.5 m³ | 24.2 yd³ |
Tailgate Heaped SAE 2:1 | 26.5 m³ | 34.7 yd³ |
Tailgate Struck | 19.5 m³ | 25.5 yd³ |
Transmission
Forward - 1 | 6.1 km/h | 3.8 mile/h |
Forward - 2 | 8.1 km/h | 5 mile/h |
Forward - 3 | 11.2 km/h | 7 mile/h |
Forward - 4 | 14.1 km/h | 8.8 mile/h |
Forward - 5 | 18.7 km/h | 11.6 mile/h |
Forward - 6 | 22.9 km/h | 14.2 mile/h |
Forward - 7 | 31.5 km/h | 19.6 mile/h |
Reverse - 1 | 6.4 km/h | 4 mile/h |
Reverse - 2 | 14.6 km/h | 9.1 mile/h |
Forward - 8 | 37.9 km/h | 23.5 mile/h |
Forward - 9 | 54.8 km/h | 34 mile/h |
Sound Levels
Interior Cab | 72 dB(A) | 72 dB(A) |
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
Operating Weights
Center Axle - Rated Load | 17550 kg | 38691 lb |
Rear Axle - Loaded | 24310 kg | 53594 lb |
Total - Loaded | 73943 kg | 163016 lb |
Front Axle - Rated Load | 5900 kg | 13007 lb |
Total - Empty | 32943 kg | 72627 lb |
Front Axle - Loaded | 25061 kg | 55250 lb |
Center Axle - Loaded | 24572 kg | 54172 lb |
Rear Axle - Empty | 6760 kg | 14903 lb |
Rear Axle - Rated Load | 17550 kg | 38691 lb |
Center Axle - Empty | 7022 kg | 15481 lb |
Total - Rated Load | 41000 kg | 90390 lb |
Front Axle - Empty | 19161 kg | 42243 lb |
Body Plate
Type | High Strength Brinell HB450 Wear Resistant Steel | High Strength Brinell HB450 Wear Resistant Steel |
Chute | 14 mm | 0.55 in |
Base | 14 mm | 0.55 in |
Front | 7 mm | 0.28 in |
Side | 11 mm | 0.43 in |
Service Refill Capacities
Fuel Tank | 550 l | 145.3 gal (US) |
Cooling System | 90 l | 23.7 gal (US) |
Engine Crankcase | 52 l | 13.7 gal (US) |
Steering/Hoist Hydraulic System | 140 l | 36.9 gal (US) |
Transmission - OTG | 75 l | 19.8 gal (US) |
DEF Tank | 25 l | 5.3 gal (US) |
Brake Cooling Tank | 67 l | 17.69 gal (US) |
Final Drive - Each | 5 l | 1.3 gal (US) |
Axles - Each | 60 l | 15.8 gal (US) |
Body Hoist
Raise (automatic) | 13 s | 13 s |
Raise (manual) | 12 s | 12 s |
Lower (manual) | 10 s | 10 s |
Lower (automatic) | 10 s | 10 s |
Steering
Lock to Lock | 4.8 seconds @ 60 rpm | 4.8 seconds @ 60 rpm |
Standards
Brakes | ISO 3450 – 2011 | ISO 3450 – 2011 |
Cab - FOPS | ISO 3449 Level II | ISO 3449 Level II |
Cab - ROPS | ISO 3471 – 2008 | ISO 3471 – 2008 |
Steering | ISO 5010 – 2007 | ISO 5010 – 2007 |
Turning Circle
Turning Dimensions - Clearance Radius | 9082 mm | 356 in |
Turning Dimensions - Inside Radius | 4413 mm | 174 in |
Turning Dimensions - Aisle Width | 5917 mm | 233 in |
Turning Dimensions - SAE Turning Radius | 8625 mm | 340 in |
Note | Dimensions are for machines equipped with 29.5R25 tires. | Dimensions are for machines equipped with 29.5R25 tires. |
Turning Dimensions - Steer Angle - Left/Right | 45° | 45° |
Optimal Loader/Truck Pass Matching
Note | An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. | An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Hydraulic Excavator: 390 - Passes | 4 | 4 |
Wheel Loader: 980 - Passes | 43926 | 43926 |
Wheel Loader: 982 - Passes | 4 | 4 |
Wheel Loader: 972 - Passes | 43926 | 43926 |
Hydraulic Excavator: 374 - Passes | 5 | 5 |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Mirrors: extensive arrangement for improved visibility |
Seats: – Fully adjustable, air suspension – Padded trainer with lap belt |
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted |
Windshield wiper and washer, two speed (rear) |
Adjustable air vents |
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Hoist control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp |
Air conditioning with R134A refrigerant |
Sun visor |
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure – Seat belt warning – Secondary steering failure – Diesel Particulate Filter (DPF) regeneration filter – Machine Security System (MSS) – Secondary steering energy source engaged – Hour meter – Retarder active |
Secondary steering – electro hydraulic |
Window blinds |
Windows opening side, tinted |
Touch screen display incorporating the rearview camera video feed |
Windshield wiper and washer, two speed, intermittent (front) |
Two seat belts, operator's retractable |
Tilt and telescopic steering wheel |
Heater and defroster with variable speed fan |
Combined gear selection and hoist control lever |
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind seat storage – Coat hook |
CAT TECHNOLOGIES
Product Link: PL631 (satellite) or PL641 (cellular) dependent on location and licensing agreement |
Cat Detect with Stability Assist |
ELECTRICAL AND LIGHTING
Batteries (two) maintenance free |
Electrical system: 24-volt, 5A 24- to 12-volt converter |
Horn |
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light – Two stop/tail lights – Front and rear direction indicators |
Main disconnect switch |
Remote starting receptacle (cables not included) |
POWER TRAIN
Auto shift nine-speed forward and two reverse transmission |
Cat C18 engine |
Cat Clean Emission Module (CEM) and exhaust aftertreatment package |
Differentials: standard with automatic clutched inter- and cross-axle differential locks |
Dual circuit oil immersed, enclosed brakes – all wheels |
Retarder: engine compression brake |
Three axle, six-wheel drive |
SAFETY
Reverse alarm |
Rearview camera |
ROPS/FOPS cab |
GUARDS
Rear window |
Radiator |
Crankcase |
Axle |
Front dump body spill guard, integral part of fabricated body |
OTHER STANDARD EQUIPMENT
Mud flaps: wheel arch and body mounted with transportation tiebacks |
S·O·S sampling valves |
Tires, six 29.5R25, radial |
Vandalism protection: lockable caps for fuel tank and hydraulic oil tank |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
