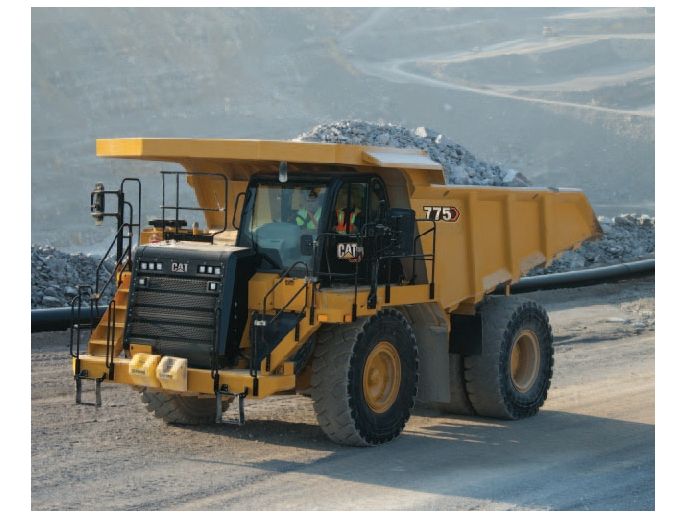

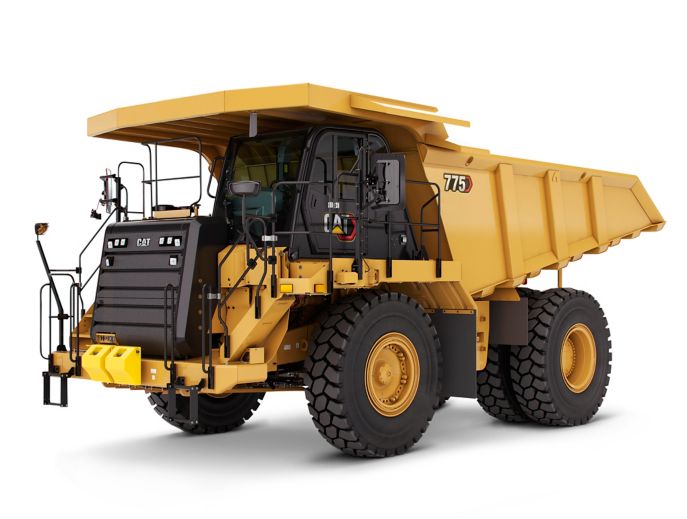

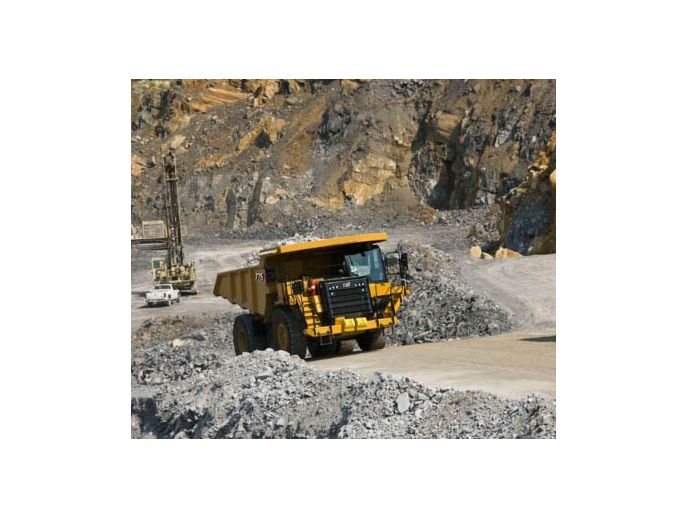

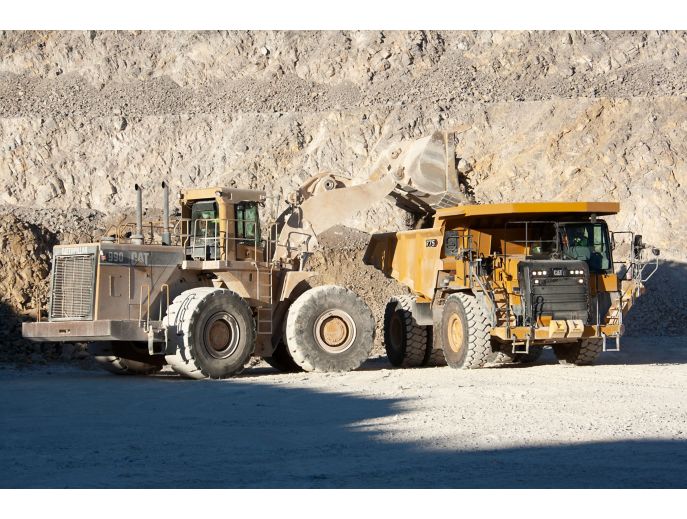

Caterpillar is pleased to introduce to you the 775 Off-Highway Truck. You may be asking how, after 40 years of building trucks, Caterpillar has improved this product’s ability to support your business.
The 775 has been designed and manufactured using the latest quality control technologies; both virtual and hands on. This product has over 30,000 hours of proven performance in the hands of customers prior to production, all of which ensures the truck delivered to your yard is ready to work, reliably and dependably.
In addition to quality, Cat Off-Highway Trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With the 775 trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 775 trucks can and will make a positive difference to both your business and people.
Caterpillar is pleased to introduce to you the 775 Off-Highway Truck. You may be asking how, after 40 years of building trucks, Caterpillar has improved this product’s ability to support your business. The 775 has been designed and manufactured using the latest quality control technologies; both virtual and hands on. This product has over 30,000 hours of proven performance in the hands of customers prior to production, all of which ensures the truck delivered to your yard is ready to work, reliably and dependably.<br>In addition to quality, Cat 775 Off-Highway Trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With Cat 775 trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 775 Off-Hghway Trucks can and will make a positive difference to both your business and people.
Engine Model | Cat® C27 | Cat® C27 |
Rated Engine Speed | 2000 r/min | 2000 r/min |
Gross Power - SAE J1995 | 615 kW | 825 HP |
Net Power - SAE J1349 | 584 kW | 783 HP |
Net Power - ISO 9249 | 590 kW | 791 HP |
Net Power - 80/1269/EEC | 590 kW | 791 HP |
Bore | 137 mm | 5.4 in |
Stroke | 152 mm | 6 in |
Displacement | 27 l | 1648 in³ |
Peak Torque - Speed | 1300 r/min | 1300 r/min |
Engine Power - ISO 14396 | 607 kW | 813 HP |
Net Torque | 3896 N·m | 2874 ft-lb |
Note (3) | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. |
Note (1) | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. |
Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). |
Weights - Approximate
Maximum Gross Vehicle Weight | 111812 kg | 246503 lb |
Operating Specifications
Nominal Payload Class (100%) | 64.6 t | 71.3 ton (US) |
Top Speed - Loaded | 67.6 km/h | 42 mile/h |
Body Capacity - SAE 2:1 | 42.23 m³ | 55.23 yd³ |
Maximum Allowable Payload (120%)* | 77.5 t | 85.5 ton (US) |
Note (2) | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. |
Maximum Working Payload (110%) | 71.1 t | 78.3 ton (US) |
Note (1) | Capacity with Dual Slope body – no liner. | Capacity with Dual Slope body – no liner. |
Target Payload (100%) | 64.6 t | 71.3 ton (US) |
Transmission
Forward - 1 | 10.8 km/h | 6.7 mile/h |
Forward - 2 | 15.1 km/h | 9.4 mile/h |
Forward - 3 | 20.4 km/h | 12.7 mile/h |
Forward - 4 | 27.4 km/h | 17 mile/h |
Forward - 5 | 37 km/h | 23 mile/h |
Forward - 6 | 50.1 km/h | 31.1 mile/h |
Forward - 7 | 67.6 km/h | 42 mile/h |
Reverse | 14.1 km/h | 8.8 mile/h |
Note | Maximum travel speeds with standard 24.00R35 (E4) tires. | Maximum travel speeds with standard 24.00R35 (E4) tires. |
Final Drives
Differential Ratio | 3.64:1 | 3.64:1 |
Planetary Ratio | 4.80:1 | 4.80:1 |
Total Reduction Ratio | 17.49:1 | 17.49:1 |
Brakes
Brake Surface - Front | 655 cm² | 25.7 in² |
Brake Surface - Rear | 61269 cm² | 9497 in² |
Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
Body Hoists
Pump Flow - High Idle | 448 l/min | 118 gal/min |
Relief Valve Setting - Raise | 17250 kPa | 2502 psi |
Relief Valve Setting - Lower | 3450 kPa | 500 psi |
Body Raise Time - High Idle | 9.5 s | 9.5 s |
Body Lower Time - Float | 13 s | 12.5 s |
Body Power Down - High Idle | 13 s | 13 s |
Capacity - Dual Slope - 100% Fill Factor
Struck | 32.6 m³ | 42.7 yd³ |
Heaped (SAE 2:1)* | 42.2 m³ | 55.5 yd³ |
Note (2) | *ISO 6483:1980 | *ISO 6483:1980 |
Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Capacity - Flat Floor - 100% Fill Factor
Struck | 32.3 m³ | 42.2 yd³ |
Heaped (SAE 2:1)* | 42.2 m³ | 55.2 yd³ |
Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Note (2) | *ISO 6483:1980 | *ISO 6483:1980 |
Weight Distributions - Approximate
Front Axle - Empty | 52 % | 52 % |
Front Axle - Loaded | 34 % | 34 % |
Rear Axle - Empty | 48 % | 48 % |
Rear Axle - Loaded | 66 % | 66 % |
Suspension
Empty Loaded Cylinder Stroke Front | 234 mm | 9.2 in |
Empty Loaded Cylinder Stroke Rear | 149 mm | 5.8 in |
Rear axle - Oscillation | 8.1° | 8.1° |
Service Refill Capacities
Fuel Tank | 795 l | 210 gal (US) |
Cooling System | 154 l | 40.6 gal (US) |
Differential - Final Drives | 140 l | 37 gal (US) |
Steering Tank | 36 l | 9.5 gal (US) |
Steering System - Including Tank | 54 l | 14 gal (US) |
Torque Converter - Transmission System - HRC | 70 l | 18 gal (US) |
Torque Converter - Transmission System - LRC | 61 l | 16 gal (US) |
Crankcase | 90 l | 24 gal (US) |
Brake/Hoist Hydraulic Tank | 176 l | 46.5 gal (US) |
Brake Hoist System | 322 l | 85 gal (US) |
Tires
Note (1) | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Standard Tire | 24.00R35 (E4) | 24.00R35 (E4) |
ROPS
FOPS Standards | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. |
ROPS Standards | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. |
Sound
Sound Standards (1) | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
Sound Standards (2) | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). |
Sound Standards (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Steering
Turning Diameter - Front | 22 m | 72.2 ft |
Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
Steer Angle | 31 ° | 31 ° |
Turning Circle - Clearance Diameter | 25 m | 82 ft |
• Haul your materials faster with an accelerated travel speed.
• Put more power to the ground with increased torque.
• Enjoy greater productivity while using a more responsive traction control system (TCS).
• Reduce tire wear with maximum traction by engaging TCS early in the slip.
• Strong, predictable performance helps operators achieve the lowest cost per ton.
• Automatic retarding control (ARC) maintains consistent engine speed for greater productivity and up to 15% faster downhill speeds as compared to a manual retarding system.
• Up to 13% less fuel consumption.
• Advanced productivity electronic control strategy (APECS) allows
the engine and transmission to communicate on a high level. This
communication allows the machine to better utilize the power and torque the engine is producing.
• Automatically optimize fuel consumption with the adaptive economy mode, which reduces fuel use without affecting productivity and can be engaged with a single button.
• Find improvements in fuel efficiency with auto neutral idle.
• Haul your truck at a more fuel-efficient engine speed and gear selection with speed limiting.
• Conserve fuel with integrated engine idle shutdown by the engine automatically initiating when the truck is in park and idle for a preset amount of time.
• Improvements in accessibility with safe ground-level access to fuel fill and daily maintenance points.
• Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
• Superior brake performance meets the latest brake standards—ISO 3450:2011.
• The ground-level engine shutoff switch stops all fuel to the engine when activated and shuts down the machine safely.
• Sturdy 4-point mounted cabin meets rollover protective structure/ falling objects protective structure (ROPS/FOPS) standard.
• 4-point seat belt provides enhanced safety to the operator.
• Seat belt indicator implements both visual and audible alerts to the
operator when seat belt is not fastened.
• Lockout features help the service technician to perform maintenance work on the machine with safe mode.
• Secondary steering activates automatically in case of primary system failure.
• Overload speed limiter works with truck payload system to reduce machine speed automatically when the truck is overloaded.

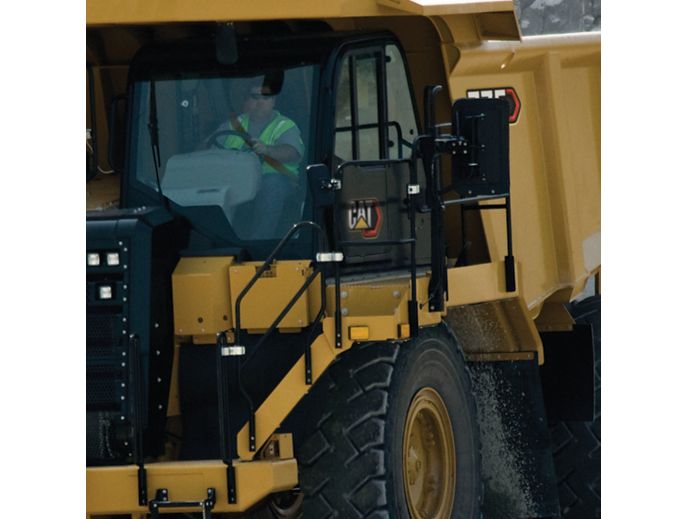

• Completely redesigned cab for a whole new standard in visibility, comfort, and productivity.
• The new operator seat placement provides easier operation and comfort to the operator.
• Improvements in visibility gain enlarged views of the work area and its surroundings.
• Access connectivity and decrease clutter with more storage areas with the newly designed cab.
• Enjoy the easy automotive-quality shifting with the new transmission controls.
• Automatic cab temperature controls.
• Cat next generation deluxe seat for better operator comfort.
• Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
• Gain valuable insight into how your machine is performing by continuously monitoring and collecting vital machine data via the advisor display with the software Vital Information Management
System (VIMS™). Applicable to both U.S. EPA Tier 4 Final/EU Stage V and U.S. EPA Tier 2 equivalent.
• Truck production management system (TPMS) provides accurate weighing of the materials, stores 2,400 payload cycles, and reports on weights, haul cycle times, and distances with date
and time stamps.
• External payload indicator lights/display alert the loader when to stop, reducing the risk of machine overloading.
• Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
• VisionLink® wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business.
• The Cat 775 is MineStar™ ready and includes Cat Product Link Elite and VIMS to help optimize equipment management, remote monitoring capabilities, machine availability, and
component life while reducing both repair costs and the risk of catastrophic failure.
• Tons kilometers per hour/tons miles per hour (TKPH/TMPH) tire management system works with TPMS for improved tire life.
• Grouped service points.
• Control particulate matter with two engine-mounted diesel
oxidation catalyst canisters. (Tier 4)
• NOx reduction system (NRS) technology replaces a portion of intake air with exhaust gas to control combustion temperatures and
NOx production. (Tier 4)
• Parts commonality with other Cat equipment.
• Resolve problems before failure occurs with VIMS notifications.
• Torque converter stall (autostall) enables quick operating temperatures for best performance life.
• All LED lights provide longer life, brighter light, consume less power, and are more resistant to vibration or water damage.
• Get the right body option—dual slope, flat floor, or quarry—for your material and job site needs.
• For haul profiles including steep slopes, an optional dual slope body
is available—offering excellent material retention.
• The X body’s flat floor is perfect for metering material, especially when feeding the crusher.
• Protect your truck’s body life in high-impact, hard rock applications with the optional rubber liner—available for dual slope and X bodies.
• Optional sideboards are available for flat floor, dual slope, and quarry bodies. Applicable for both Tier 4 and Tier 2 models.
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
POWER TRAIN
Cat C27 US EPA Tier 2/EU Stage II Equivalent diesel engine: – Air cleaner with precleaner (2) – Air-To-Air Aftercooler (ATAAC) – Electric start – Engine idle shutdown – Ether starting aid – Exhaust muffler – NGMR radiator |
For non-regulated regions only: – Direct drive fan – MEUI-A fuel system |
Braking system: – Extended Life Brakes – Automatic Retarder Control (ARC) – Manual retarder (utilizes rear oil-cooled, multiple disc brakes) – Brake release motor (towing) – Dry disc brakes (front) – Front brake disconnect switch (front) – Oil-cooled multiple disc brakes (rear) – Brake wear indicator (rear) – Parking brake – Secondary brake – Service brake |
Transmission: – 7-speed automatic powershift with:
– Automatic neutral idle – Autostall – Second gear start |
SUSPENSION SYSTEMS
Suspension, front and rear (EU compliant) |
ELECTRICAL
Alarm backup |
Alternator, 120 Amp |
Autolube power supply ready |
Batteries, maintenance-free, 12V (2), 1,400 CCA combined |
Electrical system, 25 Amp, 24V to 12V converter |
Lighting system: – Backup light (halogen) – Directional signals/hazard warning (front and rear LED) – Engine compartment light – Headlights, (halogen) with dimmer – Operator access courtesy lights – Side profile lights – Stop/tail lights (LED) |
Service center containing: – Battery jump start – Breakers with spare fuses – Lockout switch – Ports, ET, and VIMS – Service lockout switch (power without engine start) |
TECHNOLOGY PRODUCTS
Economy Modes, standard and adaptive |
Product Link, cellular or satellite |
Traction Control System (TCS) |
Truck Production Management System |
Vital Information Management System (VIMS) |
OPERATOR ENVIRONMENT
Advisor display: – Air cleaner service indicator – Fluid level monitoring – Fuel level monitoring – Display languages (market based) |
Air conditioning/heat |
Automatic temperature control |
Ashtray and cigarette lighter |
Coat hook |
Cup holders (4) |
Diagnostic connection port, 24V |
Entertainment radio ready: – 5 amp converter – Speakers – Antenna – Wiring harness |
Foot rest |
Gauges/indicators: – Brake oil temperature gauge – Coolant temperature gauge – Engine overspeed indicator – Fuel level – Hour meter – Speedometer with odometer – Tachometer – Transmission gear indicator |
Hoist lever |
Horn |
Light – courtesy |
Light – dome |
Mirrors, non-heated |
Power port, 24V and 12V (2) |
Rollover Protection (ROPS)/Falling Object Protection (FOPS) |
Seat, Cat Comfort Series III: – Full air suspension – Retractable 3-point seat belt with shoulder harness |
Seat, training with lap belt |
Steering wheel, padded, tilt and telescopic |
Storage compartment |
Sun visor |
Throttle lock |
Window, hinged, right side (emergency exit) |
Window, powered, left side |
Windshield wiper intermittent and washer |
GUARDS
Driveline |
Engine crankcase |
Fan |
FLUIDS
Antifreeze |
Extended life coolant to –34° C (–30° F) |
Grouped ground-level filters |
OTHER STANDARD EQUIPMENT
Body down indicator |
Body safety pin (secures body in up position) |
Center-mounted rims |
Fuel tank, 795 L (210 gal) |
Ground level battery disconnect |
Ground level engine shutdown |
Ground level grease fittings |
Operator Maintenance Manual (OMM) |
Rims 17 × 35 |
Rock ejectors |
Secondary steering (electric) |
Tie down eyes |
Tow hooks (front)/tow pin (rear) |
Vandalism protection locks |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
Caterpillar is pleased to introduce to you the 775 Off-Highway Truck. You may be asking how, after 40 years of building trucks, Caterpillar has improved this product’s ability to support your business. The 775 has been designed and manufactured using the latest quality control technologies; both virtual and hands on. This product has over 30,000 hours of proven performance in the hands of customers prior to production, all of which ensures the truck delivered to your yard is ready to work, reliably and dependably.<br>In addition to quality, Cat 775 Off-Highway Trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With Cat 775 trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 775 Off-Hghway Trucks can and will make a positive difference to both your business and people.
Engine Model | Cat® C27 | Cat® C27 |
Rated Engine Speed | 2000 r/min | 2000 r/min |
Gross Power - SAE J1995 | 615 kW | 825 HP |
Net Power - SAE J1349 | 584 kW | 783 HP |
Net Power - ISO 9249 | 590 kW | 791 HP |
Net Power - 80/1269/EEC | 590 kW | 791 HP |
Bore | 137 mm | 5.4 in |
Stroke | 152 mm | 6 in |
Displacement | 27 l | 1648 in³ |
Peak Torque - Speed | 1300 r/min | 1300 r/min |
Engine Power - ISO 14396 | 607 kW | 813 HP |
Net Torque | 3896 N·m | 2874 ft-lb |
Note (3) | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. |
Note (1) | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. |
Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). |
Weights - Approximate
Maximum Gross Vehicle Weight | 111812 kg | 246503 lb |
Operating Specifications
Nominal Payload Class (100%) | 64.6 t | 71.3 ton (US) |
Top Speed - Loaded | 67.6 km/h | 42 mile/h |
Body Capacity - SAE 2:1 | 42.23 m³ | 55.23 yd³ |
Maximum Allowable Payload (120%)* | 77.5 t | 85.5 ton (US) |
Note (2) | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. |
Maximum Working Payload (110%) | 71.1 t | 78.3 ton (US) |
Note (1) | Capacity with Dual Slope body – no liner. | Capacity with Dual Slope body – no liner. |
Target Payload (100%) | 64.6 t | 71.3 ton (US) |
Transmission
Forward - 1 | 10.8 km/h | 6.7 mile/h |
Forward - 2 | 15.1 km/h | 9.4 mile/h |
Forward - 3 | 20.4 km/h | 12.7 mile/h |
Forward - 4 | 27.4 km/h | 17 mile/h |
Forward - 5 | 37 km/h | 23 mile/h |
Forward - 6 | 50.1 km/h | 31.1 mile/h |
Forward - 7 | 67.6 km/h | 42 mile/h |
Reverse | 14.1 km/h | 8.8 mile/h |
Note | Maximum travel speeds with standard 24.00R35 (E4) tires. | Maximum travel speeds with standard 24.00R35 (E4) tires. |
Final Drives
Differential Ratio | 3.64:1 | 3.64:1 |
Planetary Ratio | 4.80:1 | 4.80:1 |
Total Reduction Ratio | 17.49:1 | 17.49:1 |
Brakes
Brake Surface - Front | 655 cm² | 25.7 in² |
Brake Surface - Rear | 61269 cm² | 9497 in² |
Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
Body Hoists
Pump Flow - High Idle | 448 l/min | 118 gal/min |
Relief Valve Setting - Raise | 17250 kPa | 2502 psi |
Relief Valve Setting - Lower | 3450 kPa | 500 psi |
Body Raise Time - High Idle | 9.5 s | 9.5 s |
Body Lower Time - Float | 13 s | 12.5 s |
Body Power Down - High Idle | 13 s | 13 s |
Capacity - Dual Slope - 100% Fill Factor
Struck | 32.6 m³ | 42.7 yd³ |
Heaped (SAE 2:1)* | 42.2 m³ | 55.5 yd³ |
Note (2) | *ISO 6483:1980 | *ISO 6483:1980 |
Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Capacity - Flat Floor - 100% Fill Factor
Struck | 32.3 m³ | 42.2 yd³ |
Heaped (SAE 2:1)* | 42.2 m³ | 55.2 yd³ |
Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Note (2) | *ISO 6483:1980 | *ISO 6483:1980 |
Weight Distributions - Approximate
Front Axle - Empty | 52 % | 52 % |
Front Axle - Loaded | 34 % | 34 % |
Rear Axle - Empty | 48 % | 48 % |
Rear Axle - Loaded | 66 % | 66 % |
Suspension
Empty Loaded Cylinder Stroke Front | 234 mm | 9.2 in |
Empty Loaded Cylinder Stroke Rear | 149 mm | 5.8 in |
Rear axle - Oscillation | 8.1° | 8.1° |
Service Refill Capacities
Fuel Tank | 795 l | 210 gal (US) |
Cooling System | 154 l | 40.6 gal (US) |
Differential - Final Drives | 140 l | 37 gal (US) |
Steering Tank | 36 l | 9.5 gal (US) |
Steering System - Including Tank | 54 l | 14 gal (US) |
Torque Converter - Transmission System - HRC | 70 l | 18 gal (US) |
Torque Converter - Transmission System - LRC | 61 l | 16 gal (US) |
Crankcase | 90 l | 24 gal (US) |
Brake/Hoist Hydraulic Tank | 176 l | 46.5 gal (US) |
Brake Hoist System | 322 l | 85 gal (US) |
Tires
Note (1) | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Standard Tire | 24.00R35 (E4) | 24.00R35 (E4) |
ROPS
FOPS Standards | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. |
ROPS Standards | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. |
Sound
Sound Standards (1) | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
Sound Standards (2) | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A). |
Sound Standards (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Steering
Turning Diameter - Front | 22 m | 72.2 ft |
Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
Steer Angle | 31 ° | 31 ° |
Turning Circle - Clearance Diameter | 25 m | 82 ft |
• Haul your materials faster with an accelerated travel speed.
• Put more power to the ground with increased torque.
• Enjoy greater productivity while using a more responsive traction control system (TCS).
• Reduce tire wear with maximum traction by engaging TCS early in the slip.
• Strong, predictable performance helps operators achieve the lowest cost per ton.
• Automatic retarding control (ARC) maintains consistent engine speed for greater productivity and up to 15% faster downhill speeds as compared to a manual retarding system.
• Up to 13% less fuel consumption.
• Advanced productivity electronic control strategy (APECS) allows
the engine and transmission to communicate on a high level. This
communication allows the machine to better utilize the power and torque the engine is producing.
• Automatically optimize fuel consumption with the adaptive economy mode, which reduces fuel use without affecting productivity and can be engaged with a single button.
• Find improvements in fuel efficiency with auto neutral idle.
• Haul your truck at a more fuel-efficient engine speed and gear selection with speed limiting.
• Conserve fuel with integrated engine idle shutdown by the engine automatically initiating when the truck is in park and idle for a preset amount of time.
• Improvements in accessibility with safe ground-level access to fuel fill and daily maintenance points.
• Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
• Superior brake performance meets the latest brake standards—ISO 3450:2011.
• The ground-level engine shutoff switch stops all fuel to the engine when activated and shuts down the machine safely.
• Sturdy 4-point mounted cabin meets rollover protective structure/ falling objects protective structure (ROPS/FOPS) standard.
• 4-point seat belt provides enhanced safety to the operator.
• Seat belt indicator implements both visual and audible alerts to the
operator when seat belt is not fastened.
• Lockout features help the service technician to perform maintenance work on the machine with safe mode.
• Secondary steering activates automatically in case of primary system failure.
• Overload speed limiter works with truck payload system to reduce machine speed automatically when the truck is overloaded.
• Completely redesigned cab for a whole new standard in visibility, comfort, and productivity.
• The new operator seat placement provides easier operation and comfort to the operator.
• Improvements in visibility gain enlarged views of the work area and its surroundings.
• Access connectivity and decrease clutter with more storage areas with the newly designed cab.
• Enjoy the easy automotive-quality shifting with the new transmission controls.
• Automatic cab temperature controls.
• Cat next generation deluxe seat for better operator comfort.
• Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
• Gain valuable insight into how your machine is performing by continuously monitoring and collecting vital machine data via the advisor display with the software Vital Information Management
System (VIMS™). Applicable to both U.S. EPA Tier 4 Final/EU Stage V and U.S. EPA Tier 2 equivalent.
• Truck production management system (TPMS) provides accurate weighing of the materials, stores 2,400 payload cycles, and reports on weights, haul cycle times, and distances with date
and time stamps.
• External payload indicator lights/display alert the loader when to stop, reducing the risk of machine overloading.
• Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
• VisionLink® wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business.
• The Cat 775 is MineStar™ ready and includes Cat Product Link Elite and VIMS to help optimize equipment management, remote monitoring capabilities, machine availability, and
component life while reducing both repair costs and the risk of catastrophic failure.
• Tons kilometers per hour/tons miles per hour (TKPH/TMPH) tire management system works with TPMS for improved tire life.
• Grouped service points.
• Control particulate matter with two engine-mounted diesel
oxidation catalyst canisters. (Tier 4)
• NOx reduction system (NRS) technology replaces a portion of intake air with exhaust gas to control combustion temperatures and
NOx production. (Tier 4)
• Parts commonality with other Cat equipment.
• Resolve problems before failure occurs with VIMS notifications.
• Torque converter stall (autostall) enables quick operating temperatures for best performance life.
• All LED lights provide longer life, brighter light, consume less power, and are more resistant to vibration or water damage.
• Get the right body option—dual slope, flat floor, or quarry—for your material and job site needs.
• For haul profiles including steep slopes, an optional dual slope body
is available—offering excellent material retention.
• The X body’s flat floor is perfect for metering material, especially when feeding the crusher.
• Protect your truck’s body life in high-impact, hard rock applications with the optional rubber liner—available for dual slope and X bodies.
• Optional sideboards are available for flat floor, dual slope, and quarry bodies. Applicable for both Tier 4 and Tier 2 models.
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
POWER TRAIN
Cat C27 US EPA Tier 2/EU Stage II Equivalent diesel engine: – Air cleaner with precleaner (2) – Air-To-Air Aftercooler (ATAAC) – Electric start – Engine idle shutdown – Ether starting aid – Exhaust muffler – NGMR radiator |
For non-regulated regions only: – Direct drive fan – MEUI-A fuel system |
Braking system: – Extended Life Brakes – Automatic Retarder Control (ARC) – Manual retarder (utilizes rear oil-cooled, multiple disc brakes) – Brake release motor (towing) – Dry disc brakes (front) – Front brake disconnect switch (front) – Oil-cooled multiple disc brakes (rear) – Brake wear indicator (rear) – Parking brake – Secondary brake – Service brake |
Transmission: – 7-speed automatic powershift with:
– Automatic neutral idle – Autostall – Second gear start |
SUSPENSION SYSTEMS
Suspension, front and rear (EU compliant) |
ELECTRICAL
Alarm backup |
Alternator, 120 Amp |
Autolube power supply ready |
Batteries, maintenance-free, 12V (2), 1,400 CCA combined |
Electrical system, 25 Amp, 24V to 12V converter |
Lighting system: – Backup light (halogen) – Directional signals/hazard warning (front and rear LED) – Engine compartment light – Headlights, (halogen) with dimmer – Operator access courtesy lights – Side profile lights – Stop/tail lights (LED) |
Service center containing: – Battery jump start – Breakers with spare fuses – Lockout switch – Ports, ET, and VIMS – Service lockout switch (power without engine start) |
TECHNOLOGY PRODUCTS
Economy Modes, standard and adaptive |
Product Link, cellular or satellite |
Traction Control System (TCS) |
Truck Production Management System |
Vital Information Management System (VIMS) |
OPERATOR ENVIRONMENT
Advisor display: – Air cleaner service indicator – Fluid level monitoring – Fuel level monitoring – Display languages (market based) |
Air conditioning/heat |
Automatic temperature control |
Ashtray and cigarette lighter |
Coat hook |
Cup holders (4) |
Diagnostic connection port, 24V |
Entertainment radio ready: – 5 amp converter – Speakers – Antenna – Wiring harness |
Foot rest |
Gauges/indicators: – Brake oil temperature gauge – Coolant temperature gauge – Engine overspeed indicator – Fuel level – Hour meter – Speedometer with odometer – Tachometer – Transmission gear indicator |
Hoist lever |
Horn |
Light – courtesy |
Light – dome |
Mirrors, non-heated |
Power port, 24V and 12V (2) |
Rollover Protection (ROPS)/Falling Object Protection (FOPS) |
Seat, Cat Comfort Series III: – Full air suspension – Retractable 3-point seat belt with shoulder harness |
Seat, training with lap belt |
Steering wheel, padded, tilt and telescopic |
Storage compartment |
Sun visor |
Throttle lock |
Window, hinged, right side (emergency exit) |
Window, powered, left side |
Windshield wiper intermittent and washer |
GUARDS
Driveline |
Engine crankcase |
Fan |
FLUIDS
Antifreeze |
Extended life coolant to –34° C (–30° F) |
Grouped ground-level filters |
OTHER STANDARD EQUIPMENT
Body down indicator |
Body safety pin (secures body in up position) |
Center-mounted rims |
Fuel tank, 795 L (210 gal) |
Ground level battery disconnect |
Ground level engine shutdown |
Ground level grease fittings |
Operator Maintenance Manual (OMM) |
Rims 17 × 35 |
Rock ejectors |
Secondary steering (electric) |
Tie down eyes |
Tow hooks (front)/tow pin (rear) |
Vandalism protection locks |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
