40 mm (1.6 in) Pins

Studio Shot

40 mm (1.6 in) Pins

Pins

Cat® Pins for attachments are plated for corrosion and wear resistance. Required for normal operation of plate compactors or order a spare set to use with Pin Grabber couplers.

Weight

12.3 lb/5.594 kg

Pin Diameter

40 mm (1.6 in)

Quantity

2

Length

11.1 in/281 mm

Get a quote Compare

Specifications

Metric | Imperial

Weight

12.3 lb 5.594 kg

Pin Diameter

40 mm (1.6 in)

Quantity

2

Length

11.1 in 281 mm

Compatible Attachments

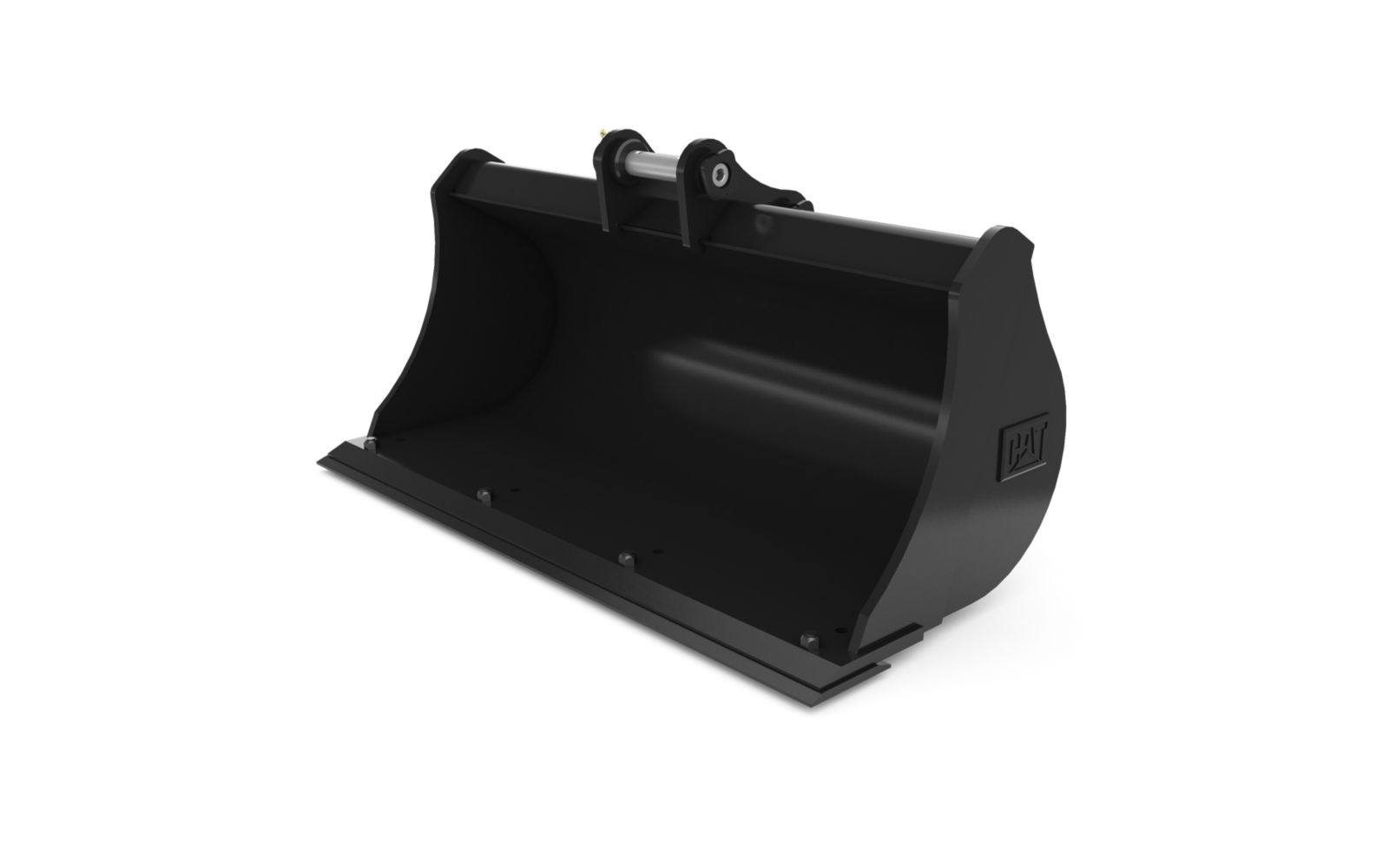

1200 mm (47 in), 159 L (5.6 ft3), Pin On (Pin Grabber), 40 mm (1.6 in)

Width

47 in/1200 mm

Capacity

5.6 ft³/159 l

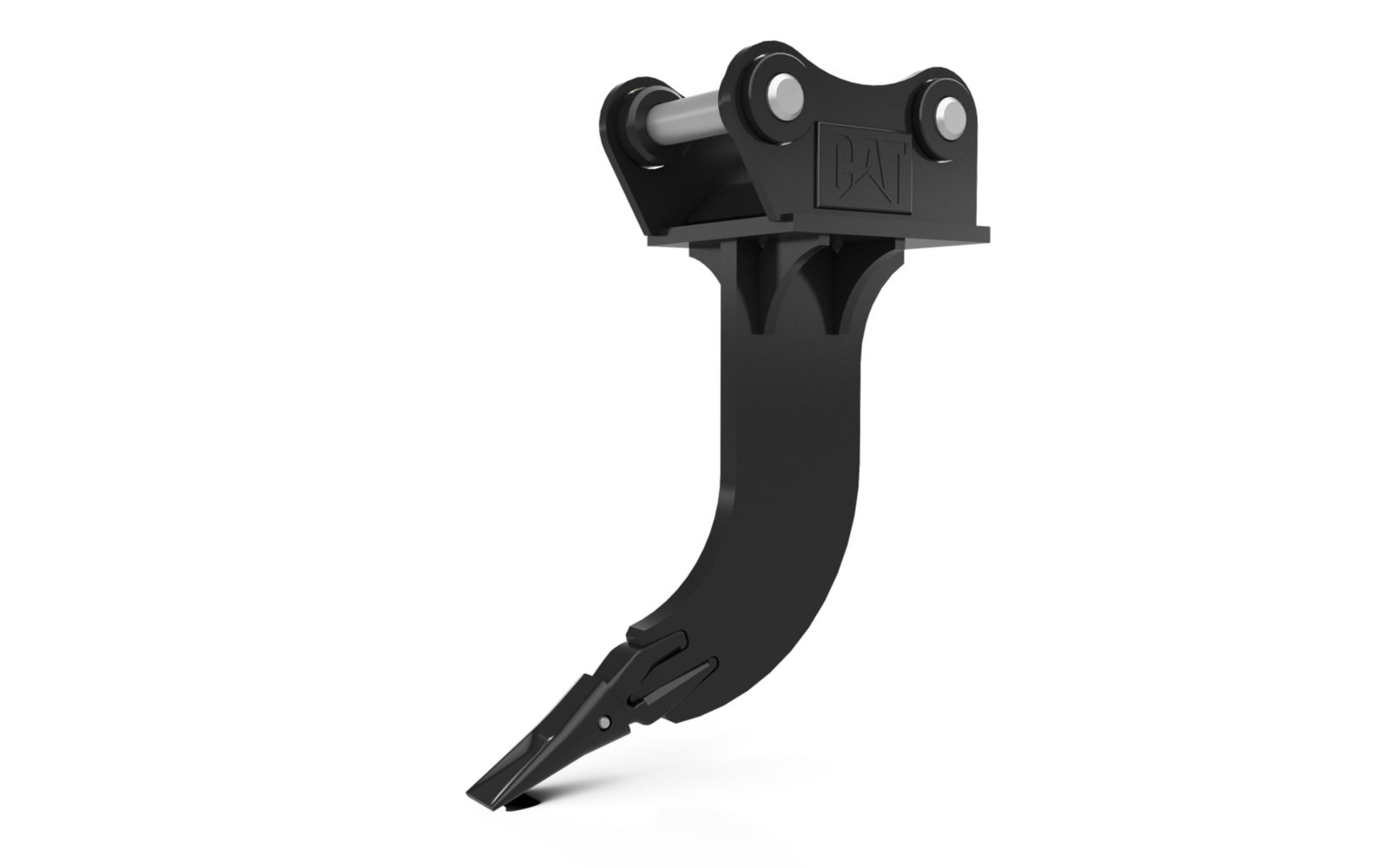

490 mm (19 in), 3-4 Ton Mini Excavators

Shank Length

19.3 in/490 mm

Weight

99.2 lb/45 kg

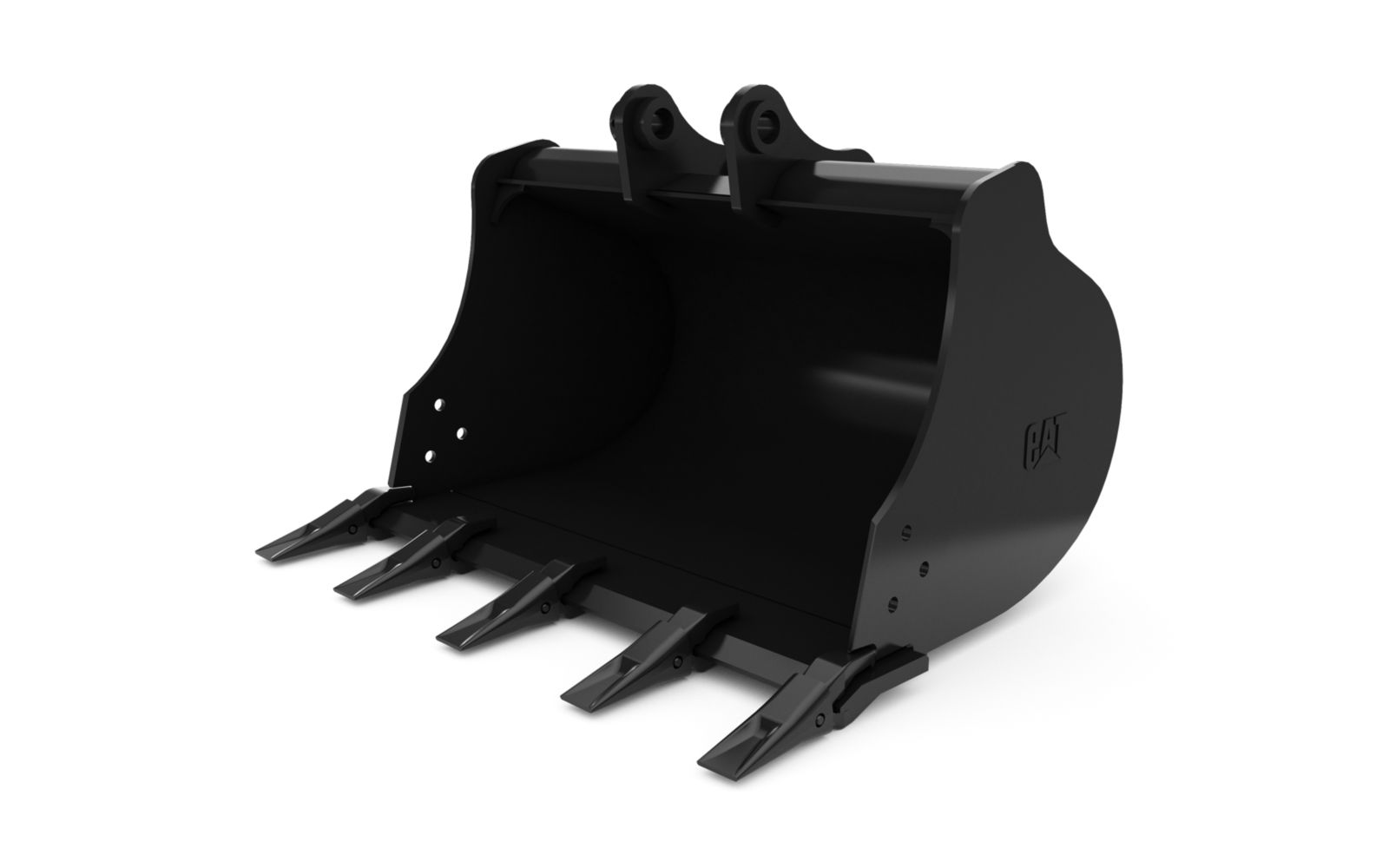

914 mm (36 in), 200 L (7.1 ft3), Pin On, 40 mm (1.6 in)

Width

36 in/914 mm

Capacity

7.1 ft³/199.89 l

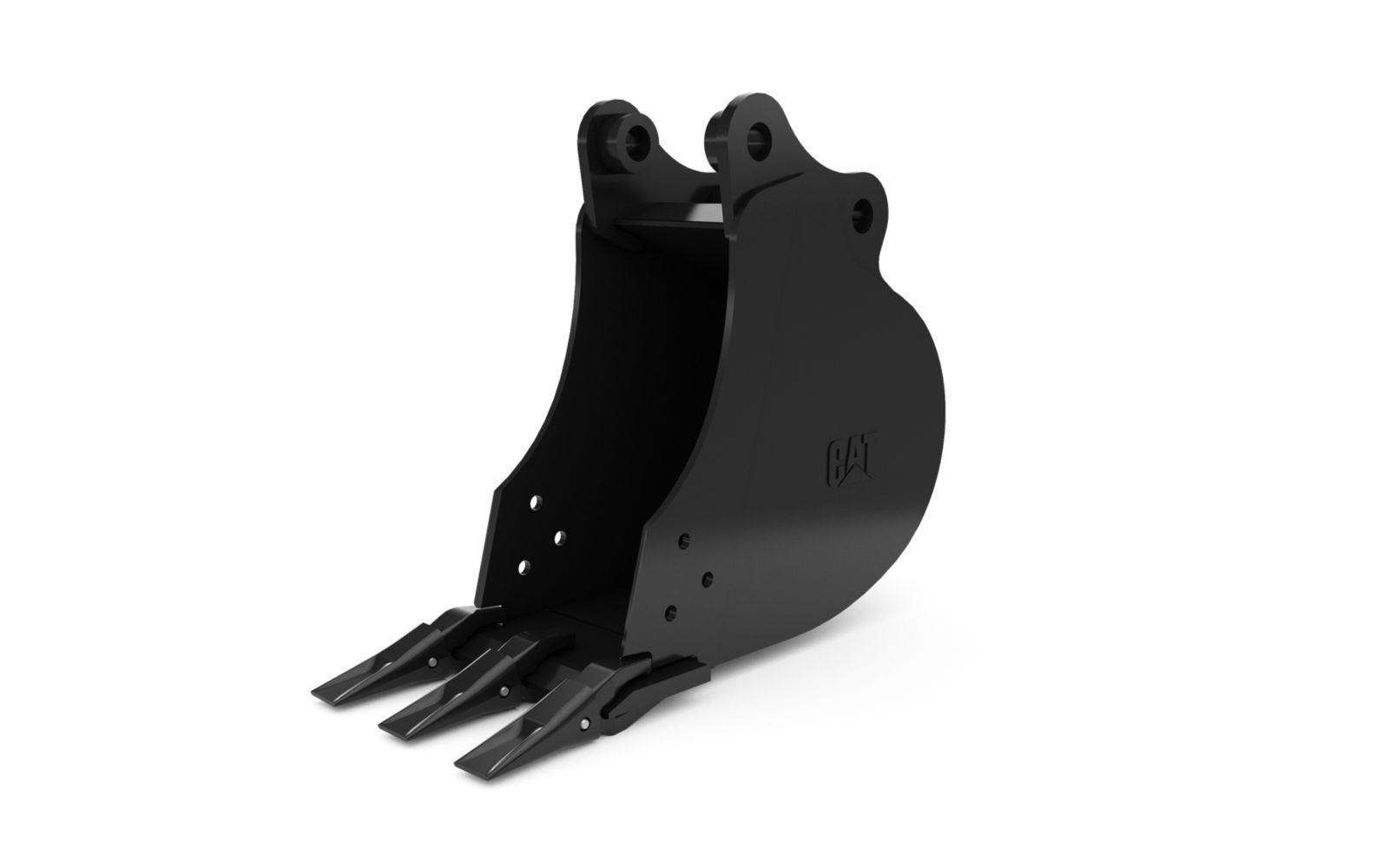

406 mm (16 in), 71 L (2.5 ft3), Pin On, 40 mm (1.6 in)

Width

16 in/406 mm

Capacity

2.5 ft³/70.8 l

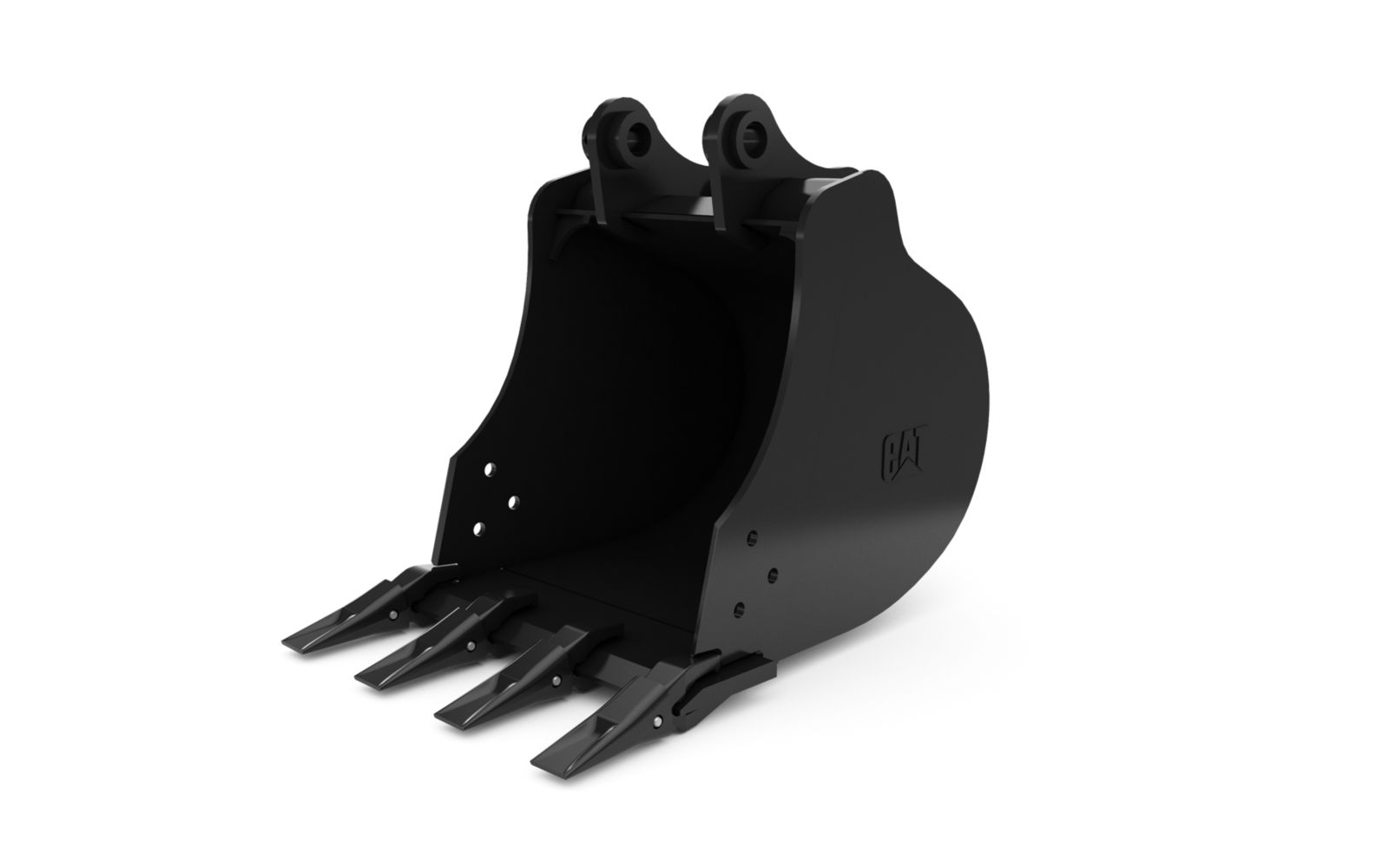

457 mm (18 in), 82 L (2.9 ft3), Pin On, 40 mm (1.6 in)

Width

18 in/457 mm

Capacity

2.9 ft³/82.09 l

508 mm (20 in), 93 L (3.3 ft3), Pin On, 40 mm (1.6 in)

Width

20 in/508 mm

Capacity

3.3 ft³/93.4 l

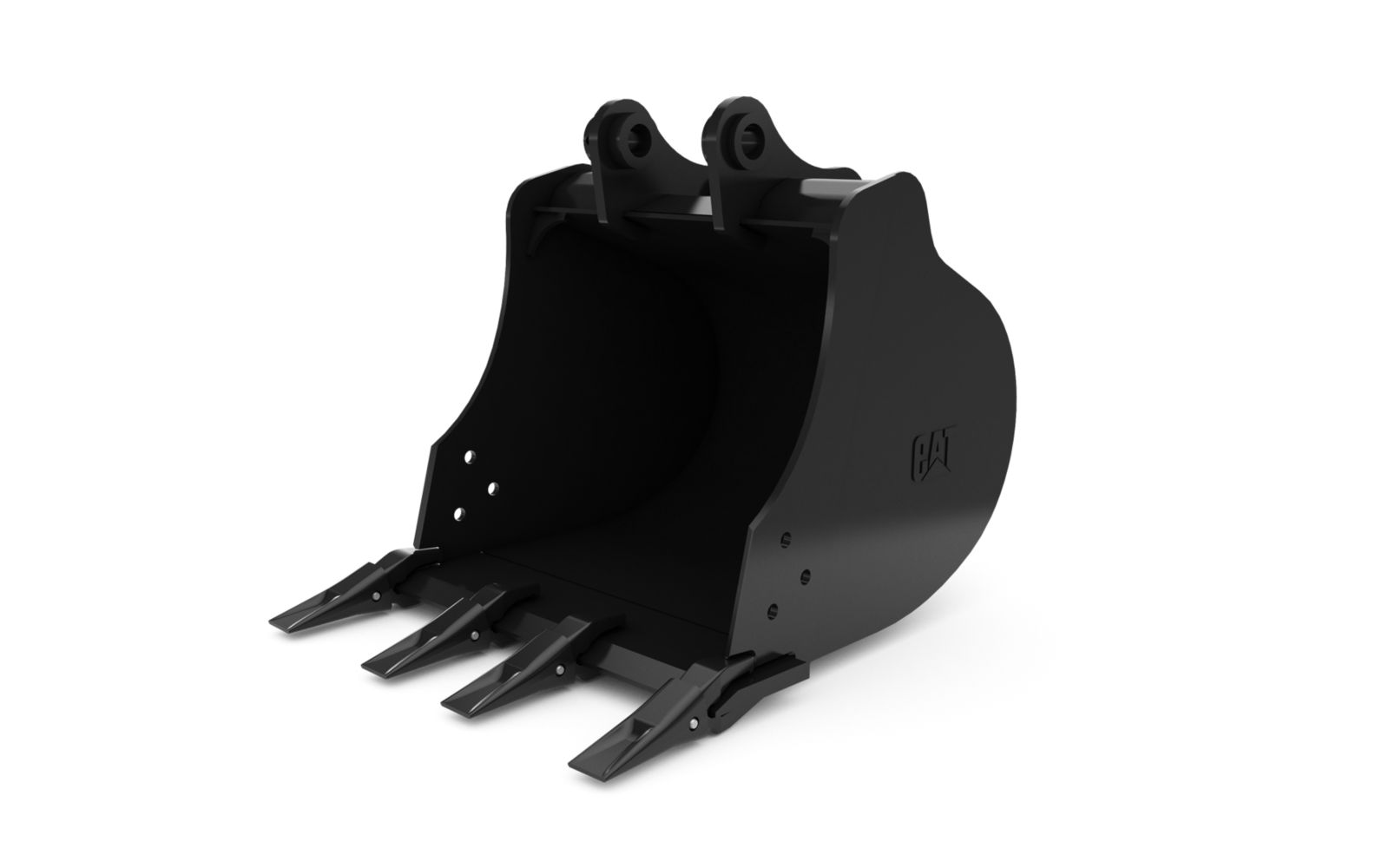

619 mm (24 in), 119 L (4.2 ft3), Pin On, 40 mm (1.6 in)

Width

24.4 in/619 mm

Capacity

4.2 ft³/118.9 l

762 mm (30 in), 159 L (5.6 ft3), Pin On, 40 mm (1.6 in)

Width

30 in/762 mm

Capacity

5.6 ft³/158.6 l

305 mm (12 in), 48 L (1.7 ft3), Pin On, 40 mm (1.6 in)

Width

12 in/305 mm

Capacity

1.7 ft³/48.09 l

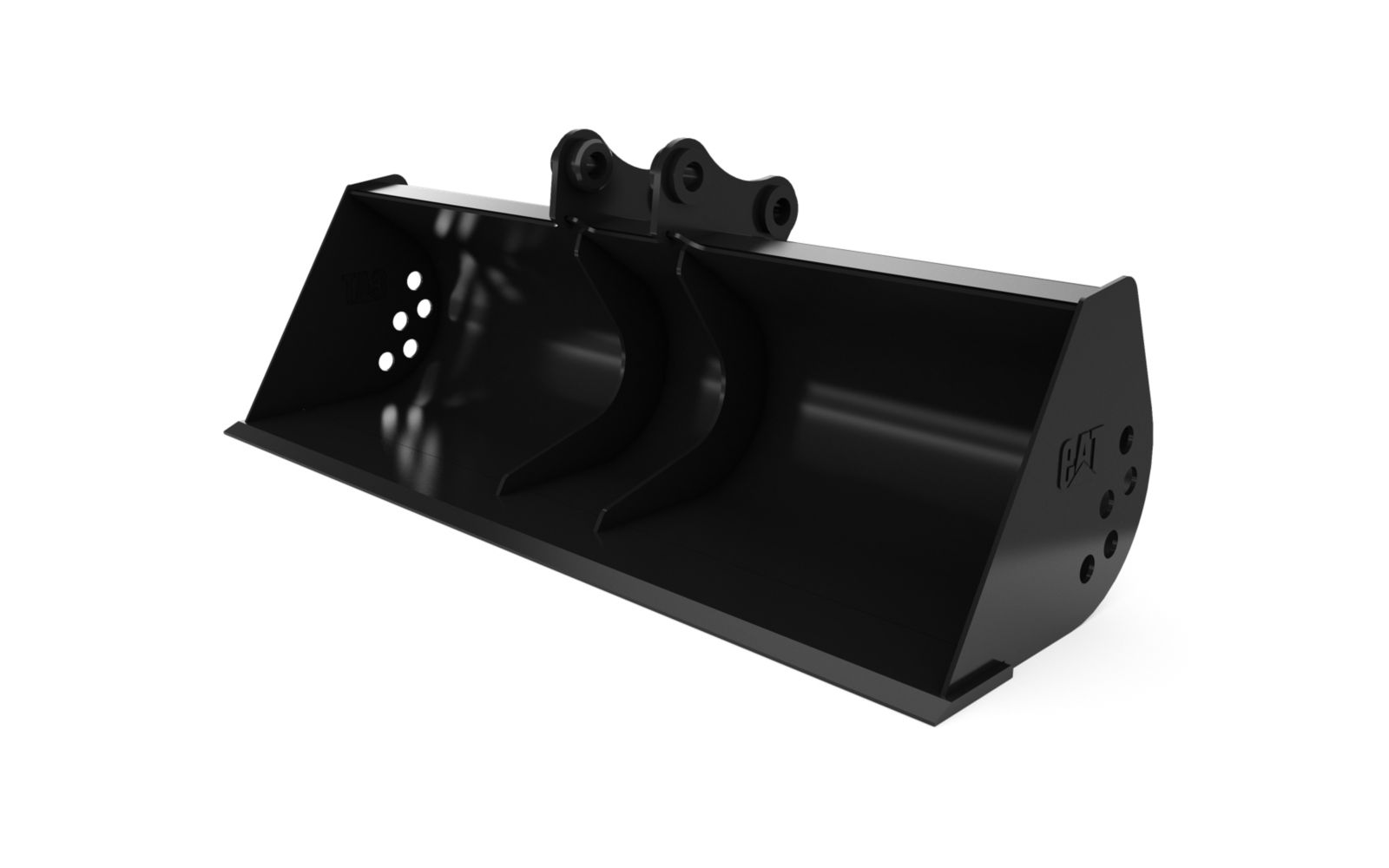

1200 mm (47 in)

Width

47.2 in/1200 mm

Capacity

8.2 ft³/231.89 l

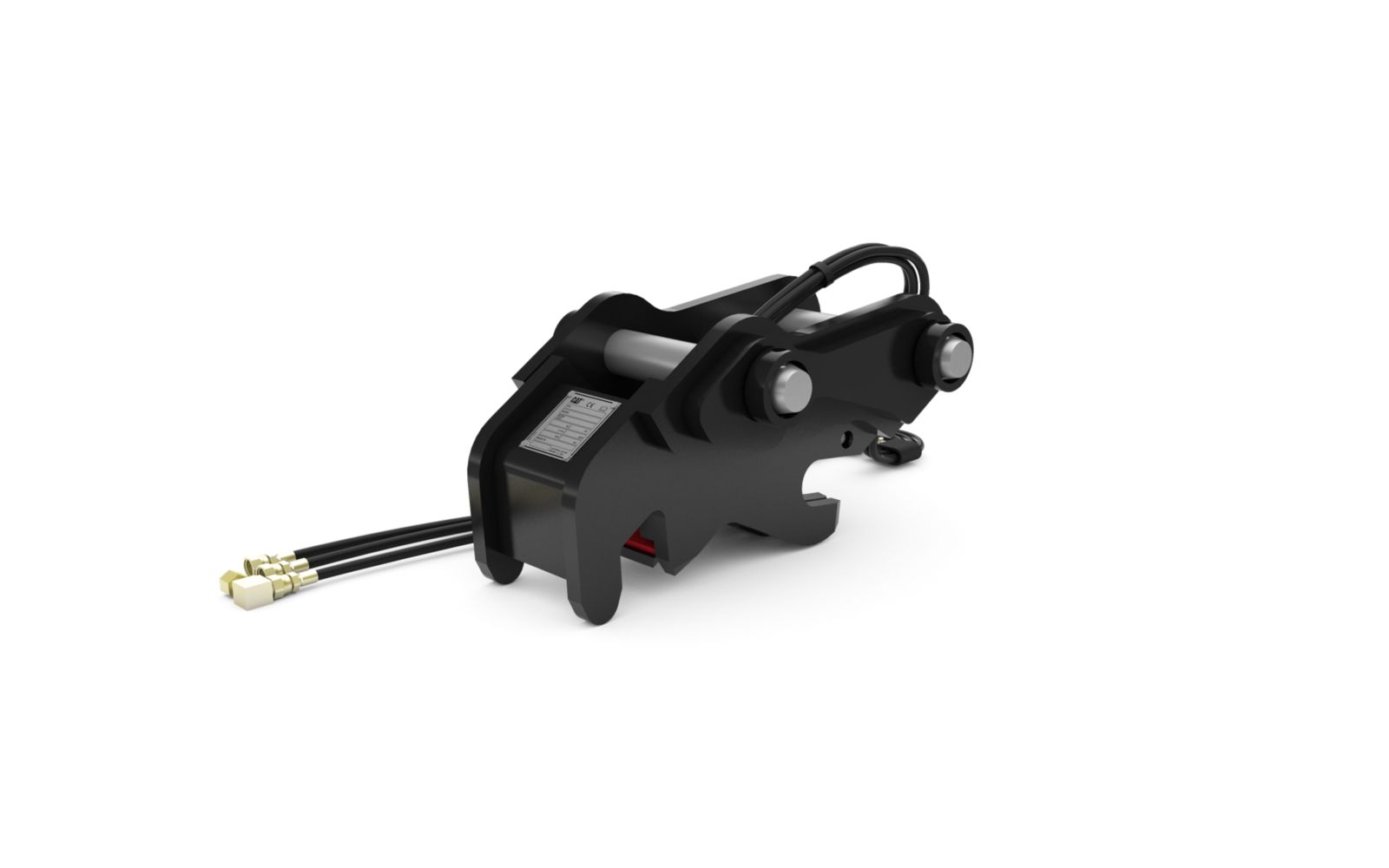

3-4 Ton Mini Excavators Hydraulic

Weight

90.4 lb/41 kg

Width

9.9 in/252 mm

3-4 Ton Mini Excavators Manual

Weight

81.6 lb/37 kg

Width

10.6 in/269 mm

1000 mm (40 in), 136 L (4.8 ft3), Pin On

Width

40 in/1000 mm

Weight

240.1 lb/108.9 kg

1400 mm (55 in), 197 L (7 ft3), Pin On

Width

55.1 in/1400 mm

Weight

259.2 lb/117.59 kg

406 mm (16 in), Pin On, 3-4 Ton Mini Excavators

Compaction Width

15.7 in/399 mm

Number of Wheels

3

559 mm (22 in), Pin On, 3-4 Ton Mini Excavators

Compaction Width

21.8 in/553 mm

Number of Wheels

4

305 mm (12 in), Pin On, 3-4 Ton Mini Excavators

Compaction Width

10.7 in/271 mm

Number of Wheels

2

A23, 3 Ton Mini Excavators

Drive Shaft Torque at Maximum Pressure

1699.3 lb/ft/2304 N·m

Drive Method

Gerotor Motor - Direct Drive

A41, 3 Ton Mini Excavators

Drive Shaft Torque at Maximum Pressure

3038.8 lb/ft/4120 N·m

Drive Method

Gerotor Motor - Single Planetary Reduction
