Products
Attachments
Buckets - Compact Wheel Loader
General Purpose Buckets
1.05 m3 (1.4 yd3), HPL-V Coupler, Bolt-On Teeth
Attachments
Buckets - Compact Wheel Loader
General Purpose Buckets
1.05 m3 (1.4 yd3), HPL-V Coupler, Bolt-On Teeth
Photos
1.05 m3 (1.4 yd3), HPL-V Coupler, Bolt-On Teeth

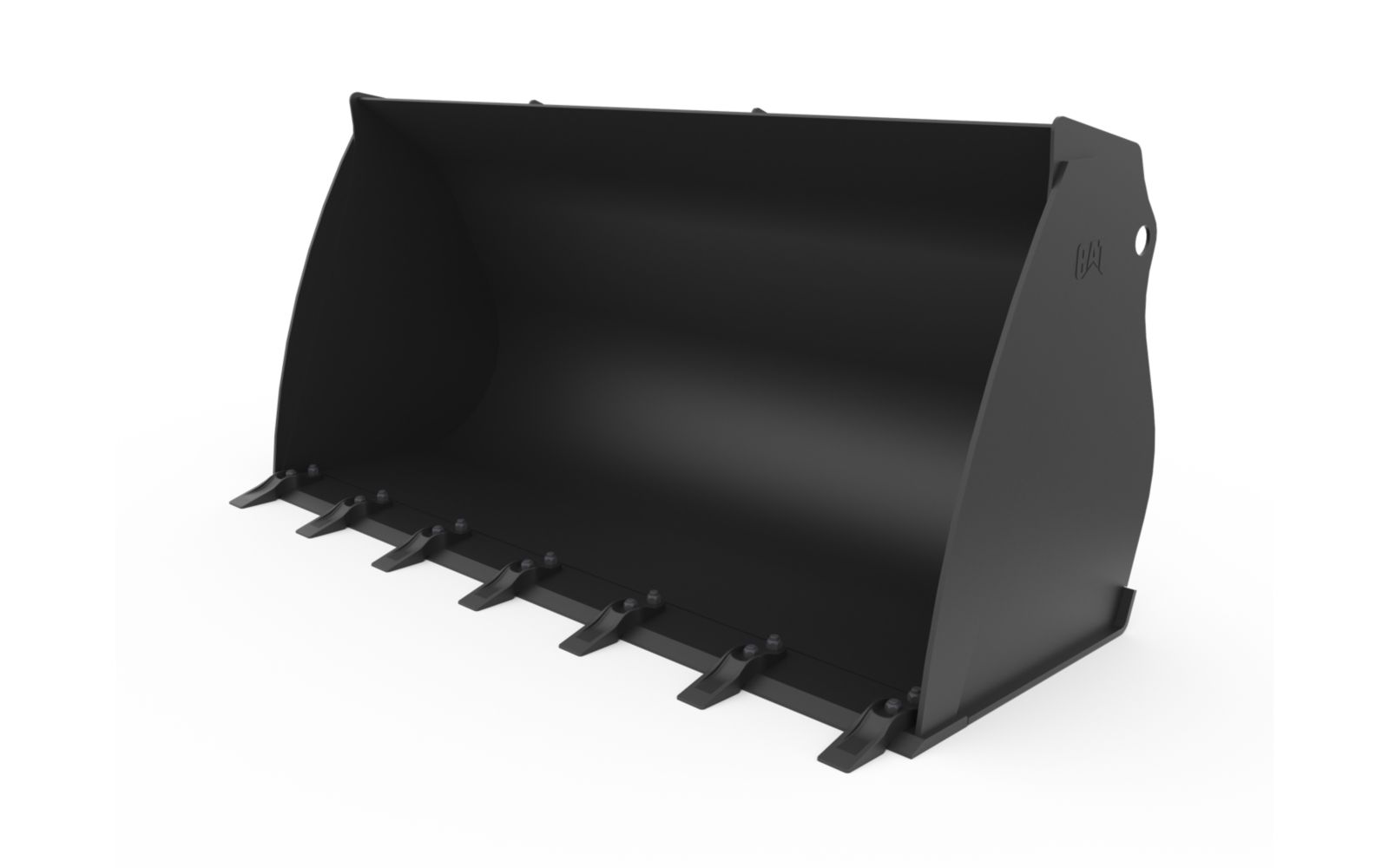

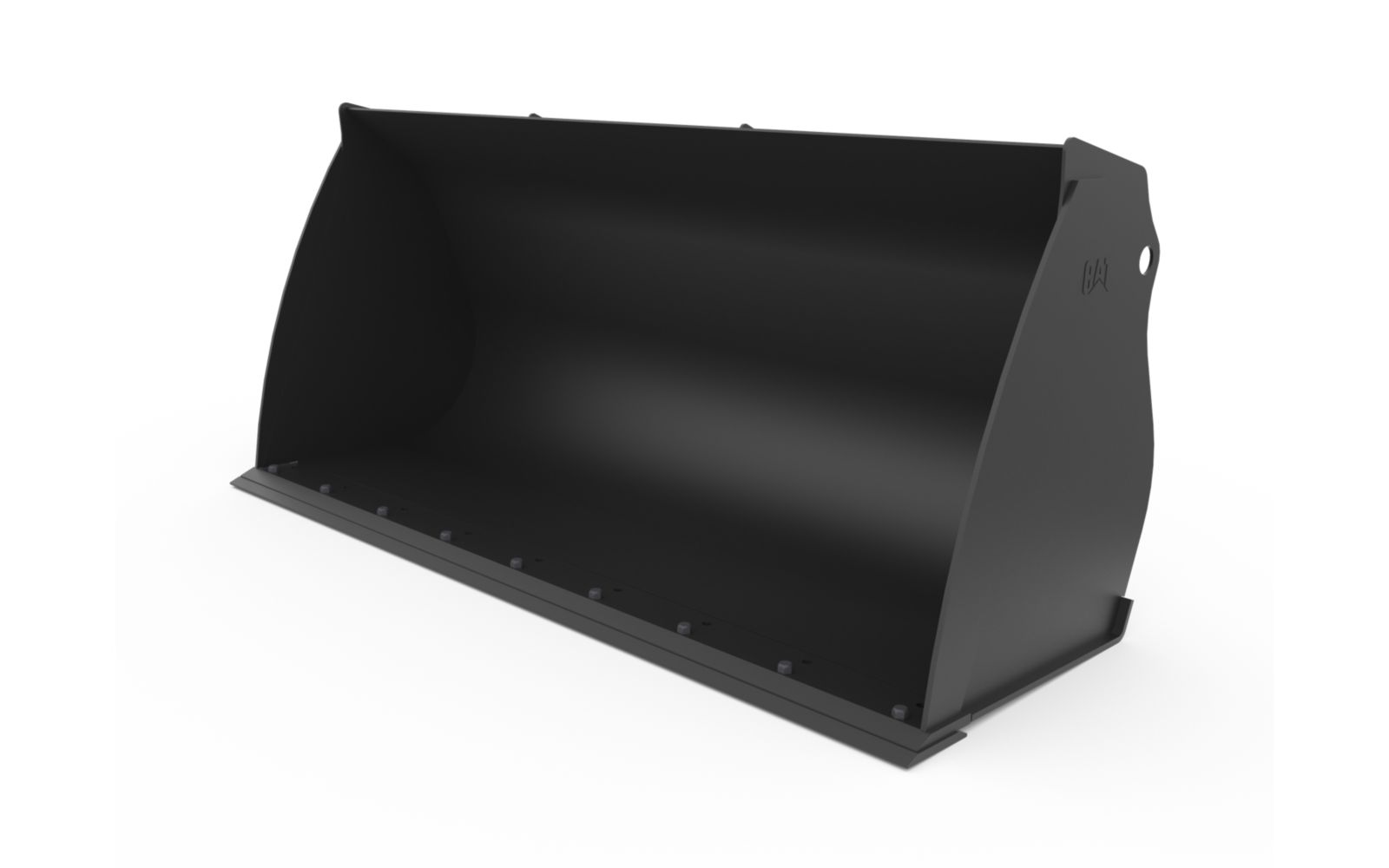

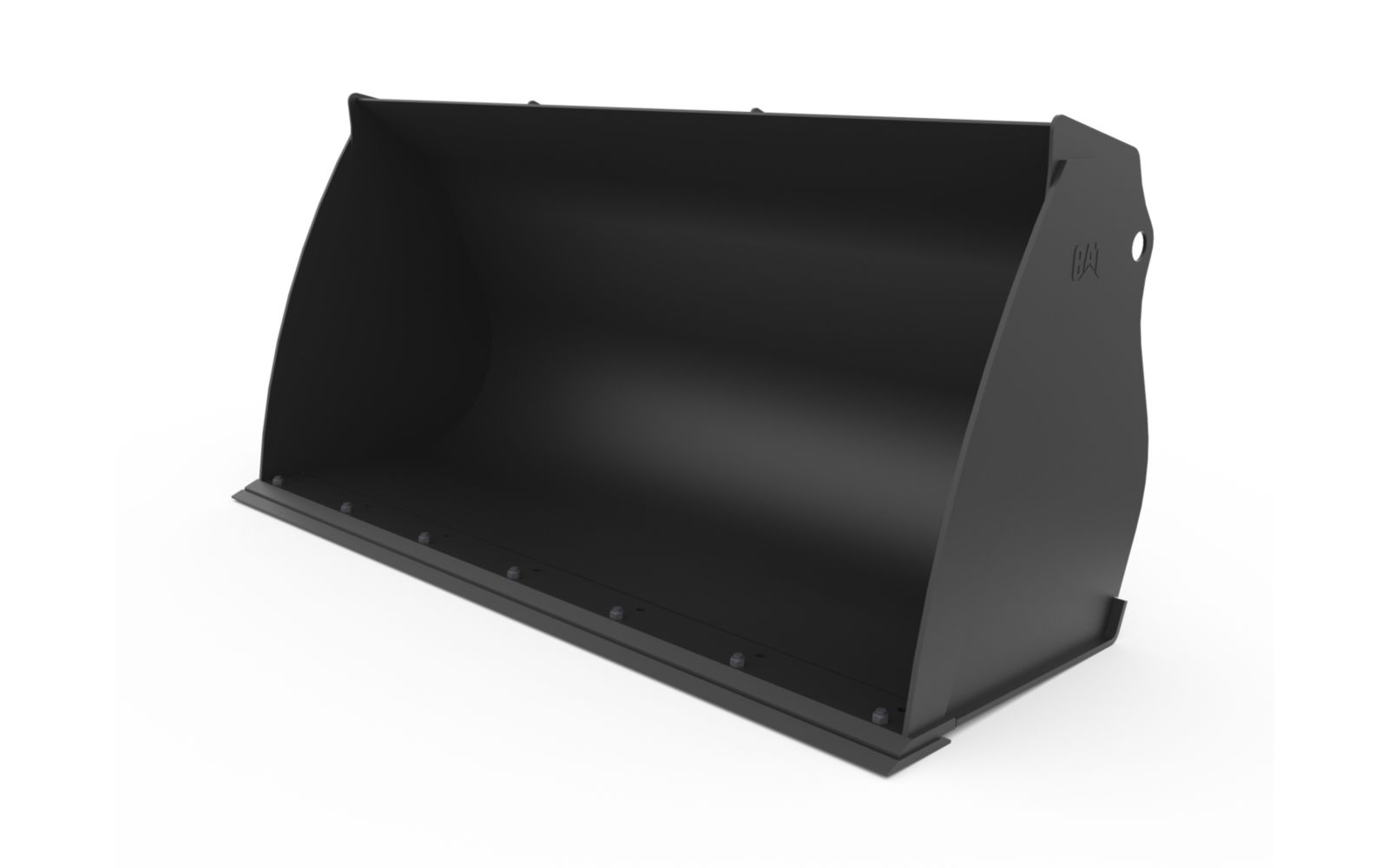

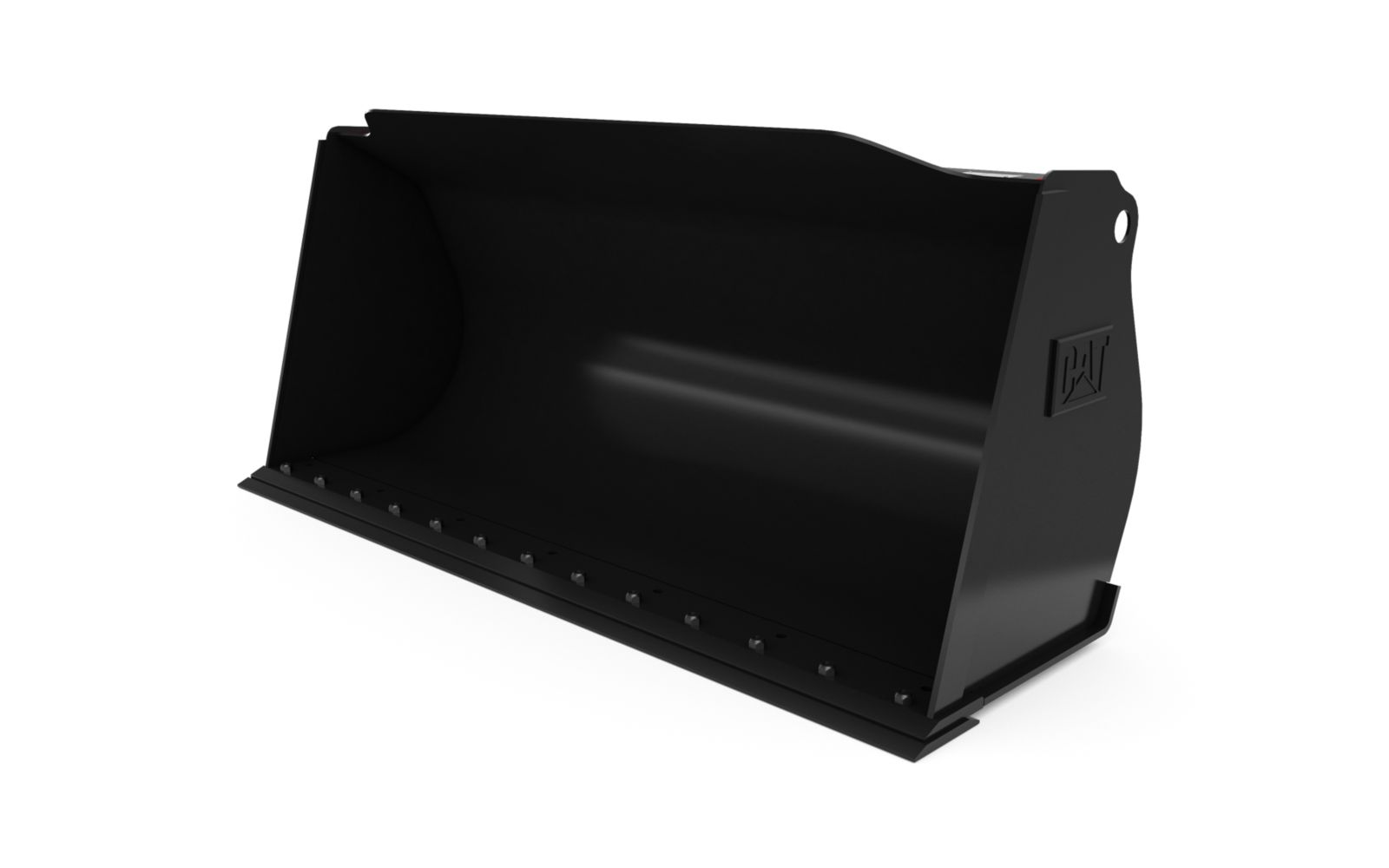

Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Videos
1.05 m3 (1.4 yd3), HPL-V Coupler, Bolt-On Teeth
An Attachment for Every Job - Cat® Work Tool Attachments
1.05 m3 (1.4 yd3), HPL-V Coupler, Bolt-On Teeth
General Purpose Buckets
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
Width
80.2 in/2036 mm
Weight
873 lb/396 kg
Height
36.2 in/920 mm
Length
38.2 in/970 mm
Key Features
Curved Side Plates
Flat Upper Torque Tube
Rugged Design
Ground Engaging Tool Options
Ground Engaging Tool Options
Specifications
Metric
|
Imperial
Width
80.2 in
2036 mm
Weight
873 lb
396 kg
Height
36.2 in
920 mm
Length
38.2 in
970 mm
Capacity
1.4 yd³
1.05 m³
Base Edge Thickness
0.7 in
19 mm
Cutting Edge Thickness
0.6 in
16 mm
Interface Type
HPL-V Coupler
Width
70.5 in/1790 mm
Weight
686.1 lb/311.2 kg
Width
74.4 in/1890 mm
Weight
822.3 lb/373 kg
Width
74.4 in/1890 mm
Weight
886.3 lb/402 kg
Width
74.4 in/1890 mm
Weight
879.6 lb/399 kg
Width
74.4 in/1890 mm
Weight
877.4 lb/398 kg
Width
80.5 in/2045 mm
Weight
917.1 lb/416 kg
Width
81.9 in/2080 mm
Weight
987.7 lb/448 kg
Width
81.9 in/2080 mm
Weight
1058.2 lb/480 kg
