Compactors
CV117
Vibratory action and dynamic force provides excellent compaction in a compact size.
Request a quote
Overview

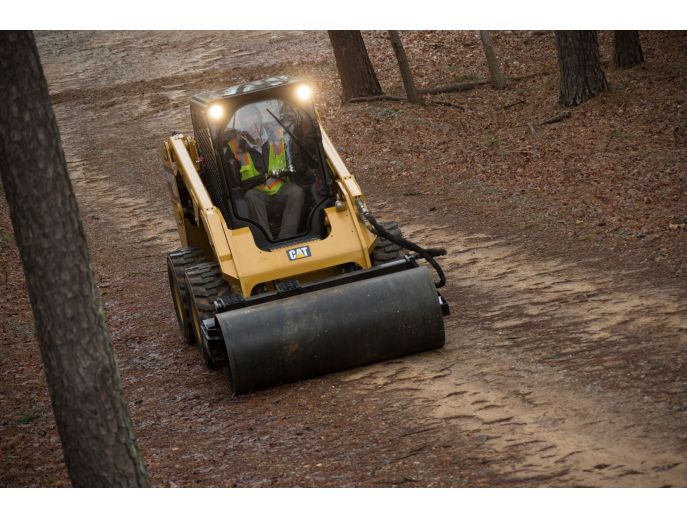

Cat® Vibratory Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
UNITS:
Metric
Imperial
| Drum Width | 1676 mm | 66 in |
| Weight | 936 kg | 2063.5 lb |
| Required Hydraulics | Standard Flow | Standard Flow |
| Overall Width | 1854 mm | 73 in |
| Height | 634 mm | 25 in |
| Length | 1009 mm | 39.7 in |
| Drum Diameter | 634 mm | 25 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Drum Frequency at Maximum Flow | 2,946 vibrations/minute | 2,946 vibrations/minute |
| Drum Oscillation Tilt Range | ± 15 degrees | ± 15 degrees |
| Dynamic Force | 5399 kg | 11902.7 lb |
| Amplitude | 1.15 mm | 0.046 in |
| Motor Size | 28 cm³ | 1.7 in³ |
| Drive Method | Gear Motor - Direct | Gear Motor - Direct |
Features
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Vibratory Pod Design
Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.
Higher Compaction Forces
High compaction forces result in fewer passes for greater productivity.
Replaceable Rubber Mounts
Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.
High Strength Steel Drums
Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.
Pivoting Interface
Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.
Spring-Loaded Scraper Bar
Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.
Overview
Cat® Vibratory Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
UNITS:
Metric
Imperial
| Drum Width | 1676 mm | 66 in |
| Weight | 936 kg | 2063.5 lb |
| Required Hydraulics | Standard Flow | Standard Flow |
| Overall Width | 1854 mm | 73 in |
| Height | 634 mm | 25 in |
| Length | 1009 mm | 39.7 in |
| Drum Diameter | 634 mm | 25 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Drum Frequency at Maximum Flow | 2,946 vibrations/minute | 2,946 vibrations/minute |
| Drum Oscillation Tilt Range | ± 15 degrees | ± 15 degrees |
| Dynamic Force | 5399 kg | 11902.7 lb |
| Amplitude | 1.15 mm | 0.046 in |
| Motor Size | 28 cm³ | 1.7 in³ |
| Drive Method | Gear Motor - Direct | Gear Motor - Direct |
Features
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Vibratory Pod Design
Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.
Higher Compaction Forces
High compaction forces result in fewer passes for greater productivity.
Replaceable Rubber Mounts
Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.
High Strength Steel Drums
Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.
Pivoting Interface
Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.
Spring-Loaded Scraper Bar
Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.
