Couplers - Excavator
Quick Couplers are the high-performance option for Cat® Excavators. Couplers allow one man to change work tools in seconds for maximum performance and flexibility on the job site. One machine can move rapidly from task to task, and a fleet of similarly equipped machines can share a common work tool inventory.

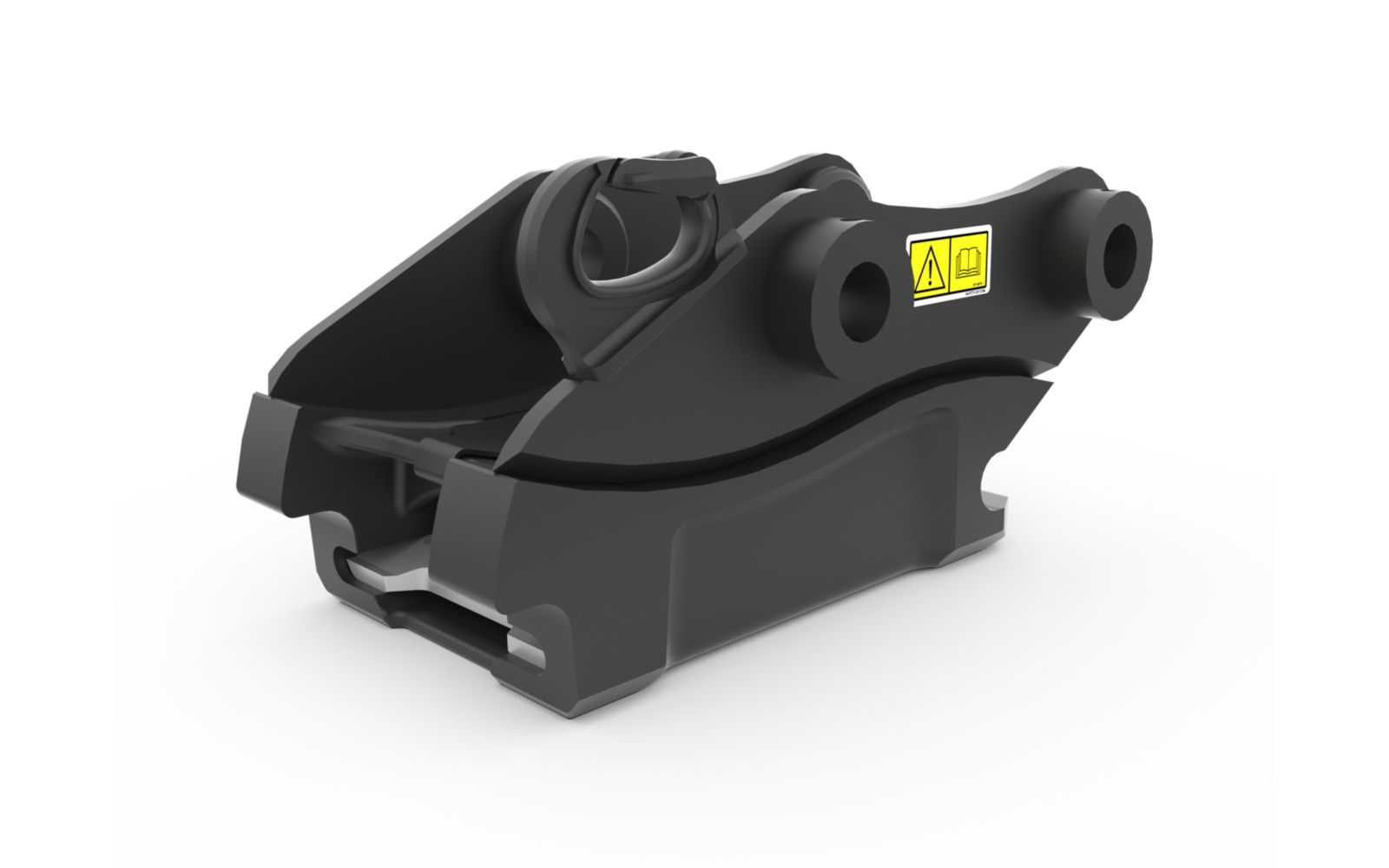

Pin Grabber Couplers
Minimum Carrier Weight
11 ton (US)/11 ton (US)
Maximum Carrier Weight
15 ton (US)/15 ton (US)
Minimum Carrier Weight
15 ton (US)/15 ton (US)
Maximum Carrier Weight
18 ton (US)/18 ton (US)
Minimum Carrier Weight
19 ton (US)/19 ton (US)
Maximum Carrier Weight
23 ton (US)/23 ton (US)
Minimum Carrier Weight
24 ton (US)/24 ton (US)
Maximum Carrier Weight
35 ton (US)/35 ton (US)
Minimum Carrier Weight
30 ton (US)/30 ton (US)
Maximum Carrier Weight
40 ton (US)/40 ton (US)
Minimum Carrier Weight
45 ton (US)/45 ton (US)
Maximum Carrier Weight
52 ton (US)/52 ton (US)
S Type Couplers
Weight
209.4 lb/95 kg
Lifting Hook Capacity
6613.9 lb/3000 kg
Tilting Dual Lock™ Pin Grabber Couplers - Mini Excavator
Weight
255.7 lb/116 kg
Overall Width
11.7 in/298 mm
Weight
448.2 lb/203.3 kg
Overall Width
14.6 in/370 mm
