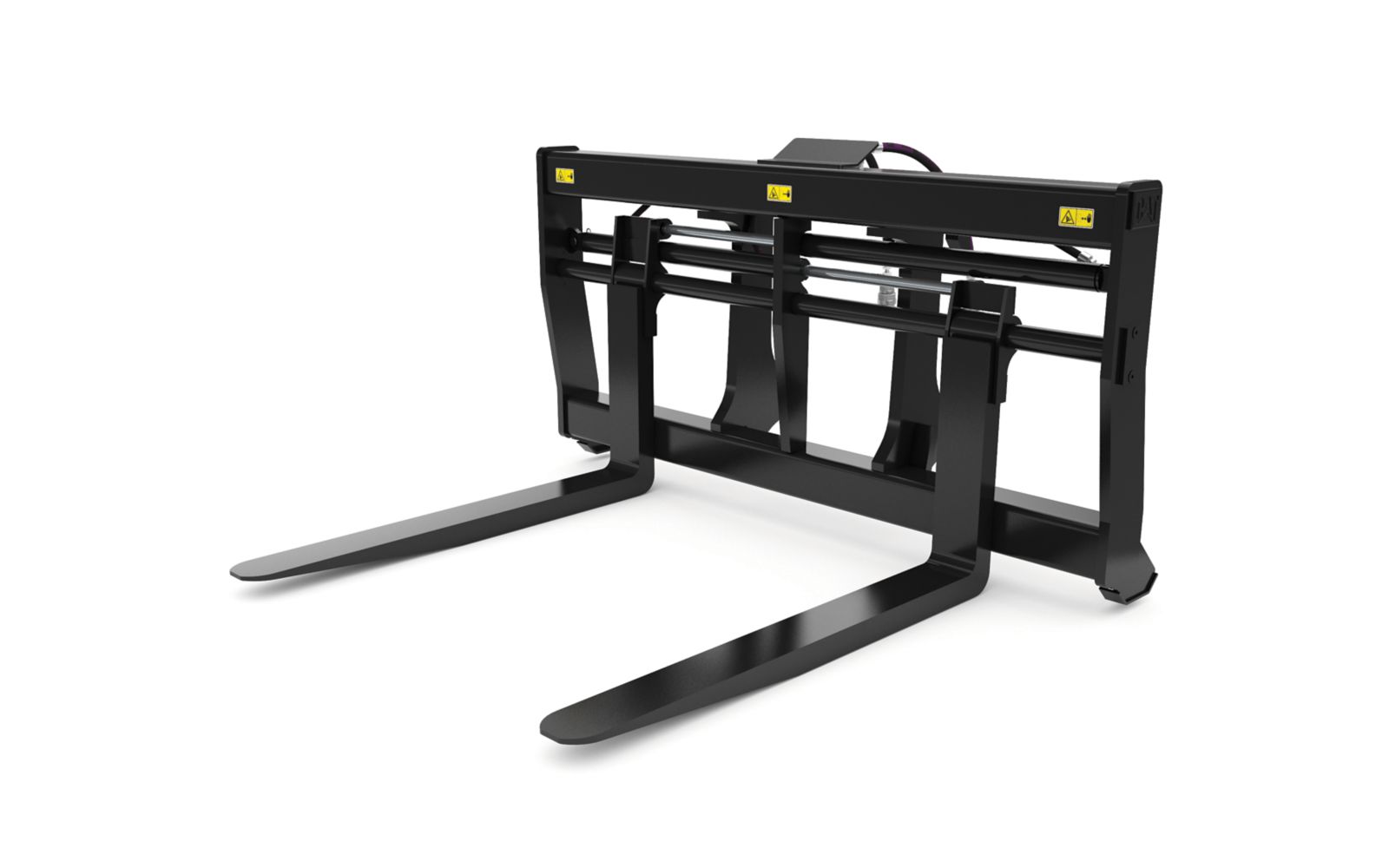

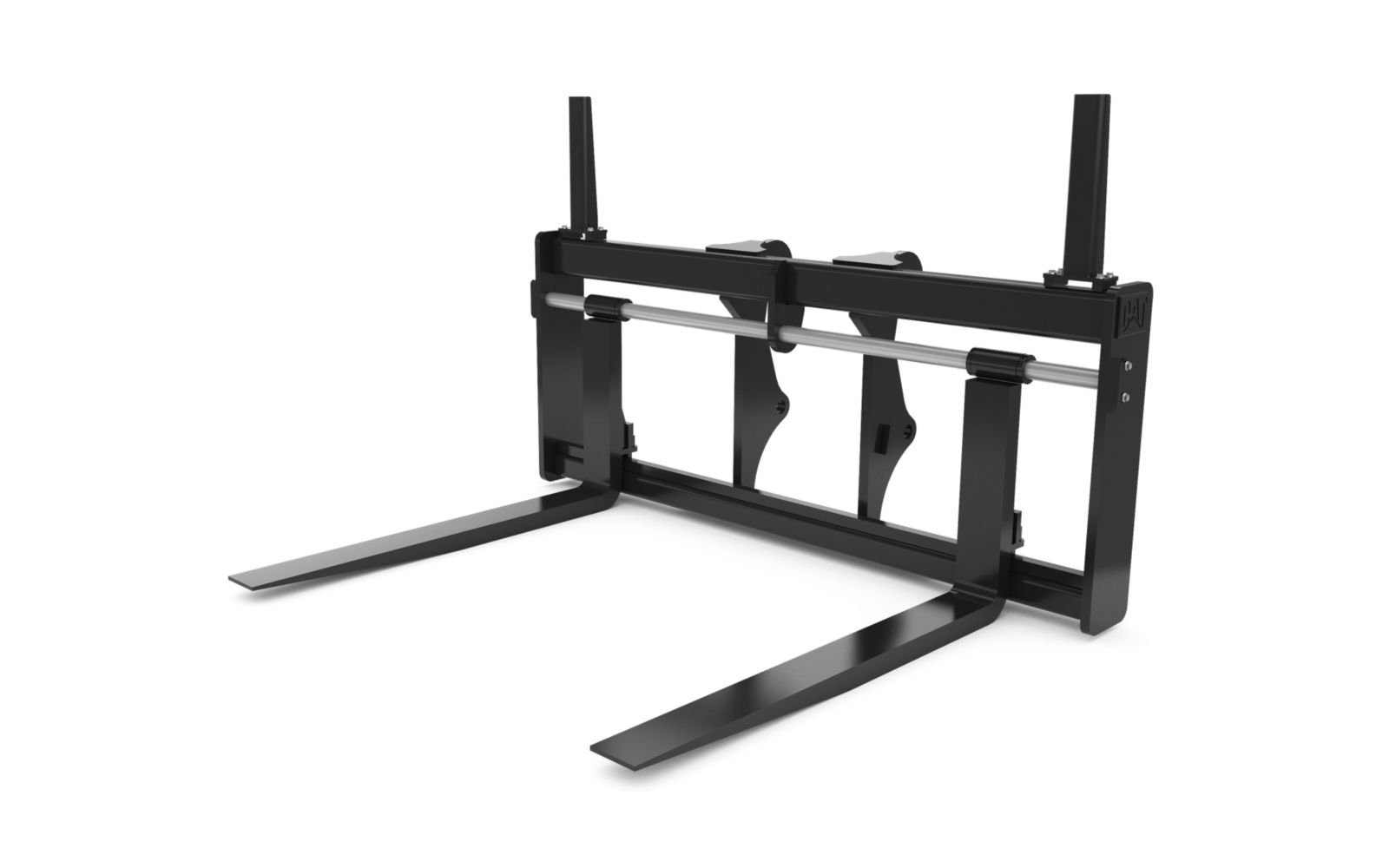

Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Videos
1220 mm (48 in), Skid Steer Coupler, Class II
1220 mm (48 in), Skid Steer Coupler, Class II
Pallet Forks
Cat® Pallet Forks are designed to meet a wide variety of material handling needs. Use pallet forks for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Height
36.8 in/934 mm
Width
45.8 in/1164 mm
Weight
211.6 lb/96 kg
Tine Length
48 in/1220 mm
Key Features
Application
Heavy Duty Backrest
Notched Rail-type Carriage
One Carriage for All Carrying Capacities
Specifications
Metric
|
Imperial
Height
36.8 in
934 mm
Width
45.8 in
1164 mm
Weight
211.6 lb
96 kg
Tine Length
48 in
1220 mm
Tine Width
3.9 in
100 mm
Tine Height
21.3 in
541 mm
Tine Thickness
1.6 in
40 mm
Tine Weight
105.8 lb
48 kg
Group Weight
430 lb
195 kg
Operating Weight
429.9 lb
195 kg
Overall Length
58.3 in
1481.9 mm
Interface Type
Skid Steer Coupler
