Multi-Processor with Concrete Cutter Jaws

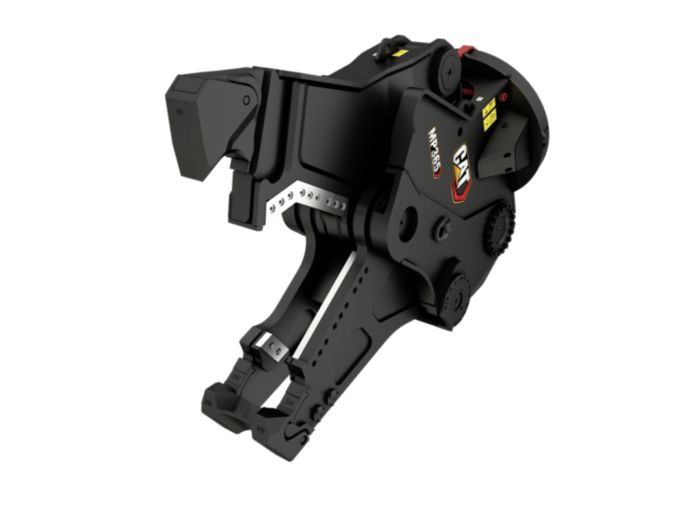

MP365 Concrete Cutter Jaw

Multi-Processor with Concrete Cutter Jaws

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Cycle Time - Open

2.1 s/2.1 s

Cycle Time - Close

1.6 s/1.6 s

Crushing Force - Primary Cutter

665 Sh Ton/5918 kN

Crushing Force - Cutter Tip

309 Sh Ton/2747 kN

Get a quote Compare

Downloads Specs

Key Features

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Change Jaws in 15 Minutes

Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
MP332 accepts these jaw types:
- Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition – opens wide to crack the largest concrete structures
- Pulverizer – crushes concrete, separating the rebar
- Shear – cuts structural steel, pipe, and cable

Durable and Maintainable

Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.

Specifications

Metric | Imperial

Performance

Cycle Time - Open

2.1 s 2.1 s

Cycle Time - Close

1.6 s 1.6 s

Crushing Force - Primary Cutter

665 Sh Ton 5918 kN

Crushing Force - Cutter Tip

309 Sh Ton 2747 kN

Crushing Force - Tooth Tip

227 Sh Ton 2017 kN

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure

350 bar 5076 psi

Jaw Circuit - Max. Oil Flow

119 gpm 450 L/min

Rotation Circuit - Max. Oil Pressure

2321 psi 160 bar

Rotation Circuit - Max. Oil Flow

50 L/min 13 gpm

Dimensions - Jaw

Jaw Depth

41 in 1051 mm

Cutter Length

634 mm 25 in

Jaw Opening - Maximum

48.5 in 1232 mm

Jaw Width - Fixed

20.0 in 509 mm

Jaw Width - Moveable

187 mm 7.4 in

Weight

Weight - Housing, Jaw and Bracket

12465 lb 5654 kg

Weight - Jaw Only

5670 lb 2572 kg

Recommended Carrier Weight

Excavator Minimum

65 tons

Excavator Maximum

90 tons

Downloads

MP365 Multi-Processor Key Features

Multi-Processor Brochure

Multi-Processors Technical Specifications

Similar Products

MP318 Concrete Cutter Jaw

Cycle Time - Open

1.6 s/1.6 s

Cycle Time - Close

1 s/1 s

MP324 Concrete Cutter Jaw

Cycle Time - Open

1.8 s/1.8 s

Cycle Time - Close

1.2 s/1.2 s

MP332 Concrete Cutter Jaw

Cycle Time - Open

1.9 s/1.9 s

Cycle Time - Close

1.3 s/1.3 s

MP345 Concrete Cutter Jaw

Cycle Time - Open

1.9 s/1.9 s

Cycle Time - Close

1.3 s/1.3 s
