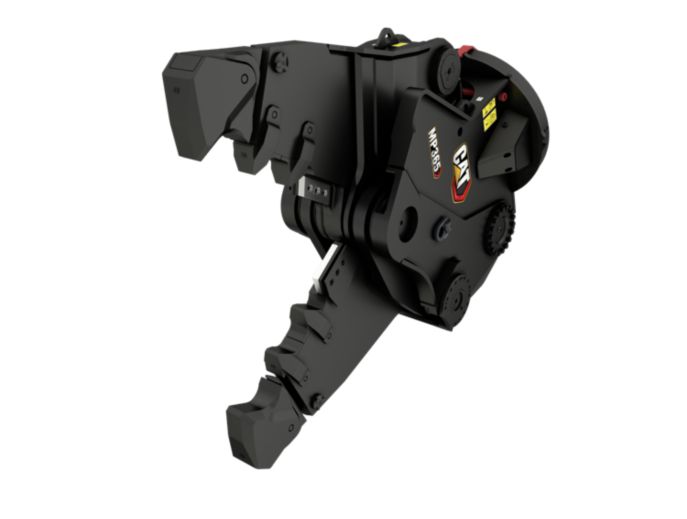

Multi-Processor with Demolition Jaws
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
2.1 s/2.1 s
Cycle Time - Close
1.6 s/1.6 s
Crushing Force - Primary Cutter
820.3 Sh Ton/7298 kN
Crushing Force - Cutter Tip
700.9 Sh Ton/6236 kN
Key Features
Cycle Times are 50 Percent Faster
Up to 19 Percent More Force
Change Jaws in 15 Minutes
Durable and Maintainable
Specifications
Metric
|
Imperial
Performance
Cycle Time - Open
2.1 s
2.1 s
Cycle Time - Close
1.6 s
1.6 s
Crushing Force - Primary Cutter
820.3 Sh Ton
7298 kN
Crushing Force - Cutter Tip
700.9 Sh Ton
6236 kN
Crushing Force - Tooth Tip
266.3 Sh Ton
2369 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure
4786 psi
33000 kPa
Jaw Circuit - Max. Oil Flow
118.9 gpm
450 L/min
Rotation Circuit - Max. Oil Pressure
16000 kPa
2321 psi
Rotation Circuit - Max. Oil Flow
50 L/min
13.2 gpm
Dimensions - Jaw
Jaw Depth
42.9 in
1089 mm
Cutter Length
8.9 in
225 mm
Jaw Opening - Maximum
54.5 in
1384 mm
Jaw Width - Fixed
7.4 in
187 mm
Jaw Width - Moveable
7.4 in
187 mm
Dimensions - Housing + Jaw
Length
105.4 in
2678 mm
Height
103.4 in
2626 mm
Width
43.3 in
1100 mm
Recommended Carrier Weight
Excavator Minimum
65 tons
Excavator Maximum
90 tons
