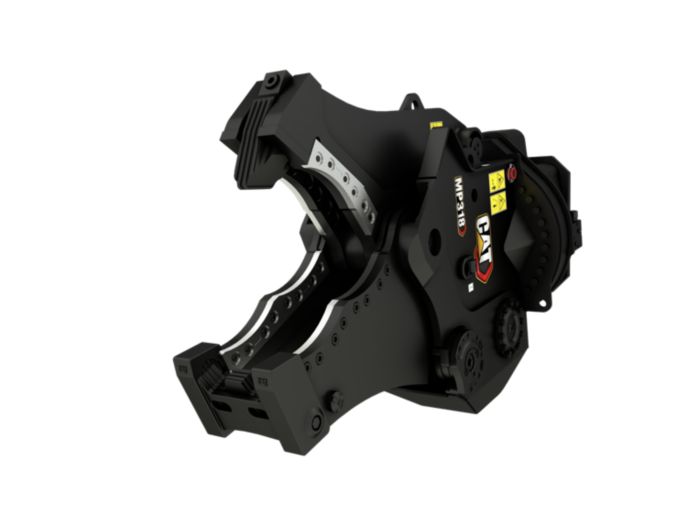

MP318 Universal Jaw
Videos
MP318 Universal Jaw
MP318 Universal Jaw
Multi-Processor with Universal Jaws
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
1.6 s/1.6 s
Cycle Time - Close
1.0 s/1.0 s
Crushing Force - Primary Cutter
299 Sh Ton/2661 kN
Crushing Force - Cutter Tip
167 Sh Ton/1489 kN
Key Features
Cycle Times are 50 Percent Faster
Up to 19 Percent More Force
Change Jaw in 15 Minutes
Durable and Maintainable
Specifications
Metric
|
Imperial
Performance
Cycle Time - Open
1.6 s
1.6 s
Cycle Time - Close
1.0 s
1.0 s
Crushing Force - Primary Cutter
299 Sh Ton
2661 kN
Crushing Force - Cutter Tip
167 Sh Ton
1489 kN
Crushing Force - Tooth Tip
96 Sh Ton
855 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure
5076 psi
350 bar
Jaw Circuit - Max. Oil Flow
40 gpm
150 L/min
Rotation Circuit - Max. Oil Pressure
2031 psi
140 bar
Rotation Circuit - Max. Oil Flow
11 gpm
40 L/min
Dimensions - Jaw
Jaw Depth
22.2 in
565 mm
Cutter Length
15.7 in
400 mm
Jaw Opening - Maximum
18.2 in
462 mm
Jaw Width - Fixed
15.0 in
380 mm
Jaw Width - Moveable
8.4 in
214 mm
Dimensions - Housing + Jaw
Length
78.9 in
2003 mm
Height
50.2 in
1274 mm
Width
31.2 in
793 mm
Weight
Weight - Housing, Jaw and Bracket
4352 lb
1974 kg
Weight - Jaw Only
1682 lb
763 kg
Recommended Carrier Weight
Excavator Minimum
18 tons
Excavator Maximum
25 tons
