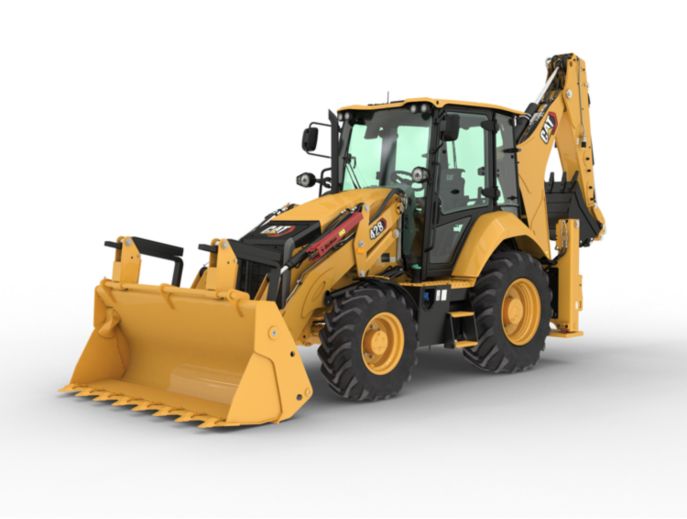

428 Backhoe Loader
428
Side Shift Backhoe Loaders
The Cat® 428 Backhoe Loader provides a proven engine, improved operator comfort, greater lifting performance, a powershift transmission, an Excavator Style Boom, powerful and efficient hydraulics, three Power Management Modes, and Product Link™.
Power - Net
87 hp/64 kW
Stroke
5 in/127 mm
Power Rating Conditions - No De-Rating Required Up To
7500 ft/2286 m
Ratings at 2,200 rpm - Gross Power ISO 14396
68 kW/93 hp
Key Features
Proven Cat® Engine
Improved Operator Comfort
Greater Lifting Performance
Powershift Transmission
Excavator Style Boom
Powerful and Efficient Hydraulics
Product Link™
Specifications
Metric
|
Imperial
Engine
Power - Net
87 hp
64 kW
Engine - Standard Offering Tier 2 Equivalent
Stroke
5 in
127 mm
Power Rating Conditions - No De-Rating Required Up To
7500 ft
2286 m
Ratings at 2,200 rpm - Gross Power ISO 14396
68 kW/93 hp
Torque Rise (net) - SAE J1349 Net
283 lbf
384 N·m
Bore
4.1 in
105 mm
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Torque Rise (net)
38% @ 1,400 rpm
Displacement
269 in³
4.4 l
Net Power Rating at 2,200 rpm - SAE J1349
64 kW/87 hp
Engine
3054C 68.5 kW Mechanical Turbo
Net Power Rating at 2,200 rpm - ISO 9249
65 kW/88 hp
Ratings at 2,200 rpm - Gross Power SAE J1995
69 kW/94 hp
Engine - Optional Offering Tier 2 Equivalent
Engine
3054C 68.5 kW Mechanical Turbo
Torque Rise (net) - SAE J1349 Net
283 lbf
384 N·m
Bore
4.1 in
105 mm
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Stroke
5 in
127 mm
Displacement
269 in³
4.4 l
Net Power Rating at 2,200 rpm - SAE J1349
64 kW/87 hp
Power Rating Conditions - No De-Rating Required Up To
7500 ft
2286 m
Ratings at 2,200 rpm - Gross Power SAE J1995
69 kW/94 hp
Ratings at 2,200 rpm - Gross Power ISO 14396
68 kW/93 hp
Net Power Rating at 2,200 rpm - ISO 9249
65 kW/88 hp
Torque Rise (net)
38% @ 1,400 rpm
Engine - Optional Offering Tier 3 Equivalent
Bore
4.1 in
105 mm
Net Power Rating at 2,200 rpm - ISO 9249
65 kW/88 hp
Power Rating Conditions - No De-Rating Required Up To
7500 ft
2286 m
Stroke
5 in
127 mm
Torque Rise (net) - SAE J1349 Net
283 lbf
384 N·m
Ratings at 2,200 rpm - Gross Power SAE J1995
69 kW/94 hp
Torque Rise (net)
38% @ 1,400 rpm
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Engine
3054C 68.5 kW Mechanical Turbo
Displacement
269 in³
4.4 l
Ratings at 2,200 rpm - Gross Power ISO 14396
68 kW/93 hp
Net Power Rating at 2,200 rpm - SAE J1349
64 kW/87 hp
Engine - Optional Offering Tier 3 Equivalent - A
Ratings at 2,200 rpm - Gross Power SAE J1995
69 kW/94 hp
Displacement
269 in³
4.4 l
Torque Rise (net)
38% @ 1,400 rpm
Torque Rise (net) - SAE J1349 Net
283 lbf
384 N·m
Ratings at 2,200 rpm - Gross Power ISO 14396
68 kW/93 hp
Net Power Rating at 2,200 rpm - ISO 9249
65 kW/88 hp
Bore
4.1 in
105 mm
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Stroke
5 in
127 mm
Net Power Rating at 2,200 rpm - SAE J1349
64 kW/87 hp
Power Rating Conditions - No De-Rating Required Up To
7500 ft
2286 m
Engine
3054C 68.5 kW Mechanical Turbo
Transmission - Power Shuttle Transmission (Standard)
Reverse - 3rd
13 mile/h
21 km/h
Reverse - 4th
23 mile/h
37 km/h
Forward - 4th
23 mile/h
37 km/h
Forward - 3rd
13 mile/h
21 km/h
Reverse - 2nd
5.7 mile/h
9.2 km/h
Forward - 2nd
5.7 mile/h
9.2 km/h
Reverse - 1st
3.5 mile/h
5.6 km/h
Forward - 1st
3.5 mile/h
5.6 km/h
Transmission - Powershift Transmission (Optional)
Reverse - 1st
3.5 mile/h
5.6 km/h
Forward - 2nd
5.7 mile/h
9.2 km/h
Reverse - 3rd
13 mile/h
21 km/h
Forward - 3rd
13 mile/h
21 km/h
Reverse - 2nd
5.7 mile/h
9.2 km/h
Forward - 4th
23 mile/h
37 km/h
Forward - 1st
3.5 mile/h
5.6 km/h
Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)
Reverse - 2nd
5.7 mile/h
9.2 km/h
Forward - 4th
23 mile/h
37 km/h
Forward - 5th
16.8 mile/h
27 km/h
Forward - 2nd
5.7 mile/h
9.2 km/h
Reverse - 1st
3.5 mile/h
5.6 km/h
Forward - 1st
3.5 mile/h
5.6 km/h
Forward - 3rd
13 mile/h
21 km/h
Reverse - 3rd
13 mile/h
21 km/h
Forward - 6th
24.9 mile/h
40 km/h
Axle Ratings
Front Axle (AWD) - Dynamic
19842 lb
9000 kg
Front Axle (AWD) - Static
51809 lb
23500 kg
Rear Axle - Dynamic
22046 lb
10000 kg
Rear Axle - Static
58422 lb
26500 kg
Weights
Operating Weight - Nominal
18243 lb
8275 kg
Operating Weight - Maximum
24251 lb
11000 kg
Operating Weight - ROPS Capacity - Maximum
24251 lb
11000 kg
Loader, IT with Quick Coupler
408 lb
185 kg
Auto-Shift Transmission
231 lb
105 kg
Ride Control
33 lb
15 kg
Counterweights - Base
254 lb
115 kg
Extendible Stick - Excludes Front Counterweight
459 lb
208 kg
Counterweights - Maximum
1014 lb
460 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks
1896 lb
860 kg
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Cab - ROPS/FOPS
STD
Counterweights - Stackable, One
529 lb
240 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks
1486 lb
674 kg
Total Gross Weight Not to Exceed
24251 lb
11000 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - MP
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - MP
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - GP
1014 lb
460 kg
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - GP
254 lb
115 kg
Air Conditioning
STD
Operating Weight (estimated)
18243 lb
8275 kg
Hydraulic System
System Pressure - Loader
3626 psi
250 bar
System Pressure - Backhoe
3626 psi
250 bar
Pump Capacity @ 2,200 rpm
42.3 gpm
160 L/min
Type
Closed Center
Pump Type
Variable-Flow, Axial Piston
Steering
AWD Cylinder, One (1) Double Acting - Bore
2.6 in
65 mm
AWD Cylinder, One (1) Double Acting - Stroke
4.2 in
106 mm
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket
35.25 ft
10.745 m
AWD Cylinder, One (1) Double Acting - Rod Diameter
1.6 in
40 mm
AWD Cylinder, One (1) Double Acting - Axle Oscillation
11 °
11 °
Turning Circle (inner wheel not braked) - Outside Front Wheels
26.92 ft
8.205 m
Type
Closed Center
Power Steering
Hydrostatic
Service Refill Capacities
Diesel Exhaust Fluid
5 gal (US)
19 l
Engine Oil - With Filter
2.4 gal (US)
9 l
Cooling System - A/C
4.8 gal (US)
18 l
Hydraulic System
25.1 gal (US)
95 l
Hydraulic Tank
11.1 gal (US)
42 l
Rear Axle - Planetaries
0.4 gal (US)
1.7 l
Fuel Tank
42.3 gal (US)
160 l
Front Axle (AWD) - Planetaries
0.2 gal (US)
0.7 l
Rear Axle
4.2 gal (US)
16 l
Front Axle (AWD)
2.9 gal (US)
11 l
Transmission - Power Shuttle - AWD
4.8 gal (US)
18 l
Transmission (Powershift) - AWD
5 gal (US)
19 l
Transmission
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Equipment
Standard Equipment
Optional Equipment
Width
94.7 in/2406 mm
Height
40.8 in/1037 mm
Width
36 in/914 mm
Capacity
10.2 ft³/290 l
Width
89.1 in/2262 mm
Height
33 in/839 mm
Drive Shaft Torque at Maximum Pressure
5037.5 lb/ft/6830 N·m
Drive Method
Gerotor Motor - Double Planetary Reduction
