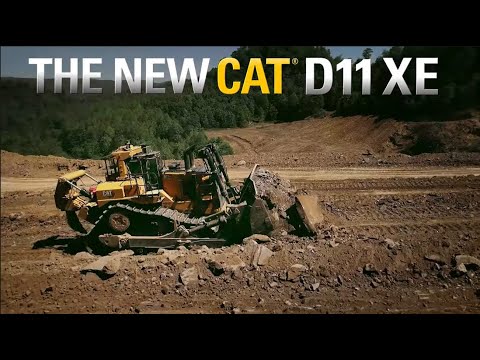

D11 XE


• First-of-its-kind electric drive powertrain built on Caterpillar’s deep electrification experience



• Up to 25% less fuel burned per unit of material moved compared to the D11



• Delivers optimized power to the ground, working more efficiently over a wider range of speeds and loads



• Single-plane cooling system enables better heat rejection



• Multiple blade options and three tilt cylinder options maximize productivity in a wide range of applications



• C32B engine delivers the performance you expect with heavier duty internals for improved reliability



• High horsepower reverse speeds up non-productive traveling for shorter cycle times


• Unparalleled operator environment designed to reduce effort and exposure



• Intuitive touchscreen display gives operators access to key machine information, giving real-time feedback to optimize productivity



• Suspended undercarriage absorbs impact and reduces shock loads by up to 50%



• Fully adjustable air suspension seat



• Ergonomic controls, including low-effort electronic steering, ripper and dozer controls keep operators in control and reduce fatigue



• Reduced noise and vibration, as well as improved airflow for maximum comfort



• 3 dB quieter than the D11 for both operator and spectators


• Improved operator visibility with clear lines of sight to front and rear work areas, as well as optional 360-degree vision system



• Third-generation powered ladder for safer access and egress



• Automatic engine shutoff if dozer is tipped or rolls over



• Seatbelt monitor and Operator Not Present monitoring system



• Ready for Cat MineStar Detect and Command


• Autocarry™ provides automatic blade control during carry operations, reducing operator fatigue and increasing productivity up to 15%



• Grade Control 3D uses ROPS-mounted GNSS antennas and blade-mounted sensors to increase accuracy, enhance safety, and reduce the number of people required on site



• Automated Blade Assist increases efficiency with automated blade movements to preset pitch positions



• Automatic Ripper Control monitors and adjusts engine speed and ripper depth to minimize track slip and maximize productivity


• Terrain for grading provides onboard guidance tools and real-time feedback to help operators maximize efficiency and reduce rehandling of material



• Terrain with Blade Control speeds up dozing, decreases fuel burn and minimizes overcut, overfill and rehandling



• Command for dozing provides multiple levels of automation, from line-of-sight control of a single machine to semi-autonomous control over multiple dozers from a single remote station


• Modular design allows you to service major components without affecting surrounding areas



• Electric drive powertrain features 60% fewer parts and requires less frequent replacement of major components



• Lower high-idle engine speed reduces wear and tear for enhanced machine life



• Increased planned component repair time from 15,000 to 18,000 hours



• Automatic machine protection features keep the machine from damaging itself due to environmental factors or improper operation


• Best-in-class attachments designed with decades of experience in research and development



• All blades are constructed of high-tensile-strength materials for high productivity over a long life



• 29.3° interior angle between the back bottom of the blade and the ground allows blades to better penetrate and load in tough conditions



• Superior loadability with heavy moldboard construction and bolt-on hardened cutting edges and end bits


• Frame, powertrain and major components are built to be rebuilt using new, remanufactured or rebuilt parts and components



• Longer rebuild intervals — achieves the same operating hours in an average 75,000-hour lifecycle with one fewer rebuild than the D11



• Robust variable piston pumps in the load-sensing hydraulic system run cooler for longer component and seal life


• Electric drive powertrain reduces fuel consumption and greenhouse gas emissions with no impact on machine performance



• Built to be rebuilt, allowing you to achieve like-new performance at a far lower cost in energy, emissions and materials than using new components



• C32B engine meets U.S. EPA Tier 4 Final, EU Stage V and other equivalent emissions standards



• Maintenance-free diesel oxidation catalyst aftertreatment solution eliminates the need for DEF and reduces total fluid consumption

OPERATOR ENVIRONMENT

1. ROPS/FOPS, Sound-Suppressed Cab
2. High-Definition Primary Touchscreen Display
3. Visibility – Rearview Mirrors
4. Air Conditioner and Heater with Automatic Climate Control
5. Seat – Cloth with Air suspension
6. Cab Glass – Single-Pane Tinted Safety
7. Cab Access – Blade Push Arm Steps and Grab Handle

CAT TECHNOLOGY PRODUCTS

1. VIMS
2. Automated Blade Assist (ABA)
3. Cat Product Link™ Elite (cellular)

CAT POWER TRAIN

1. Cat C32B Engine – U.S. EPA Tier 4
   Final/EU Stage V
2. High-Performance Single-Plane Cooling Module
3. Variable Speed Dual Path Electric Drive
4. Tiller Steering – Electronic Control

UNDERCARRIAGE

1. Suspension Type Undercarriage
2. Sleeve Bearing Track
3. Lifetime-Lubricated Rollers and Idlers
4. Track Shoes (ES): 710/810/915 mm (28/32/36 in) Width (various configurations)

HYDRAULICS

1. Electronically Controlled, Load-Sensing Dozer Lift and Tilt
2. Electronically Controlled, Load-Sensing Ripper Lift and Pitch
3. Dozer Blade – Dual Tilt
4. Electronically Enabled Blade – Quick Drop

ELECTRICAL

1. 24V Electric Start, Dual Starters
2. Batteries – 4 × 4,200-Amp Hour, 12V
3. Battery Isolation
4. Lights – LED – 13 Positions

SERVICE AND MAINTENANCE

1. Ecology Fluid Drains – All Compartments
2. Hinged Bottom Guards
3. High-Speed Oil Change – Engine and Transmission
4. Ground-Level Fast Fuel Fill
5. Ground-Level Electrical Service Station
6. S·O·SSM Fluid Sampling Ports
7. Diagnostic Connector

CAT POWER TRAIN

1. Cat C32B Engine – Non-certified, equivalent to U.S. EPA Tier 2
2. Hydraulic Cooling Fan – Automatic Reversing

OPERATOR ENVIRONMENT

1. MineStar™ Terrain Display
2. Visibility – Dual Camera
3. Visibility – Four Cameras, 360 Degree View
4. Visibility – Camera – Ripper Tip View
5. Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
6. Cab Glass – Dual-Pane Laminated Impact Safety
7. Cab Glass – High-Pressure Safety (40 psi/275 kPa)
8. Cab Access – Powered Ladder

CAT TECHNOLOGY PRODUCTS

1. AutoCarry™
2. Auto Ripper Control
3. Cat Terrain with 3D Blade Control
4. Cat Terrain Ready
5. Cat Product Link Elite Dual Mode (cellular + satellite)
6. Cat Command for Dozing Ready

UNDERCARRIAGE

1. Track Links – Heavy Duty XL – Duralink
2. Track Shoe – Abrasion Resistant
3. Track Shoe – Anti-Packing Round Hole
4. Abrasion Rollers and Idlers
5. Cold Weather Rollers and Idlers
6. Carrier Roller

HYDRAULICS

1. Carrydozer Hydraulics
2. Dozer Extended Blade Pitch
3. Ripper Pin Puller

ELECTRICAL

1. Battery Isolation – Dual Pole
2. Lights – LED Premium Package – 13 positions

SERVICE AND MAINTENANCE

1. Sound Reduction Sealed Bottom Guards
2. Ground-Level Fluid Fill and Drain
3. Ripper Lubrication – Autolube with Ground-Level Fill
4. Ripper Lubrication – Grouped

REAR ATTACHMENTS

1. Ripper – Single Shank with Pin Puller
2. Ripper – Single Shank – Push Block and Retrieval Hitch with Pin Puller
3. Ripper – Single Shank – Push Block and Retrieval Hitch with Pin Puller – Heavy
4. Ripper – Multi Shank (three shank)
5. Ripper – Multi Shank – Heavy (three shank)
6. Ripper – Multi Shank Leach Pad with Pin Puller
7. Ripper – Multi Shank – Coal (five shank)
8. Counterweight – Rear
9. Drawbar with Counterweight

BLADES

1. Semi-Universal (27.2 m³/35.6 yd³)
2. Universal (34.4 m³/45.0 yd³)
3. Carrydozer (43.6 m³/57 yd³)
4. Reclamation Universal (42 m³/55 yd³)
5. Coal Universal (75 m³/98.0 yd³)
6. Coal Universal (65 m³/85.5 yd³)

OTHER

1. Fire Suppression Ready
2. Fire Suppression Installed
