Drills

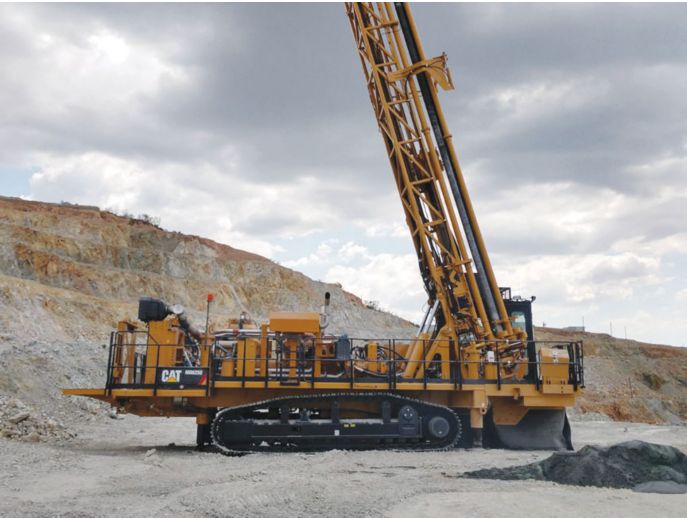

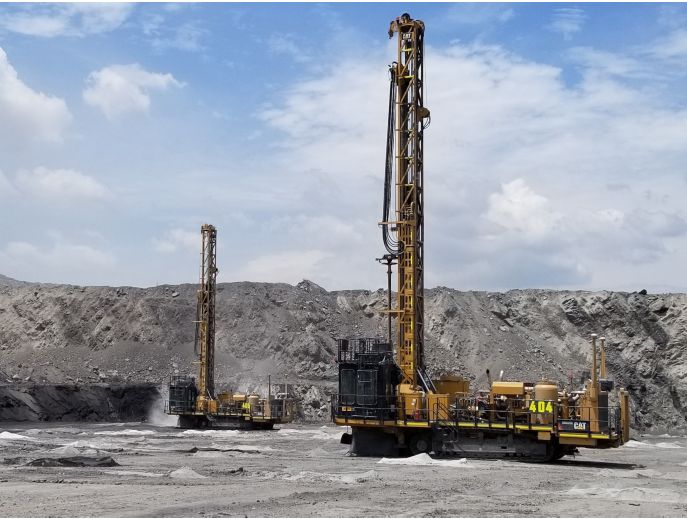

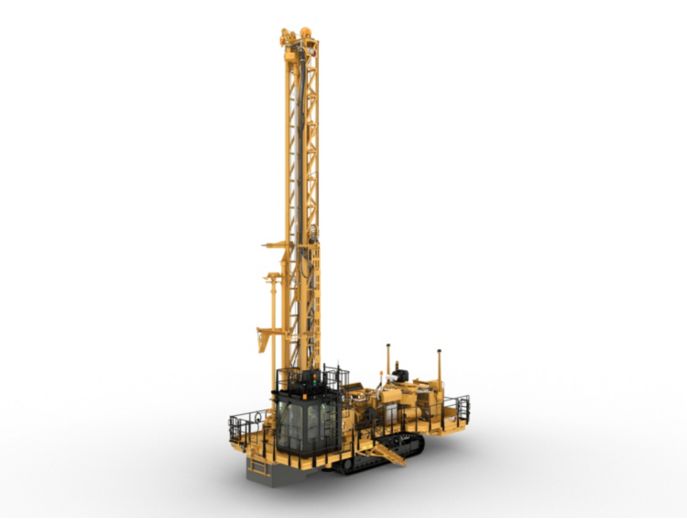

MD6250
The Cat® MD6250 is built from the ground up with 100% Cat parts to help you get the most out of your operation. With built-in autonomous features and the option to integrate Cat MineStar™ technologies, the MD6250 offers accurate, reliable performance in any drilling application. It’s easy to own and operate, with improved serviceability and the reliable performance you expect from Caterpillar — backed by the world-class support of the Cat dealer network. Designed to drill holes from 152-250 mm (6-9.8 in) in diameter, the MD6250 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
Request a quote
Overview
Pull-Down/Hoisting Capacity
UNITS:
Metric
Imperial
| Pull-Down Capacity | Up to 20 411 kg (45,000 lb) | Up to 20 411 kg (45,000 lb) |
Specifications
| Hole Diameter | 165-200 mm (6.5-9.88 in) | 165-200 mm (6.5-9.88 in) |
| Engine | Cat® C27 | Cat® C27 |
| Bit Load | Up to 32 655 kg (Up to 71,993 lb) | Up to 32 655 kg (Up to 71,993 lb) |
Engine Choices
| Components (1) | Dual starter motors | Dual starter motors |
| Components (2) | Ether starting aid (ether bottle supplied locally) | Ether starting aid (ether bottle supplied locally) |
| Features | Scheduled Oil Sampling (S·O·SSM) ports | Scheduled Oil Sampling (S·O·SSM) ports |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 | 650 kW | 872 HP |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 (DIN) | 884 mhp (PS) | 884 mhp (PS) |
| Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 (DIN) | 838 mhp (PS) | 838 mhp (PS) |
| Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 | 616 kW | 826 HP |
| Emissions: Equivalent to U.S. EPA Tier 2 - Engine Power | C27 @ 1,800 rpm | C27 @ 1,800 rpm |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - Engine Power | C27 @ 1,800 rpm | C27 @ 1,800 rpm |
Cooling
| Components (1) | Coolers with easy cleaning access | Coolers with easy cleaning access |
| Components (2) | Separate engine cooling module | Separate engine cooling module |
| Components (3) | All cooler core sections are replaceable | All cooler core sections are replaceable |
| Components (4) | Automatic variable speed fan control | Automatic variable speed fan control |
| Features | Functional in ambient temperature of 52° C (125° F) | Functional in ambient temperature of 52° C (125° F) |
Climate Choices
| Climate Level 1 Standard Fluids and Lubricants (1) | Rated down to –1° C (30° F) | Rated down to –1° C (30° F) |
| Climate Level 1 Standard Fluids and Lubricants (2) | Withstands high heat to 52° C (125° F) | Withstands high heat to 52° C (125° F) |
| Climate Level 2 Arctic Fluids and Lubricants | Rated down to –18° C (–0.4° F) | Rated down to –18° C (–0.4° F) |
| Climate Level 4 Arctic Fluids and Lubricants (1) | Rated down to –40° C (–40° F) | Rated down to –40° C (–40° F) |
| Climate Level 4 Arctic Fluids and Lubricants (2) | Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays | Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays |
| Climate Level 4 Arctic Fluids and Lubricants (3) | Full Arctic lubricant package to include engine and hydraulic oil | Full Arctic lubricant package to include engine and hydraulic oil |
| Climate Level 4 Arctic Fluids and Lubricants (4) | Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank | Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank |
| Climate Level 4 Arctic Fluids and Lubricants (5) | Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271 | Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271 |
| Climate Level 4 Arctic fluids and lubricants (6) | Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed | Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed |
| Batteries, Sealed (1) | Quantity: Four (4) | Quantity: Four (4) |
| Batteries, Sealed (2) | Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages) | Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages) |
Frame and Work Deck
| Features (1) | Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life | Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life |
| Features (2) | Primary fuel tank capacity 1416 L (374 gal) | Primary fuel tank capacity 1416 L (374 gal) |
| Features (3) | Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages) | Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages) |
| Features (4) | Three (3) egress points on deck areas in addition to main access | Three (3) egress points on deck areas in addition to main access |
| Components (1) | Stationary drill deck; for vertical and angle drilling | Stationary drill deck; for vertical and angle drilling |
| Components (2) | Four leveling jacks provide leveling on a 7° bench (any orientation) | Four leveling jacks provide leveling on a 7° bench (any orientation) |
| Components (3) | Heavy duty tow hooks (front end) | Heavy duty tow hooks (front end) |
| Components (4) | Four (4) lift lugs, for use with cables or chains | Four (4) lift lugs, for use with cables or chains |
| Components (5) | Fixed access stairs to the cab area | Fixed access stairs to the cab area |
| Components (6) | Sturdy guardrails with toe guards, self-closing gates | Sturdy guardrails with toe guards, self-closing gates |
Undercarriage
| Model | Cat® 336E EL Excavator type | Cat® 336E EL Excavator type |
| Carrier Rollers | Three (3) | Three (3) |
| Track chain guards and guides | Level two | Level two |
| Drawbar Pull | 417000 N | 93745 lbf |
| Triple Grousers (1) | 600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure | 600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure |
| Triple Grousers (2) | 750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure | 750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure |
| Lower rollers | Twelve (12) | Twelve (12) |
| Travel Speed | 2.45 km/h | 1.5 mile/h |
Hydraulics
| Components (1) | Two (2) primary pumps – 145 cc (piston, with proportional electronic controls) | Two (2) primary pumps – 145 cc (piston, with proportional electronic controls) |
| Components (2) | One (1) auxiliary circuit pump – 110 cc (piston, load sensing) | One (1) auxiliary circuit pump – 110 cc (piston, load sensing) |
| Components (3) | Two (2) fan pumps – 74 cc (piston, with proportional electronic controls) | Two (2) fan pumps – 74 cc (piston, with proportional electronic controls) |
| Components (4) | Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) | Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) |
| Components (5) | Scheduled Oil Sampling (S·O·S) ports | Scheduled Oil Sampling (S·O·S) ports |
Dimensions (Approximate) - 13.6 m (44.6 ft) Mast
| Width Non-Cab End | 4.845 m | 15.9 ft |
| Width Cab End | 5.624 m | 18.45 ft |
| Note | Width and length dimensions include: cascading stairs and walk-around access for cab. | Width and length dimensions include: cascading stairs and walk-around access for cab. |
| Mast Only Shipping Length | 18.72 m | 61.4 ft |
| Height - Mast Up | 19.546 m | 61.13 ft |
| Body Length | 11.708 m | 38.41 ft |
| Length - Mast Down | 20.18 m | 66.17 ft |
| Height - Mast Down | 5.134 m | 16.84 ft |
Hydraulic Break Out Wrench
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (1) | 114-152 mm (4.5-6.0 in) | 114-152 mm (4.5-6.0 in) |
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (2) | 152-216 mm (6.0-8.5 in) | 152-216 mm (6.0-8.5 in) |
Tool Package DTH
| Components (7) | Pipe wiper seal | Pipe wiper seal |
| Components (8) | Drill tool lubricator is included with selection of DTH Compressor | Drill tool lubricator is included with selection of DTH Compressor |
| Components (1) | Two-piece roller deck bushing | Two-piece roller deck bushing |
| Components (2) | Pipe positioner rollers | Pipe positioner rollers |
| Components (3) | Deck wrench | Deck wrench |
| Components (4) | Shock sub | Shock sub |
| Components (5) | Top Sub | Top Sub |
| Components (6) | Hammer Sub | Hammer Sub |
Safety and Security
| Feature | Approach angle of 15 degrees facilitates loading and unloading on a lowboy | Approach angle of 15 degrees facilitates loading and unloading on a lowboy |
| Components (13) | Lifting lugs | Lifting lugs |
| Components (1) | Alloy drill deck covers, for servicing when mast is horizontal | Alloy drill deck covers, for servicing when mast is horizontal |
| Components (2) | Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck | Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck |
| Components (3) | Over forty (40) conditional safety interlocks | Over forty (40) conditional safety interlocks |
| Components (4) | Hinged window guard over the full length of the front drill window | Hinged window guard over the full length of the front drill window |
| Components (5) | Three (3) egress points on deck areas in addition to main access | Three (3) egress points on deck areas in addition to main access |
| Components (6) | Self-closing gates secure egress ladder locations | Self-closing gates secure egress ladder locations |
| Components (7) | Electric horn activated by push button in the cab | Electric horn activated by push button in the cab |
| Components (8) | Automatic tram alarm, audible | Automatic tram alarm, audible |
| Components (9) | Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals | Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals |
| Components (10) | Compressor air hoses with safety retention cables | Compressor air hoses with safety retention cables |
| Components (11) | Slip resistant surfaces | Slip resistant surfaces |
| Components (12) | Tow hooks on non-drill-end | Tow hooks on non-drill-end |
Operator Environment
| Cab - Premium | – Additional storage<br>– Leather seat with heat and ventilation<br>– Heavy duty seat suspension<br>– Dual pane window glass<br>– Removable guard for driller window, plus window facing power train<br>– Wipers for the driller window plus front and rear windows | – Additional storage<br>– Leather seat with heat and ventilation<br>– Heavy duty seat suspension<br>– Dual pane window glass<br>– Removable guard for driller window, plus window facing power train<br>– Wipers for the driller window plus front and rear windows |
| Cab - Standard | – Fabric seat<br>– Single pane window glass<br>– Removable guard for driller window<br>– Wiper for the driller window | – Fabric seat<br>– Single pane window glass<br>– Removable guard for driller window<br>– Wiper for the driller window |
| Cab Design | – Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station<br>– Cab rubber shock-mounts<br>– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port<br>– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation<br>– Power convertor 24V to 12V<br>– Radio-ready for communication and entertainment stereo<br>– Two swing-out doors and Cat keyed locks<br>– Literature holder<br>– Removable floor mat | – Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station<br>– Cab rubber shock-mounts<br>– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port<br>– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation<br>– Power convertor 24V to 12V<br>– Radio-ready for communication and entertainment stereo<br>– Two swing-out doors and Cat keyed locks<br>– Literature holder<br>– Removable floor mat |
| Seating | – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) | – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) |
| Windows | – Large windows front, rear and right cab side; full length drill window with guard<br>– Windshield wipers with a common washer tank | – Large windows front, rear and right cab side; full length drill window with guard<br>– Windshield wipers with a common washer tank |
| Lighting | – LED interior lights and map light at operators seat, backlit joysticks and keypads<br>– Flood lights for the drill perimeter<br>– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways<br>– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon | – LED interior lights and map light at operators seat, backlit joysticks and keypads<br>– Flood lights for the drill perimeter<br>– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways<br>– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon |
| HVAC | – Floor heating vent<br>– Roof-mounted air conditioner/heating/pressurizing unit<br>– Filter access from deck<br>– Defogging HVAC vents on main window | – Floor heating vent<br>– Roof-mounted air conditioner/heating/pressurizing unit<br>– Filter access from deck<br>– Defogging HVAC vents on main window |
Operating System Controls - Standard
| Components (22) | Prewired for Terrain and autonomous operation | Prewired for Terrain and autonomous operation |
| Components (23) | Drill Assist automated functionality:<br>– Auto level, auto jack retract<br>– Auto mast raise and lock, auto mast unlock and park | Drill Assist automated functionality:<br>– Auto level, auto jack retract<br>– Auto mast raise and lock, auto mast unlock and park |
| Components (1) | All electric controls for drilling, tramming, leveling plus auxiliary functions | All electric controls for drilling, tramming, leveling plus auxiliary functions |
| Components (2) | Electronic compressor control | Electronic compressor control |
| Components (3) | Rotary torque control | Rotary torque control |
| Components (4) | Virtual rotary head travel stops and interlocks | Virtual rotary head travel stops and interlocks |
| Components (5) | Pipe positioner engaged/disengaged indicator | Pipe positioner engaged/disengaged indicator |
| Components (6) | Drill depth meter | Drill depth meter |
| Components (7) | Drill performance and drill health display system | Drill performance and drill health display system |
| Components (8) | Data logging of machine health with warnings and fault code records with export capability | Data logging of machine health with warnings and fault code records with export capability |
| Components (9) | Delayed engine shut down | Delayed engine shut down |
| Components (10) | Rotary head rpm gauge (digital display in screen) | Rotary head rpm gauge (digital display in screen) |
| Components (11) | Filter indicators for hydraulic, fuel, compressor and engine | Filter indicators for hydraulic, fuel, compressor and engine |
| Components (12) | Jack pressure sensors in display | Jack pressure sensors in display |
| Components (13) | Dust suppression control | Dust suppression control |
| Components (14) | Mast lock indicator | Mast lock indicator |
| Components (15) | ECM proportional fan speed control system | ECM proportional fan speed control system |
| Components (16) | Tram interlock, machine stability limits | Tram interlock, machine stability limits |
| Components (17) | Tram interlock, pipe in hole | Tram interlock, pipe in hole |
| Components (18) | Tram interlock, mast up and locked or down and parked | Tram interlock, mast up and locked or down and parked |
| Components (19) | Tram interlock, jack retracted | Tram interlock, jack retracted |
| Components (20) | Tram interlock, winch parked | Tram interlock, winch parked |
| Components (21) | Cab environment controls (AC, filter, heat, fan speeds) | Cab environment controls (AC, filter, heat, fan speeds) |
Dimensions (Approximate) - 11.2 m (36.7 ft) Mast
| Width Non-Cab End | 4.845 m | 15.9 ft |
| Width Cab End | 5.625 m | 18.45 ft |
| Note | Width and length dimensions include: cascading stairs and walk-around access for cab. | Width and length dimensions include: cascading stairs and walk-around access for cab. |
| Mast Only Shipping Length | 16.32 m | 53.5 ft |
| Height - Mast Up | 17.146 m | 56.3 ft |
| Body Length | 11.708 m | 38.41 ft |
| Length - Mast Down | 17.78 m | 58.3 ft |
| Height - Mast Down | 5.134 m | 16.84 ft |
Compressor/Receiver Choices
| Receiver Tank Choice (1) | Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE | Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE |
| Receiver Tank Choice (2) | High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE | High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE |
| Compressor - Rotary Drilling | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) |
| Compressor - DTH Drilling (1) | 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi) | 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi) |
| Compressor - DTH Drilling (2) | 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) | 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) |
| Features (1) | With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption | With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption |
| Features (2) | Electronic compressor control and regulation | Electronic compressor control and regulation |
| Features (3) | DTH selection includes tool oiler | DTH selection includes tool oiler |
Mast Packages
| Angle Drilling | Included with either mast | Included with either mast |
| Mast Accessories Manual - 11.2 m (36.7 ft) or 13.6 m (44.6 ft) Mast | One (1) wire rope pipe catcher, manual bit basket | One (1) wire rope pipe catcher, manual bit basket |
| Mast Accessories Hydraulic - 11.2 m (36.7 ft) Mast | One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket | One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket |
| Mast Accessories Hydraulic - 13.6 m (44.6 ft) Mast | One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket | One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket |
Service Tool Options
| Lifting Bails (Available on Request) | – API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)<br>– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)<br>– API thread 140 mm (5.5 in) – to lift shock sub adapter<br>– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)<br>– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)<br>– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD) | – API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)<br>– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)<br>– API thread 140 mm (5.5 in) – to lift shock sub adapter<br>– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)<br>– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)<br>– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD) |
Drill Pipe
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 4 | 165 mm | 6.5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 1 | 127 mm | 5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 6 | 194 mm | 7.625 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 1 | 127 mm | 5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 3 | 152 mm | 6 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 6 | 194 mm | 7.625 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 4 | 165 mm | 6.5 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 3 | 152 mm | 6 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 2 | 140 mm | 5.5 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 5 | 178 mm | 7 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 2 | 140 mm | 5.5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 5 | 178 mm | 7 in |
Carousel (Mast size and pipe diameter dependent)
| Pipe rack carousel, standard: | – 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes<br>– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes | – 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes<br>– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes |
Mast and Pipe Rack Carousel Features
| Features (7) | Sliding deck wrench assembly | Sliding deck wrench assembly |
| 13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth | 13.6 m | 44.6 ft |
| Features (5) | Auto tensioning of pull down and hoist cables | Auto tensioning of pull down and hoist cables |
| 11.2 m (36.7 ft) Mast - Hoist Speed | 0.81 m/s | 2.65 ft/s |
| Features (3) | Drill strings configured for bit changes (above the deck) | Drill strings configured for bit changes (above the deck) |
| Features (1) | Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments) | Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments) |
| Features (8) | Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH | Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH |
| Features (10) | Drill pipe positioner | Drill pipe positioner |
| Features (11) | Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque | Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque |
| Features (9) | Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes | Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes |
| Features (6) | Variable grip hydraulic break out wrench for range of pipe diameters | Variable grip hydraulic break out wrench for range of pipe diameters |
| 11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth | Down to 53.9 m (Down to 176.7 ft) | Down to 53.9 m (Down to 176.7 ft) |
| Features (4) | Single Hydraulic Cylinder and cable system for pulldown/hoist | Single Hydraulic Cylinder and cable system for pulldown/hoist |
| Features (2) | Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in) | Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in) |
| 13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth | Down to 37.9 m (Down to 124.6 ft) | Down to 37.9 m (Down to 124.6 ft) |
| 13.6 m (44.6 ft) Mast - Hoist Speed | 0.66 m/s | 2.16 ft/s |
| 11.2 m (36.7 ft) Mast - Bit Load (single pass) | Up to 22 321 kg (Up to 49,210 lb) | Up to 22 321 kg (Up to 49,210 lb) |
| 11.2 m (36.7 ft) Mast - Pull-Down Capacity | Up to 20 411 kg (Up to 45,000 lb) | Up to 20 411 kg (Up to 45,000 lb) |
| 13.6 m (44.6 ft) Mast - Bit Load (single pass) | Up to 32 655 kg (Up to 71,993 lb) | Up to 32 655 kg (Up to 71,993 lb) |
| 13.6 m (44.6 ft) Mast - Pull-Down Capacity | Up to 29 483 kg (Up to 65,000 lb) | Up to 29 483 kg (Up to 65,000 lb) |
| 13.6 m (44.6 ft) Mast - Hoist Capacity | Up to 16 584 kg (Up to 36,563 lb) | Up to 16 584 kg (Up to 36,563 lb) |
| 11.2 m (36.7 ft) Mast - Hoist Capacity | Up to 15 309 kg (Up to 33,750 lb) | Up to 15 309 kg (Up to 33,750 lb) |
Tool Package Rotary
| Components (1) | One-piece roller deck bushing | One-piece roller deck bushing |
| Components (2) | Pipe positioner rollers | Pipe positioner rollers |
| Components (3) | Deck wrench | Deck wrench |
| Components (4) | Top sub | Top sub |
| Components (5) | Bit sub | Bit sub |
| Components (6) | Pipe wiper seal | Pipe wiper seal |
Rotary Head Top Drive System
| Torque - Single Motor | 11700 N·m | 8629 lb/ft |
| Rotation Speed | 0-160 rpm | 0-160 rpm |
| Components (1) | Spindle – 140 mm (5.5 in) API regular thread with splined collar | Spindle – 140 mm (5.5 in) API regular thread with splined collar |
| Components (2) | Rotary torque control | Rotary torque control |
| Components (3) | Virtual rotary head travel interlocks | Virtual rotary head travel interlocks |
Automation and Technology
| Type (1) | Cat Terrain ready | Cat Terrain ready |
| Type (2) | Autonomy ready | Autonomy ready |
| Components (1) | Drill depth indicator | Drill depth indicator |
| Components (2) | Product Link™ Elite (hardware from factory, subscription package via dealer) | Product Link™ Elite (hardware from factory, subscription package via dealer) |
Dust Control Choices
| Choices (1) | Water injection – tank mounted below front deck 1271 L (336 gal)<br>– Water flow meter, volume control, tank fill level indicator | Water injection – tank mounted below front deck 1271 L (336 gal)<br>– Water flow meter, volume control, tank fill level indicator |
| Choices (2) | Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection<br>– Self-cleaning filters, dust chute with ejector | Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection<br>– Self-cleaning filters, dust chute with ejector |
| Choices (3) | High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)<br>– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)<br>– Tank above deck capacity 1514 L (400 gal) | High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)<br>– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)<br>– Tank above deck capacity 1514 L (400 gal) |
| Choices (4) | Static dust curtains, four sided/boxed enclosed | Static dust curtains, four sided/boxed enclosed |
Service Packages
| Package (1) | Fast fill for fuel and water, automated lubrication system | Fast fill for fuel and water, automated lubrication system |
| Package (2) | Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option) | Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option) |
Weights
| Working Weight Range | 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb) | 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb) |
Features
WORLD-CLASS OPERATOR STATION
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
100% CAT INTEGRATION
- Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
- Shared software for autonomous features
- Backed by the world-class support of the Cat dealer network
CAT ELECTRONICS: BACKBONE OF MACHINE
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serve as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
MATCHED POWERTRAIN
- Volumetric air flow control enables operator to reduce air flow by up to 50% to match a specific drilling tool and application
- C27 engine matched to largest “standard” compressor in this class for fast cycle times
- Powertrain optimized to withstand rigorous drilling applications
- High - and low -pressure configurations offer variable volume air control
- Optimal feed force, rotary torque and air, helping to reduce fuel consumption
TECHNOLOGY AND AUTOMATION
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Ready to connect with the Cat MineStar suite of technologies, including Terrain for drilling and Command for drilling
SAFETY
- Excellent visibility, thanks to multiple cameras and full-length windows
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- Seven engine shut-down buttons and more than 40 conditional safety interlocks
- Slip-resistant surfaces for safer ingress/egress and service
- LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress and major service points
SERVICEABILITY
- Large water and fuel tanks reduce time spent refilling
- Grouped service-access points, neat hose-runs and wiring reduce maintenance time
- Cat MineStar Health offerings enable onboard health and performance monitoring
- Extended service intervals minimize maintenance downtime
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
Standard Equipment
POWER TRAIN CHOICES
| Emissions: Equivalent to Tier 2, Engine Power C27 @ 1,800 rpm, ISO 14396 616 kW (826 hp), ISO 14396 (DIN) 838 mhp (PS) |
| Emissions: Equivalent to Tier 4 Final, Engine Power C27 @ 1,800 rpm, ISO 14396 650 kW (872 hp), ISO 14396 (DIN) 884 mhp (PS) |
| Compressor (2,000 ft³/min, 125 psi) – Rotary drilling package, 56.6 m³ (2,000 ft³/min) at 8.6 bar (125 psi); with low pressure receiver tank for ASME/CRN/AU or CE |
CAB CHOICES
| Standard – Includes a fabric seat, single pane window glass, removable driller window guard, and a windshield wiper for driller window |
CONTROLS
| Drill depth indicator and interlocks, auto-level, auto-mast |
FRAME/DECK
| Machine access via fixed stairs |
MAST ACCESSORIES
| 11.2 m (36.7 ft) or 13.6 m (44.6 ft): Pipe catcher, manual – one wire rope (for 11 m), two wire rope (for 13 m) pipe catcher, bit basket, manual |
PIPE CAROUSEL 11.2 M (36.7 FT) MAST/10.6 M (35 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
| 127 mm (5.0 in) pipe; four pods |
| 140 mm (5.5 in) pipe; four pods |
| 152 mm (6.0 in) pipe; four pods |
| 165 mm (6.5 in) pipe; four pods |
| 178 mm (7.0 in) pipe; four pods |
| 194 mm (7.625 in) pipe; four pods |
PIPE CAROUSEL 13.6 M (44.6 FT) MAST/6.1 M (20 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
| 127 mm (5.0 in) pipe; four pods |
| 140 mm (5.5 in) pipe; four pods |
| 152 mm (6.0 in) pipe; four pods |
| 165 mm (6.5 in) pipe; four pods |
| 178 mm (7.0 in) pipe; four pods |
| 194 mm (7.625 in) pipe; four pods |
DRILL TOOL PACKAGES/ROTARY DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
| 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
DRILL TOOL PACKAGES/DTH DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
| 140 mm (5.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal |
| 165 mm (6.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal |
DRILL TOOL PACKAGES/ROTARY FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
| 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
DRILL TOOL PACKAGES/DTH DRILLING FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
| 127 mm (5.0 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 140 mm (5.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 165 mm (6.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 178 mm (7 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
TOP SUBS (ROTARY DRILLING ONLY) (SELECT ONE)
| 127 mm (5 in) |
| 152 mm (6 in) |
| 165 mm (6.5 in) |
| 178 mm (7 in) |
| 194 mm (7.625 in) |
CLIMATE/REGIONAL CONSIDERATIONS
| Batteries, sealed quantity four (4) |
| Level 1 – Standard fluids and lubricants. With a temperature range of –1° C (30° F) to 52° C (125° F) |
| Decals, ANSI |
| Decals, ISO |
| Certifications, EAEU |
| Certifications, CE |
DUST SUPPRESSION
| Water injection 1271 L (336 gal) |
| Static dust curtains, four sided/boxed enclosed |
UNDERCARRIAGE; CAT 336E EL (SELECT ONE)
| Triple grousers 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground pressure |
| Triple grousers 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground pressure |
Optional Equipment
POWER TRAIN CHOICES
| Compressor (1,350 ft³/min, 500 psi) – DTH drilling package, 38.2 m³ (1,350 ft³/min) at 34.4 bar (500 psi), with high pressure receiver tank (500 psi) for ASME/CRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system |
| Compressor (1,500 ft³/min, 350 psi) – DTH drilling package, 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) with high pressure receiver tank for ASME/DRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system |
Overview
Pull-Down/Hoisting Capacity
UNITS:
Metric
Imperial
| Pull-Down Capacity | Up to 20 411 kg (45,000 lb) | Up to 20 411 kg (45,000 lb) |
Specifications
| Hole Diameter | 165-200 mm (6.5-9.88 in) | 165-200 mm (6.5-9.88 in) |
| Engine | Cat® C27 | Cat® C27 |
| Bit Load | Up to 32 655 kg (Up to 71,993 lb) | Up to 32 655 kg (Up to 71,993 lb) |
Engine Choices
| Components (1) | Dual starter motors | Dual starter motors |
| Components (2) | Ether starting aid (ether bottle supplied locally) | Ether starting aid (ether bottle supplied locally) |
| Features | Scheduled Oil Sampling (S·O·SSM) ports | Scheduled Oil Sampling (S·O·SSM) ports |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 | 650 kW | 872 HP |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 (DIN) | 884 mhp (PS) | 884 mhp (PS) |
| Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 (DIN) | 838 mhp (PS) | 838 mhp (PS) |
| Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 | 616 kW | 826 HP |
| Emissions: Equivalent to U.S. EPA Tier 2 - Engine Power | C27 @ 1,800 rpm | C27 @ 1,800 rpm |
| Emissions: Equivalent to U.S. EPA Tier 4 Final - Engine Power | C27 @ 1,800 rpm | C27 @ 1,800 rpm |
Cooling
| Components (1) | Coolers with easy cleaning access | Coolers with easy cleaning access |
| Components (2) | Separate engine cooling module | Separate engine cooling module |
| Components (3) | All cooler core sections are replaceable | All cooler core sections are replaceable |
| Components (4) | Automatic variable speed fan control | Automatic variable speed fan control |
| Features | Functional in ambient temperature of 52° C (125° F) | Functional in ambient temperature of 52° C (125° F) |
Climate Choices
| Climate Level 1 Standard Fluids and Lubricants (1) | Rated down to –1° C (30° F) | Rated down to –1° C (30° F) |
| Climate Level 1 Standard Fluids and Lubricants (2) | Withstands high heat to 52° C (125° F) | Withstands high heat to 52° C (125° F) |
| Climate Level 2 Arctic Fluids and Lubricants | Rated down to –18° C (–0.4° F) | Rated down to –18° C (–0.4° F) |
| Climate Level 4 Arctic Fluids and Lubricants (1) | Rated down to –40° C (–40° F) | Rated down to –40° C (–40° F) |
| Climate Level 4 Arctic Fluids and Lubricants (2) | Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays | Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays |
| Climate Level 4 Arctic Fluids and Lubricants (3) | Full Arctic lubricant package to include engine and hydraulic oil | Full Arctic lubricant package to include engine and hydraulic oil |
| Climate Level 4 Arctic Fluids and Lubricants (4) | Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank | Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank |
| Climate Level 4 Arctic Fluids and Lubricants (5) | Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271 | Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271 |
| Climate Level 4 Arctic fluids and lubricants (6) | Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed | Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed |
| Batteries, Sealed (1) | Quantity: Four (4) | Quantity: Four (4) |
| Batteries, Sealed (2) | Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages) | Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages) |
Frame and Work Deck
| Features (1) | Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life | Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life |
| Features (2) | Primary fuel tank capacity 1416 L (374 gal) | Primary fuel tank capacity 1416 L (374 gal) |
| Features (3) | Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages) | Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages) |
| Features (4) | Three (3) egress points on deck areas in addition to main access | Three (3) egress points on deck areas in addition to main access |
| Components (1) | Stationary drill deck; for vertical and angle drilling | Stationary drill deck; for vertical and angle drilling |
| Components (2) | Four leveling jacks provide leveling on a 7° bench (any orientation) | Four leveling jacks provide leveling on a 7° bench (any orientation) |
| Components (3) | Heavy duty tow hooks (front end) | Heavy duty tow hooks (front end) |
| Components (4) | Four (4) lift lugs, for use with cables or chains | Four (4) lift lugs, for use with cables or chains |
| Components (5) | Fixed access stairs to the cab area | Fixed access stairs to the cab area |
| Components (6) | Sturdy guardrails with toe guards, self-closing gates | Sturdy guardrails with toe guards, self-closing gates |
Undercarriage
| Model | Cat® 336E EL Excavator type | Cat® 336E EL Excavator type |
| Carrier Rollers | Three (3) | Three (3) |
| Track chain guards and guides | Level two | Level two |
| Drawbar Pull | 417000 N | 93745 lbf |
| Triple Grousers (1) | 600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure | 600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure |
| Triple Grousers (2) | 750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure | 750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure |
| Lower rollers | Twelve (12) | Twelve (12) |
| Travel Speed | 2.45 km/h | 1.5 mile/h |
Hydraulics
| Components (1) | Two (2) primary pumps – 145 cc (piston, with proportional electronic controls) | Two (2) primary pumps – 145 cc (piston, with proportional electronic controls) |
| Components (2) | One (1) auxiliary circuit pump – 110 cc (piston, load sensing) | One (1) auxiliary circuit pump – 110 cc (piston, load sensing) |
| Components (3) | Two (2) fan pumps – 74 cc (piston, with proportional electronic controls) | Two (2) fan pumps – 74 cc (piston, with proportional electronic controls) |
| Components (4) | Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) | Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement) |
| Components (5) | Scheduled Oil Sampling (S·O·S) ports | Scheduled Oil Sampling (S·O·S) ports |
Dimensions (Approximate) - 13.6 m (44.6 ft) Mast
| Width Non-Cab End | 4.845 m | 15.9 ft |
| Width Cab End | 5.624 m | 18.45 ft |
| Note | Width and length dimensions include: cascading stairs and walk-around access for cab. | Width and length dimensions include: cascading stairs and walk-around access for cab. |
| Mast Only Shipping Length | 18.72 m | 61.4 ft |
| Height - Mast Up | 19.546 m | 61.13 ft |
| Body Length | 11.708 m | 38.41 ft |
| Length - Mast Down | 20.18 m | 66.17 ft |
| Height - Mast Down | 5.134 m | 16.84 ft |
Hydraulic Break Out Wrench
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (1) | 114-152 mm (4.5-6.0 in) | 114-152 mm (4.5-6.0 in) |
| Variable Grip Hydraulic Break Out Wrench Grip Ranges (2) | 152-216 mm (6.0-8.5 in) | 152-216 mm (6.0-8.5 in) |
Tool Package DTH
| Components (7) | Pipe wiper seal | Pipe wiper seal |
| Components (8) | Drill tool lubricator is included with selection of DTH Compressor | Drill tool lubricator is included with selection of DTH Compressor |
| Components (1) | Two-piece roller deck bushing | Two-piece roller deck bushing |
| Components (2) | Pipe positioner rollers | Pipe positioner rollers |
| Components (3) | Deck wrench | Deck wrench |
| Components (4) | Shock sub | Shock sub |
| Components (5) | Top Sub | Top Sub |
| Components (6) | Hammer Sub | Hammer Sub |
Safety and Security
| Feature | Approach angle of 15 degrees facilitates loading and unloading on a lowboy | Approach angle of 15 degrees facilitates loading and unloading on a lowboy |
| Components (13) | Lifting lugs | Lifting lugs |
| Components (1) | Alloy drill deck covers, for servicing when mast is horizontal | Alloy drill deck covers, for servicing when mast is horizontal |
| Components (2) | Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck | Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck |
| Components (3) | Over forty (40) conditional safety interlocks | Over forty (40) conditional safety interlocks |
| Components (4) | Hinged window guard over the full length of the front drill window | Hinged window guard over the full length of the front drill window |
| Components (5) | Three (3) egress points on deck areas in addition to main access | Three (3) egress points on deck areas in addition to main access |
| Components (6) | Self-closing gates secure egress ladder locations | Self-closing gates secure egress ladder locations |
| Components (7) | Electric horn activated by push button in the cab | Electric horn activated by push button in the cab |
| Components (8) | Automatic tram alarm, audible | Automatic tram alarm, audible |
| Components (9) | Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals | Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals |
| Components (10) | Compressor air hoses with safety retention cables | Compressor air hoses with safety retention cables |
| Components (11) | Slip resistant surfaces | Slip resistant surfaces |
| Components (12) | Tow hooks on non-drill-end | Tow hooks on non-drill-end |
Operator Environment
| Cab - Premium | – Additional storage<br>– Leather seat with heat and ventilation<br>– Heavy duty seat suspension<br>– Dual pane window glass<br>– Removable guard for driller window, plus window facing power train<br>– Wipers for the driller window plus front and rear windows | – Additional storage<br>– Leather seat with heat and ventilation<br>– Heavy duty seat suspension<br>– Dual pane window glass<br>– Removable guard for driller window, plus window facing power train<br>– Wipers for the driller window plus front and rear windows |
| Cab - Standard | – Fabric seat<br>– Single pane window glass<br>– Removable guard for driller window<br>– Wiper for the driller window | – Fabric seat<br>– Single pane window glass<br>– Removable guard for driller window<br>– Wiper for the driller window |
| Cab Design | – Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station<br>– Cab rubber shock-mounts<br>– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port<br>– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation<br>– Power convertor 24V to 12V<br>– Radio-ready for communication and entertainment stereo<br>– Two swing-out doors and Cat keyed locks<br>– Literature holder<br>– Removable floor mat | – Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station<br>– Cab rubber shock-mounts<br>– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port<br>– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation<br>– Power convertor 24V to 12V<br>– Radio-ready for communication and entertainment stereo<br>– Two swing-out doors and Cat keyed locks<br>– Literature holder<br>– Removable floor mat |
| Seating | – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) | – Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in) |
| Windows | – Large windows front, rear and right cab side; full length drill window with guard<br>– Windshield wipers with a common washer tank | – Large windows front, rear and right cab side; full length drill window with guard<br>– Windshield wipers with a common washer tank |
| Lighting | – LED interior lights and map light at operators seat, backlit joysticks and keypads<br>– Flood lights for the drill perimeter<br>– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways<br>– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon | – LED interior lights and map light at operators seat, backlit joysticks and keypads<br>– Flood lights for the drill perimeter<br>– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways<br>– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon |
| HVAC | – Floor heating vent<br>– Roof-mounted air conditioner/heating/pressurizing unit<br>– Filter access from deck<br>– Defogging HVAC vents on main window | – Floor heating vent<br>– Roof-mounted air conditioner/heating/pressurizing unit<br>– Filter access from deck<br>– Defogging HVAC vents on main window |
Operating System Controls - Standard
| Components (22) | Prewired for Terrain and autonomous operation | Prewired for Terrain and autonomous operation |
| Components (23) | Drill Assist automated functionality:<br>– Auto level, auto jack retract<br>– Auto mast raise and lock, auto mast unlock and park | Drill Assist automated functionality:<br>– Auto level, auto jack retract<br>– Auto mast raise and lock, auto mast unlock and park |
| Components (1) | All electric controls for drilling, tramming, leveling plus auxiliary functions | All electric controls for drilling, tramming, leveling plus auxiliary functions |
| Components (2) | Electronic compressor control | Electronic compressor control |
| Components (3) | Rotary torque control | Rotary torque control |
| Components (4) | Virtual rotary head travel stops and interlocks | Virtual rotary head travel stops and interlocks |
| Components (5) | Pipe positioner engaged/disengaged indicator | Pipe positioner engaged/disengaged indicator |
| Components (6) | Drill depth meter | Drill depth meter |
| Components (7) | Drill performance and drill health display system | Drill performance and drill health display system |
| Components (8) | Data logging of machine health with warnings and fault code records with export capability | Data logging of machine health with warnings and fault code records with export capability |
| Components (9) | Delayed engine shut down | Delayed engine shut down |
| Components (10) | Rotary head rpm gauge (digital display in screen) | Rotary head rpm gauge (digital display in screen) |
| Components (11) | Filter indicators for hydraulic, fuel, compressor and engine | Filter indicators for hydraulic, fuel, compressor and engine |
| Components (12) | Jack pressure sensors in display | Jack pressure sensors in display |
| Components (13) | Dust suppression control | Dust suppression control |
| Components (14) | Mast lock indicator | Mast lock indicator |
| Components (15) | ECM proportional fan speed control system | ECM proportional fan speed control system |
| Components (16) | Tram interlock, machine stability limits | Tram interlock, machine stability limits |
| Components (17) | Tram interlock, pipe in hole | Tram interlock, pipe in hole |
| Components (18) | Tram interlock, mast up and locked or down and parked | Tram interlock, mast up and locked or down and parked |
| Components (19) | Tram interlock, jack retracted | Tram interlock, jack retracted |
| Components (20) | Tram interlock, winch parked | Tram interlock, winch parked |
| Components (21) | Cab environment controls (AC, filter, heat, fan speeds) | Cab environment controls (AC, filter, heat, fan speeds) |
Dimensions (Approximate) - 11.2 m (36.7 ft) Mast
| Width Non-Cab End | 4.845 m | 15.9 ft |
| Width Cab End | 5.625 m | 18.45 ft |
| Note | Width and length dimensions include: cascading stairs and walk-around access for cab. | Width and length dimensions include: cascading stairs and walk-around access for cab. |
| Mast Only Shipping Length | 16.32 m | 53.5 ft |
| Height - Mast Up | 17.146 m | 56.3 ft |
| Body Length | 11.708 m | 38.41 ft |
| Length - Mast Down | 17.78 m | 58.3 ft |
| Height - Mast Down | 5.134 m | 16.84 ft |
Compressor/Receiver Choices
| Receiver Tank Choice (1) | Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE | Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE |
| Receiver Tank Choice (2) | High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE | High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE |
| Compressor - Rotary Drilling | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) | 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi) |
| Compressor - DTH Drilling (1) | 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi) | 38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi) |
| Compressor - DTH Drilling (2) | 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) | 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) |
| Features (1) | With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption | With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption |
| Features (2) | Electronic compressor control and regulation | Electronic compressor control and regulation |
| Features (3) | DTH selection includes tool oiler | DTH selection includes tool oiler |
Mast Packages
| Angle Drilling | Included with either mast | Included with either mast |
| Mast Accessories Manual - 11.2 m (36.7 ft) or 13.6 m (44.6 ft) Mast | One (1) wire rope pipe catcher, manual bit basket | One (1) wire rope pipe catcher, manual bit basket |
| Mast Accessories Hydraulic - 11.2 m (36.7 ft) Mast | One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket | One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket |
| Mast Accessories Hydraulic - 13.6 m (44.6 ft) Mast | One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket | One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket |
Service Tool Options
| Lifting Bails (Available on Request) | – API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)<br>– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)<br>– API thread 140 mm (5.5 in) – to lift shock sub adapter<br>– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)<br>– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)<br>– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD) | – API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)<br>– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)<br>– API thread 140 mm (5.5 in) – to lift shock sub adapter<br>– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)<br>– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)<br>– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD) |
Drill Pipe
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 4 | 165 mm | 6.5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 1 | 127 mm | 5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 6 | 194 mm | 7.625 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 1 | 127 mm | 5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 3 | 152 mm | 6 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 6 | 194 mm | 7.625 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 4 | 165 mm | 6.5 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 3 | 152 mm | 6 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 2 | 140 mm | 5.5 in |
| 10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 5 | 178 mm | 7 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 2 | 140 mm | 5.5 in |
| 6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 5 | 178 mm | 7 in |
Carousel (Mast size and pipe diameter dependent)
| Pipe rack carousel, standard: | – 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes<br>– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes | – 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes<br>– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes |
Mast and Pipe Rack Carousel Features
| Features (7) | Sliding deck wrench assembly | Sliding deck wrench assembly |
| 13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth | 13.6 m | 44.6 ft |
| Features (5) | Auto tensioning of pull down and hoist cables | Auto tensioning of pull down and hoist cables |
| 11.2 m (36.7 ft) Mast - Hoist Speed | 0.81 m/s | 2.65 ft/s |
| Features (3) | Drill strings configured for bit changes (above the deck) | Drill strings configured for bit changes (above the deck) |
| Features (1) | Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments) | Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments) |
| Features (8) | Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH | Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH |
| Features (10) | Drill pipe positioner | Drill pipe positioner |
| Features (11) | Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque | Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque |
| Features (9) | Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes | Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes |
| Features (6) | Variable grip hydraulic break out wrench for range of pipe diameters | Variable grip hydraulic break out wrench for range of pipe diameters |
| 11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth | Down to 53.9 m (Down to 176.7 ft) | Down to 53.9 m (Down to 176.7 ft) |
| Features (4) | Single Hydraulic Cylinder and cable system for pulldown/hoist | Single Hydraulic Cylinder and cable system for pulldown/hoist |
| Features (2) | Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in) | Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in) |
| 13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth | Down to 37.9 m (Down to 124.6 ft) | Down to 37.9 m (Down to 124.6 ft) |
| 13.6 m (44.6 ft) Mast - Hoist Speed | 0.66 m/s | 2.16 ft/s |
| 11.2 m (36.7 ft) Mast - Bit Load (single pass) | Up to 22 321 kg (Up to 49,210 lb) | Up to 22 321 kg (Up to 49,210 lb) |
| 11.2 m (36.7 ft) Mast - Pull-Down Capacity | Up to 20 411 kg (Up to 45,000 lb) | Up to 20 411 kg (Up to 45,000 lb) |
| 13.6 m (44.6 ft) Mast - Bit Load (single pass) | Up to 32 655 kg (Up to 71,993 lb) | Up to 32 655 kg (Up to 71,993 lb) |
| 13.6 m (44.6 ft) Mast - Pull-Down Capacity | Up to 29 483 kg (Up to 65,000 lb) | Up to 29 483 kg (Up to 65,000 lb) |
| 13.6 m (44.6 ft) Mast - Hoist Capacity | Up to 16 584 kg (Up to 36,563 lb) | Up to 16 584 kg (Up to 36,563 lb) |
| 11.2 m (36.7 ft) Mast - Hoist Capacity | Up to 15 309 kg (Up to 33,750 lb) | Up to 15 309 kg (Up to 33,750 lb) |
Tool Package Rotary
| Components (1) | One-piece roller deck bushing | One-piece roller deck bushing |
| Components (2) | Pipe positioner rollers | Pipe positioner rollers |
| Components (3) | Deck wrench | Deck wrench |
| Components (4) | Top sub | Top sub |
| Components (5) | Bit sub | Bit sub |
| Components (6) | Pipe wiper seal | Pipe wiper seal |
Rotary Head Top Drive System
| Torque - Single Motor | 11700 N·m | 8629 lb/ft |
| Rotation Speed | 0-160 rpm | 0-160 rpm |
| Components (1) | Spindle – 140 mm (5.5 in) API regular thread with splined collar | Spindle – 140 mm (5.5 in) API regular thread with splined collar |
| Components (2) | Rotary torque control | Rotary torque control |
| Components (3) | Virtual rotary head travel interlocks | Virtual rotary head travel interlocks |
Automation and Technology
| Type (1) | Cat Terrain ready | Cat Terrain ready |
| Type (2) | Autonomy ready | Autonomy ready |
| Components (1) | Drill depth indicator | Drill depth indicator |
| Components (2) | Product Link™ Elite (hardware from factory, subscription package via dealer) | Product Link™ Elite (hardware from factory, subscription package via dealer) |
Dust Control Choices
| Choices (1) | Water injection – tank mounted below front deck 1271 L (336 gal)<br>– Water flow meter, volume control, tank fill level indicator | Water injection – tank mounted below front deck 1271 L (336 gal)<br>– Water flow meter, volume control, tank fill level indicator |
| Choices (2) | Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection<br>– Self-cleaning filters, dust chute with ejector | Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection<br>– Self-cleaning filters, dust chute with ejector |
| Choices (3) | High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)<br>– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)<br>– Tank above deck capacity 1514 L (400 gal) | High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)<br>– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)<br>– Tank above deck capacity 1514 L (400 gal) |
| Choices (4) | Static dust curtains, four sided/boxed enclosed | Static dust curtains, four sided/boxed enclosed |
Service Packages
| Package (1) | Fast fill for fuel and water, automated lubrication system | Fast fill for fuel and water, automated lubrication system |
| Package (2) | Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option) | Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option) |
Weights
| Working Weight Range | 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb) | 56 468 kg to 64 154 kg (124,490 lb to 141,436 lb) |
Features
WORLD-CLASS OPERATOR STATION
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
100% CAT INTEGRATION
- Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
- Shared software for autonomous features
- Backed by the world-class support of the Cat dealer network
CAT ELECTRONICS: BACKBONE OF MACHINE
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serve as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
MATCHED POWERTRAIN
- Volumetric air flow control enables operator to reduce air flow by up to 50% to match a specific drilling tool and application
- C27 engine matched to largest “standard” compressor in this class for fast cycle times
- Powertrain optimized to withstand rigorous drilling applications
- High - and low -pressure configurations offer variable volume air control
- Optimal feed force, rotary torque and air, helping to reduce fuel consumption
TECHNOLOGY AND AUTOMATION
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Ready to connect with the Cat MineStar suite of technologies, including Terrain for drilling and Command for drilling
SAFETY
- Excellent visibility, thanks to multiple cameras and full-length windows
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- Seven engine shut-down buttons and more than 40 conditional safety interlocks
- Slip-resistant surfaces for safer ingress/egress and service
- LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress and major service points
SERVICEABILITY
- Large water and fuel tanks reduce time spent refilling
- Grouped service-access points, neat hose-runs and wiring reduce maintenance time
- Cat MineStar Health offerings enable onboard health and performance monitoring
- Extended service intervals minimize maintenance downtime
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
POWER TRAIN CHOICES
| Emissions: Equivalent to Tier 2, Engine Power C27 @ 1,800 rpm, ISO 14396 616 kW (826 hp), ISO 14396 (DIN) 838 mhp (PS) |
| Emissions: Equivalent to Tier 4 Final, Engine Power C27 @ 1,800 rpm, ISO 14396 650 kW (872 hp), ISO 14396 (DIN) 884 mhp (PS) |
| Compressor (2,000 ft³/min, 125 psi) – Rotary drilling package, 56.6 m³ (2,000 ft³/min) at 8.6 bar (125 psi); with low pressure receiver tank for ASME/CRN/AU or CE |
CAB CHOICES
| Standard – Includes a fabric seat, single pane window glass, removable driller window guard, and a windshield wiper for driller window |
CONTROLS
| Drill depth indicator and interlocks, auto-level, auto-mast |
FRAME/DECK
| Machine access via fixed stairs |
MAST ACCESSORIES
| 11.2 m (36.7 ft) or 13.6 m (44.6 ft): Pipe catcher, manual – one wire rope (for 11 m), two wire rope (for 13 m) pipe catcher, bit basket, manual |
PIPE CAROUSEL 11.2 M (36.7 FT) MAST/10.6 M (35 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
| 127 mm (5.0 in) pipe; four pods |
| 140 mm (5.5 in) pipe; four pods |
| 152 mm (6.0 in) pipe; four pods |
| 165 mm (6.5 in) pipe; four pods |
| 178 mm (7.0 in) pipe; four pods |
| 194 mm (7.625 in) pipe; four pods |
PIPE CAROUSEL 13.6 M (44.6 FT) MAST/6.1 M (20 FT) PIPE RACK. HOLDS QTY. OF FOUR (SELECT ONE)
| 127 mm (5.0 in) pipe; four pods |
| 140 mm (5.5 in) pipe; four pods |
| 152 mm (6.0 in) pipe; four pods |
| 165 mm (6.5 in) pipe; four pods |
| 178 mm (7.0 in) pipe; four pods |
| 194 mm (7.625 in) pipe; four pods |
DRILL TOOL PACKAGES/ROTARY DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
| 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
DRILL TOOL PACKAGES/DTH DRILLING FOR 11.2 M (36.7 FT) MAST (SELECT ONE)
| 140 mm (5.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal |
| 165 mm (6.5 in); two-piece deck bushing, pipe positioner rollers, deck wrench, cross over hammer adapter; pipe wiper seal |
DRILL TOOL PACKAGES/ROTARY FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
| 127 mm (5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 152 mm (6 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 165 mm (6.5 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 178 mm (7 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
| 194 mm (7.625 in); one-piece roller deck bushing, pipe positioner roller, deck wrench, cross over subs, pipe wiper seal |
DRILL TOOL PACKAGES/DTH DRILLING FOR 13.6 M (44.6 FT) MAST (SELECT ONE)
| 127 mm (5.0 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 140 mm (5.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 165 mm (6.5 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
| 178 mm (7 in); two-piece deck bushing, pipe positioner roller, deck wrench, cross over hammer adapter; pipe wiper seal |
TOP SUBS (ROTARY DRILLING ONLY) (SELECT ONE)
| 127 mm (5 in) |
| 152 mm (6 in) |
| 165 mm (6.5 in) |
| 178 mm (7 in) |
| 194 mm (7.625 in) |
CLIMATE/REGIONAL CONSIDERATIONS
| Batteries, sealed quantity four (4) |
| Level 1 – Standard fluids and lubricants. With a temperature range of –1° C (30° F) to 52° C (125° F) |
| Decals, ANSI |
| Decals, ISO |
| Certifications, EAEU |
| Certifications, CE |
DUST SUPPRESSION
| Water injection 1271 L (336 gal) |
| Static dust curtains, four sided/boxed enclosed |
UNDERCARRIAGE; CAT 336E EL (SELECT ONE)
| Triple grousers 600 mm (23.6 in); for hard rock 0.88 bar (12.7 psi) ground pressure |
| Triple grousers 750 mm (29.5 in); for soft rock 1.10 bar (15.9 psi) ground pressure |
POWER TRAIN CHOICES
| Compressor (1,350 ft³/min, 500 psi) – DTH drilling package, 38.2 m³ (1,350 ft³/min) at 34.4 bar (500 psi), with high pressure receiver tank (500 psi) for ASME/CRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system |
| Compressor (1,500 ft³/min, 350 psi) – DTH drilling package, 42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi) with high pressure receiver tank for ASME/DRN/AU or CE; includes hammer storage and 113.5 L (30 gal) hammer lubrication system |
