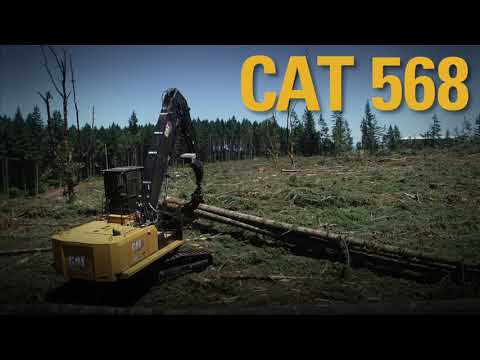

FM568 GF/FM568 LL

Machine Setup Simplification


• At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.

​​​​​​​​​​​
Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H


• The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.



• VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It’s all about making informed, data-based decisions to help reduce operating costs.



• Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.



• Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help resolve issues quickly and with less downtime.



• Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.



• The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.


• The Cat® C9.3B is powerful, is fuel efficient, and can run on biodiesel and other renewable fuels.



• Smart mode helps reduce fuel consumption by automatically matching engine and hydraulic power to working conditions.



• Pick and place logs with precision and power with the electrohydraulic control system.



• Heavy lift mode helps you confidently move big logs across the jobsite.



• Auxiliary hydraulic options let you use Cat grapples and various other attachments.



• Work in extreme environments with a standard high-ambient capability of 52° C (126° F) and cold start capability of -32° C (-25° F).


• Operators can choose the rear or side entry cab with up to 25% more space and a tilt-up console.*



• The dual HVAC system keeps operators comfortable in cold and warm weather.



• A wider heated and cooled air-suspension seat makes year-round work more pleasant.



• All controls are within easy reach to reduce twisting and turning and keep you focused on the work area.



• Cab Risers – 559 mm (22″) tilting (for transport), side-entry cab with bolted retention system; 1219 mm (48″) tilting (for transport), rear-entry cab with easy lock, and 1829 mm (72″) tilting (for transport), rear-entry cab with easy lock – are available to meet your work needs.



• Stow your gear with in-cab storage beneath, behind the seat, and in the consoles.



• Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

*Compared to 2020 568.


• Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.



• The Cat PL161 attachment locator is a Bluetooth device designed to let users know where their attachments are across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The PL161 integrates easily into VisionLink™ for full fleet management of machines and attachments from one smartphone or tablet dashboard to view location and tracking details.



• Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor.



• Make moving the excavator much easier with the optional Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.



• Not sure how a function works or how to maintain the machine? Always have the operator’s manual at your fingertips in the touchscreen monitor.



• Optional auxiliary relay powers on and turns off CB radios and other attachments without you taking your hands off the joysticks.


• General Forestry


1. The General Forestry model is ideal for road work, grappling, processing, and delimbing.



2. With a reach boom and quick coupler, you can equip the FM568 with a processor, bucket, thumb, mulcher, and other attachments to get work done quickly and efficiently.



3. A frontless option allows you to customize the machine to fit your applications.


• Log Loader


1. The log loader configuration is ideal for truck loading, Butt-n-Top loading, power clam applications, and millyard work.



2. An under-mounted heel cylinder provides maximum force for shovel logging with a Cat grapple. A variable displacement pump delivers high-flow rotating capability for heel and log grapples and Power Clam and Butt-n-Top grapples.



3. An overmounted heel cylinder provides maximum clearance to load trucks and increases lift height for millyard applications.


• Rugged, reliable, simple-to-service Cat forestry grapples range in size from 1322 mm (52″) to 1524 mm (60″).


• Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and the parts needed so you don’t experience unnecessary downtime.



• Expect lower maintenance cost than the previous model.



• The engine’s regeneration system functions automatically with no operator input or interruption to work.



• Using Cat® genuine oil and filters and doing typical S∙O∙S^SM monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.



• S·O·S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.



• The diesel particulate filter requires no maintenance.



• Replace fuel filters at 1,000 hours – twice the interval from the previous filters.



• The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000-hour replacement interval – 50% longer than previous filter designs.



• The high-efficiency cooling fan runs only when needed; program intervals so the fan automatically reverses to keep cores clean without interrupting your work.


• The cab meets applicable industry standards for Rollover Protective Structure (ROPS)/Falling Object Protective Structure (FOPS)/ Operator Protective Guards (OPG) and protects the operator inside the cab.



• Access most routine maintenance points at ground level.



• The right-hand service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use an anti-skid punch plate to prevent slipping. Handrails are provided for easy access.



• Larger 32 mm (1 1/4”) polycarbonate front window, smaller cab pillars, and a flat engine hood improve visibility by up to 50%.



• Standard rearview camera enhances jobsite visibility; right-hand-sideview camera is optional.



• The monitor’s slope and grade indicator tell you the machine’s position to help optimize its performance.



• A signaling/warning horn and travel alarm enhance jobsite safety.



• Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:


• Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.



• Pin Grabber: Offer fast, secure attachment changes and are compatible with a wide range of tools. Ideal for operators who need flexibility on the job site, they allow switching between buckets, hammers, and grapples. Features a redundant locking system to keep your attachments in place and protect them from damage.



• CW Quick Couplers: Rugged, wedge-style quick couplers built to increase the utilization of your excavator. Designed to fit your machine and application needs, Caterpillar® offers a series of CW couplers in mechanical and hydraulic versions. Ideal for contractors who prioritize a strong, simple locking system for frequent attachment changes.



• S-Type Couplers: A pin grabber-style dedicated coupler, S-Type Couplers feature a narrow, lightweight design for improved performance. They offer precision, flexibility, and are ideal for fleets needing consistent attachment interchangeability.



• Hydraulic Connecting S-Type (HCS) Couplers: HCS Couplers offer automatic hydraulic connection with the compact, low-profile design of the S-Type. With advanced functionality such as full hydraulic and electronic connection, hydromechanical attachments are connected and ready to operate in seconds.



• Performance Hammers: Built for high-demand applications, performance hammers deliver maximum impact energy and fast cycle times for breaking concrete, rock, and asphalt. Ideal for heavy-duty demolition, quarrying, and production environments where speed and power are critical.



• GC Hammers: Cat® GC hammers offer reliable performance for everyday breaking tasks at a lower operating cost. A versatile solution for many applications, including road construction, trenching and demolition, while balancing power and efficiency for general contractors.



• GC S Hammers: Simplified, silenced models designed for noise-sensitive environments. They maintain solid performance while reducing sound levels, making them ideal for urban job sites, residential areas, and regulated zones. Ideal for site prep, light demolition, foundry and quarry applications.



• Mulchers: Ideal for forestry and agriculture applications. Mulchers clear land and manage vegetation by shredding brush, trees, and undergrowth into fine mulch. Their high-speed rotors deliver fast, consistent results, with interchangeable teeth to suit different materials and desired final mulch size.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.
​​​​​​
Not all attachments are available in all regions. Contact your Cat Dealer for details.



• ​​​​​The Cat® C9.3B engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.



• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.



• Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.



• Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the machine’s life.



• Cat® VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.



• Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of  blends higher than 20% biodiesel, consult your Cat dealer).

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

1. ROPS Forestry cab with polycarbonate windows
2. 4-point harness seat belt
3. Heated and cooled seat with air-adjustable suspension
4. Integrated joysticks
5. Tilt-up left-side console (side-entry cab only)
6. High-resolution touchscreen monitor
7. Bluetooth® integrated radio (including USB, aux port and microphone)
8. 12V DC outlets
9. Keyless push-to-start engine control
10. Automatic bi-level air conditioner
11. LED dome and floor lights
12. Windshield wiper and washer
13. Behind seat storage
14. Retractable sunshade

CAT TECHNOLOGIES

1. VisionLink™
2. Remote Flash
3. Remote Troubleshoot

ELECTRICAL SYSTEM

1. Maintenance-free 1000 CCA batteries (x4)
2. Centralized electrical disconnect switch
3. LED chassis, boom/stick, and cab lights
4. 115 Amp alternator
5. 24-volt electric starting
6. Horn and travel alarm
7. Pre-start monitoring system
8. Tool control software
9. Secondary engine shut off switch

ENGINE

1. Electric fuel priming pump
2. Three selectable modes: Power, Smart, Eco
3. Automatic engine speed control
4. Automatic engine idle shutdown
5. Up to 4500m (14,764 ft) altitude capability
6. 52° C (126° F) high-ambient cooling capacity
7. -32° C (-25° F) cold start capability
8. Hydraulic reverse fan
9. Two-stage fuel filter system
10. Double element air filter with integrated pre-cleaner

HYDRAULIC SYSTEM

1. Boom and stick regeneration circuits
2. Boom and stick drift reduction valve
3. Electronic main control valve
4. Automatic hydraulic oil warmup
5. Automatic swing parking brake
6. High performance hydraulic return filter
7. Automatic two speed travel
8. Bio hydraulic oil capability
9. High torque swing drive
10. Swing cushion valve
11. Tool control software

SAFETY AND SECURITY

1. Caterpillar One Key security system
2. Lockable service doors
3. Lockable external tool/storage box
4. Lockable fuel caps and hydraulic tank
5. Service platforms with anti-skid plate and countersunk bolts
6. Right-hand handrail and handhold
7. Signaling/warning horn
8. Travel alarm
9. Ground-level secondary engine shutoff switch
10. Rearview camera

SERVICE AND MAINTENANCE

1. Integrated vehicle health management system
2. Side-entry service platform
3. Left/Right-side fuel fill locations
4. Grouped location for engine oil and fuel filters
5. Scheduled Oil Sampling (S·O·S℠) ports

UNDERCARRIAGE AND STRUCTURES

1. High Wide undercarriage
2. Grease lubricated track with positive pin retention
3. Catwalks
4. Tie down points
5. Counterweight fuel tank
6. Heavy-duty track rollers
7. Heavy-duty travel motor guards
8. Heavy-duty bottom guards
9. Track guiding guards
10. High drawbar final drives
11. Heavy-duty recoil springs
12. Heavy-duty hydraulic swivel
13. Heavy-duty hydraulic swivel guard

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOMS AND STICKS

1. 6.5 m (21’4″) Reach boom
2. 7.09 m (23’3″) Log Loader boom
3. 3.2 m (10’6″) Reach stick
4. 3.9 m (12’10”) Reach stick
5. 4.73 m (15’6″) Over/Under stick
6. 4.73 m (15’6″) Power Clam stick
7. DB family bucket linkage

CAB

1. Rear entry
2. Side entry
3. 559 mm (22″) tilting riser
4. 1219 mm (48″) tilting riser
5. 1829 mm (72″) tilting riser
6. CB radio mounts
7. Cat Stick Steer
8. Auxiliary relay

ELECTRICAL SYSTEM

1. Premium lighting – General Forestry – 6 additional LED lights – 14 total
2. Premium lighting – Log Loader – 10 additional LED lights – 18 total

ENGINE

1. Cold start package with block heater and ether assist

HYDRAULIC SYSTEM

1. Medium pressure circuit

SAFETY AND SECURITY

1. Easy lock cab tilting system (Rear entry cab only)
2. Cab riser light
3. Inspection lighting
4. Swing alarm
5. Right-hand-sideview camera

UNDERCARRIAGE AND STRUCTURES

1. 700 mm (28″) single grouser shoes
2. 700 mm (28″) double grouser shoes
3. 850 mm (33″) triple grouser shoes
