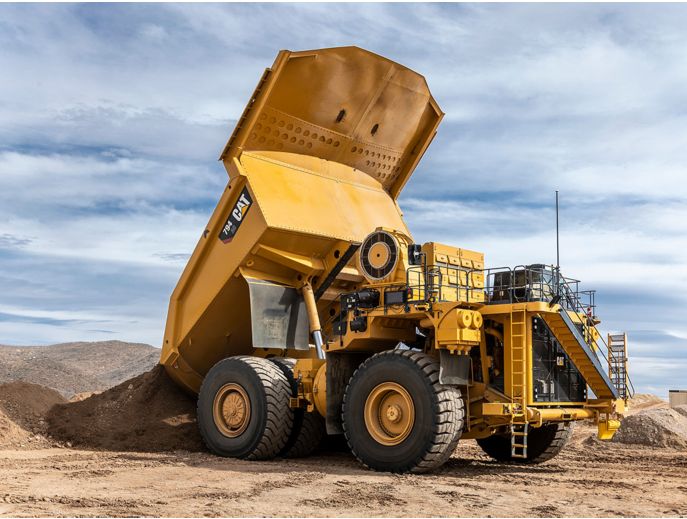

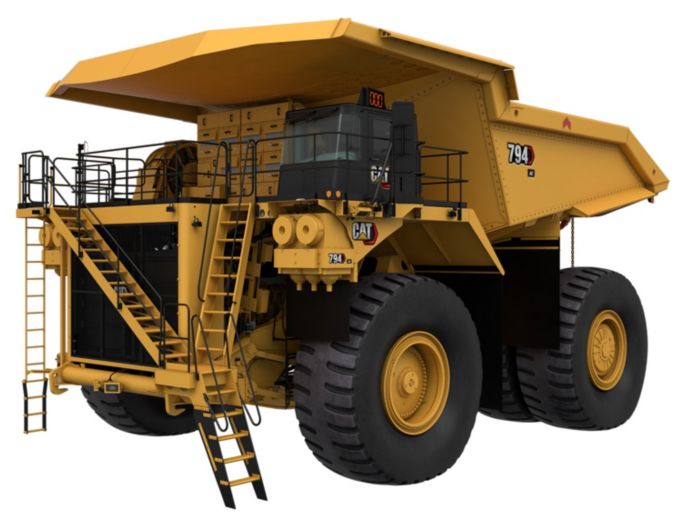

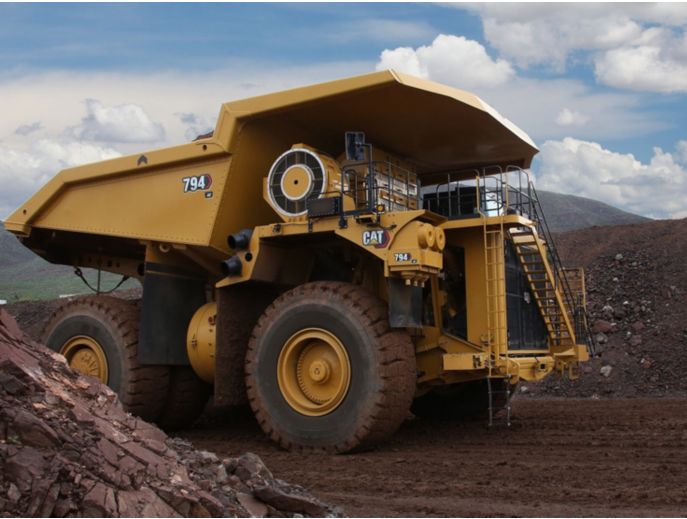

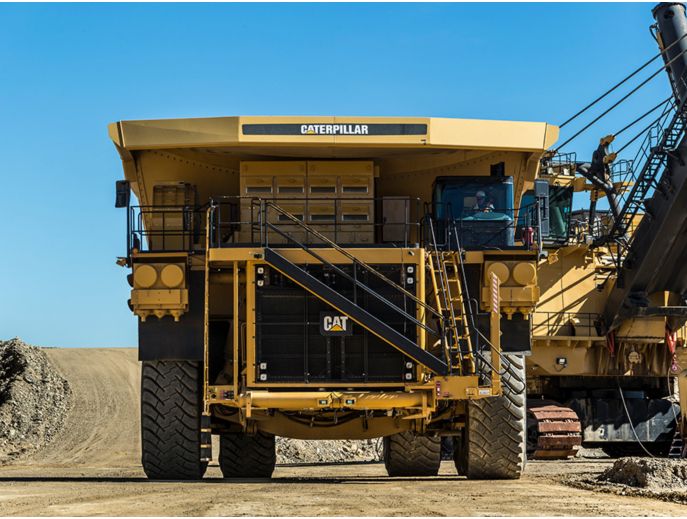

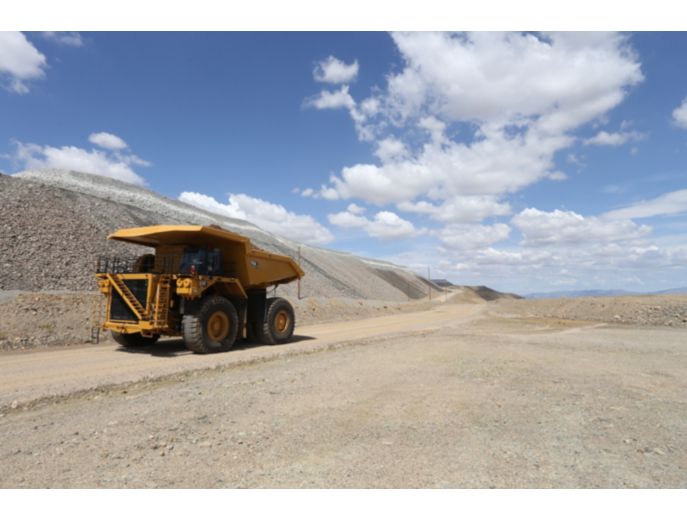

Designed and manufactured by Caterpillar, the 794 AC electric drive truck is single sourced from one manufacturer and supported by the best dealer network. The 794 AC is designed to:
Designed and manufactured by Caterpillar, the 794 AC electric drive truck is single sourced from one manufacturer and supported by the best dealer network. The 794 AC is designed to:
Nominal Payload Capacity | 291 t | 320 ton (US) |
Steer Angle | 39 ° | 39 ° |
Minimum Turning Radius | 16.2 m | 53 ft |
Gross Machine Operating Weight (GMW) | 521631 kg | 1150000 lb |
Note (2) | Refer to the Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations. | Refer to the Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations. |
Top Speed - Loaded | 60 km/h | 37 mile/h |
Note (1) | Payload assumes no debris, no extra options or attachments. | Payload assumes no debris, no extra options or attachments. |
Engine
Engine Model | Cat® C175-16 | Cat® C175-16 |
Gross Power - SAE J1995 | 2610 kW | 3500 HP |
Bore | 175 mm | 6.9 in |
Stroke | 220 mm | 8.7 in |
Displacement | 85 l | 5187 in³ |
Standard Gross Power - SAE J1995 | 2610 kW | 3500 HP |
Optional Gross Power - SAE J1995 | 2312 kW | 3100 HP |
Net Power - SAE J1349 | 2539 kW | 3405 HP |
Note (1) | Contact factory for high altitude configuration. | Contact factory for high altitude configuration. |
Rated Speed | 1800 r/min | 1800 r/min |
Optional Gross Power - SAE J1995 (Option 2) | 2051 kW | 2750 HP |
Emissions Rating | Fuel Optimized | Fuel Optimized |
Final Drives
Total Reduction Ratio | 35 to 1 | 35 to 1 |
Dimensions (Approximate)
Rear Axle - Tail | 4716 mm | 15.5 ft |
Overall Height - Body Raised | 14747 mm | 48.42 ft |
Height - Top of ROPS | 6779 mm | 22.25 ft |
Outside Body Width | 9062 mm | 29.75 ft |
Centerline Front Tire Width | 7024 mm | 23 ft |
Ground Clearance | 906 mm | 2.67 ft |
Loading Height - Empty | 6995 mm | 22.92 ft |
Front Axle Clearance | 969 mm | 3.17 ft |
Centerline of Rear Dual Tire Width | 5727 mm | 18.75 ft |
Wheel Base | 6644.5 mm | 21.83 ft |
Note | Dimensions based on 193.6 m³ (253 yd³) HE Body. | Dimensions based on 193.6 m³ (253 yd³) HE Body. |
Canopy Width (without optional rock deflectors) | 9068 mm | 29.75 ft |
Overall Length | 15463.5 mm | 50.75 ft |
Front Canopy Height | 8024 mm | 26.33 ft |
Rear Axle - Clearance | 934 mm | 3.08 ft |
Inside Body Width | 8560 mm | 28.08 ft |
Overall Tire Width | 8738 mm | 28.67 ft |
Dump Clearance | 1555 mm | 3 ft |
Sound
Sound Standards (1) | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed. | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed. |
Sound Standards (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Weights - Approximate
Body Weight | 28186 kg | 62140 lb |
Gross Machine Operating Weight | 521631 kg | 1150000 lb |
Note (2) | Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. | Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. |
Chassis Weight | 189233 kg | 417187 lb |
Note (3) | Body weight varies depending on how body is equipped. | Body weight varies depending on how body is equipped. |
Note (1) | Consult your tire manufacturer for maximum tire load. | Consult your tire manufacturer for maximum tire load. |
Body Hoists
Pump Flow - High Idle (LAA at 1,960 rpm) | 910 l/min | 240 gal/min |
Pump Flow - High Idle (HAA at 1,800 rpm) | 840 l/min | 221 gal/min |
Body Raise Time - High Idle | 24 s | 24 s |
Note (2) | Power raise in both stages; power down in both stages possible. | Power raise in both stages; power down in both stages possible. |
Note (3) | Automatic body-lower modulation reduces impact on frame. | Automatic body-lower modulation reduces impact on frame. |
Note (1) | Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages. | Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages. |
Relief Valve Setting - Raise | 20884 kPa | 3029 psi |
High Idle Body Lower Time - Float | 20 s | 20 s |
Total Cycle Time | 44 s | 44 s |
Capacity - HE Body - 100% fill factor
Dump Body Plate Thickness Varies Depending on Body Selection - Canopy Plate | 5 mm | 0.2 in |
Note | Contact your local Cat dealer for body recommendations. | Contact your local Cat dealer for body recommendations. |
Dump Body Plate Thickness Varies Depending on Body Selection - Side Plate | 8 mm | 0.31 in |
Heaped (SAE 2:1) | 180-222 m³ (236-290 yd³) | 180-222 m³ (236-290 yd³) |
Dump Body Plate Thickness Varies Depending on Body Selection - Floor Plate | 16 mm | 0.63 in |
Dump Body Plate Thickness Varies Depending on Body Selection - Front Plate | 9 mm | 0.35 in |
Struck | 108-133 m³ (142-175 yd³) | 108-133 m³ (142-175 yd³) |
ROPS
ROPS Standards | ROPS (Rollover Protective Structure) meets ISO 3471:1994. | ROPS (Rollover Protective Structure) meets ISO 3471:1994. |
FOPS Standards | FOPS (Falling Object Protective Structure) meets ISO 3449:1992. | FOPS (Falling Object Protective Structure) meets ISO 3449:1992. |
AC Drive System
Wheel Motor | Cat AC induction, rear axle mounted | Cat AC induction, rear axle mounted |
Generator/Alternator | Brushless, engine mounted, dual bearing | Brushless, engine mounted, dual bearing |
Controls | IGBT Inverter Technology, air cooled, pressurized cabinet with filtration | IGBT Inverter Technology, air cooled, pressurized cabinet with filtration |
Cooling System | Variable speed, hydraulically driven cooling system | Variable speed, hydraulically driven cooling system |
Service Refill Capacities
Final Drive - Each | 254 l | 67 gal (US) |
Fuel Tank | 4922 l | 1300 gal (US) |
Crankcase | 310 l | 82 gal (US) |
Hydraulic System - Including Tank | 1458 l | 385 gal (US) |
Hydraulic Tank | 1121 l | 296 gal (US) |
Cooling System | 799 l | 211 gal (US) |
Weight Distributions - Approximate
Front Axle - Empty | 49 % | 49 % |
Front Axle - Loaded | 33 % | 33 % |
Rear Axle - Loaded | 67 % | 67 % |
Rear Axle - Empty | 51 % | 51 % |
Tires
Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection. |
Note (1) | Production capabilities of the 794 AC truck are such that, under certain job conditions, TKPH (TMPH) capabilities could be exceeded and, therefore, limit production. | Production capabilities of the 794 AC truck are such that, under certain job conditions, TKPH (TMPH) capabilities could be exceeded and, therefore, limit production. |
Standard Tires | 53/80 R63. | 53/80 R63. |
Braking System
Dynamic Retarding Power - Continuous | 4086 kW | 5480 HP |
Rear - Wet Disc Brake Surface Area | 198388 cm² | 30750 in² |
Standards | ISO 3450:2011 | ISO 3450:2011 |
Front Wet Disc Brake Surface Area | 131473 cm² | 20378 in² |
Electric Retarding | Radial Grid Design | Radial Grid Design |
Steering
Note | Gross Machine Operating Weight is 521 631 kg (1,150,000 lb). | Gross Machine Operating Weight is 521 631 kg (1,150,000 lb). |
Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
Designed and manufactured by Caterpillar, the 794 AC is a 291 tonnes (320 tons) AC electric drive truck that is single sourced from one manufacturer and supported with the best dealer network in the industry. The 794 AC drive system works seamlessly with the C175-16 engine and offers exceptional safety, serviceability and performance.
The modular design allows for easy removal and installation of components. The engine, traction alternator, motors, inverter, grid, and final drives can be removed independently. The close coupled, dual bearing traction alternator allows for easy mounting to the C175-16 engine.
The Cat AC drive system gives you the best retarding, braking, and control in the industry. Class leading dynamic retarding coupled with blended service braking of the four corner wet disc brakes, provide the operator with exceptional control and confidence.
The Cat AC drive is a high voltage system (2,600 volts) that operates at lower current than the competition. The result is lower heat generation, smaller/lighter components, and longer component life.
The C175-16 diesel engine drives the close connected Traction Alternator/Generator through an isolation coupler. The AC power is rectified to a nominal 2,600 volts to form the DC link. The DC link supplies power to the Inverter where IGBT's convert the DC signal to 3-phase AC to drive the traction motors. Traction motor output drives the wheels through a double reduction ring gear output final drive.
During retarding the traction/wheel motors act as generators and power is fed back through the DC link. The power is fed to the contactor and chopper circuits and then exhausted through the radial grid. An AC fan blows air across the grid to dissipate the power and control retarding speed.
No shimming or radial alignment required with the close coupled, dual bearing alternator, resulting in decreased install time. The excitation system is brushless which has longer maintenance intervals than brush type systems.
Cat ECMs and software work with the Mitsubishi Electric IGBT Phase Modules to control the rimpull, direction and speed of the truck. Mitsubishi Electric IGBT technology is the proven leader for AC drive systems.
The 794 AC uses two 3-phase AC induction traction motors. The high voltage, low current motor is mounted inside the rear axle housing.
The radial design grid sits to the rear of the cab deck giving operators excellent visibility to the right side. The grid features the highest retarding power in the industry, better grid life, and is significantly quieter than box grids. The AC electric motor does not require any maintenance, which is a savings to the customer over DC motor systems.
The hydraulic drive blower motor offers exceptional cooling, even in extreme environments. The variable hydraulic blower has the ability to provide the required cooling, even while the truck is at idle, compared to direct drive motors that are dependent on engine rpm. The variable blower is better at keeping critical components cool, and ensures long component life.
The Cat C175-16 is a quad turbocharged air-to-air after cooled diesel engine that has enhanced power management capabilities for maximum hauling in your most demanding mining applications. The 16-cylinder, four stroke design uses long, effective power strokes for optimum efficiency.
Standard 2610 kW (3,500 hp) with optional 2312 kW (3,100 hp) or 2050 kW (2,750 hp), allows the 794 to seamlessly integrate into existing fleets and offer the best fuel economy. The horsepower can be changed with only a software change over a shift change or lunch break. This gives you the ability to optimize the power for your changing application.
The C175-16 engine block is comprised of a high tensile strength ferrite ductile cast iron alloy. This design offers increased resistance to stress cracking and offers support to the cylinder liners, allowing for increased head gasket sealing capability.
The design of the C175-16 enhances serviceability. The inlet manifolds and turbochargers are located outside of the engine's V, giving the service technicians more space to work on top of the engine and within the engine bay.
The ECM utilizes advanced engine management software to monitor, control and protect the engine utilizing self-diagnosing electronic sensors.
A forged steel, one piece piston design has an improved stainless steel top ring set. The top ring reduces ring groove and liner wear and is corrosion resistant.
The electronically-controlled system senses operating conditions and regulates fuel delivery for optimum fuel efficiency. This precise and flexible fuel system gives the engine the ability to meet emission regulations without sacrificing performance, reliability or durability.
The Cat engine, AC drive system, hydraulics and controls have been integrated to make the truck easy to operate and provides:
Cat Data Link provides one location to access all machine information from all machine sub systems. Unique tools are not required to access the drive system, engine and machine information. All systems on the 794 AC are in constant communication with each other to:
The radial grid is rated at 4.086 MW (5,480 hp) – allowing excellent control of the truck speed in long retarding applications. The radial design is light, efficient and quiet.
The Hydraulic brake actuation system is electrically modulated so that the first 80% of brake pedal travel uses dynamic braking while the remaining 20% uses the wet disc service brakes. The emergency service brake pedal uses full hydraulic modulation of the wet disc brakes. The loading brake is used for under the shovel and applies the rear service brakes.
The wet disc brakes provide the operator with excellent control and confidence in the truck. The front and rear Cat oil cooled brakes are designed with large discs and plates for reliable and adjustment free operation. They are enclosed and sealed to prevent contamination and provide long life. These oil disc brakes provide exceptional braking at all speeds.
The dual functioning brake pedal gives the operator confidence when going downhill. The first 80% of the pedal activates only the dynamic brakes, but the operator has the ability to blend in the wet disc service brakes, with the remaining 20% of the brake pedal's range. When the operator is coming to a stop, the service brakes will automatically blend in at low speeds.
Full electric retarding effort will be maintained down to a truck speed of 3.2 km/h (2.0 mph). Blended braking of the service brakes (60/40 split rear and front service brakes) occurs between 3.6-4.0 km/h (2.25-2.5 mph) and will be used to completely stop the truck and hold it stationary.
Operator controlled – ARC engages automatically and maintains speed consistently. A simple toggle switch is used to adjust retarding speed, eliminating troublesome dials in competitor trucks.
Automatically applies service brakes to prevent the truck from rolling from a stop opposite the intended direction of travel.
Ensures reverse propulsion is not applied when the machine is moving forward, which helps prevent costly damage to the engine and drive system.
Park brake alarm alerts the operator if he starts to exit the cab before the park brake has been applied. This feature helps prevent accidental movement.
The 794 AC utilizes a straight rail design. The straight rail design eliminates bends and breaks, which occur at stress concentrations.
Designed to maximize the operator space by deforming the support structure rather than compromise the operator compartment. The transverse mounting beams absorb energy by deflecting around established pivot points, maintaining the integrity of the operator compartment.
The single beam front axle is designed for load sharing on the beam, resulting in flatter turns and sharing of tire loading for better tire life. This lower structure absorbs the road undulations, giving a better ride and decreasing operator fatigue levels.
The design of the suspension system utilizes Nitrogen/Oil suspension cylinders that feature pin to pin mounting to allow for access and change out of components without having to remove the tires.
Integral to the truck the body is designed to fit with the chassis and work as part of the truck system. Each body is sized to meet the payload requirements without compromise to vehicle balance, braking or control.
The body is sized and configured to meet the specific needs dictated by fragmentation, abrasion, cohesion, and the loading tool to maximize the payload capability of the truck.
Provides operator critical health and payload information in real-time to keep the 794 AC performing at optimum levels. VIMS is able to monitor information from all vehicle systems. Ten (10) different machine parameters can be viewed at once. Data can be downloaded easily by service technicians for troubleshooting, planning and lowering costs.
The Advisor display provides real-time performance, maintenance and diagnostic data to the operator or service technician. A large number of machine parameters can be viewed including temperature, pressure, speed, and payload.
Information is available to manage payloads to improve fleet effectiveness and loading tool match. It can help prevent overloading to extend component life and lower operating and maintenance costs.
Standard external lights or optional digit display to help loading tool operator reach payload target and minimize overloading.
An Off-board software reporting program that allows your service personnel to download a complete record of machine health and productivity data. Health and payload reports can be generated for more effective machine management, which reduces downtime and lowers operating costs.
Optional software allows your mine personnel to easily manage and interpret VIMS data for optimum fleet management and productivity.
The 794 AC cab can accommodate two full size reclining seats, while providing ample storage space behind the seats.
To minimize operator fatigue and maximize productivity, the operator station is ergonomically designed for total machine control in a comfortable, productive, and safe environment. Controls, levers, switches and gauges are positioned for ease of use.
Designed for excellent all-around visibility and clear sight lines to the haul road, the large viewing area offers exceptional visibility, allowing the operator to maneuver with confidence for high productivity. The operator environment was designed with curved front glass to provide a 191-degree view. The support pillars have been moved further back to provide a more unobstructed front view. Deck compartments have been positioned to minimize impact on the side field of view.
Cat dealer 24/7 support offers solutions, services and products to help you lower costs, enhance productivity, and manage your fleet anywhere in the world. Expert technicians have the knowledge, experience, training, parts and tooling to keep your 794 AC running at high availability.
Caterpillar supports the 794 AC with a worldwide network of parts distribution, dealer service centers and technical training facilities. Our global dealer network is ready to meet your support needs around the clock and around the world.
Cat dealers offer a wide range of service plans to help maximize your uptime and return on your investment, including:
Application and site-specific factors such as material density, loading practices, payload, speed, grade and haul road design and maintenance influence the cost to operate and maintain your haulage fleet. Your Cat dealer can provide help in understanding the effects application factors and operating practices have on maintenance and operating costs. They also offer training to help operators improve productivity, decrease downtime, reduce operating costs and enhance safety.
Major components can be serviced individually with minimal removal and installation time. Work platforms and step/stairs are located in key service areas. The close coupled, dual bearing, traction alternator is separate from the engine and can be removed without removing the body – traction/wheel motors are separate from final drives.
Grouped service points (4 filter service groups) allow convenient access to tank levels, filters, drains and S·O·SSM oil sampling ports.
Electrical connectors are sealed to lock out dust and moisture. Harnesses are enclosed in conduit or braided for protection. Wires are color coded for ease of diagnosis and repair.
Hydraulic lines run inside the left side of the frame, while the electric lines run inside the right side of the frame. This makes servicing/replacement quick and easy.
Caterpillar is concerned about your safety. We continue to be the industry leader in proactive development of machines and features that exceed safety standards.
The Cat drive controls feature anti-roll back, traction controls, a park brake warning when exiting the cab and an automatic retarder that inspires operator confidence and error prevention.
The 794 AC features a ground level system lockout, engine lockout and propulsion lockout (in ECM cabinet), VIMS monitoring, and stored energy dissipation at shutdown. These features, and the excellent serviceability of the 794 AC, allow your technicians to perform repairs safely and quickly.
Standard 600 mm (24") wide ladders, flat deck, toe kicks, and optional power access stair attachment allows for easy and safe access and egress.
The 794 AC Mining Truck offers continuous rear axle filtration and extended maintenance intervals which aid in decreasing the amount of waste contributed to our environment.
794 AC trucks are designed to be rebuilt and deliver a long life, many 794 AC trucks have logged over 100,000 hours of frame life. Components are designed to be remanufactured for multiple service lives.
Engines with advanced technology contribute to better fuel economy and decreased emissions.
794 AC has exceptionally low oil and lube consumption when compared to the competition. This provides a reduced impact on the environment, lower cost of ownership, and less maintenance time.
POWER TRAIN
C175-16 Diesel Engine – Turbocharging (4)/aftercooled – Air to air after cooler (ATAAC) – Air cleaner (4) with precleaner – Elevated low idle control – Multi-point oil pressure sensing – Pre-lubrication/engine |
Braking system: – Brake release towing – Oil-cooled, multi-disc (front and rear) (service, retarding, parking, secondary) – Automatic Retarder Control – Electric dynamic retarding with blended low speed – Extended life brake disc material |
Cat AC drive train: – IGBT controlled AC induction motors – AC generator – AC cooled radial grid |
Body-up reverse neutralizer |
Programmable top speed |
Rear axle continuous lube/filtration |
Reverse shift inhibitor |
Directional shift management |
Neutral coast inhibitor |
Body-up shift inhibitor |
Neutral start inhibitor |
ELECTRICAL
Alarm, backup |
Brushless alternator 150 amp charging |
Batteries – 12V (8) 90 amp hour |
Converter, 12V electrical |
Electrical system, 24V, 10, 15, 20 amp fuses and breakers |
Battery charge receptacle |
Lighting, signals/service: – Halogen lighting package – Backup and hazard lighting – Directional signals (front and rear LED) – Front stair access/service deck – Stop/tail lights (LED) – Engine compartment – Inverter energy LED warning lights |
OPERATOR ENVIRONMENT
Air conditioner |
12V DC power supply (1) |
Cup holder (2) |
Diagnostic connection port |
Dome courtesy light |
Entertainment radio ready: – 20 amp switched/10 amp memory converter – Speakers, and wiring harnesses |
Gauges/indicators |
Gauge panel:
|
Heater/defroster |
Storage space behind seat |
ROPS cab, insulated/sound suppressed |
Seat, operator, air suspension |
Seatbelt, operator, three points |
Seat, trainer, air suspension |
Seatbelt, trainer, two point |
Steering wheel, tilt, telescopic |
Tinted glass |
Window, electric powered, operator/passenger |
Wiper, windshield, intermittent control and washer |
Fixed access ladder |
FLUIDS
Extended life coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
Traction control system |
Auxiliary “buddy” dumping quick connect |
Auxiliary steering quick connect (towing) |
Rotating component guards |
Fast fill fuel system (LH and RH side) |
Fuel filter with water separator |
Ground level battery lockout |
Machine lockout |
Engine start lockout |
ECM cabinet lockout |
Ground level engine shut-down |
Rock ejectors (chain) |
Tow hooks and pin (front) |
Tow pin (rear) (empty truck only) |
Mudflaps |
Coolant level gauge (on radiator) |
Automatic lubrication system |
S·O·S sample points (hydraulic, cooling, engine) |
OPTIONAL EQUIPMENT
2050 kW (2,750 hp) and 2312 kW (3,100 hp) options available |
HAA arrangements available |
Throttle lock |
Timer, engine shutdown |
Body heat exhaust |
Gel batteries (8) |
High Intensity Discharge (HID) lighting package |
LED lighting package |
Fog lights |
LED work lights |
English or Metric gauges |
Payload, digital display |
Powered access ladder |
Inverter platform |
Fast fill fuel system (front and right) |
Rims: Six (6) position and quick change |
ANSI and ISO service instructions |
Retarding indicator light |
Cab pedestal for additional display |
Radio/CD player |
Front bumper center tow attachment |
Brake wear indicator tool |
Coolant –50° C (–58° F) |
HE dump body rock box liner |
HE dump body canopy rock deflectors |
Heated mirrors (LH and RH) |
Rear axle oil cooler |
Standard accumulators and Australia/Canada certified accumulators |
Hot start, for cold weather |
Diesel fuel warmer |
Wheel chocks (ANSI or ISO) |
Portable fire extinguisher |
Murphy gauge |
High efficiency dump body – 1543 kg/m³ (2,600 lb/yd³) density body – 1721 kg/m³ (2,900 lb/yd³) density body – 1839 kg/m³ (3,100 lb/yd³) density body – 2076 kg/m³ (3,500 lb/yd³) density body |
Canopy extension |
Body rock box |
Side profile lighting |
Central service |
Language monitors – English, Spanish, Italian, Portuguese, Dutch, Norwegian, Swedish, Estonian, Latin, Lithuanian, Slovakian, Slovenian, Greek, Romanian, Russian, Polish, Czech, Hungarian, Icelandic, Finnish, Danish, Thai, Indonesian, Vietnam, Malaysian, Chinese |
Designed and manufactured by Caterpillar, the 794 AC electric drive truck is single sourced from one manufacturer and supported by the best dealer network. The 794 AC is designed to:
Nominal Payload Capacity | 291 t | 320 ton (US) |
Steer Angle | 39 ° | 39 ° |
Minimum Turning Radius | 16.2 m | 53 ft |
Gross Machine Operating Weight (GMW) | 521631 kg | 1150000 lb |
Note (2) | Refer to the Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations. | Refer to the Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations. |
Top Speed - Loaded | 60 km/h | 37 mile/h |
Note (1) | Payload assumes no debris, no extra options or attachments. | Payload assumes no debris, no extra options or attachments. |
Engine
Engine Model | Cat® C175-16 | Cat® C175-16 |
Gross Power - SAE J1995 | 2610 kW | 3500 HP |
Bore | 175 mm | 6.9 in |
Stroke | 220 mm | 8.7 in |
Displacement | 85 l | 5187 in³ |
Standard Gross Power - SAE J1995 | 2610 kW | 3500 HP |
Optional Gross Power - SAE J1995 | 2312 kW | 3100 HP |
Net Power - SAE J1349 | 2539 kW | 3405 HP |
Note (1) | Contact factory for high altitude configuration. | Contact factory for high altitude configuration. |
Rated Speed | 1800 r/min | 1800 r/min |
Optional Gross Power - SAE J1995 (Option 2) | 2051 kW | 2750 HP |
Emissions Rating | Fuel Optimized | Fuel Optimized |
Final Drives
Total Reduction Ratio | 35 to 1 | 35 to 1 |
Dimensions (Approximate)
Rear Axle - Tail | 4716 mm | 15.5 ft |
Overall Height - Body Raised | 14747 mm | 48.42 ft |
Height - Top of ROPS | 6779 mm | 22.25 ft |
Outside Body Width | 9062 mm | 29.75 ft |
Centerline Front Tire Width | 7024 mm | 23 ft |
Ground Clearance | 906 mm | 2.67 ft |
Loading Height - Empty | 6995 mm | 22.92 ft |
Front Axle Clearance | 969 mm | 3.17 ft |
Centerline of Rear Dual Tire Width | 5727 mm | 18.75 ft |
Wheel Base | 6644.5 mm | 21.83 ft |
Note | Dimensions based on 193.6 m³ (253 yd³) HE Body. | Dimensions based on 193.6 m³ (253 yd³) HE Body. |
Canopy Width (without optional rock deflectors) | 9068 mm | 29.75 ft |
Overall Length | 15463.5 mm | 50.75 ft |
Front Canopy Height | 8024 mm | 26.33 ft |
Rear Axle - Clearance | 934 mm | 3.08 ft |
Inside Body Width | 8560 mm | 28.08 ft |
Overall Tire Width | 8738 mm | 28.67 ft |
Dump Clearance | 1555 mm | 3 ft |
Sound
Sound Standards (1) | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed. | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 75 dB(A) for cab offered by Caterpillar when properly installed, maintained, and tested with doors and windows closed. |
Sound Standards (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
Weights - Approximate
Body Weight | 28186 kg | 62140 lb |
Gross Machine Operating Weight | 521631 kg | 1150000 lb |
Note (2) | Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. | Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. |
Chassis Weight | 189233 kg | 417187 lb |
Note (3) | Body weight varies depending on how body is equipped. | Body weight varies depending on how body is equipped. |
Note (1) | Consult your tire manufacturer for maximum tire load. | Consult your tire manufacturer for maximum tire load. |
Body Hoists
Pump Flow - High Idle (LAA at 1,960 rpm) | 910 l/min | 240 gal/min |
Pump Flow - High Idle (HAA at 1,800 rpm) | 840 l/min | 221 gal/min |
Body Raise Time - High Idle | 24 s | 24 s |
Note (2) | Power raise in both stages; power down in both stages possible. | Power raise in both stages; power down in both stages possible. |
Note (3) | Automatic body-lower modulation reduces impact on frame. | Automatic body-lower modulation reduces impact on frame. |
Note (1) | Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages. | Twin, two-stage hydraulic cylinders mounted inside main frame; double-acting cylinders in both stages. |
Relief Valve Setting - Raise | 20884 kPa | 3029 psi |
High Idle Body Lower Time - Float | 20 s | 20 s |
Total Cycle Time | 44 s | 44 s |
Capacity - HE Body - 100% fill factor
Dump Body Plate Thickness Varies Depending on Body Selection - Canopy Plate | 5 mm | 0.2 in |
Note | Contact your local Cat dealer for body recommendations. | Contact your local Cat dealer for body recommendations. |
Dump Body Plate Thickness Varies Depending on Body Selection - Side Plate | 8 mm | 0.31 in |
Heaped (SAE 2:1) | 180-222 m³ (236-290 yd³) | 180-222 m³ (236-290 yd³) |
Dump Body Plate Thickness Varies Depending on Body Selection - Floor Plate | 16 mm | 0.63 in |
Dump Body Plate Thickness Varies Depending on Body Selection - Front Plate | 9 mm | 0.35 in |
Struck | 108-133 m³ (142-175 yd³) | 108-133 m³ (142-175 yd³) |
ROPS
ROPS Standards | ROPS (Rollover Protective Structure) meets ISO 3471:1994. | ROPS (Rollover Protective Structure) meets ISO 3471:1994. |
FOPS Standards | FOPS (Falling Object Protective Structure) meets ISO 3449:1992. | FOPS (Falling Object Protective Structure) meets ISO 3449:1992. |
AC Drive System
Wheel Motor | Cat AC induction, rear axle mounted | Cat AC induction, rear axle mounted |
Generator/Alternator | Brushless, engine mounted, dual bearing | Brushless, engine mounted, dual bearing |
Controls | IGBT Inverter Technology, air cooled, pressurized cabinet with filtration | IGBT Inverter Technology, air cooled, pressurized cabinet with filtration |
Cooling System | Variable speed, hydraulically driven cooling system | Variable speed, hydraulically driven cooling system |
Service Refill Capacities
Final Drive - Each | 254 l | 67 gal (US) |
Fuel Tank | 4922 l | 1300 gal (US) |
Crankcase | 310 l | 82 gal (US) |
Hydraulic System - Including Tank | 1458 l | 385 gal (US) |
Hydraulic Tank | 1121 l | 296 gal (US) |
Cooling System | 799 l | 211 gal (US) |
Weight Distributions - Approximate
Front Axle - Empty | 49 % | 49 % |
Front Axle - Loaded | 33 % | 33 % |
Rear Axle - Loaded | 67 % | 67 % |
Rear Axle - Empty | 51 % | 51 % |
Tires
Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection. |
Note (1) | Production capabilities of the 794 AC truck are such that, under certain job conditions, TKPH (TMPH) capabilities could be exceeded and, therefore, limit production. | Production capabilities of the 794 AC truck are such that, under certain job conditions, TKPH (TMPH) capabilities could be exceeded and, therefore, limit production. |
Standard Tires | 53/80 R63. | 53/80 R63. |
Braking System
Dynamic Retarding Power - Continuous | 4086 kW | 5480 HP |
Rear - Wet Disc Brake Surface Area | 198388 cm² | 30750 in² |
Standards | ISO 3450:2011 | ISO 3450:2011 |
Front Wet Disc Brake Surface Area | 131473 cm² | 20378 in² |
Electric Retarding | Radial Grid Design | Radial Grid Design |
Steering
Note | Gross Machine Operating Weight is 521 631 kg (1,150,000 lb). | Gross Machine Operating Weight is 521 631 kg (1,150,000 lb). |
Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
Designed and manufactured by Caterpillar, the 794 AC is a 291 tonnes (320 tons) AC electric drive truck that is single sourced from one manufacturer and supported with the best dealer network in the industry. The 794 AC drive system works seamlessly with the C175-16 engine and offers exceptional safety, serviceability and performance.
The modular design allows for easy removal and installation of components. The engine, traction alternator, motors, inverter, grid, and final drives can be removed independently. The close coupled, dual bearing traction alternator allows for easy mounting to the C175-16 engine.
The Cat AC drive system gives you the best retarding, braking, and control in the industry. Class leading dynamic retarding coupled with blended service braking of the four corner wet disc brakes, provide the operator with exceptional control and confidence.
The Cat AC drive is a high voltage system (2,600 volts) that operates at lower current than the competition. The result is lower heat generation, smaller/lighter components, and longer component life.
The C175-16 diesel engine drives the close connected Traction Alternator/Generator through an isolation coupler. The AC power is rectified to a nominal 2,600 volts to form the DC link. The DC link supplies power to the Inverter where IGBT's convert the DC signal to 3-phase AC to drive the traction motors. Traction motor output drives the wheels through a double reduction ring gear output final drive.
During retarding the traction/wheel motors act as generators and power is fed back through the DC link. The power is fed to the contactor and chopper circuits and then exhausted through the radial grid. An AC fan blows air across the grid to dissipate the power and control retarding speed.
No shimming or radial alignment required with the close coupled, dual bearing alternator, resulting in decreased install time. The excitation system is brushless which has longer maintenance intervals than brush type systems.
Cat ECMs and software work with the Mitsubishi Electric IGBT Phase Modules to control the rimpull, direction and speed of the truck. Mitsubishi Electric IGBT technology is the proven leader for AC drive systems.
The 794 AC uses two 3-phase AC induction traction motors. The high voltage, low current motor is mounted inside the rear axle housing.
The radial design grid sits to the rear of the cab deck giving operators excellent visibility to the right side. The grid features the highest retarding power in the industry, better grid life, and is significantly quieter than box grids. The AC electric motor does not require any maintenance, which is a savings to the customer over DC motor systems.
The hydraulic drive blower motor offers exceptional cooling, even in extreme environments. The variable hydraulic blower has the ability to provide the required cooling, even while the truck is at idle, compared to direct drive motors that are dependent on engine rpm. The variable blower is better at keeping critical components cool, and ensures long component life.
The Cat C175-16 is a quad turbocharged air-to-air after cooled diesel engine that has enhanced power management capabilities for maximum hauling in your most demanding mining applications. The 16-cylinder, four stroke design uses long, effective power strokes for optimum efficiency.
Standard 2610 kW (3,500 hp) with optional 2312 kW (3,100 hp) or 2050 kW (2,750 hp), allows the 794 to seamlessly integrate into existing fleets and offer the best fuel economy. The horsepower can be changed with only a software change over a shift change or lunch break. This gives you the ability to optimize the power for your changing application.
The C175-16 engine block is comprised of a high tensile strength ferrite ductile cast iron alloy. This design offers increased resistance to stress cracking and offers support to the cylinder liners, allowing for increased head gasket sealing capability.
The design of the C175-16 enhances serviceability. The inlet manifolds and turbochargers are located outside of the engine's V, giving the service technicians more space to work on top of the engine and within the engine bay.
The ECM utilizes advanced engine management software to monitor, control and protect the engine utilizing self-diagnosing electronic sensors.
A forged steel, one piece piston design has an improved stainless steel top ring set. The top ring reduces ring groove and liner wear and is corrosion resistant.
The electronically-controlled system senses operating conditions and regulates fuel delivery for optimum fuel efficiency. This precise and flexible fuel system gives the engine the ability to meet emission regulations without sacrificing performance, reliability or durability.
The Cat engine, AC drive system, hydraulics and controls have been integrated to make the truck easy to operate and provides:
Cat Data Link provides one location to access all machine information from all machine sub systems. Unique tools are not required to access the drive system, engine and machine information. All systems on the 794 AC are in constant communication with each other to:
The radial grid is rated at 4.086 MW (5,480 hp) – allowing excellent control of the truck speed in long retarding applications. The radial design is light, efficient and quiet.
The Hydraulic brake actuation system is electrically modulated so that the first 80% of brake pedal travel uses dynamic braking while the remaining 20% uses the wet disc service brakes. The emergency service brake pedal uses full hydraulic modulation of the wet disc brakes. The loading brake is used for under the shovel and applies the rear service brakes.
The wet disc brakes provide the operator with excellent control and confidence in the truck. The front and rear Cat oil cooled brakes are designed with large discs and plates for reliable and adjustment free operation. They are enclosed and sealed to prevent contamination and provide long life. These oil disc brakes provide exceptional braking at all speeds.
The dual functioning brake pedal gives the operator confidence when going downhill. The first 80% of the pedal activates only the dynamic brakes, but the operator has the ability to blend in the wet disc service brakes, with the remaining 20% of the brake pedal's range. When the operator is coming to a stop, the service brakes will automatically blend in at low speeds.
Full electric retarding effort will be maintained down to a truck speed of 3.2 km/h (2.0 mph). Blended braking of the service brakes (60/40 split rear and front service brakes) occurs between 3.6-4.0 km/h (2.25-2.5 mph) and will be used to completely stop the truck and hold it stationary.
Operator controlled – ARC engages automatically and maintains speed consistently. A simple toggle switch is used to adjust retarding speed, eliminating troublesome dials in competitor trucks.
Automatically applies service brakes to prevent the truck from rolling from a stop opposite the intended direction of travel.
Ensures reverse propulsion is not applied when the machine is moving forward, which helps prevent costly damage to the engine and drive system.
Park brake alarm alerts the operator if he starts to exit the cab before the park brake has been applied. This feature helps prevent accidental movement.
The 794 AC utilizes a straight rail design. The straight rail design eliminates bends and breaks, which occur at stress concentrations.
Designed to maximize the operator space by deforming the support structure rather than compromise the operator compartment. The transverse mounting beams absorb energy by deflecting around established pivot points, maintaining the integrity of the operator compartment.
The single beam front axle is designed for load sharing on the beam, resulting in flatter turns and sharing of tire loading for better tire life. This lower structure absorbs the road undulations, giving a better ride and decreasing operator fatigue levels.
The design of the suspension system utilizes Nitrogen/Oil suspension cylinders that feature pin to pin mounting to allow for access and change out of components without having to remove the tires.
Integral to the truck the body is designed to fit with the chassis and work as part of the truck system. Each body is sized to meet the payload requirements without compromise to vehicle balance, braking or control.
The body is sized and configured to meet the specific needs dictated by fragmentation, abrasion, cohesion, and the loading tool to maximize the payload capability of the truck.
Provides operator critical health and payload information in real-time to keep the 794 AC performing at optimum levels. VIMS is able to monitor information from all vehicle systems. Ten (10) different machine parameters can be viewed at once. Data can be downloaded easily by service technicians for troubleshooting, planning and lowering costs.
The Advisor display provides real-time performance, maintenance and diagnostic data to the operator or service technician. A large number of machine parameters can be viewed including temperature, pressure, speed, and payload.
Information is available to manage payloads to improve fleet effectiveness and loading tool match. It can help prevent overloading to extend component life and lower operating and maintenance costs.
Standard external lights or optional digit display to help loading tool operator reach payload target and minimize overloading.
An Off-board software reporting program that allows your service personnel to download a complete record of machine health and productivity data. Health and payload reports can be generated for more effective machine management, which reduces downtime and lowers operating costs.
Optional software allows your mine personnel to easily manage and interpret VIMS data for optimum fleet management and productivity.
The 794 AC cab can accommodate two full size reclining seats, while providing ample storage space behind the seats.
To minimize operator fatigue and maximize productivity, the operator station is ergonomically designed for total machine control in a comfortable, productive, and safe environment. Controls, levers, switches and gauges are positioned for ease of use.
Designed for excellent all-around visibility and clear sight lines to the haul road, the large viewing area offers exceptional visibility, allowing the operator to maneuver with confidence for high productivity. The operator environment was designed with curved front glass to provide a 191-degree view. The support pillars have been moved further back to provide a more unobstructed front view. Deck compartments have been positioned to minimize impact on the side field of view.
Cat dealer 24/7 support offers solutions, services and products to help you lower costs, enhance productivity, and manage your fleet anywhere in the world. Expert technicians have the knowledge, experience, training, parts and tooling to keep your 794 AC running at high availability.
Caterpillar supports the 794 AC with a worldwide network of parts distribution, dealer service centers and technical training facilities. Our global dealer network is ready to meet your support needs around the clock and around the world.
Cat dealers offer a wide range of service plans to help maximize your uptime and return on your investment, including:
Application and site-specific factors such as material density, loading practices, payload, speed, grade and haul road design and maintenance influence the cost to operate and maintain your haulage fleet. Your Cat dealer can provide help in understanding the effects application factors and operating practices have on maintenance and operating costs. They also offer training to help operators improve productivity, decrease downtime, reduce operating costs and enhance safety.
Major components can be serviced individually with minimal removal and installation time. Work platforms and step/stairs are located in key service areas. The close coupled, dual bearing, traction alternator is separate from the engine and can be removed without removing the body – traction/wheel motors are separate from final drives.
Grouped service points (4 filter service groups) allow convenient access to tank levels, filters, drains and S·O·SSM oil sampling ports.
Electrical connectors are sealed to lock out dust and moisture. Harnesses are enclosed in conduit or braided for protection. Wires are color coded for ease of diagnosis and repair.
Hydraulic lines run inside the left side of the frame, while the electric lines run inside the right side of the frame. This makes servicing/replacement quick and easy.
Caterpillar is concerned about your safety. We continue to be the industry leader in proactive development of machines and features that exceed safety standards.
The Cat drive controls feature anti-roll back, traction controls, a park brake warning when exiting the cab and an automatic retarder that inspires operator confidence and error prevention.
The 794 AC features a ground level system lockout, engine lockout and propulsion lockout (in ECM cabinet), VIMS monitoring, and stored energy dissipation at shutdown. These features, and the excellent serviceability of the 794 AC, allow your technicians to perform repairs safely and quickly.
Standard 600 mm (24") wide ladders, flat deck, toe kicks, and optional power access stair attachment allows for easy and safe access and egress.
The 794 AC Mining Truck offers continuous rear axle filtration and extended maintenance intervals which aid in decreasing the amount of waste contributed to our environment.
794 AC trucks are designed to be rebuilt and deliver a long life, many 794 AC trucks have logged over 100,000 hours of frame life. Components are designed to be remanufactured for multiple service lives.
Engines with advanced technology contribute to better fuel economy and decreased emissions.
794 AC has exceptionally low oil and lube consumption when compared to the competition. This provides a reduced impact on the environment, lower cost of ownership, and less maintenance time.
POWER TRAIN
C175-16 Diesel Engine – Turbocharging (4)/aftercooled – Air to air after cooler (ATAAC) – Air cleaner (4) with precleaner – Elevated low idle control – Multi-point oil pressure sensing – Pre-lubrication/engine |
Braking system: – Brake release towing – Oil-cooled, multi-disc (front and rear) (service, retarding, parking, secondary) – Automatic Retarder Control – Electric dynamic retarding with blended low speed – Extended life brake disc material |
Cat AC drive train: – IGBT controlled AC induction motors – AC generator – AC cooled radial grid |
Body-up reverse neutralizer |
Programmable top speed |
Rear axle continuous lube/filtration |
Reverse shift inhibitor |
Directional shift management |
Neutral coast inhibitor |
Body-up shift inhibitor |
Neutral start inhibitor |
ELECTRICAL
Alarm, backup |
Brushless alternator 150 amp charging |
Batteries – 12V (8) 90 amp hour |
Converter, 12V electrical |
Electrical system, 24V, 10, 15, 20 amp fuses and breakers |
Battery charge receptacle |
Lighting, signals/service: – Halogen lighting package – Backup and hazard lighting – Directional signals (front and rear LED) – Front stair access/service deck – Stop/tail lights (LED) – Engine compartment – Inverter energy LED warning lights |
OPERATOR ENVIRONMENT
Air conditioner |
12V DC power supply (1) |
Cup holder (2) |
Diagnostic connection port |
Dome courtesy light |
Entertainment radio ready: – 20 amp switched/10 amp memory converter – Speakers, and wiring harnesses |
Gauges/indicators |
Gauge panel:
|
Heater/defroster |
Storage space behind seat |
ROPS cab, insulated/sound suppressed |
Seat, operator, air suspension |
Seatbelt, operator, three points |
Seat, trainer, air suspension |
Seatbelt, trainer, two point |
Steering wheel, tilt, telescopic |
Tinted glass |
Window, electric powered, operator/passenger |
Wiper, windshield, intermittent control and washer |
Fixed access ladder |
FLUIDS
Extended life coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
Traction control system |
Auxiliary “buddy” dumping quick connect |
Auxiliary steering quick connect (towing) |
Rotating component guards |
Fast fill fuel system (LH and RH side) |
Fuel filter with water separator |
Ground level battery lockout |
Machine lockout |
Engine start lockout |
ECM cabinet lockout |
Ground level engine shut-down |
Rock ejectors (chain) |
Tow hooks and pin (front) |
Tow pin (rear) (empty truck only) |
Mudflaps |
Coolant level gauge (on radiator) |
Automatic lubrication system |
S·O·S sample points (hydraulic, cooling, engine) |
OPTIONAL EQUIPMENT
2050 kW (2,750 hp) and 2312 kW (3,100 hp) options available |
HAA arrangements available |
Throttle lock |
Timer, engine shutdown |
Body heat exhaust |
Gel batteries (8) |
High Intensity Discharge (HID) lighting package |
LED lighting package |
Fog lights |
LED work lights |
English or Metric gauges |
Payload, digital display |
Powered access ladder |
Inverter platform |
Fast fill fuel system (front and right) |
Rims: Six (6) position and quick change |
ANSI and ISO service instructions |
Retarding indicator light |
Cab pedestal for additional display |
Radio/CD player |
Front bumper center tow attachment |
Brake wear indicator tool |
Coolant –50° C (–58° F) |
HE dump body rock box liner |
HE dump body canopy rock deflectors |
Heated mirrors (LH and RH) |
Rear axle oil cooler |
Standard accumulators and Australia/Canada certified accumulators |
Hot start, for cold weather |
Diesel fuel warmer |
Wheel chocks (ANSI or ISO) |
Portable fire extinguisher |
Murphy gauge |
High efficiency dump body – 1543 kg/m³ (2,600 lb/yd³) density body – 1721 kg/m³ (2,900 lb/yd³) density body – 1839 kg/m³ (3,100 lb/yd³) density body – 2076 kg/m³ (3,500 lb/yd³) density body |
Canopy extension |
Body rock box |
Side profile lighting |
Central service |
Language monitors – English, Spanish, Italian, Portuguese, Dutch, Norwegian, Swedish, Estonian, Latin, Lithuanian, Slovakian, Slovenian, Greek, Romanian, Russian, Polish, Czech, Hungarian, Icelandic, Finnish, Danish, Thai, Indonesian, Vietnam, Malaysian, Chinese |
