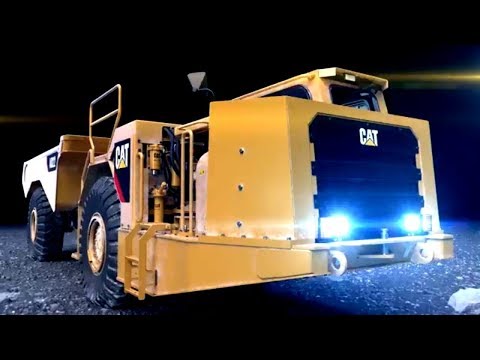

AD22

ELECTRICAL

1. 12V power supply in cab
2. Alternator:
   – 95 amp open cabin
   – 150 amp enclosed cabin
3. Auxiliary start receptacle
4. Battery disconnect switch, ground level:
   – Front left hand side
5. Circuit breakers:
   – Main: 80 amp
   – A/C: 80 amp (enclosed cab)
   – Alternators: 105 amp (open); 150 amp for (enclosed)
6. Corrosive protection spray
7. Diagnostic connectors
8. Electric starting, 24V
9. Engine start lockout switch, ground level (LH):
   – Front left hand side
10. Engine shutdown switch, ground level (RH):
    – Front right hand side
11. Lighting, LED:
    – Brake and tail light
    – Headlights with dimmer switch
    – Rear work light (cab mounted)
    – Reversing lights
12. Low maintenance batteries
13. Reversing alarm
14. Starting and charging system
15. Directional indicator lamps

POWER TRAIN

1. Cat C11 ACERT ATAAC diesel engine, six-cylinder
2. Auto shift transmission four speed forward/one speed reverse
3. Manual fuel priming pump
4. Exhaust, turbo compartment shielding
5. Four wheel drive
6. Long life coolant
7. Body up speed limiter, 3-5 km/h (2-3 mph)
8. Ejector body tailgate down speed limiter, 3-5 km/h (2-3 mph)
9. Radiator cap manual release
10. Radiator, single pane cross flow
11. Rims, five-piece, tubeless
12. Reverse modulated fully hydraulic enclosed wet, multiple-disc brakes, oil cooled
13. Torque converter with automatic lockup

OTHER STANDARD EQUIPMENT

1. Oscillating hitch
2. Body, dump, 9.0 m³ (11.8 yd³)
3. Catalytic exhaust purifier/muffler group
4. Decals, international pictographics
5. Engine and transmission belly guards
6. Fenders, standard with LH front mud flaps
7. Firewall
8. Fuel system manual shut off tap
9. Frame lifting lugs
10. Front and rear tow pin
11. Hand hold (access on/off top deck)
12. Operation and Maintenance Manual:
    – English and other applicable local language to select
13. S·O·S℠ port:
    – Coolant
    – Engine oil
    – Hydraulic oil
    – Transmission oil
14. Tire arrangement:
    – Tire, Michelin 18.00 × R25 XKD1A
15. Hydraulic and braking system manual pressure release function
16. Steering frame lock
17. Dump body retaining pins
18. Ejector body retaining pin

OPERATOR ENVIRONMENT

1. Dome light
2. Door light
3. Electric horns
4. Open operator station ROPS/FOPS structure
5. Operator present system
6. Rearview mirrors
7. Suspension seat, Tee, mechanical with retractable seat belt
8. Tilt steering wheel
9. USB charging port
10. Electronic Monitoring System:
    – Indicator lights
    – Parking brake
    – Electrical charging system
    – Engine oil pressure alarm
    – Engine coolant temperature alarm
    – Engine coolant level alarm
    – Transmission oil temperature alarm
    – Torque converter oil temperature alarm
    – Hydraulic oil temperature alarm
    – Transmission oil filter alarm
    – Brake cooling oil filter alarm
    – Brake system alarm
    – E stop
    – Brake drag
    – Transmission amber warning light
    – Engine amber warning light
    – IBA alarm
    – Secondary steering active
    – Operator present alarm
    – Hydraulic oil level alarm
    – Engine red fault light
    – Transmission red fault light
    – Steering oil pressure alarm
    – Retarder (on)
    – Body up
    – Hoist not on float
    – Cab door open
    – Turn indicators
    – High beam
    – Alert warning light
11. Gauges (on screen display):
    – Engine coolant temperature
    – Transmission oil temperature
    – Fuel level
    – Engine oil pressure
    – Steering oil pressure
    – Brake accumulator oil pressure
    – Service brake oil pressure
    – Parking brake oil pressure
    – Tachometer
    – Speedometer
    – Gear indicator

OPTIONAL AND MANDATORY ATTACHMENTS

1. Body dump:
   – Body, 10.0 m³ (13.1 yd³)
   – Body, 11.0 m³ (14.4 yd³)
   – Body, 12.0 m³ (15.7 yd³)
2. Body ejector:
   – Body, 9.7 m³ (12.7 yd³)
3. Camera, color rear facing
4. Engine shutdown switch, cab
5. Fluids:
   – Arctic fuel
   – Arctic coolant
6. Guard, mesh, open cab
7. Guard, mesh, enclosed cab
8. Park brake switch engagement:
   – Push to apply
9. Rims:
   – Rim identification numbering
   – Spare, tubeless
10. Seat cover:
    – Tee
11. Secondary steering system (electric driven)
12. Service tools:
    – Hoist cylinder supports (for body removal)
13. Enclosed operator station (includes as standard):
    – Air conditioning (salt resistant)
    – Cab pressurizer and filter
    – Heater (electric)
    – Window, sliding, cab door
    – Windshield wiper and washer
14. Reflective tape
