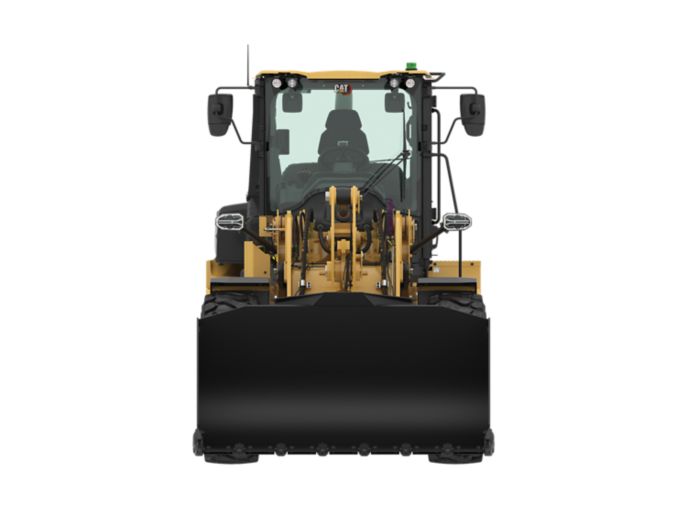

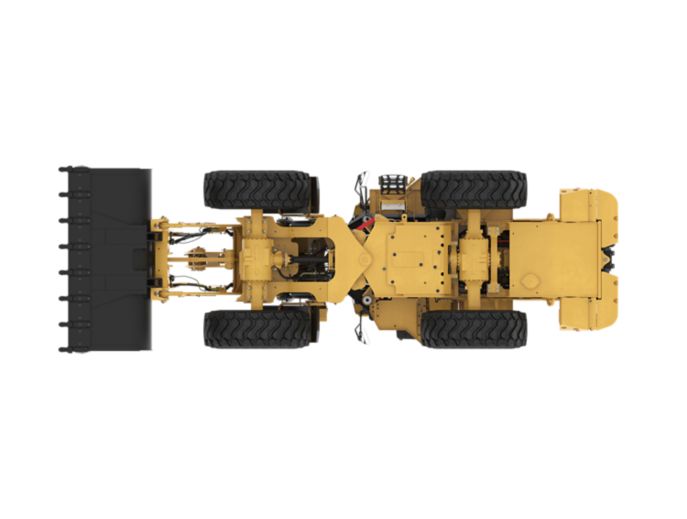

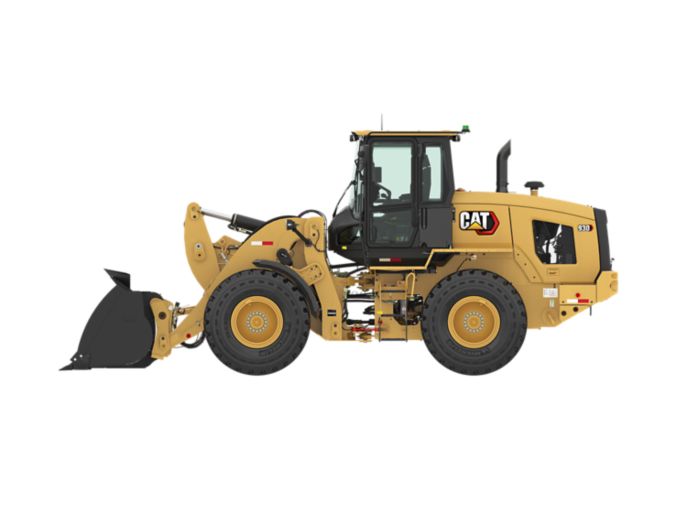

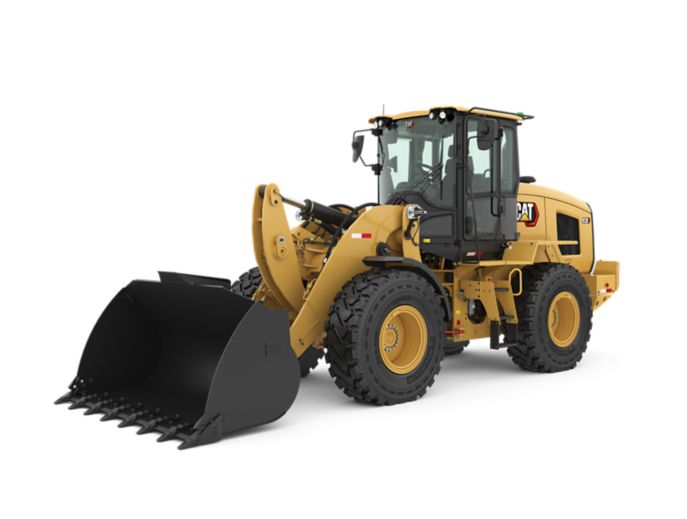

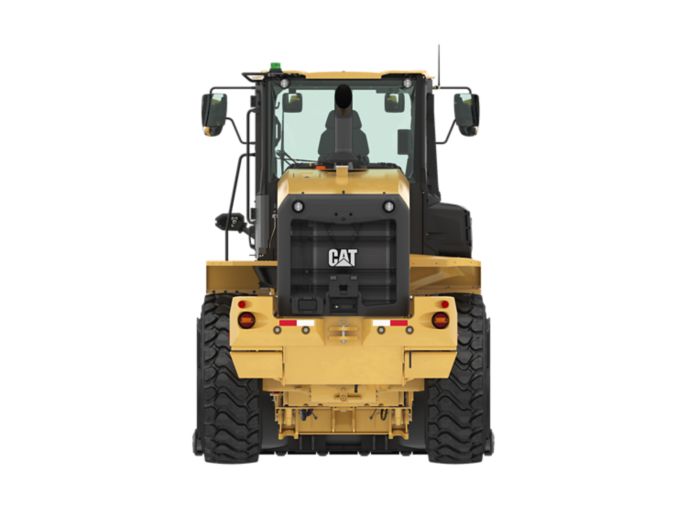

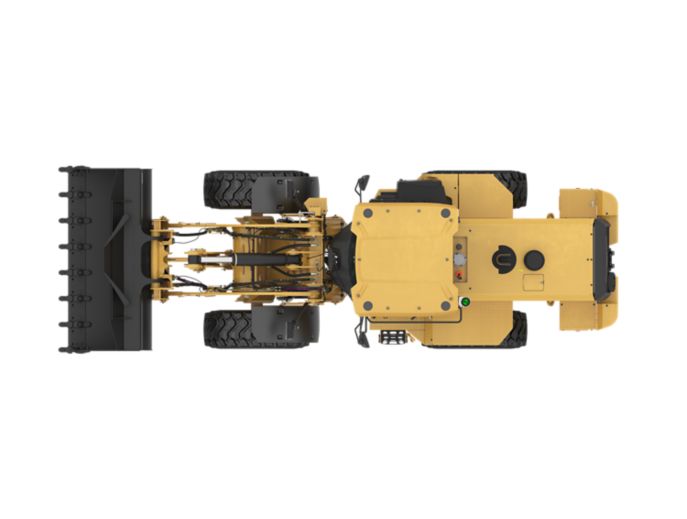

The Cat® 930 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.
Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 930 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Rated Engine Power - ISO 14396 | 119 kW | 160 hp |
Engine Model | Cat C7.1* | Cat C7.1* |
Performance Mode | Automatic | Automatic |
Rated Gross Power - Rated Engine Speed | 1800 r/min | 1800 r/min |
Rated Engine Power - ISO 14396 (DIN) | 162 mhp | 162 mhp |
Rated Net Power - SAE J1349 at Minimum Fan Speed | 116 kW | 156 hp |
Rated Net Power - ISO 9249 at Minimum Fan Speed | 116 kW | 156 hp |
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed | 159 mhp | 159 mhp |
Maximum Gross Torque - Engine Speed | 1400 r/min | 1400 r/min |
Maximum Gross Torque - ISO 14396 | 787 N·m | 580 ft·lbf |
Maximum Net Torque - SAE J1349 | 753 N·m | 555 ft·lbf |
Maximum Net Torque - ISO 9249 | 761 N·m | 561 ft·lbf |
Displacement | 7.01 l | 427 in³ |
Bore | 105 mm | 4 in |
Stroke | 135 mm | 5 in |
Note | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. | Advertised power is tested per the specified standard in effect at the time of manufacture. |
Note (2) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
Weights
Operating Weight | 13246 kg | 29202 lb |
Operating Weight - High Lift | 13472 kg | 29700 lb |
Buckets
Bucket Capacities | 1.9-5.0 m3 (2.5-6.5 yd3) | 1.9-5.0 m3 (2.5-6.5 yd3) |
Steering
Steering Cylinder - Bore Diameter | 70 mm | 2.8 in |
Steering Cylinder - Rod Diameter | 40 mm | 1.6 in |
Steering Cylinder - Stroke | 438 mm | 17.2 in |
Maximum Flow - Steering Pump | 130 l/min | 34 gal/min |
Maximum Working Pressure - Steering Pump | 24130 kPa | 3500 psi |
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited | 2.8 s | 2.8 s |
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed | 2.4 s | 2.4 s |
Loader Hydraulic System
Maximum Flow - Implement Pump | 190 l/min | 50 gal/min |
Maximum Flow - Implement Pump - 3rd Function Maximum Flow* | 190 l/min | 50 gal/min |
Maximum Flow - Implement Pump - 4th Function Maximum Flow* | 160 l/min | 42 gal/min |
Maximum Working Pressure - Implement Pump | 26000 kPa | 3771 psi |
Relief Pressure - Tilt Cylinder | 28000 kPa | 4061 psi |
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure | 25000 kPa | 3626 psi |
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure | 28000 kPa | 4061 psi |
Lift Cylinder: Standard Lift Linkage - Bore Diameter | 120 mm | 4.7 in |
Lift Cylinder: Standard Lift Linkage - Rod Diameter | 65 mm | 2.6 in |
Lift Cylinder: Standard Lift Linkage - Stroke | 728 mm | 28.7 in |
Tilt Cylinder: Standard Lift Linkage - Bore Diameter | 150 mm | 5.9 in |
Tilt Cylinder: Standard Lift Linkage - Rod Diameter | 90 mm | 3.5 in |
Tilt Cylinder: Standard Lift Linkage - Stroke | 555 mm | 21.9 in |
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.1 s | 5.1 s |
Hydraulic Cycle Time - Dump (at Maximum Lift Height) | 1.5 s | 1.5 s |
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 2.7 s | 2.7 s |
Hydraulic Cycle Time - Total Cycle Time | 9.3 s | 9.3 s |
Note | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. |
Service Refill Capacities
Fuel Tank | 195 l | 51.5 gal (US) |
Cooling System | 32 l | 8.5 gal (US) |
Engine Crankcase | 19.5 l | 5.2 gal (US) |
Transmission - Gear Box | 8.5 l | 2.2 gal (US) |
Front Axles | 26 l | 6.9 gal (US) |
Rear Axles | 25 l | 6.6 gal (US) |
Hydraulic System - Including Tank | 165 l | 43.6 gal (US) |
Hydraulic Tank | 90 l | 23.8 gal (US) |
Transmission
Forward and Reverse - Range 1* | 1-13 km/h (0.6-8 mph) | 1-13 km/h (0.6-8 mph) |
Forward and Reverse - Range 2 | 13 km/h | 8 mile/h |
Forward and Reverse - Range 3 | 27 km/h | 17 mile/h |
Forward and Reverse - Range 4 | 40 km/h | 25 mile/h |
Note | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). |
Tires
Standard Size | 20.5 R25, radial (L-3) | 20.5 R25, radial (L-3) |
Other Choices Include | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3) | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3) |
Note (1) | Other tire choices are available. Contact your Cat dealer for details. | Other tire choices are available. Contact your Cat dealer for details. |
Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Cab
ROPS | ISO 3471:2008 | ISO 3471:2008 |
FOPS | ISO 3449:2005 LEVEL II | ISO 3449:2005 LEVEL II |
Axles
Front | Fixed; Open differential (standard); Locking differential (optional) | Fixed; Open differential (standard); Locking differential (optional) |
Rear | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) |
Air Conditioning System
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). |
Sound
Operator Sound Pressure (ISO 6396:2008) | 68 dB(A) | 68 dB(A) |
Average Exterior Sound Pressure (ISO 6395:2008) | 101 dB(A) | 101 dB(A) |
Note (1) | Measurements were conducted with properly installed and maintained cab doors and windows closed. | Measurements were conducted with properly installed and maintained cab doors and windows closed. |
Sustainability
Recyclability | 95% | 95% |
Dimensions with Bucket - Standard Lift
Height - Ground to Cab** | 3340 mm | 131.5 in |
Height - Ground to Beacon** | 3707 mm | 146 in |
Height - Ground to Axle Center** | 685 mm | 26.9 in |
Height - Ground Clearance** | 397 mm | 15.6 in |
Length - Overall* | 7613 mm | 299.7 in |
Length - Rear Axle to Bumper | 1993 mm | 78.4 in |
Length - Hitch to Front Axle | 1500 mm | 59 in |
Length - Wheel Base | 3000 mm | 118.1 in |
Clearance - Bucket at 45°* | 2761 mm | 108.7 in |
Clearance - Load over Height** | 3331 mm | 131.1 in |
Clearance - Level Bucket** | 3580 mm | 141 in |
Height - Bucket Pin** | 3907 mm | 153.8 in |
Height - Overall** | 5239 mm | 206.2 in |
Reach - Bucket at 45°* | 1109 mm | 43.6 in |
Carry Height - Bucket Pin | 410 mm | 16 in |
Dig Depth** | 100 mm | 3.9 in |
Width - Bucket | 2550 mm | 100.4 in |
Width - Tread Center | 1930 mm | 76 in |
Turning Radius - Over Bucket | 5961 mm | 234.7 in |
Width - Over Tires | 2540 mm | 100 in |
Turning Radius - Outside of Tires | 5402 mm | 212.6 in |
Turning Radius - Inside of Tires | 2851 mm | 112.2 in |
Rack Angle at Full Lift | 54 ° | 54 ° |
Dump Angle at Full Lift | 48 ° | 48 ° |
Rack Angle at Carry | 44 ° | 44 ° |
Departure Angle | 33 ° | 33 ° |
Articulation Angle | 40 ° | 40 ° |
Tipping Load - Straight (ISO 14397-1:2007)* | 9737 kg | 21466 lb |
Tipping Load - Full Turn (ISO 14397-1:2007)* | 8634 kg | 18439 lb |
Breakout* | 11970 kg | 26388 lb |
Operating Weight | 13246 kg | 29202 lb |
Note (1) | *Vary with bucket. | *Vary with bucket. |
Note (2) | **Vary with tire. | **Vary with tire. |
Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Dimensions with Bucket - High Lift
Height - Ground to Cab** | 3340 mm | 131.5 in |
Height - Ground to Beacon** | 3707 mm | 146 in |
Height - Ground to Axle Center** | 685 mm | 26.9 in |
Height - Ground Clearance** | 397 mm | 15.6 in |
Length - Overall* | 8407 mm | 331 in |
Length - Rear Axle to Bumper | 1993 mm | 78.4 in |
Length - Hitch to Front Axle | 1500 mm | 59 in |
Length - Wheel Base | 3000 mm | 118.1 in |
Clearance - Bucket at 45°* | 3353 mm | 132 in |
Clearance - Load over Height** | 3540 mm | 139.3 in |
Clearance - Level Bucket** | 4173 mm | 164.3 in |
Height - Bucket Pin** | 4500 mm | 177.2 in |
Height - Overall** | 5382 mm | 229.6 in |
Reach - Bucket at 45°* | 1429 mm | 56.2 in |
Carry Height - Bucket Pin | 638 mm | 25.1 in |
Dig Depth** | 135 mm | 5.3 in |
Width - Bucket | 2550 mm | 100.4 in |
Width - Tread Center | 1930 mm | 76 in |
Turning Radius - Over Bucket | 6351 mm | 250 in |
Width - Over Tires | 2540 mm | 100 in |
Turning Radius - Outside of Tires | 5402 mm | 212.6 in |
Turning Radius - Inside of Tires | 2851 mm | 112.2 in |
Rack Angle at Full Lift | 53 ° | 53 ° |
Dump Angle at Full Lift | 47 ° | 47 ° |
Rack Angle at Carry | 50 ° | 50 ° |
Departure Angle | 33 ° | 33 ° |
Articulation Angle | 40 ° | 40 ° |
Tipping Load - Straight (ISO 14397-1:2007)* | 7021 kg | 15478 lb |
Tipping Load - Full Turn (ISO 14397-1:2007)* | 5697 kg | 13155 lb |
Breakout* | 11674 kg | 25738 lb |
Operating Weight | 13472 kg | 29700 lb |
Note (1) | *Vary with bucket. | *Vary with bucket. |
Note (2) | **Vary with tire. | **Vary with tire. |
Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
NOTE: Not all features are available in all regions.
OPERATOR ENVIRONMENT
75 mm (3 in) retractable seatbelt |
Automatic temperature control |
Cab, enclosed ROPS/FOPS pressurized and sound suppressed |
Push to Start |
8 Inch Touch Screen |
Programmable Joystick |
Cup holders |
External mirrors with lower parabolic |
Ground level cab door release |
Hydraulic control lockout |
Interior cab lighting, door |
Lunch box storage |
Radio ready speakers |
Seat mounted electronic implement controls, adjustable |
Sliding glass on side window |
Column mounted multi function control lights, wipers, turn signal |
Suspension seat, fabric |
Tilt steering wheel |
Tinted front glass |
Wet arm wiper/washer, 2-speed and intermittent, front |
Wet arm wiper washer, rear |
Mounting Provision |
Digital hour meter, odometer and tachometer |
Digital ground speedometer and direction indicator |
Engine coolant temperature gauge |
Fuel and diesel exhaust fluid levels |
Hydraulic oil temperature gauge |
Fuel and diesel exhaust fluid levels |
Hydraulic oil temperature gauge |
POWER TRAIN
Cat C7.1 engine |
Auto idle shut down feature |
Auto Engine RPM |
Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
Turbocharged and aftercooled |
Filtered crankcase breather |
Power Modes (standard and performance) |
Dry type air cleaner |
Coolant protection to –34 °C (–29 °F) |
Fuel priming pump, automatic |
Fuel water separator |
Axle seal guards |
Enclosed wet disc full hydraulic brakes |
Parking brake, electric |
Lubed for life driveshafts |
Hydrostatic transmission with electronic control |
Operator modes (TC, Hystat, Single Pedal and Ice) |
Directional shift aggressiveness (fast, medium, slow) |
Auto Wheel Torque control, adjust wheel torque |
Creeper control, adjust ground speed |
Single plane cooling package, wide 6 fins per inch density |
Hydraulically driven demand cooling fan |
Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission |
HYDRAULICS
Automatic lift and bucket kickouts, adjustable in-cab |
Bucket and fork modes, adjustable in-cab |
Cylinder damping at kickout and mechanical end stops |
Fine mode control (fast, medium, slow) |
Hydraulic response setting (fast, medium, slow) |
Hydraulic diagnostic connectors and S·O·S ports |
Hydraulic sight gauge, visible |
Load sensing hydraulics and steering |
Seat mounted hydraulic joystick controls |
ELECTRICAL
Alternator, 115-amp, heavy duty |
12V power supply in cab (2) |
Batteries, 1,000 CCA (2) 24-volt system, disconnect switch |
Back up alarm |
Emergency shutdown switch |
LED rear stop and turn lights |
Heavy duty gear reduction starter |
Product Link™ |
Remote jump start post |
Resettable main and critical function breakers |
Roading lights front and rear |
OTHER
Large-access enclosure doors with adjustable close/open force |
Parallel lift loader linkage |
Recovery hitch with pin |
Remote mounted lubrication points |
Lockable compartments |
NOTE: Not all features are available in all regions.
Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 930 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Rated Engine Power - ISO 14396 | 119 kW | 160 hp |
Engine Model | Cat C7.1* | Cat C7.1* |
Performance Mode | Automatic | Automatic |
Rated Gross Power - Rated Engine Speed | 1800 r/min | 1800 r/min |
Rated Engine Power - ISO 14396 (DIN) | 162 mhp | 162 mhp |
Rated Net Power - SAE J1349 at Minimum Fan Speed | 116 kW | 156 hp |
Rated Net Power - ISO 9249 at Minimum Fan Speed | 116 kW | 156 hp |
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed | 159 mhp | 159 mhp |
Maximum Gross Torque - Engine Speed | 1400 r/min | 1400 r/min |
Maximum Gross Torque - ISO 14396 | 787 N·m | 580 ft·lbf |
Maximum Net Torque - SAE J1349 | 753 N·m | 555 ft·lbf |
Maximum Net Torque - ISO 9249 | 761 N·m | 561 ft·lbf |
Displacement | 7.01 l | 427 in³ |
Bore | 105 mm | 4 in |
Stroke | 135 mm | 5 in |
Note | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. | Advertised power is tested per the specified standard in effect at the time of manufacture. |
Note (2) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
Weights
Operating Weight | 13246 kg | 29202 lb |
Operating Weight - High Lift | 13472 kg | 29700 lb |
Buckets
Bucket Capacities | 1.9-5.0 m3 (2.5-6.5 yd3) | 1.9-5.0 m3 (2.5-6.5 yd3) |
Steering
Steering Cylinder - Bore Diameter | 70 mm | 2.8 in |
Steering Cylinder - Rod Diameter | 40 mm | 1.6 in |
Steering Cylinder - Stroke | 438 mm | 17.2 in |
Maximum Flow - Steering Pump | 130 l/min | 34 gal/min |
Maximum Working Pressure - Steering Pump | 24130 kPa | 3500 psi |
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited | 2.8 s | 2.8 s |
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed | 2.4 s | 2.4 s |
Loader Hydraulic System
Maximum Flow - Implement Pump | 190 l/min | 50 gal/min |
Maximum Flow - Implement Pump - 3rd Function Maximum Flow* | 190 l/min | 50 gal/min |
Maximum Flow - Implement Pump - 4th Function Maximum Flow* | 160 l/min | 42 gal/min |
Maximum Working Pressure - Implement Pump | 26000 kPa | 3771 psi |
Relief Pressure - Tilt Cylinder | 28000 kPa | 4061 psi |
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure | 25000 kPa | 3626 psi |
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure | 28000 kPa | 4061 psi |
Lift Cylinder: Standard Lift Linkage - Bore Diameter | 120 mm | 4.7 in |
Lift Cylinder: Standard Lift Linkage - Rod Diameter | 65 mm | 2.6 in |
Lift Cylinder: Standard Lift Linkage - Stroke | 728 mm | 28.7 in |
Tilt Cylinder: Standard Lift Linkage - Bore Diameter | 150 mm | 5.9 in |
Tilt Cylinder: Standard Lift Linkage - Rod Diameter | 90 mm | 3.5 in |
Tilt Cylinder: Standard Lift Linkage - Stroke | 555 mm | 21.9 in |
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.1 s | 5.1 s |
Hydraulic Cycle Time - Dump (at Maximum Lift Height) | 1.5 s | 1.5 s |
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 2.7 s | 2.7 s |
Hydraulic Cycle Time - Total Cycle Time | 9.3 s | 9.3 s |
Note | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. |
Service Refill Capacities
Fuel Tank | 195 l | 51.5 gal (US) |
Cooling System | 32 l | 8.5 gal (US) |
Engine Crankcase | 19.5 l | 5.2 gal (US) |
Transmission - Gear Box | 8.5 l | 2.2 gal (US) |
Front Axles | 26 l | 6.9 gal (US) |
Rear Axles | 25 l | 6.6 gal (US) |
Hydraulic System - Including Tank | 165 l | 43.6 gal (US) |
Hydraulic Tank | 90 l | 23.8 gal (US) |
Transmission
Forward and Reverse - Range 1* | 1-13 km/h (0.6-8 mph) | 1-13 km/h (0.6-8 mph) |
Forward and Reverse - Range 2 | 13 km/h | 8 mile/h |
Forward and Reverse - Range 3 | 27 km/h | 17 mile/h |
Forward and Reverse - Range 4 | 40 km/h | 25 mile/h |
Note | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). |
Tires
Standard Size | 20.5 R25, radial (L-3) | 20.5 R25, radial (L-3) |
Other Choices Include | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3) | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3) |
Note (1) | Other tire choices are available. Contact your Cat dealer for details. | Other tire choices are available. Contact your Cat dealer for details. |
Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Cab
ROPS | ISO 3471:2008 | ISO 3471:2008 |
FOPS | ISO 3449:2005 LEVEL II | ISO 3449:2005 LEVEL II |
Axles
Front | Fixed; Open differential (standard); Locking differential (optional) | Fixed; Open differential (standard); Locking differential (optional) |
Rear | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) |
Air Conditioning System
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). |
Sound
Operator Sound Pressure (ISO 6396:2008) | 68 dB(A) | 68 dB(A) |
Average Exterior Sound Pressure (ISO 6395:2008) | 101 dB(A) | 101 dB(A) |
Note (1) | Measurements were conducted with properly installed and maintained cab doors and windows closed. | Measurements were conducted with properly installed and maintained cab doors and windows closed. |
Sustainability
Recyclability | 95% | 95% |
Dimensions with Bucket - Standard Lift
Height - Ground to Cab** | 3340 mm | 131.5 in |
Height - Ground to Beacon** | 3707 mm | 146 in |
Height - Ground to Axle Center** | 685 mm | 26.9 in |
Height - Ground Clearance** | 397 mm | 15.6 in |
Length - Overall* | 7613 mm | 299.7 in |
Length - Rear Axle to Bumper | 1993 mm | 78.4 in |
Length - Hitch to Front Axle | 1500 mm | 59 in |
Length - Wheel Base | 3000 mm | 118.1 in |
Clearance - Bucket at 45°* | 2761 mm | 108.7 in |
Clearance - Load over Height** | 3331 mm | 131.1 in |
Clearance - Level Bucket** | 3580 mm | 141 in |
Height - Bucket Pin** | 3907 mm | 153.8 in |
Height - Overall** | 5239 mm | 206.2 in |
Reach - Bucket at 45°* | 1109 mm | 43.6 in |
Carry Height - Bucket Pin | 410 mm | 16 in |
Dig Depth** | 100 mm | 3.9 in |
Width - Bucket | 2550 mm | 100.4 in |
Width - Tread Center | 1930 mm | 76 in |
Turning Radius - Over Bucket | 5961 mm | 234.7 in |
Width - Over Tires | 2540 mm | 100 in |
Turning Radius - Outside of Tires | 5402 mm | 212.6 in |
Turning Radius - Inside of Tires | 2851 mm | 112.2 in |
Rack Angle at Full Lift | 54 ° | 54 ° |
Dump Angle at Full Lift | 48 ° | 48 ° |
Rack Angle at Carry | 44 ° | 44 ° |
Departure Angle | 33 ° | 33 ° |
Articulation Angle | 40 ° | 40 ° |
Tipping Load - Straight (ISO 14397-1:2007)* | 9737 kg | 21466 lb |
Tipping Load - Full Turn (ISO 14397-1:2007)* | 8634 kg | 18439 lb |
Breakout* | 11970 kg | 26388 lb |
Operating Weight | 13246 kg | 29202 lb |
Note (1) | *Vary with bucket. | *Vary with bucket. |
Note (2) | **Vary with tire. | **Vary with tire. |
Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Dimensions with Bucket - High Lift
Height - Ground to Cab** | 3340 mm | 131.5 in |
Height - Ground to Beacon** | 3707 mm | 146 in |
Height - Ground to Axle Center** | 685 mm | 26.9 in |
Height - Ground Clearance** | 397 mm | 15.6 in |
Length - Overall* | 8407 mm | 331 in |
Length - Rear Axle to Bumper | 1993 mm | 78.4 in |
Length - Hitch to Front Axle | 1500 mm | 59 in |
Length - Wheel Base | 3000 mm | 118.1 in |
Clearance - Bucket at 45°* | 3353 mm | 132 in |
Clearance - Load over Height** | 3540 mm | 139.3 in |
Clearance - Level Bucket** | 4173 mm | 164.3 in |
Height - Bucket Pin** | 4500 mm | 177.2 in |
Height - Overall** | 5382 mm | 229.6 in |
Reach - Bucket at 45°* | 1429 mm | 56.2 in |
Carry Height - Bucket Pin | 638 mm | 25.1 in |
Dig Depth** | 135 mm | 5.3 in |
Width - Bucket | 2550 mm | 100.4 in |
Width - Tread Center | 1930 mm | 76 in |
Turning Radius - Over Bucket | 6351 mm | 250 in |
Width - Over Tires | 2540 mm | 100 in |
Turning Radius - Outside of Tires | 5402 mm | 212.6 in |
Turning Radius - Inside of Tires | 2851 mm | 112.2 in |
Rack Angle at Full Lift | 53 ° | 53 ° |
Dump Angle at Full Lift | 47 ° | 47 ° |
Rack Angle at Carry | 50 ° | 50 ° |
Departure Angle | 33 ° | 33 ° |
Articulation Angle | 40 ° | 40 ° |
Tipping Load - Straight (ISO 14397-1:2007)* | 7021 kg | 15478 lb |
Tipping Load - Full Turn (ISO 14397-1:2007)* | 5697 kg | 13155 lb |
Breakout* | 11674 kg | 25738 lb |
Operating Weight | 13472 kg | 29700 lb |
Note (1) | *Vary with bucket. | *Vary with bucket. |
Note (2) | **Vary with tire. | **Vary with tire. |
Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.5 m3 (3.2 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
NOTE: Not all features are available in all regions.
OPERATOR ENVIRONMENT
75 mm (3 in) retractable seatbelt |
Automatic temperature control |
Cab, enclosed ROPS/FOPS pressurized and sound suppressed |
Push to Start |
8 Inch Touch Screen |
Programmable Joystick |
Cup holders |
External mirrors with lower parabolic |
Ground level cab door release |
Hydraulic control lockout |
Interior cab lighting, door |
Lunch box storage |
Radio ready speakers |
Seat mounted electronic implement controls, adjustable |
Sliding glass on side window |
Column mounted multi function control lights, wipers, turn signal |
Suspension seat, fabric |
Tilt steering wheel |
Tinted front glass |
Wet arm wiper/washer, 2-speed and intermittent, front |
Wet arm wiper washer, rear |
Mounting Provision |
Digital hour meter, odometer and tachometer |
Digital ground speedometer and direction indicator |
Engine coolant temperature gauge |
Fuel and diesel exhaust fluid levels |
Hydraulic oil temperature gauge |
Fuel and diesel exhaust fluid levels |
Hydraulic oil temperature gauge |
POWER TRAIN
Cat C7.1 engine |
Auto idle shut down feature |
Auto Engine RPM |
Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
Turbocharged and aftercooled |
Filtered crankcase breather |
Power Modes (standard and performance) |
Dry type air cleaner |
Coolant protection to –34 °C (–29 °F) |
Fuel priming pump, automatic |
Fuel water separator |
Axle seal guards |
Enclosed wet disc full hydraulic brakes |
Parking brake, electric |
Lubed for life driveshafts |
Hydrostatic transmission with electronic control |
Operator modes (TC, Hystat, Single Pedal and Ice) |
Directional shift aggressiveness (fast, medium, slow) |
Auto Wheel Torque control, adjust wheel torque |
Creeper control, adjust ground speed |
Single plane cooling package, wide 6 fins per inch density |
Hydraulically driven demand cooling fan |
Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission |
HYDRAULICS
Automatic lift and bucket kickouts, adjustable in-cab |
Bucket and fork modes, adjustable in-cab |
Cylinder damping at kickout and mechanical end stops |
Fine mode control (fast, medium, slow) |
Hydraulic response setting (fast, medium, slow) |
Hydraulic diagnostic connectors and S·O·S ports |
Hydraulic sight gauge, visible |
Load sensing hydraulics and steering |
Seat mounted hydraulic joystick controls |
ELECTRICAL
Alternator, 115-amp, heavy duty |
12V power supply in cab (2) |
Batteries, 1,000 CCA (2) 24-volt system, disconnect switch |
Back up alarm |
Emergency shutdown switch |
LED rear stop and turn lights |
Heavy duty gear reduction starter |
Product Link™ |
Remote jump start post |
Resettable main and critical function breakers |
Roading lights front and rear |
OTHER
Large-access enclosure doors with adjustable close/open force |
Parallel lift loader linkage |
Recovery hitch with pin |
Remote mounted lubrication points |
Lockable compartments |
NOTE: Not all features are available in all regions.
