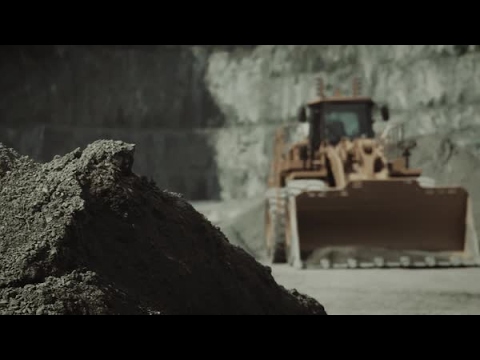

Cat Command for Loading

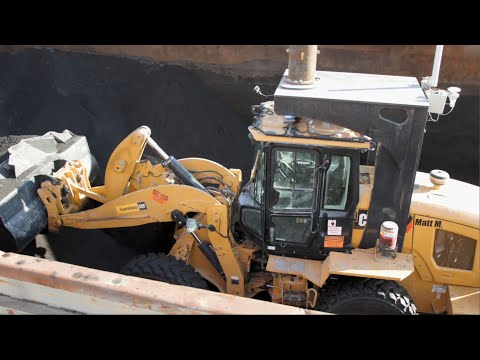

• Reduces operator safety risks such as high wall collapse, machine rollover or fall.
• Decreases potential for injury from slips, trips and falls when climbing on and off machine.
• Includes multiple, redundant safety features to stop all motion of machine if a stop switch is pressed, wireless communications are lost, a severe fault is detected or the command console is tilted more than 60 degrees from normal operating position.
• Prevents accidental activation with command console that is unique to each machine system.
• Prevents coasting in neutral thanks to auto hold feature.

• Operators can quickly and easily switch between Cat Command installed machines, and change jobsite locations, with no downtime.
• Reduce operator fatigue by eliminating the in-cab effects of vibration, noise, and rough terrain.
• Quick system response and fine modulation of controls are enabled through comprehensive machine integration of the electronic and hydraulic systems.
• Commands from the command console are sent directly to the engine and implement electronics via a dedicated radio, reducing delays.
• The system allows complete control with access to advanced features offered on Cat machines such as Autodig, an optional feature that increases productivity.
• Allow operators who have had medical concerns to return to work and operate machines earlier.

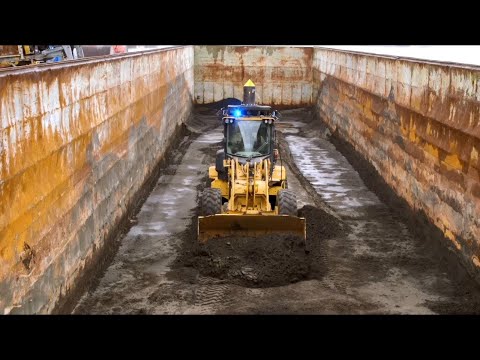

• Available for select Cat dozers, excavators, and wheel loaders.
• Fully functional command console contains basic machine functions such as start-up/shutdown, gear selection, rack/dump and lift/lower are easily accessed through the ergonomic layout of console controls.
• Critical machine and system status information is also delivered through the command console.
• LED indicator lights and display show the user the gear selection, temperatures, operational mode, faults, systems status, and low battery warning.
• Integration of Caterpillar electronics enables the activation of several safety features to ensure the user is in control of the machine at all times.
• Command console allows for line-of-sight control up to 400 meters (437 yards).
• Does not require any on-site communications infrastructure.
• Uses 2.4 GHz frequency communications protocol.
• The machine will shut down if the controller is tipped more than 45 degrees, indicating that the operator has fallen.

NOTE: Command Console is unavailable in Europe, Australia, or New Zealand.

• Available for select Cat dozers, excavators and wheel loaders.

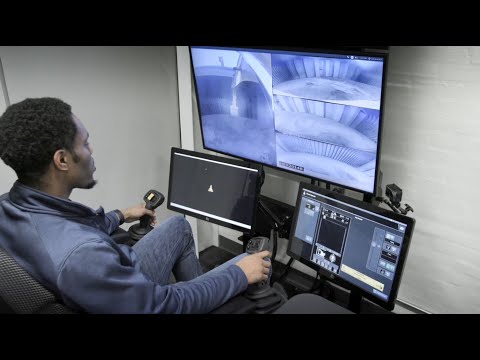

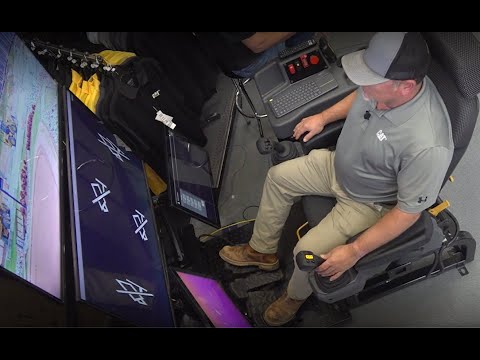

• Enables the operator to work remotely in a comfortable, seated “virtual cab” with familiar controls and machine displays.
• Can be located in a command center onsite or many miles away.
• Reduces operator fatigue with a comfortable indoor working environment.
• Operator inputs are sent directly to the machine electronics via a dedicated radio transmitter/receiver, resulting in real-time implement control.
• Controls deliver the same response time as in the cab, maintaining precise control for all excavator applications.
• High-quality video delivers a clear view of the work area.
• Operators can easily switch between machines, or change jobsites with no downtime.
• Enables trainers to stand beside an operator, without noise or movement.

• Cat Command is designed exclusively for – and deeply integrated into – select Cat machines, resulting in system reliability and durability.
• Select Cat Command models include easy-to-install Command kits.
• Cat Command can be retro-installed on certain existing Cat machines.

* Talk to your Cat dealer for more information about Cat Command.
