Products > Accessories > Hammer Accessories > Tools > B1 Compacting Plate
Studio Shot

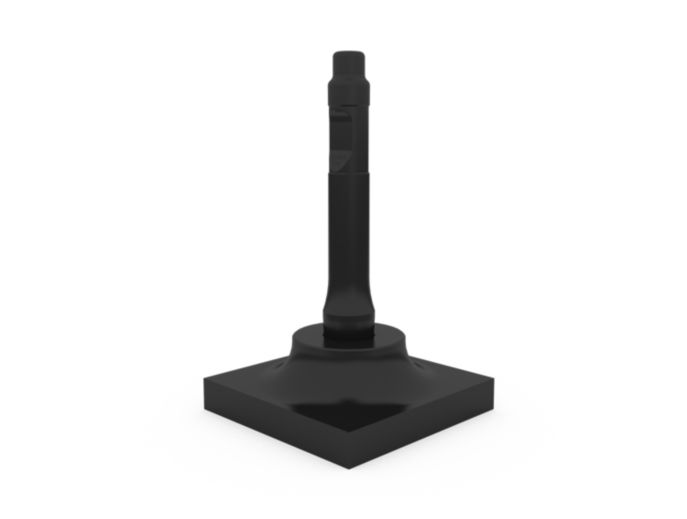

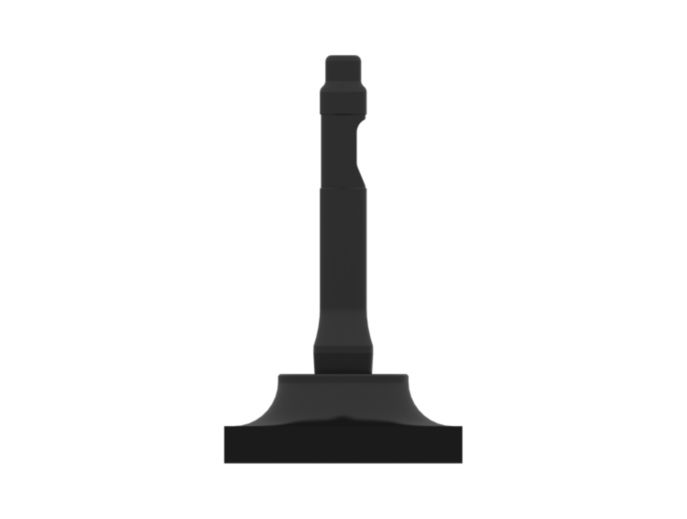

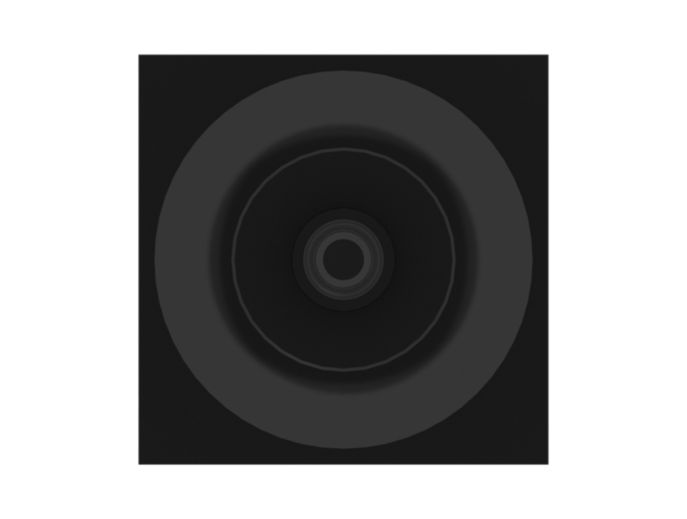

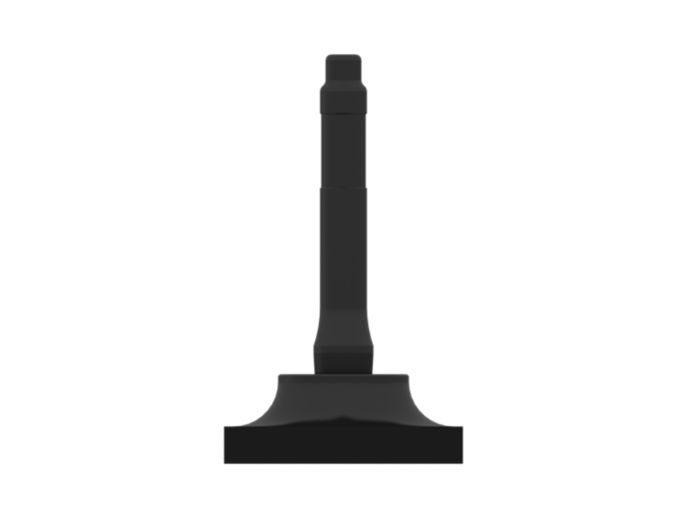

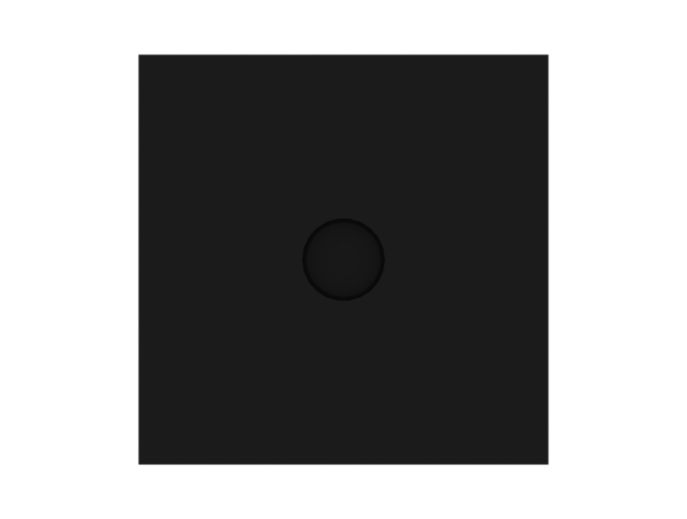

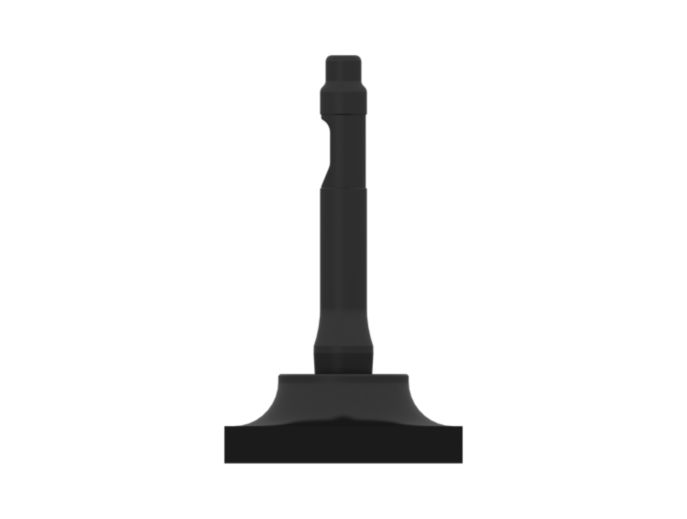

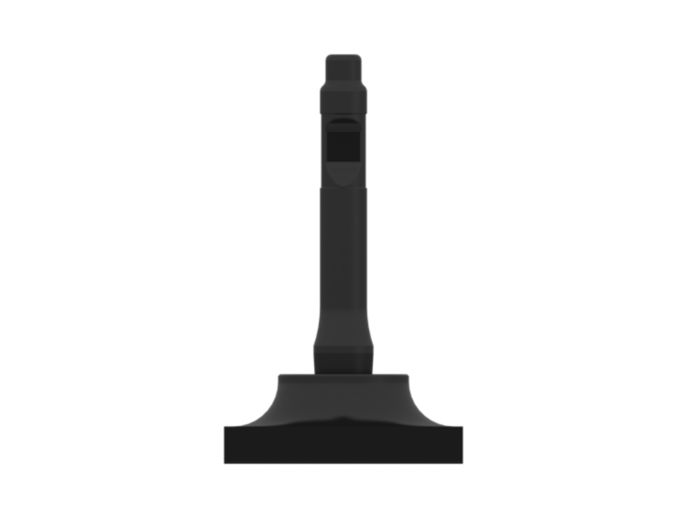

B1 Compacting Plate

Tools
Cat® Hammer Tools designed for Cat Hammers are heat treated and matched to both hammer piston diameter and mass to deliver full blow energy.
Tool Shaft Diameter
1.6 in/40 mm
Overall Length
13.7 in/348 mm
Weight
38.1 lb/17.3 kg
Compatibility
B1 Hammer
Get a quote Compare

Specifications

Metric | Imperial
Tool Shaft Diameter
1.6 in 40 mm
Overall Length
13.7 in 348 mm
Weight
38.1 lb 17.3 kg
Compatibility
B1 Hammer

Compatible Attachments

Studio Shot
B1s
Operating Weight - With Tool
190.3 lb/86.3 kg
Energy Class
147.5 ft·lbf/200 J
Explore Compare Download
Studio Shot
B1 Pin On
Operating Weight - With Tool
162.3 lb/73.6 kg
Energy Class
147.5 ft·lbf/200 J
Explore Compare Download
