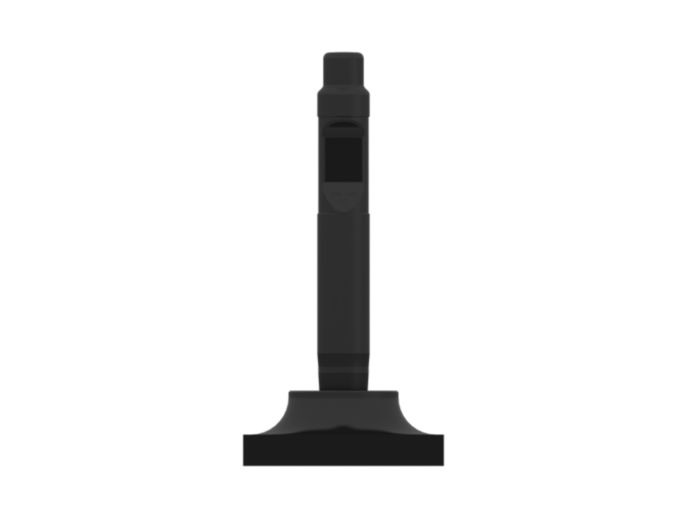

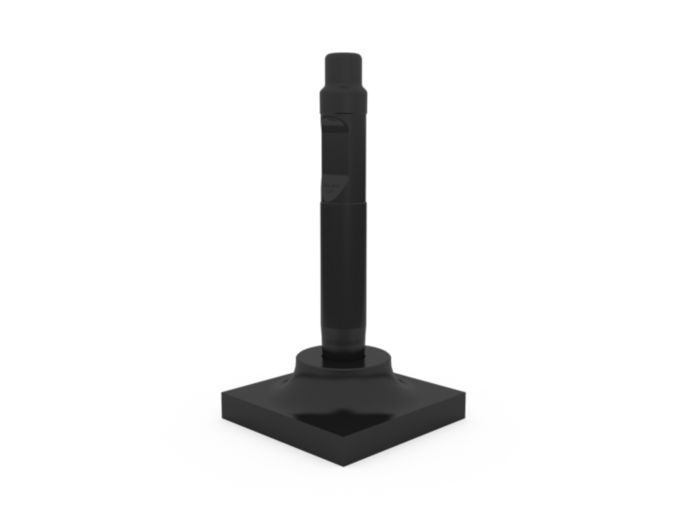

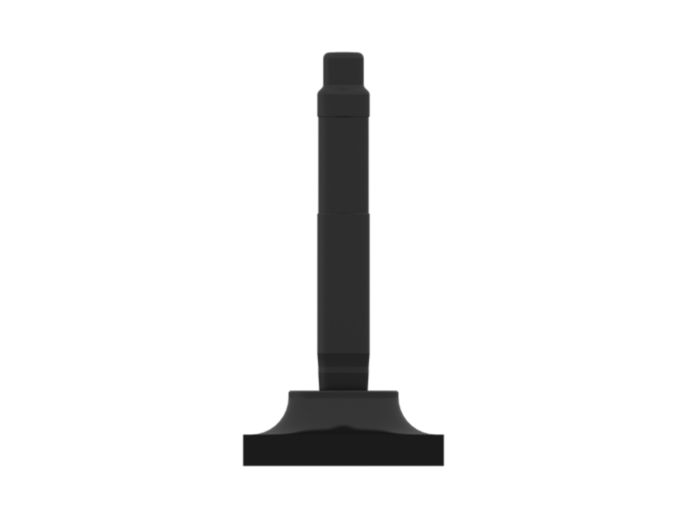

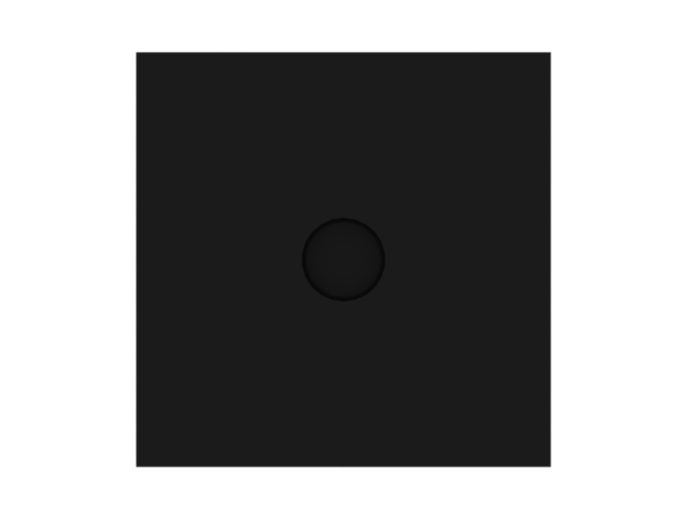

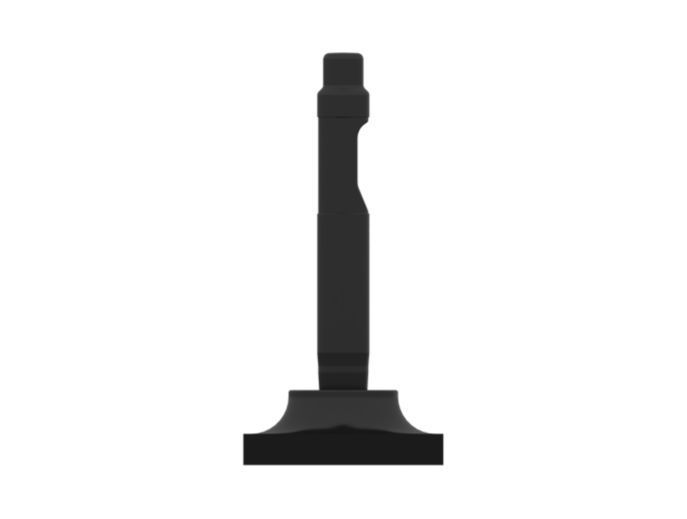

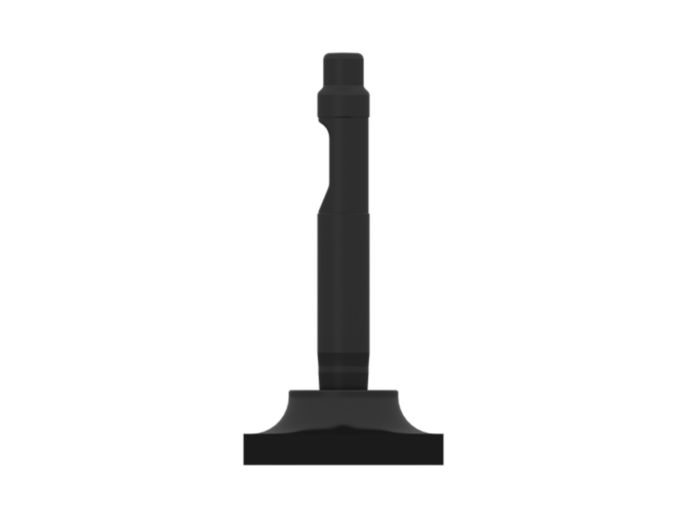

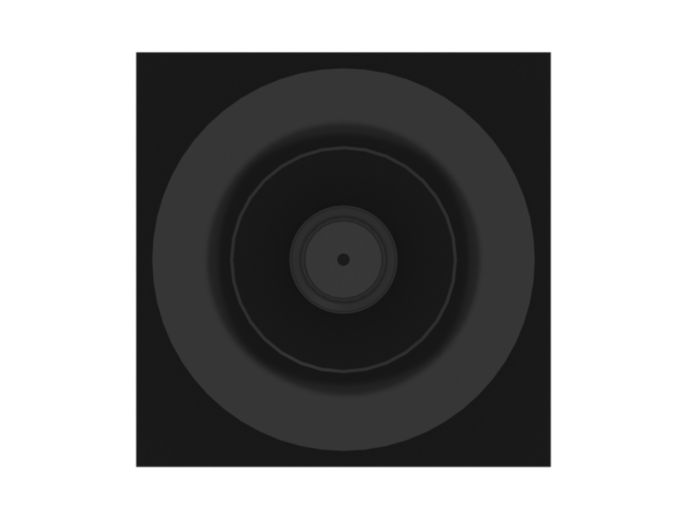

B4 Compacting Plate

Studio Shot

B4 Compacting Plate

Tools

Cat® Hammer Tools designed for Cat Hammers are heat treated and matched to both hammer piston diameter and mass to deliver full blow energy.

Tool Shaft Diameter

2.1 in/53 mm

Overall Length

16.5 in/419 mm

Weight

43.9 lb/19.9 kg

Compatibility

B4 Hammer

Get a quote Compare

Specifications

Metric | Imperial

Tool Shaft Diameter

2.1 in 53 mm

Overall Length

16.5 in 419 mm

Weight

43.9 lb 19.9 kg

Compatibility

B4 Hammer

Compatible Attachments

B4s

Operating Weight - With Tool

357.1 lb/162 kg

Energy Class

272.9 ft·lbf/370 J
