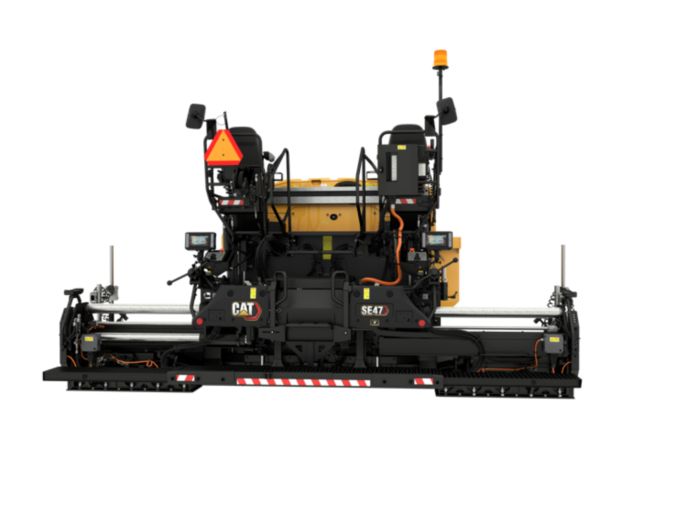

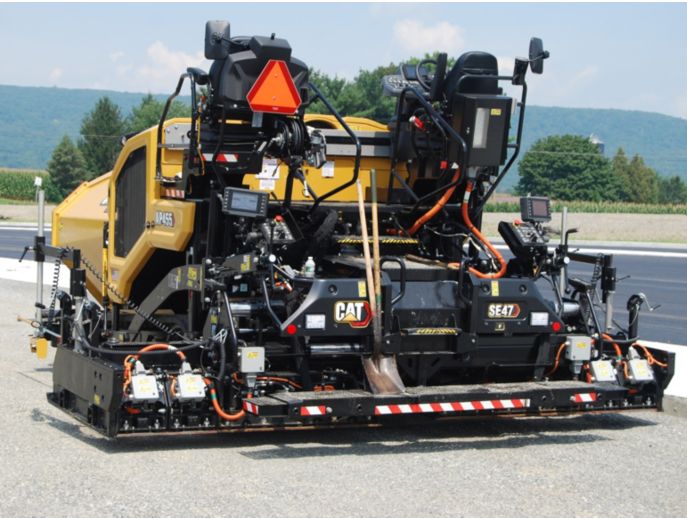

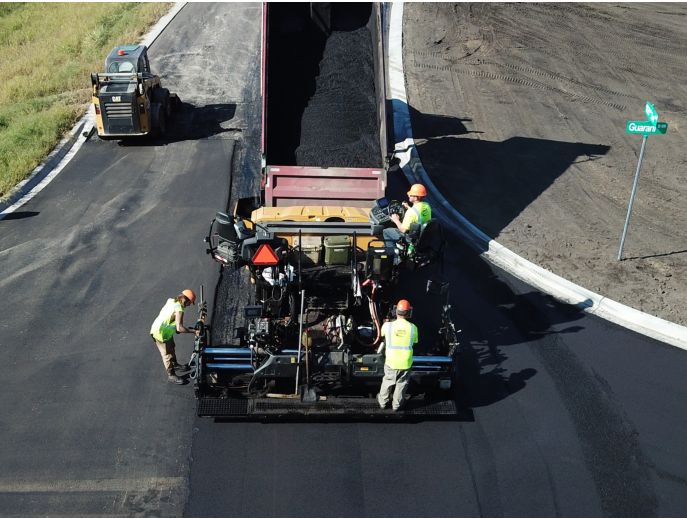

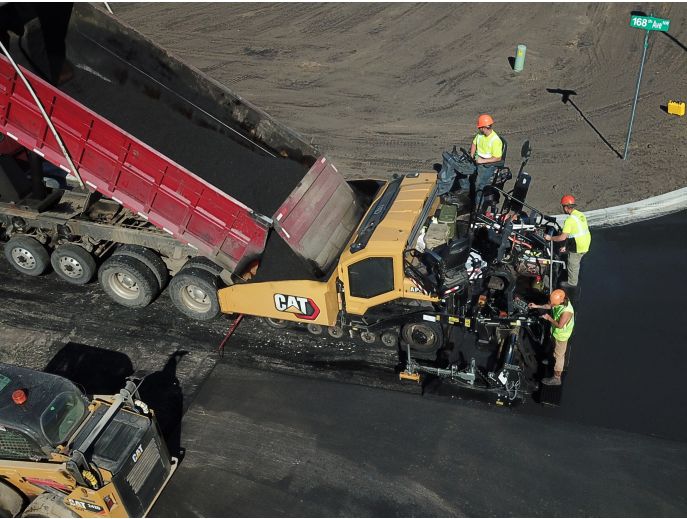

SE47 V Vibratory Screed

• Common applications include parking lots, urban and rural roads, subdivision streets, and highways

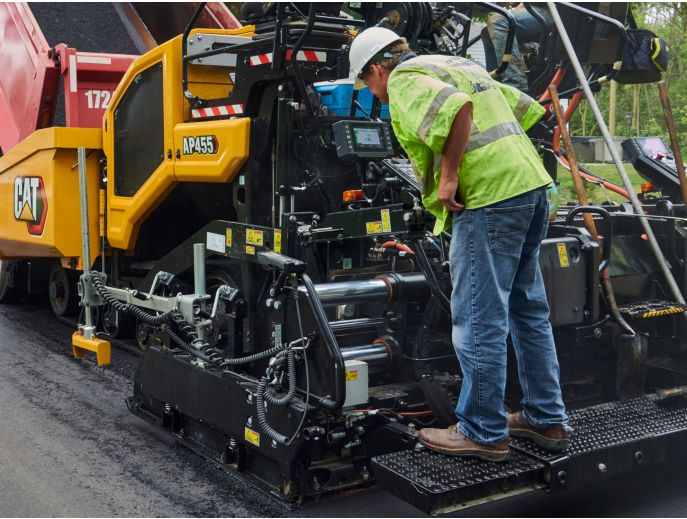

• Walkway clearance height of 127 mm (5″) enables close starting capability next to curbs and other obstacles
• The standard paving range of 2.4 m – 4.7 m (8′ – 15′ 6″) provides excellent performance when changing paving widths for both urban and highway paving applications
• Simple, bolt-on extensions offer a maximum paving width of 6.1 m (20′)

• Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow. When equipped with Cat® Grade Control, conveyor ratio adjustment or conveyor material height can be performed through the display
• Auger and tow-point height adjustments provide versatile setup options for the screed operator
• Power controls for extender slope, height and screed crown enables operators to quickly manage mat profiles
• Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to enhance paving quality and extend screed plate life

• Screed plate depths of 324 mm (12.75 “) on both the main and extenders provide stability and good mat textures
• The proportionally sized auger chamber and rear-mounted extenders provide smooth material flow for consistent mat quality
• Proportional extender control provides smooth adjustment when transitioning paving widths
• The heated end gate option helps prevent material from sticking for better edge profiles and joint matching capability

• Belt-driven, tractor-mounted generator delivers fast heating screed plates for quick starts
• Electric heating system with zone monitoring helps ensure even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure

• Proportional extender control provides smooth adjustment when transitioning paving widths
• Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow
• Power controls for extender slope and height enables operators to quickly manage mat profiles

• Manual overrides and pause function capability for each auger and each conveyor are available to match changes in material flow requirements
• Power slope and height functions assist with profile
• Automatic Grade Control activation provides flexibility when working on the outer edge of the screed

• Factory-integrated leveling system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
• User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
• Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sonic sensor, and cross-coupling feature that maintains slope requirements more consistently when changing elevation

• Paver and screed service and repair kits include the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Power Controls

1. Crown
2. Slope
3. Extender height

Service and Repair

1. Service repair kits

Safety

1. Horn

Material Delivery

1. End gate_manual
2. Thickness screws _ clockwise or counterclockwise

Operating Environment

1. Pendent control
2. Umbrella

Technology

1. Cat Grade Control
2. Basic Grade Control

Safety

1. Lights, roading

Material Delivery

1. Cutoff shoe
2. Drop arm stabilizer
3. End gate_power
4. End gate_heated
5. Extension_343 mm (13.5″)
6. Safety edge shoe
7. Straight shoe
8. Wide shoe
