SE60 V Asphalt Screed

Screeds

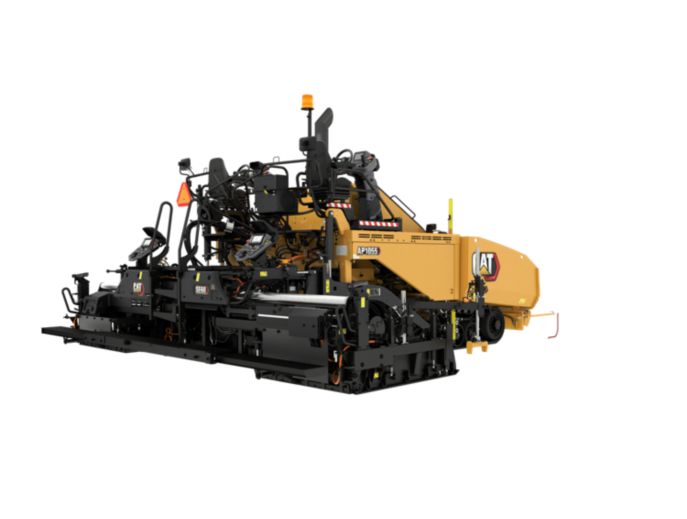

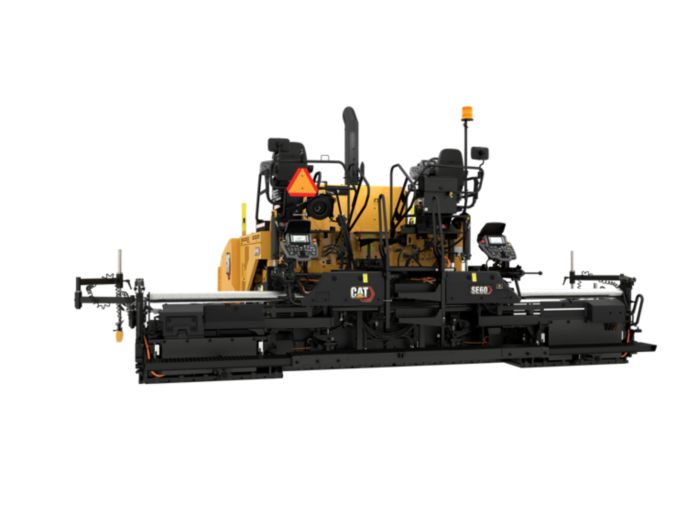

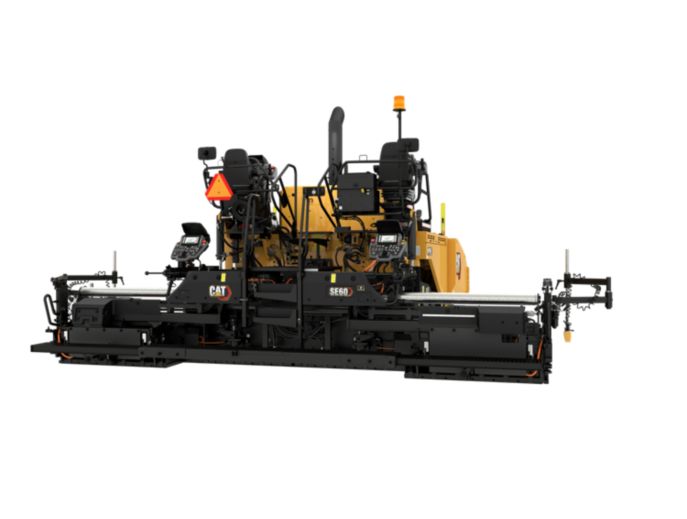

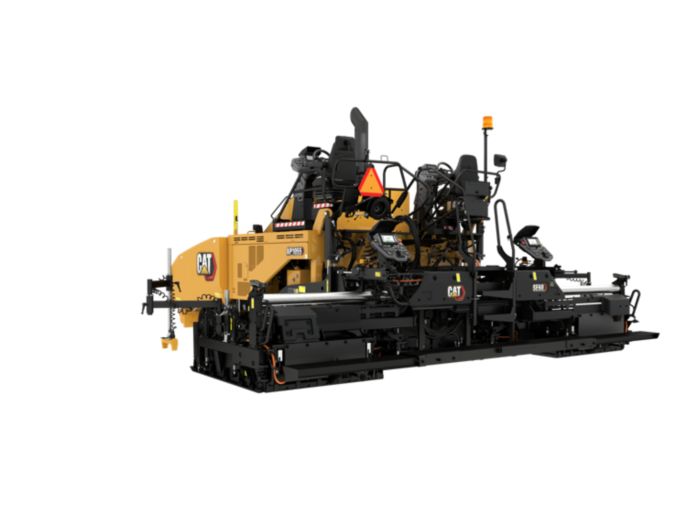

The Cat® SE60 V Asphalt Screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for highways, interstates, airports, and many other high-production paving applications.

Standard Weight

7826 lb/3550 kg

Standard Paving Range

3.0 - 6.0 m (9' 10" - 19' 6"')

Maximum Paving Width

24.5 ft/7.45 m

Crown Range

-4% to +10%

Get a quote Search used Compare

Downloads Specs

Key Features

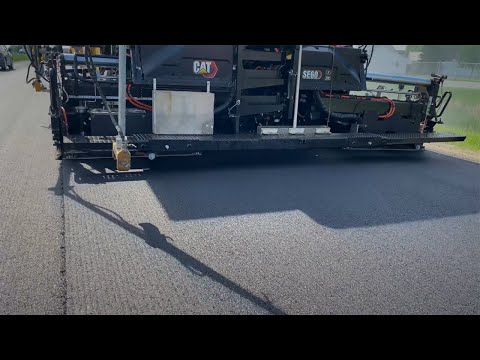

Cat® SDX Screed Plates

The optional Cat® SDX Screed Plate Technology helps improve road quality with better consistency and higher reliability. This revolutionary design provides dynamic flow through the screed plates to reduce air voids and increase density.

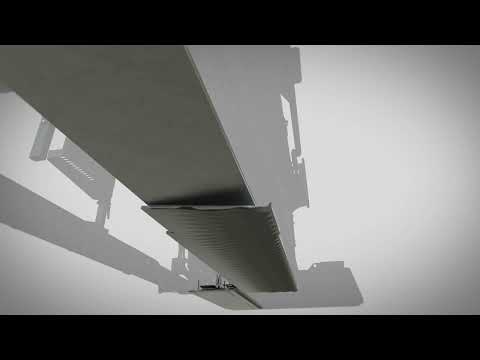

The screed plate design consists of an angular surface on the front of the plates with a tapering smooth surface near the back. A kneading action occurs as the plates manipulate the mix as it passes through the angular grooves.
The innovative design enhances the structural integrity of the asphalt, lessens compactor shoving, strengthens unconfined edges, and promotes better surface temperature uniformity.

Application Versatility

Common applications include large parking lots, highways, intersates, airports and many other high production pay for performance applications
The standard paving range of 3 m – 6 m (9′ 10″ – 19′ 6″) provides excellent performance when changing paving widths for both urban and highway paving applications
Simple, bolt-on extensions offer a maximum paving width of 7.45 m (24′ 5″)

Simple Operation

Operating displays can be tailored to specific language requirements with multiple options available
Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to enhance paving quality and extend screed plate life

Smooth Material Flow

Pave Start Assistant

Pave Start Assistant saves set-up profiles for repeatable use on future job sites, simply activate the profile for quick, single person setup
Set-up preferences include: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
Setup features are located in the left screed display and can also be viewed through the tractor displays

Quick Heat, Even Distribution

Pendent Control (Option)

Cat® Grade Control (Option)

Factory-integrated leveling system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sonic sensor, and cross coupling feature that maintains slope requirements more consistently when changing elevation

Service and Repair Kits

Paver and screed service and repair kits include all the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over-the- counter purchases or through the dealer service shop
