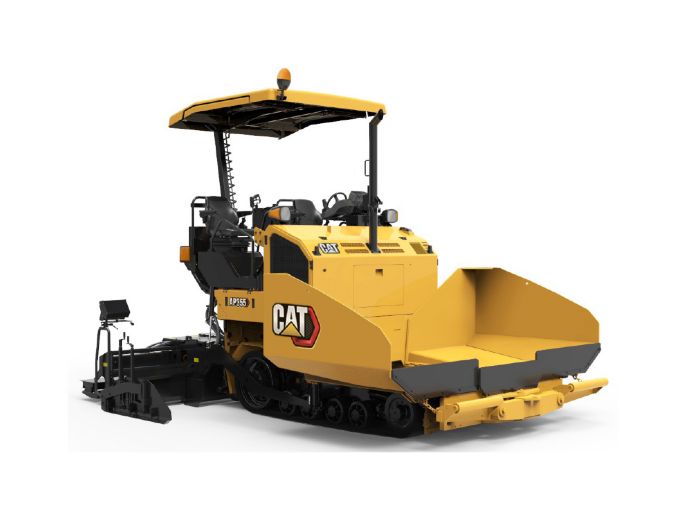

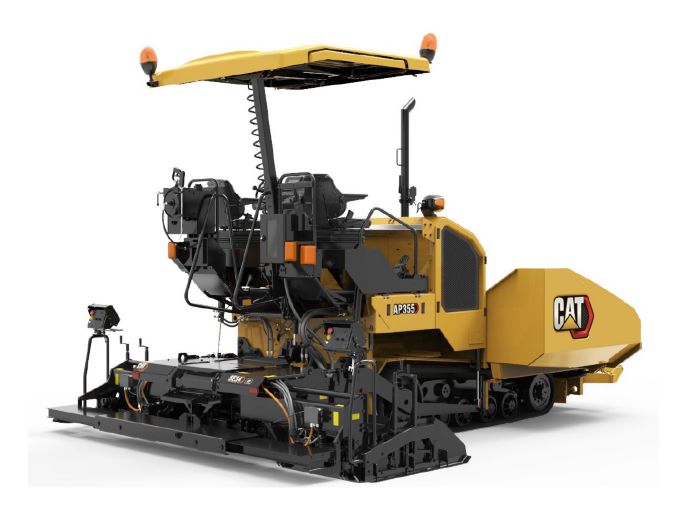

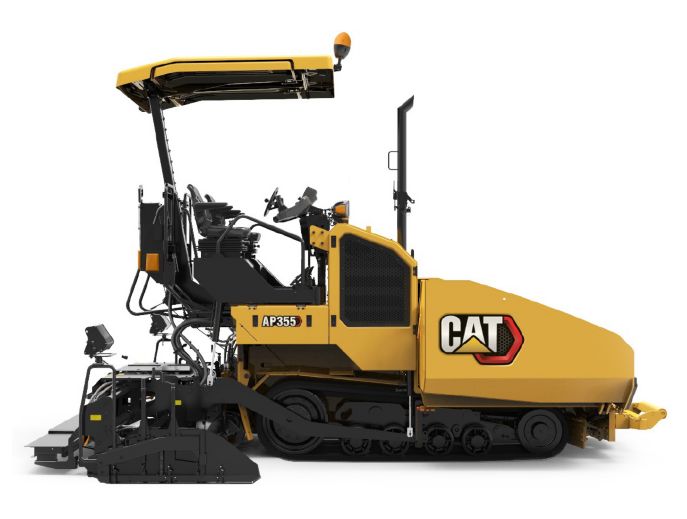

AP355

• Exclusive Eco-mode and automatic engine speed control, reduce fuel consumption and lower sound levels for better comfort and communication
• Auto-fill feeder system simplifies setup by filling the auger chamber to the set point determined by the feed sensors
• Single touch feeder system activation optimizes efficiency by activating each auger and each conveyor
• Automated travel feature; augers raise with the screed, preventing damage during transport
• Single-touch hopper control enables operators to concentrate on other duties

• Standard paving range of 1.75 m – 3.2 m (5′ 9″ – 11′ 2″) with a maximum width of 4 m (13′ 1″) deliver excellent performance for parking lots, urban streets, pathways, trenches, narrow shoulders, and other mid-sized applications
• An optional paving reduction attachment narrows the paving width to 700 mm (27.5″)
• Heated end gates, variable frequency vibration, and tamper bar settings help provide smooth material flow

• Mobil-trac™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
• Counter-rotating tracks provide excellent maneuverability in tight quarters
• Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
• Rubber-coated components help shed asphalt and prevent accumulation
• Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

• Engine options available to meet U.S. EPA Tier 4 Final, EU Stage V emissions and other regional standards
• Million cycle key-pad switches provide reliability
• Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
• Heating elements slide-out for easy replacement
• Machined screed frames simplify screed plate leveling

• Ventilation system option draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• Single sliding console enables operation from either side of the machine
• Dual independent seats swing out beyond the platform for good visibility to curbs and obstacles
• Heated seat option delivers comfort in cool weather conditions
• High visibility 76 mm (3″) seat belt helps with crew safety compliance

• Operating displays can be tailored to specific language requirements with multiple options available
• Easy access to generator activation, screed temperature control, screed heating zones, tamper and vibratory speeds, and service code information
• Intuitive symbols and large graphics simplify operation
• Adjustable brightness control for easy viewing day or night
• Raised switch design enables easy recognition for better efficiency and performance

• SE34 V and SE34 VT screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
• Basic Grade Control option available

• Paver and screed service and repair kits include all the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Operating Environment

1. Single sliding console
2. Steering guide

Technology

1. Product Link™ Elite 6412 (cellular)

Powertrain

1. Cat® C3.3B, four-cylinder
2. Cooling fan, variable speed
3. Mobil-trac undercarriage

Electrical System

1. 750 CCA battery, maintenance-free
2. 85-amp alternator
3. 12-volt charging system
4. Automotive-type fuse system
5. Cat® Electronic Technician (Cat ET)

Material Delivery

1. Material feed sensors, contact
2. Push-roller, adjustable

Service and Maintenance

1. Hydraulic oil, Cat HYDO™ Advanced
2. Remote access drains
3. Service repair kits
4. Sampling ports for Scheduled Oil Sampling
5. Sight Gauges, engine coolant, hydraulic oil

Safety

1. Alarm, back-up
2. Horn, warning (front & rear)
3. Lights, LED Working
4. Mirror package

Operating Environment

1. Canopy
2. Deceleration pedal
3. Umbrella
4. Ventilation system

Technology

1. Basic Grade Control
2. Product Link™ 631 Satellite

Powertrain

1. Ballast, front weights

Material Delivery

1. Material feed sensors, sonic
2. Wash-down pump and reel

Service and Maintenance

1. Bio-hydraulic oil
