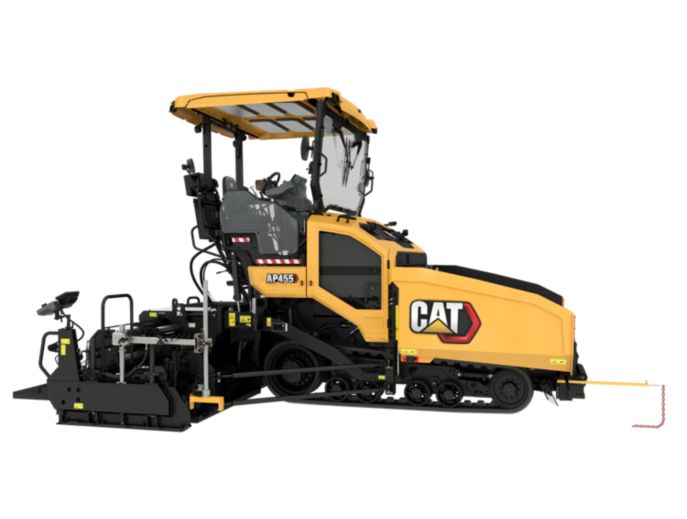

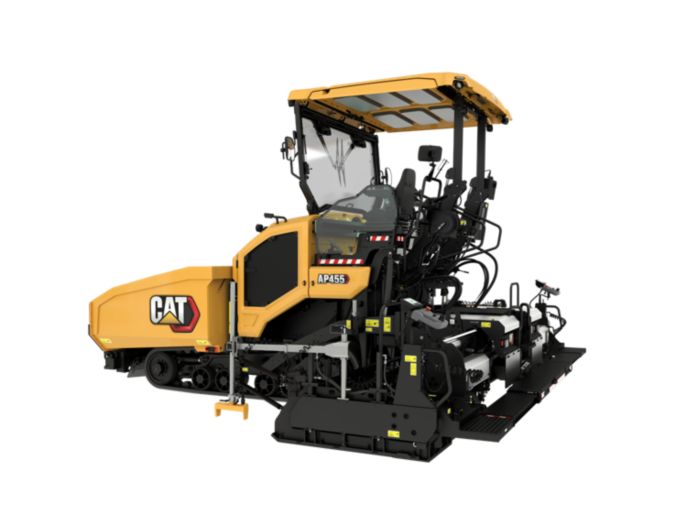

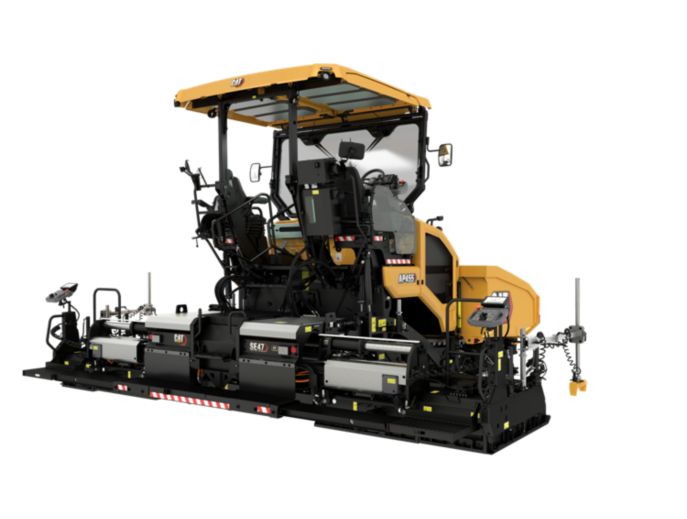

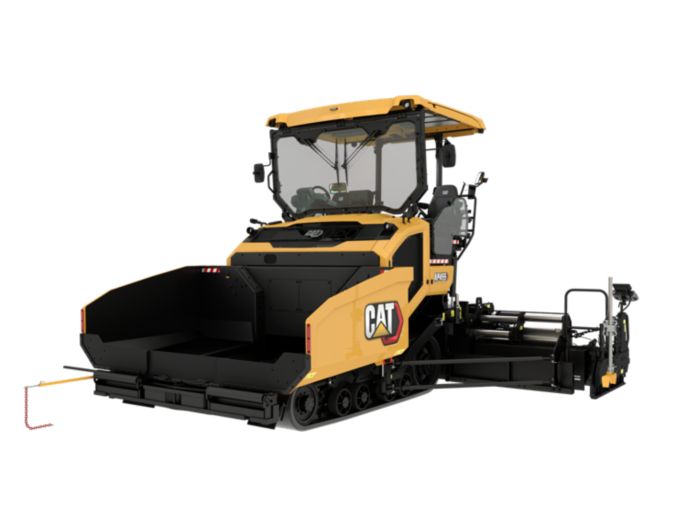

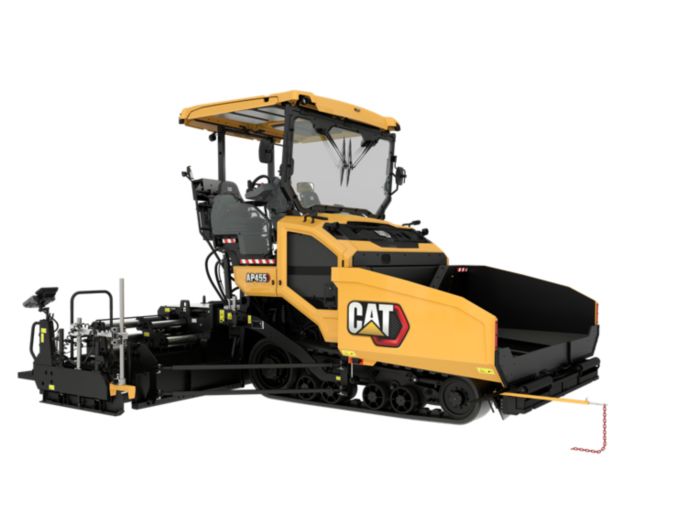

AP455

• The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applictions
• Tight 90º turning capability enables the paver to rotate and cover tracks on a return paving pass
• Standard paving range utilizing the SE47 V screed is 2.4 m – 4.7 m (8′ – 15’6″) with a maximum width of 6.1 m (20′)
• Standard paving range utilizing the SE47 FM screed is 2.4 m – 4.7 m (8′ – 15’6″) with a maximum width of 5.9 m (19′ 6″)
• Standard paving range utilizing the SE47 VT screed is 2.4 m – 4.7 m (7′ 10″ – 15′ 4″) with a maximum width of 6.0 m (19′ 8″)
• Paving depths up to 300 mm (12″) supports aggregate paving

applications

• Machine weight of 14.3 mt (31,539 lb) paver and screed combination enables easy transport on a variety of trailer types
• Length of less than 5.5 m (18′ 1″) and width of 2.5 m (8′ 2″) when equipped with SE47 FM screed and optional folding end gates, accommodates machine transport without special permits.
• The front-loading angle of 18º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
• Raising or retracting the canopy is fast and easy with both electric or manual options available
• Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site

• Mobil-trac™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
• Counter-rotating tracks provide excellent maneuverability in tight quarters
• Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
• Rubber-coated components help shed asphalt and prevent accumulation
• Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

• Single amplitude tamper system with variable frequency screed plate vibration delivers excellent material flow and tight mat textures
• Low truck entry height and short front apron enhances material flow while simplifying clean out
• Feeder system design with 355 mm (14″) diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
• Narrow auger chamber keeps material moving and helps eliminate stagnate patches
• Independent control of each material feed sensor, simply turn off the sensor for manual proportional feed control

• Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• Single sliding console enables operation from either side of the machine
• Dual independent seats swing out 40º beyond the platform for good visibility to curbs and obstacles
• Optimized height and integrated exhaust provide unobstructed visibility around the machine
• Optional screed and paver mounted umbrellas offer protection from direct sunlight
• Heated seat option delivers comfort in cool weather conditions
• High visibility 76 mm (3″) seat belt helps with crew safety compliance

• High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
• New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
• Single-touch functions from main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
• Cat® Grade Control or Basic Grade Control options available
• Operating displays can be tailored to specific language requirements with multiple options available
• Wash-down system includes level indication

• Durable Cat C3.6 engine provides 90 kW (120 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards, or UN ECE R96 Stage IIIA emission standard, equivalent to U.S. EPA Tier 3 and EU Stage IIIA
• Single source supplier of Cat engines and machine parts helps maximize uptime
• Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
• Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
• Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

• Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
• Easily track location, machine hours, fuel usage, and idle time in real time
• Diagnostic codes are made available through online web applications
• Remote flash for easy software updates
• Scheduled maintenance and Scheduled Oil Sampling notification
• Remote disable deactivates the engine for enhanced security

• Paver and screed service and repair kits include all the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over-the-counter purchases or through the dealer service shop

Operating Environment

1. Single sliding console
2. Steering guide

Technology

1. Product Link™ Elite 643 (cellular)

Powertrain

1. Cat® C3.6, four-cylinder
2. Cooling fan, variable speed
3. Mobil-trac™, smooth belt

Electrical System

1. 1400 CCA battery, maintenance free
2. 150-amp alternator
3. 12-volt charging system
4. Automotive-type fuse system
5. Auto-reset breaker for material sensors
6. Cat® Electronic Technician (Cat ET)
7. Remote start receptacle

Material Delivery

1. Auger extensions, 0.15 m (6″)
2. Material feed sensors, contact
3. Push-roller, adjustable

Service and Maintenance

1. Hydraulic oil, Cat HYDO™ Advanced
2. Remote access drains
3. Remote flash
4. Service repair kits
5. Sampling ports for Scheduled Oil Sampling
6. Sight Gauges, engine coolant, hydraulic oil

Safety

1. Steering, spring return
2. Alarm, back-up
3. Horn, warning (front & rear)
4. Lights, LED Working
5. Mirror package

Operating Environment

1. Canopy, hydraulic manual lift
2. Canopy, hydraulic power lift
3. Deceleration pedal
4. Heated seat
5. Friction Steering
6. Umbrella
7. Ventilation system
8. Side shields
9. Windshield

Technology

1. Cat® Grade Control
2. Basic Grade Control
3. Product Link™ Elite 683 Cellular/Satellite

Powertrain

1. Ballast – front weights

Material Delivery

1. Auger extensions, 0.46 m (1.5′)
2. Mainframe extensions, power
3. Mainframe extensions, manual
4. Material feed sensors, sonic
5. Tamper bar system
6. Wash-down pump and reel

Safety

1. Lights, LED Roading
2. Warning beacon, LED
