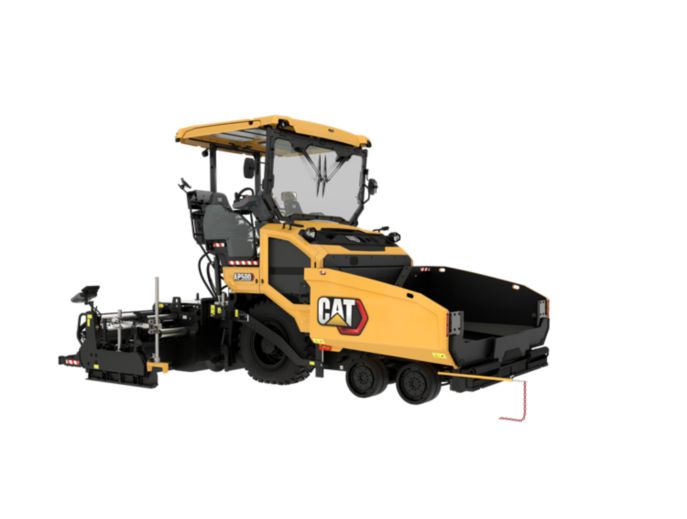

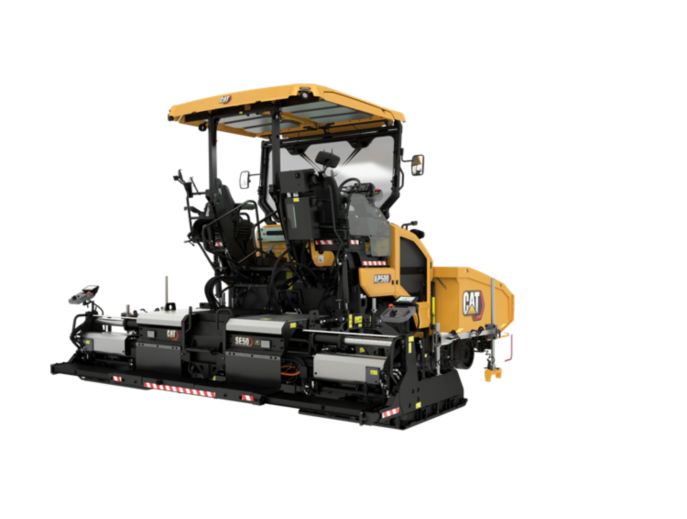

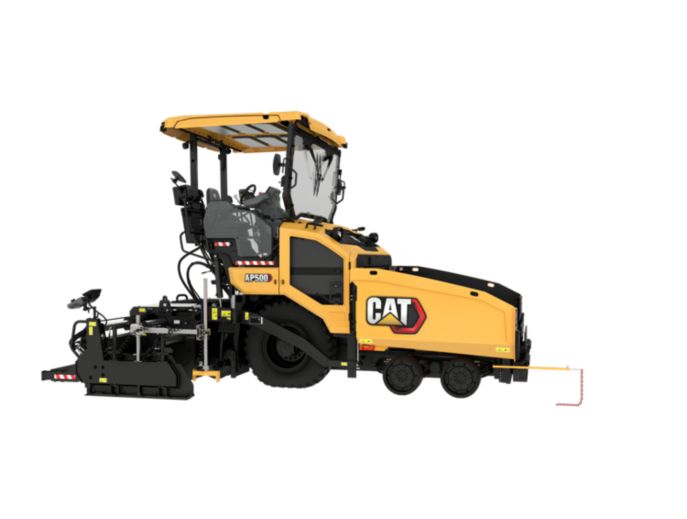

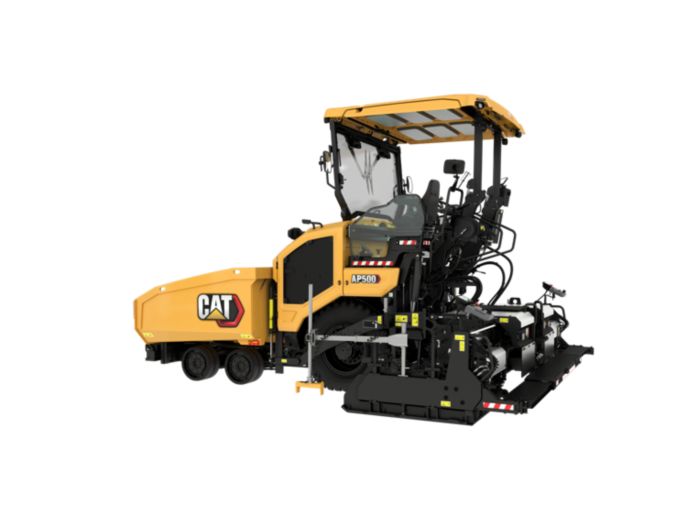

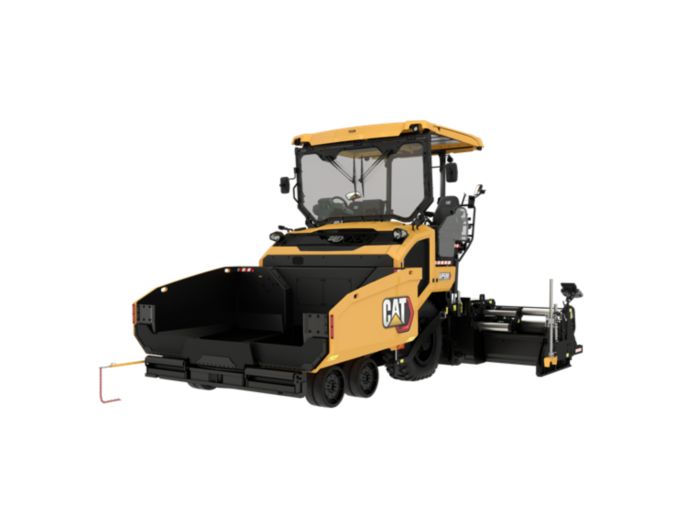

AP500

• Powerful C4.4 engine supports increased feeder system capacity as well as hopper inserts for continuous paving
• Tight 90º turning capability enables the paver to rotate and cover its tracks on a return paving pass
• Standard paving range utilizing the SE47 V screed is 2.4 m – 4.7 m (8′ – 15’6″) with a maximum width of 6.1 m (20′)
• Standard paving range utilizing the SE47 FM screed is 2.4 m – 4.7 m (8′ – 15’6″) with a maximum width of 5.9 m (19′ 6″)
• Standard paving range utilizing the SE47 VT screed is 2.4 m – 4.7 m (7′ 10″ – 15′ 4″) with a maximum width of 6 m (19′ 8″)
• Standard paving range utilizing the the SE50 VT is 2.55 m – 5.0 m (8′ 4″ – 16′ 4″) with a maximum width of 6.77 m (23′ 3″)
• Paving depths up to 300 mm (12″) supports aggregate paving applications

• Machine weight of less than 14.5 mt (32,000 lb) paver and screed combination enables easy transport on a variety of trailer types
• Length of 5.87 m (19′ 3″) and width of 2.50 m (8′ 2″) when equipped with SE47 FM screed with optional folding end gates accommodates machine transport without special permits.
• The front-loading angle of 17º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
• Front, middle, and rear tie-down locations make securing the paver highly efficient for quick travel to the next job site

• Wheel undercarriage provides exceptional mobility and fast travel speeds for unmatched maneuverability around the job site
• Excellent traction is delivered through the 17.5 R25 radial drive tires
• Front-wheel assist option provides power to the rear set of bogie wheels for excellent performance in tough conditions
• All-wheel drive option utilizes a flow divider to deliver power to both sets of front bogie wheels for additional pulling power
• High ground clearance of 197 mm (7.8″) helps avoid storm drains, curbs, and other obstacles

• Optimized hopper design with low truck entry height and short front apron enhances material flow while simplifying clean-out
• Enhanced feeder system with 355 mm (14″) diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
• Confined auger chamber keeps material moving and helps eliminate stagnate patches
• Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for manual proportional feed control

• Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• The single sliding console provides operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
• Dual independent seats swing out 40º beyond the platform for good visibility to curbs and obstacles
• Optimized height and integrated exhaust provide unobstructed visibility around the machine
• Optional screed and paver mounted umbrellas offer protection from direct sunlight
• Heated seat option delivers comfort in cool weather
• High visibility 76 mm (3″) seat belt assists with crew safety compliance

• High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
• High-visibility touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
• Single-touch functions from main screen include screed heat, washdown system, vibratory activation, ventilation system, accessory panel
• Cat® Grade Control or Basic Grade Control options available
• Operating displays can be tailored to specific language requirements with multiple options available
• Wash-down system includes level indication

• Durable Cat C4.4 engine provides 110 kW (148 hp) of power and meets U.S. EPA Tier 4 Final or EU Stage V emissions. The Cat C4.4 engine also meets UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. This engine has a power rating of 106 kW (142 hp).
• Single source supplier of Cat engines and machine parts helps maximize uptime
• Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
• Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
• Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

• Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
• Easily track location, machine hours, fuel usage, and idle time in real time
• Diagnostic codes are made available through online web applications
• Remote flash for easy software updates
• Scheduled maintenance and Scheduled Oil Sampling notifications
• Remote disable deactivates the engine for enhanced security

• Paver and screed service and repair kits include all the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Operating Environment

1. Single sliding console
2. Steering guide

Technology

1. Product Link™ Elite 643 (cellular)

Powertrain

1. Cat® C4.4, four-cylinder
2. Cooling fan, variable speed
3. Sand-rib drive tires

Electrical System

1. 1400 CCA battery, maintenance-free
2. 150-amp alternator
3. 12-volt charging system
4. Automotive-type fuse system
5. Battery, maintenance-free
6. Auto-reset breaker for material sensors
7. Cat® Electronic Technician (Cat ET)

Material Delivery

1. Auger extensions, 0.15 m (6″)
2. Material feed sensors, contact
3. Push-roller, adjustable

Service and Maintenance

1. Hydraulic oil, Cat HYDO™ Advanced
2. Remote access drains
3. Remote flash
4. Service repair kits
5. Sampling ports for Scheduled Oil Sampling
6. Sight Gauges, engine coolant, hydraulic oil

Safety

1. Alarm, back-up
2. Horn, warning (front & rear)
3. Lights, LED Working
4. Mirror package

Operating Environment

1. Canopy, hydraulic lift, manual
2. Canopy, hydraulic lift, power
3. Deceleration pedal
4. Dual operating consoles
5. Heated seat
6. Umbrella
7. Ventilation system
8. Windshield

Technology

1. Cat® Grade Control
2. Basic Grade Control
3. Product Link™ Elite 683 Cellular/Satellite

Powertrain

1. All-wheel drive
2. Ballast – front weights
3. Radial drive Tires
4. Front-wheel assist

Material Delivery

1. Auger extensions, 0.46 m (1.5′)
2. Mainframe extensions, power
3. Mainframe extensions, manual
4. Material feed sensors, sonic
5. Tamper Bar System
6. Wash-down pump and reel

Safety

1. Lights, LED Roading
2. Warning beacon, LED
