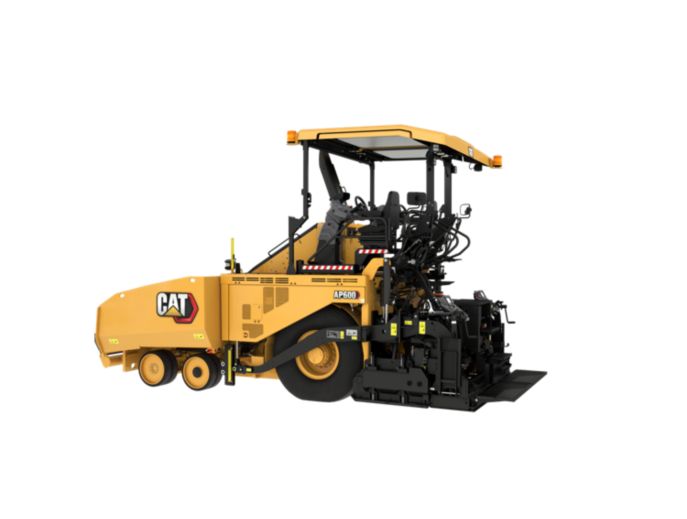

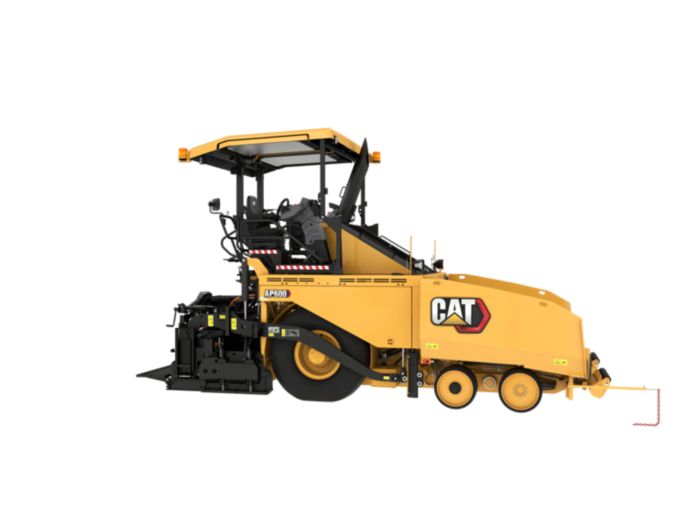

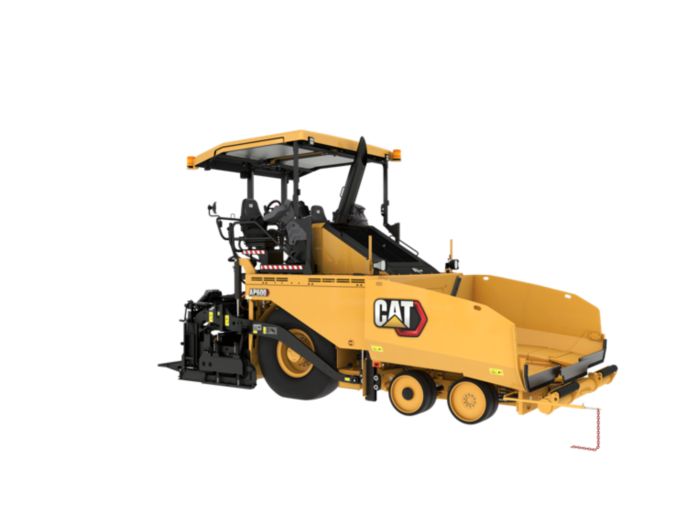

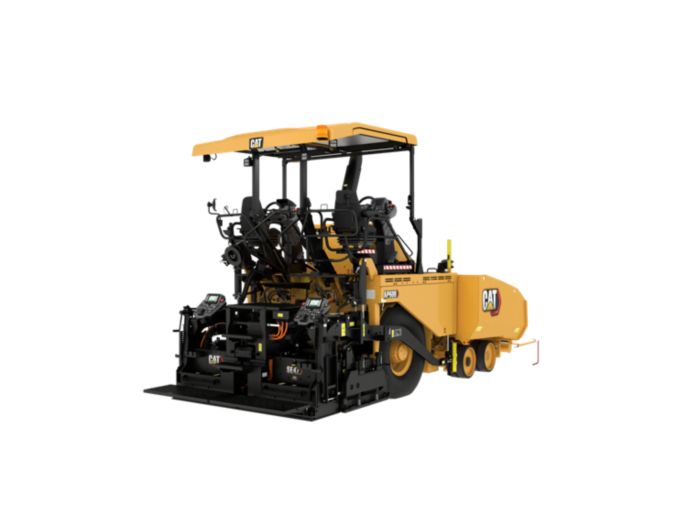

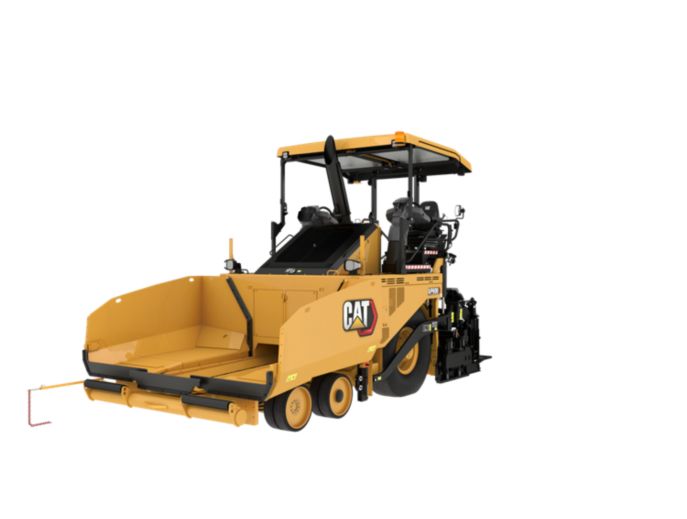

AP600

• Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
• Fast heating screed leads to more daily production, heating time in as little as 15 minutes
• Excellent turning capability, fast travel leads to increased production

• Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability

• Pave Start Assistant saves set-up profiles for repeatable use on future job sites including Grade Control settings, speed, paving width, paving depth, slope, crown, height, and other set-up features
• A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
• Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
• Cat® Grade Control (option) is integrated into the tractor and screed displays for optimized operator efficiency

• Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front mount extenders, rear-mount extenders, or tamper-bar systems
• Tow-point utilizes exclusive linkage design for optimal screed flotation
• Exclusive 2-speed proportional control on the screed extenders
• Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability

• Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
• 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
• Million cycle switches provide reliability
• Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
• Heating elements slide-out for easy replacement
• Machined screed frames simplify screed plate replacement
• Enhanced hopper flashing with increased memory and temperature resiliency for better performance during truck exchanges

• Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
• Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
• Eco-mode provides low sound levels that supports clear communication with the crew
• High visibility 76 mm (3″) seat belt helps with crew safety compliance
• USB port simplifies software updates
• Cup holders offer convenience

• Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
• Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, vibratory speeds, Cat Grade Control (option), and stored operator preferences
• Operating displays can be tailored to specific language requirements with multiple options available

• Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
• Easily track location, machine hours, fuel usage, and idle time
• Diagnostic codes are made available through online web applications

• Paver and screed service and repair kits include the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the-counter purchases or through the dealer service shop

Operating Environment

1. Dual operating stations
2. Steering guide
3. Ventilation System

Technology

1. Product Link™ Elite 641_cellular

Powertrain

1. Automatic engine speed control
2. Variable speed cooling fan
3. Eco-mode
4. Extended life hydraulic oil

Electrical system

1. 1000 CCA batteries
2. 100 amp alternator
3. 12-volt power receptacle
4. Cat Electronic Technician
5. Automotive type fuse system
6. 70 kW generator
7. Machine security system

Material Delivery

1. Contact-type material feed sensors
2. Adjustable push-roller

Service and Maintenance

1. Extended-life coolant
2. Engine coolant heater (C4.4 engine)
3. Remote access drains
4. Scheduled Oil sampling ports
5. Sight gauges

Safety

1. Back-up alarm
2. Horn
3. Working lights
4. Mirror package
5. Vandal covers

Operating Environment

1. Air-ride seat
2. Hard top canopy
3. Deceleration pedal
4. Heated seats
5. Side shields
6. Towpoint indicator (2nd)
7. Umbrella
8. Screen visor
9. Windshield

Technology

1. Cat Grade Control
2. Hopper level and material height sensor
3. Pave start assistant
4. Product Link™ Elite 631_satellite

Powertrain

1. All wheel drive
2. Cat C4.4 engine
3. Ballast_front weights
4. Cat C7.1 engine
5. Front wheel assist
6. Radial drive tires
7. Sand rib drive tires

Electrical System

1. Auxiliary power panel_6.6 kW

Material Delivery

1. Auger extension
2. Leveling devices
3. Mainframe extensions_manual
4. Mainframe extensions_power
5. Sonic feed sensors
6. Power folding front apron
7. Truck hitch
8. Washdown pump and reel
9. Washdown tank
10. Wide width paving packages

Service and Maintenance

1. Service repair kits
2. Uptime kits

Grade References

1. Sonic Averaging Beam
2. Rigid Ski, 9.15 m (30′) and 12.2 m (40′)

Screed Choices

1. SE47 FM Screed
2. SE50 V Screed
3. SE50 VT Screed
4. SE60 V Screed
5. SE60 FM Screed
