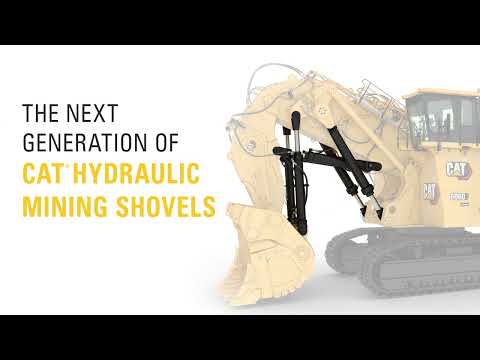

6020

• Operator Protective Guard (Top Guard) certified cab with safety glass windshield.
• Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, in-floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
• Multiple emergency shut-off switches, including a pull switch accessible from the ground.
• Safer access and egress with wide anti-slip walkways, retractable 45-degree stairway and three means of egress for fast emergency exit.
• Safer service with lockable battery isolation and starter lockout switch, plus safe access to power module components from machine platform and counterweight.

• Quiet and fully pressurized cab with ergonomic operator seat and controls, superior insulation, extensive in-cab air distribution via powerful HVAC unit and multiple, optimally positioned vents.
• Easily accessible ergonomic joysticks with Electronic-Hydraulic Servo Control, which delivers dynamic and precise response and ensures no hydraulic lines are present in the cab.
• Greater controllability with ergonomic joystick controls and five circuit hydraulics that allow for two-cylinder motions, two travel motions, and swing to be controlled simultaneously.
• Enhanced training capability, with patented 3-seat design, elevated observer’s work station and easily dual in-cab emergency stop buttons.
• 10-inch high-definition color touchscreen display that includes troubleshooting aids and machine documentation.


• Better wear of undercarriage components thanks to floating push tube, which delivers even idler slide wear and extended component life; low wear drive system via induction hardened and high quantity of sprocket teeth; and optional rough terrain undercarriage protection kit.



• Cat exclusive Positive Pin Retention 2 (PPR2) Track design, which resists pin walking and link cracking for reliable sealing and maximum track life.



• Structures designed and fabricated to withstand the toughest digging conditions, with high-strength steel; full penetration, profiled and ground welds at critical junctures; and booms and sticks that are stress-relieved after welding.



• Efficient Independent Oil Cooling system, which protects and extends the life of hydraulic components.



• New heavy-duty rolled track shoe offers extended life thanks to an updated manufacturing process and higher-strength material. We’ve also moved from two size offerings to three (750 mm, 950 mm and 1200 mm), allowing these track shoes to provide lower ground pressure for a wider range of applications.


• Greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.



• New C32B engine offers even greater durability and reliability than its predecessor, with a higher flow oil pump, new cylinder head, and more. Increased piston compression height enables higher power in select applications.



• Engine optimized for low fuel consumption at 1,800 rpm and lower speeds, plus significant gains in fuel consumption through collaboration of engine and machine integration.



• Maximum uptime, without work interruption for regeneration, engine derate, or cold weather treatment of secondary fluid.

• Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
• Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
• Variety of sizes and wear packages for the ideal match to your shovel and application.
• Four tip shapes of hammerless GET designed specifically for the 6020, with no special tools required for removal and installation.
• Wear packages that protect your investment, including special liner material and lip shrouds, wing shrouds and heel shrouds.

• Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6020 and allows it to collect and transmit information into locally hosted or cloud-hosted applications such as Cat MineStar™ Solutions Health Office, Health Equipment Insights, or Equipment Care Advisor.
• Earliest possible detection of faults, with Board Control System that uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually.
• Factory-ready for Cat MineStar™ Solutions, with a range of capabilities that meet the needs of your fleet.

• Modular design that facilitates quick field assembly — as few as 14 days in typical condition.
• Exchangeable power module that can be quickly swapped out for a spare, then transported for repair in a safe, convenient and clean environment.
• Exceptional component accessibility and weather protection via first-in-class and spacious walk-through power module.
• Superior swing system component accessibility via boom-mounted hydraulic valve block, and ground-level accessible service fluid fill points and jump start receptacle.
• Simplified undercarriage serviceability, with automatic track tensioning system, which requires no manual adjustment; externally serviceable break; and PPR2 Tracks that are easily serviced with a master joint.


• Highly regulated C32B engine certified to meet U.S. EPA Tier 4 Final/EU Stage V emissions standards without the need for DEF — saving time and cost during maintenance.



• Sound-suppressed power module to keep spectator sound levels low.



• Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman and Cat Rebuild programs, which return end-of-life components to like-new condition.

Cat Powertrain

1. 2 x Cat C32B engines
2. Aftertreatment system (used in Tier 4 Final only): – Diesel Oxidation Catalyst (DOC) – NOx Reduction System (NRS) – Non-DEF solution
3. Air-to-Air After Cooling (ATAAC)
4. Turbocharger
5. Hydraulically driven radiator fan
6. Electronically controlled fan speed
7. Micro processed engine management
8. Cat Clean Emission Module (CEM) air filters
9. Two-stage fuel filter with series filtration
10. High-capacity water seperator
11. Starting aid – automatic ether
12. Exhaust manifold and turbo heat shields
13. Dual 24 V electric starters per engine
14. Automatic engine idle shut down
15. Automatic fuel priming

Hydraulics

1. Pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic engine RPM reduction – Reduced oil flow at high hydraulic oil or engine temperature
2. Pressure cut – off for main pumps
3. Cat Hydraulic Hose assemblies
4. Hydraulic Optimization
5. Cooling of pump transmission gear oil
6. Open loop swing circuit
7. Pressure testing poings
8. Full-flow high-pressure filters (100 µm), main pumps
9. Full-flow filters (10 µm), return circuit
10. Full-flow filters (10 µm), cooling return circuit
11. Pressure filters (6 µm), servo circuit
12. Transmission oil filters (40 µm)
13. Boom float valve

Electrical System

1. 6 batteries
2. Lockable battery isolator switch
3. Lockable starter isolator switch
4. 9 LED high-brightness working flood lights
5. 7 LED service lights
6. Travel alarm – forward and reverse
7. Electric Horn

Undercarriage

1. Forged double-grouser track pads
2. 800 mm (2 ft 8 in) wide track pads
3. HD fixed axle carrier and load rollers
4. Automatic hydraulic retarder valve
5. Hinged travel motor covers
6. Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
7. Fully hydraulic self-adjusting track tensioning system with piston accumulators

Automatic Lubrication System

1. Grease filters (200 µm)

Operator Environment

1. Single HVAC system
2. In-floor window with removable grate
3. Pneumatically cushioned and multiadjustable comfort seat with: – Lumbar support – Head and arm rests – Safety switch for automatic motion shutdown
4. Independently adjustable seat consoles with integrated joysticks
5. Electronic-Hydraulic Servo Control
6. Elevated full-size trainer seat with 2-point safety belt and laptop desk
7. FM/AM radio with USB and AUX input
8. Additional fold-away auxiliary seat with 2-point safety belt
9. Three cup holders
10. Parallel intermittent wiper/washer
11. Roller blinds at all windows
12. Monitoring system with 254 mm (10 in) color touchscreen
13. Cat Board Control system: – 254 mm mm (10 in) color touchscreen – On-screen troubleshooting assistance – On-screen graphic charts of logged data – Fault memory of related conditions – USB, LAN (TCP/IP) and CAN BUS interfaces for data export
14. Control and Monitoring Platform (CAMP)
15. Powered 45° access stairway
16. One mirror on Left Hand (LH) side
17. Document storage

Front Attachment

1. Internal service access in boom
2. Boom and stick thermally stress relieved after welding
3. Catwalks with rails at boom
4. Wear Package (as per bucket selection)

Cat Technology

1. Cat MineStar™ Solutions ready

Service and Maintenance

1. Engine oil exchange interval – 500 hours
2. Hydraulic oil change interval – 10,000 hours
3. S·O·SSM sampling ports
4. Cat CEM air filters with precleaner dust ejection system
5. Ground level service station with quick couplings for: – Diesel fuel – Engine coolant – Pump transmission gear oil – Engine oil – Hydraulic oil – Grease
6. Cat battery charging connector
7. Indicator lights

Safety and Security

1. Emergency stop switches in cab, engine module, 1 pull rope accessible from ground level
2. Operator Protective Guard (Top Guard)
3. All-round safety glass
4. Emergency egress ladder

Miscellaneous

1. ISO or American National Standards Institue (ANSI) decals
