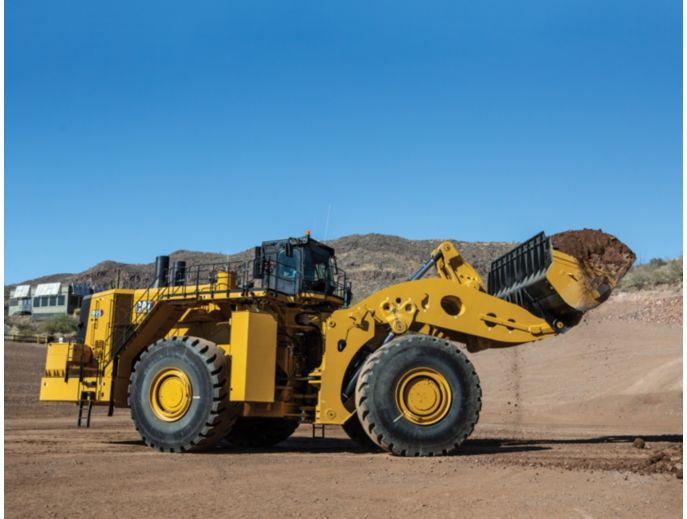

Wheel Loaders

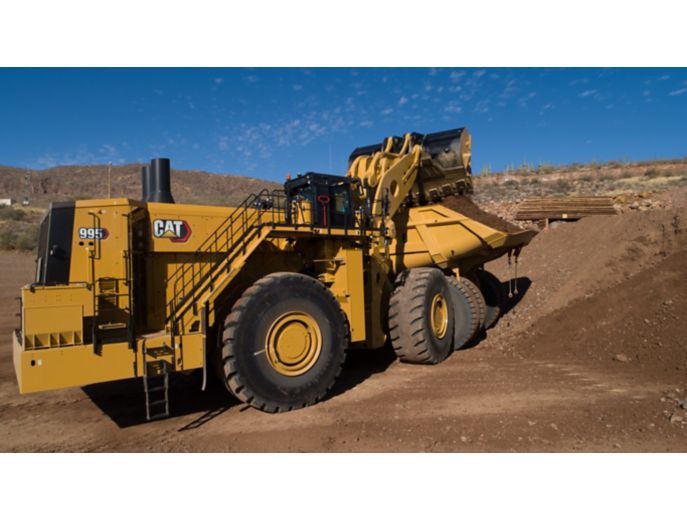

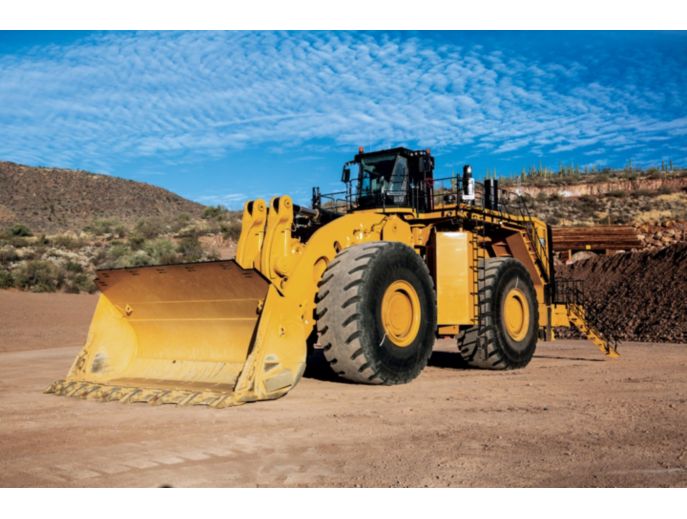

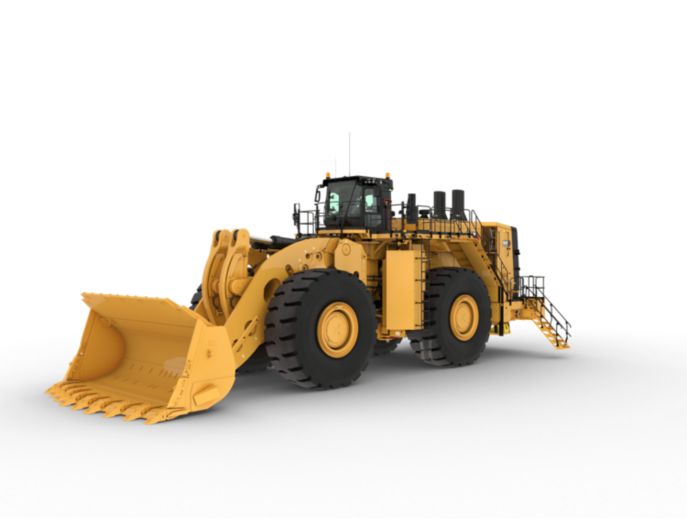

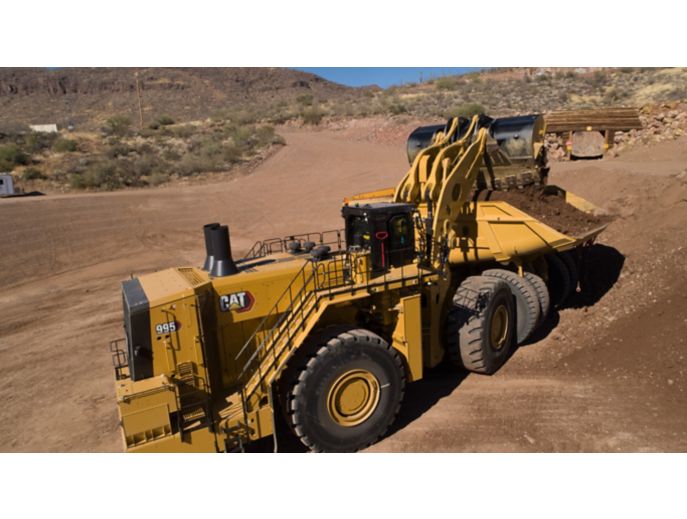

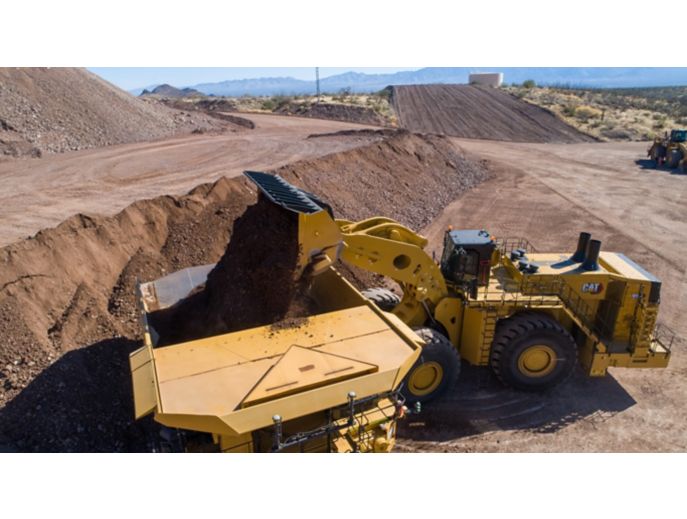

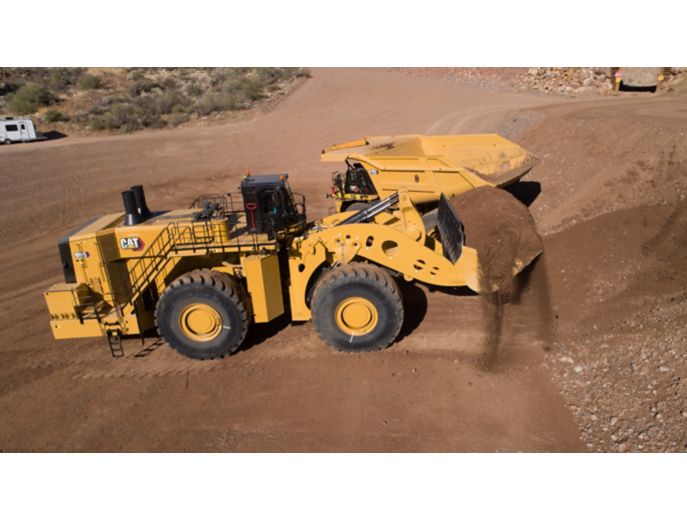

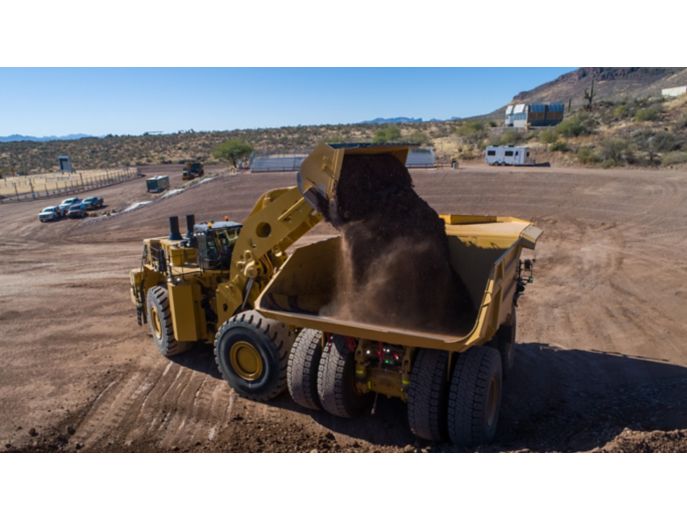

995

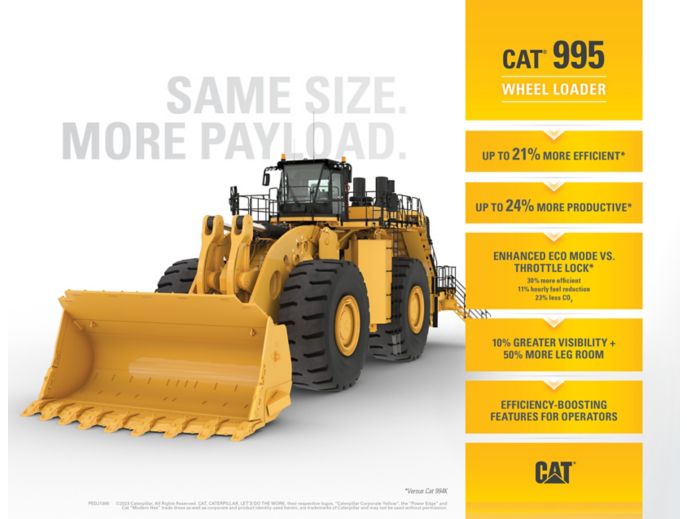

Built to the same size as the 994K but offering a higher rated payload, the new Cat^® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO₂ per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® 3516E	Cat® 3516E
Emissions	U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent	U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent
Engine Power - ISO 14396	1377 kW	1847 HP
Gross Power - SAE J1995	1394 kW	1870 HP
Net Power - SAE J1349 - Standard Ambient	1297 kW	1739 HP
Net Power - SAE J1349 - High Ambient	1265 kW	1696 HP
Bore	170 mm	6.7 in
Stroke	215 mm	8.5 in
Displacement	78.1 l	4766 in³
Peak Torque - 1,200 rpm - SAE J1995	11591 N·m	8549 lb/ft
Torque Rise	39%	39%
Note (1)	The power ratings apply when tested under the reference conditions for the specified standard.	The power ratings apply when tested under the reference conditions for the specified standard.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.
Note (3)	The gross power advertised is with the fan at maximum speed.	The gross power advertised is with the fan at maximum speed.

Operating Specifications

Operating Weight - Standard	246651 kg	543772 lb
Operating Weight - High Lift	248421 kg	547675 lb
Rated Payload - Standard Lift (Low to Moderate Digging Resistance)	54.4 t	60 ton (US)
Rated Payload - Standard Lift (Moderate to High Digging Resistance)	45.3 t	50 ton (US)
Rated Payload - High Lift (Low to Moderate Digging Resistance)	49.9 t	55 ton (US)
Rated Payload - High Lift (Moderate to High Digging Resistance)	45.3 t	50 ton (US)
Note	*Please contact your local dealer to determine if your application is suitable for this increased rated payload.	*Please contact your local dealer to determine if your application is suitable for this increased rated payload.
Cat Truck Match - Standard	785/789	785/789
Cat Truck Match - High Lift	789/793/794	789/793/794
Bucket Capacity Range	17.2-43.6 m3 (22.3-57 yd3)	17.2-43.6 m3 (22.3-57 yd3)

Transmission

Transmission Type	Cat Planetary Power Shift	Cat Planetary Power Shift
Forward - 1	7.4 km/h	4.6 mile/h
Forward - 2	12.9 km/h	8 mile/h
Forward - 3	21.9 km/h	13.6 mile/h
Reverse - 1	8.1 km/h	5 mile/h
Reverse - 2	14.1 km/h	8.8 mile/h
Reverse - 3	24 km/h	14.9 mile/h
Direct Drive - Forward 1	Lock-up disables	Lock-up disables
Direct Drive - Forward 2	14 km/h	8.7 mile/h
Direct Drive - Forward 3	24.5 km/h	15.2 mile/h
Direct Drive - Reverse 1	Lock-up disables	Lock-up disables
Direct Drive - Reverse 2	15.5 km/h	9.6 mile/h
Direct Drive - Reverse 3	27 km/h	16.8 mile/h
Note	Travel speeds based on 58/85-57 tires.	Travel speeds based on 58/85-57 tires.

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit	Positive Flow Control	Positive Flow Control
Lift/Tilt System - Pump	Variable Displacement Piston	Variable Displacement Piston
Maximum Flow at 1,700 rpm Engine Speed	2047 l/min	541 gal/min
Relief Valve Setting - Lift/Tilt	34500 kPa	5004 psi
Cylinders, Double Acting - Lift, Bore and Stroke	370 × 1713 mm (14.6 × 67.4 in)	370 × 1713 mm (14.6 × 67.4 in)
Cylinders, Double Acting - Tilt, Bore and Stroke	310 × 1086 mm (12.2 × 42.8 in)	310 × 1086 mm (12.2 × 42.8 in)
Pilot System	Open Loop and Pressure Reducing	Open Loop and Pressure Reducing

Hydraulic Cycle Times

Rack Back	4.9 s	4.9 s
Raise	12.6 s	12.6 s
Dump	3.1 s	3.1 s
Lower Float Down	4.2 s	4.2 s

Complete System Fill

Fuel Tank - Standard	3240 l	856 gal (US)
Fuel Tank - With 24 hr Attachment	5350 l	1414 gal (US)
Cooling System	520 l	138 gal (US)
Engine Crankcase	288 l	76 gal (US)
Transmission	416 l	110 gal (US)
Differential - Final Drives - Front	833 l	220 gal (US)
Differential - Final Drives - Rear	757 l	200 gal (US)
Hydraulic Tank - Implement and Hydraulic Fan	1022 l	270 gal (US)
Hydraulic Tank - Steering and Braking	379 l	100 gal (US)
Oil Renewal System (ORS)*	75.7 l	20 gal (US)
Note	*Not available on Tier 4 Final/Stage V machines. Not available in all regions.	*Not available on Tier 4 Final/Stage V machines. Not available in all regions.

Axles

Front	Fixed	Fixed
Rear	Trunnion	Trunnion
Oscillation Angle	9°	9°

Brakes

Brakes	ISO 3450:2011	ISO 3450:2011

Cooling System

Ambient Capability Hydraulically Driven Demand Fan - Standard	43 °C	109.4 °F
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent)	55 °C	131 °F
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final)	53 °C	127.4 °F

Sound Performance - Standard

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent	74 dB(A)	74 dB(A)
Machine Sound Level (ISO 6395:2008)	119 dB(A)	119 dB(A)
Note	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Suppression

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent	73 dB(A)	73 dB(A)
Machine Sound Level (ISO 6395:2008)	117 dB(A)	117 dB(A)
Note	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Hydraulic System - Steering

Steering System - Circuit	Pilot, Load Sensing	Pilot, Load Sensing
Steering System - Pump	Piston, Variable Displacement	Piston, Variable Displacement
Total Steering Angle	80 degrees	80 degrees
Steering Cycle Times - Low Idle	7.6 s	7.6 s
Steering Cycle Times - High Idle	4.3 s	4.3 s

Dimensions - Standard Lift - Approximate

B-Pin Height - Maximum Lift	8800 mm	28.8 ft
Clearance at Maximum Lift	6039 mm	19.8 ft
Dump Angle at Maximum Lift	–50.0 degrees	–50.0 degrees
Front Axle Centerline to Bucket Tip	6688 mm	21.9 ft
Ground to Bumper Clearance	1355 mm	4.4 ft
Ground to Center of Axles	1830 mm	6 ft
Ground to Lower Hitch Clearance	898 mm	2.9 ft
Ground to Top of Exhaust Stacks	7067 mm	23.2 ft
Ground to Top of Hood	5682 mm	18.6 ft
Ground to Top of ROPS	7119 mm	23.4 ft
Maximum Overall Height - Bucket Raised	11966 mm	39.3 ft
Maximum Overall Length	19693 mm	64.6 ft
Note	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift	59.5 degrees	59.5 degrees
Rack Back Angle - Carry	47.7 degrees	47.7 degrees
Rack Back Angle - Ground Level	39.7 degrees	39.7 degrees
Reach - Maximum Lift	2946 mm	9.6 ft
Rear Axle - Centerline to Bumper	6205 mm	20.4 ft
Tread Width	4300 mm	14.1 ft
Wheel Base	6800 mm	22.3 ft
Width - Over Tires - With Bulge	5758 mm	18.8 ft

Dimensions - High Lift - Approximate

B-Pin Height - Maximum Lift	9657 mm	31.6 ft
Clearance at Maximum Lift	6896 mm	22.6 ft
Dump Angle at Maximum Lift	–50.0 degrees	–50.0 degrees
Front Axle Centerline to Bucket Tip	7383 mm	24.2 ft
Ground to Bumper Clearance	1355 mm	4.4 ft
Ground to Center of Axles	1830 mm	6 ft
Ground to Lower Hitch Clearance	898 mm	2.9 ft
Ground to Top of Exhaust Stacks	7067 mm	23.2 ft
Ground to Top of Hood	5682 mm	18.6 ft
Ground to Top of ROPS	7119 mm	23.4 ft
Maximum Overall Height - Bucket Raised	12823 mm	42.1 ft
Maximum Overall Length	20388 mm	66.9 ft
Note	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift	59.4 degrees	59.4 degrees
Rack Back Angle - Carry	53.5 degrees	53.5 degrees
Rack Back Angle - Ground Level	45 degrees	45 degrees
Reach - Maximum Lift	2884 mm	9.4 ft
Rear Axle - Centerline to Bumper	6205 mm	20.4 ft
Tread Width	4300 mm	14.1 ft
Wheel Base	6800 mm	22.3 ft
Width - Over Tires - With Bulge	5760 mm	18.8 ft

Features

SAFETY

Designed for visibility, with a taller windshield that provides a 25% increase in glass surface area for a better view to the bucket, standard rear-view camera, optional Detect 270-degree cameras, standard LED lighting and six-mirror system.
Improved access and egress, with integrated powered access system that can be raised and lowered from cab or ground, 45-degree-angle wide stairs, emergency egress ladder, and full handrails on each side.
Wide walkways with non-skid surfaces, windshield cleaning platform, and integrated lockout/tagout points designed into the service areas.

OPERATOR COMFORT

Increased leg room and increased width by the operator’s knees compared to 994K.
Reduced vibration, low sound levels and automatic temperature controls.
Electro-hydraulic speed-sensing steering with force feedback for shift-long comfort.
Pressurized cab featuring Next Gen Seat with 9-inch travel, active cooling and heating, adjustable lumbar support, seat cushion tilt adjustment, and air-adjustable bolsters on the seat and backrest.

CONFIDENT & EMPOWERED OPERATORS

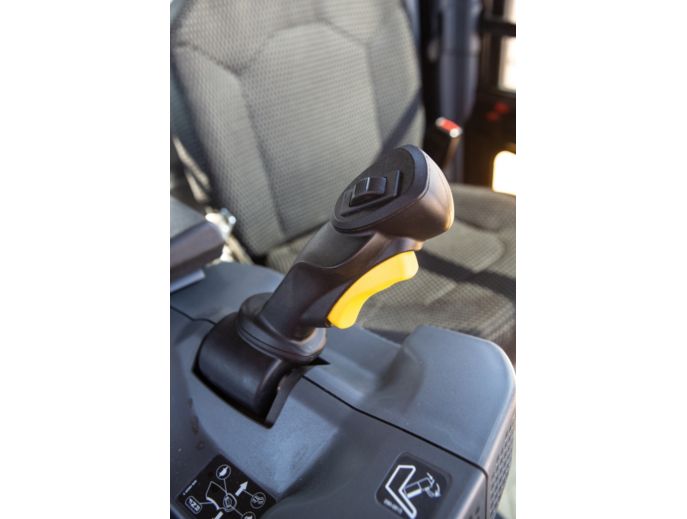

Low-effort integrated controls that make cycles smoother and faster while reducing fatigue.
Large, easy-to-read, color LED displays that provide access to the Electronic Operation & Maintenance Manual.
Operator coaching, which helps empower operators to exceed targets by measuring and providing feedback to reinforce proper operating techniques.
New Autodig Components that boost efficiency and reduce tire wear by automating critical parts of the digging cycle.
Payload Overload Prevention, which inhibits severe payloads from being raised to full truck height.

PRODUCTIVITY

Increased rated payload and 6% increase in hydraulic force compared to 994K.
Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS), which reduce the potential for wheel slippage without reducing hydraulic efficiency.
Superior loading with Cat Performance Series Buckets, which are engineered to dig into piles quickly and load efficiently — with fill factors up to 115%.
3516E engine, which delivers optimum performance through the use of a 16-cylinder, four-stroke design, plus turbochargers and aftercoolers that deliver on-demand performance.
Excellent stability thanks to optimized weight distribution, helping operators be more confident and productive.

EFFICIENCY-BOOSTING FEATURES

Tire Slip Prevention, which reduces rimpull when there is less downforce on the tire and increases rimpull when there is more downforce on the tire — providing maximum rimpull when you can use it.
Tire Set, which automatically applies a lift command at the optimal time to increase traction on the tire, allowing for an increase in usable rimpull.
Lift Stall Prevention, which automatically applies the impeller clutch when necessary to prevent hydraulic stall when lifting up through the face — keeping the lift motion continuous, without excessive use of the impeller clutch.
Positive Flow Control Hydraulic System, which boosts efficiency with concurrent pump and valve control and increases bucket feel and control to deliver consistent performance.
On-demand throttle feature that allows operators to maintain normal operation with the left pedal and implements while the 995 manages the engine speed.

SERVICEABILITY

Reduced time spent on regular maintenance procedures thanks to features such as ground-level or platform access to filters; grouped service points; swing-out doors on both sides of the engine compartment; improved access for engine and pump drive service as well as to cooling package; and automatic lubrication system that greases the linkage, hitch, steering and axle trunnion bearings.
Service station that provides easy access to functions such as coolant and oil as well as level indicators; Cat battery charging connector; and indicator lights for full fuel tanks.
Redesigned pump bay, which offers improved access to transmission components, discharge ports located on the side of pumps, and lines routed directly to screen.
Reduced number of steering hoses and tubes; removal of brackets and neutralizers, eliminating the need for neutralizer adjustment; and addition of pilot accumulator, EH valve and pilot filter.
Improvements in filters and diagnostics across the machine, with groundline service that includes a steering pilot filter, transmission filters and steering pump discharge screen; pump bay that includes a brake pump filter, implement pilot filter and implement discharge screens; and diagnostic ports that are accessible from the front walk deck and pump bay.

BUCKETS AND GET

Approved for higher payloads in low to moderate digging resistance applications; increased payload intended for rehandled material in the ROM pad area or stockpile material, such as coal.
Variety of bucket options, including rock buckets for loading limestone or other unprocessed rock; heavy-duty rock buckets for applications like face loading tightly compacted pit materials or handling materials of moderate abrasion and high impact; coal buckets for light density non-abrasive materials; and iron ore buckets for extremely aggressive applications.
Performance Series Buckets feature extended floor, dual radius and angled side bars for fast loading; larger bottom box section for increased strength, high fill factors and good material retention; and taller side plate with a level top surface improves operator visibility to the bucket from the cab.
Cat Ground Engaging Tools (GET) that feature CapSure™ Retention Technology, which simplifies component replacement with hammerless retention for fast, easy and safe installation.

DURABILITY

Highly durable structures, with full box-section rear frame that resists torsional shock and twisting forces to maximize life of mounted components.
Frames that utilize castings in key areas to maximize frame durability and optimize efficiency.
Rear axle mounting to frame that is optimized to better disperse loads for increased structural integrity.
Loads efficiently transmitted by the field-proven solid steel lift arms, with enhanced strength in key pin areas through the use of one-piece castings.
Frame, powertrain, engine and components that all built to be rebuilt — using new, remanufactured or rebuilt parts and components — to deliver multiple lives of like-new performance at a fraction-of-new price.

TECHNOLOGY

Cat MineStar™ Terrain for loading, which provides real-time feedback on payloads and design plan progress to increases productivity and accuracy, reduce rework, enhance ore control and improve shift-to-shift operator performance.
MineStar Object Detection, which combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
MineStar Health, which delivers critical event-based machine condition and operating data and includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.
Upgraded touchscreen information display that provides intuitive operation and easy navigation and keeps operators informed about machine systems to decrease service time.
Cat ProductLink™, which provides remote access to information on machine systems and diagnostic codes; allows you to track utilization, fuel usage and payload summaries; and gives access to machine location, service meter hours and reporting status.

SUSTAINABILITY

Designed to be more efficient and use less fuel, which reduces engine emissions and carbon footprint; Tier 4 Final engine reduces NOx and particulate matter.
Engine Idle Shutdown, which saves fuel by making it possible to avoid unnecessary idling.
Better control of fluids through use of Cat anti-drain filter housings and component ecology drains.
Retrofits and upgrades for older machines — to incorporate efficiency improvements and emission reductions, and to keep them in production longer to conserve energy and minimize the need for raw materials
Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.

Standard Equipment

POWER TRAIN

Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI™-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled
Engine prelube
Fuel priming pump (electric)
Ground-level engine shutoff
Engine air intake (above hood) precleaner
Aluminum Modular Radiator (AMR)
Automatic, ether starting aid
Electronic throttle lock
Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system
Rimpull control system
Planetary powershift, 3F/3R electronic control transmission
Delayed engine shutdown
Oil-cooled, multi-disc, service brakes
Electro-hydraulic parking brake

LINKAGE

Standard lift

ELECTRICAL

Alternator
Batteries, low maintenance
10/15 amp, 24V to 12V converter
Disconnect switch to bumper
LED warning lights (pattern selectable)
LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)
Emergency jump-start receptacle
Starter and transmission lockout in bumper
24V starting and charging system
Electric starters

OPERATOR ENVIRONMENT

Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
Bonded glass, tinted
Trainer seat
Dual-lever lift and tilt function controls
Implement kickouts
Air conditioner
Cab pressure indicator
Graphical touchscreen information display conveys real-time operating information
Heater, defroster, auto temperature controls
Powered cab precleaner
Operator presence status
Starting/charging system malfunction
Electronic OMM
Operator controls help
Two USB charging ports
CB mounting, 12V/24V power and antenna
14-pin service port
12V power
Selectable application profiles
Entertainment radio mute
Push-To-Start (PTS)
Warning/indicator instrumentation
Keypad control with indicator lights
Dome light in cab
Lunchbox and beverage holders
Electro-hydraulic force feedback steering
Vital Information Management System (VIMS™) with information display: external data port, cycle timer
Coat hook
Gauge instrumentation with configurable widgets: – Status indicators – Wheel rev counter – Simplified payload – Tire pressure monitoring system (optional) – Bucket angle – Coolant temperature – Hydraulic oil temperature – Fuel level – Power train oil temperature – Engine speed (tachometer) – Transmission gear – Ground speed – Engine hour meter

SAFETY

Ground-access ladders
Rear-vision camera
Front frame access with steps
Front walkway around cab
Pump bay access ladders with T-handle and platform
Tie-offs on ROPS and radiator guards
Steering frame lock
Stairways on both sides of the machine
LED stairway and access lights
Toe kicks
Electric (field and shop) horns
Retractable seatbelt, 76 mm (3 in) wide
Trainer seat with lap belt, 76 mm (3 in) wide
Back-up alarm
Secondary steering

MACHINE CONTROL AND GUIDANCE

MineStar™ Health ready
MineStar GUIDE ready
MineStar Edge ready

FUEL TANK

12 hour (3240 L/856 gal)

COOLING

Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

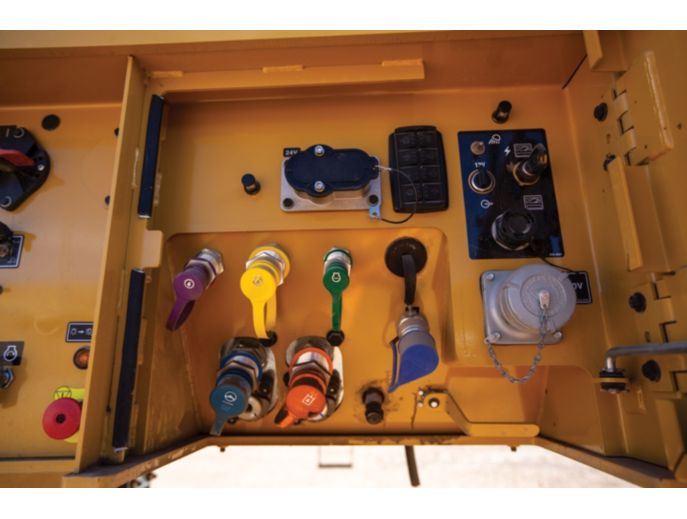

GROUND-LEVEL SERVICE CENTER

Service center light
Implement and cooling fan oil level indicator
Steering and brake oil level indicator
Window washer solvent level indicator
Transmission oil level indicator
DEF level indicator (if equipped)
Fuel level indicator
Engine oil level indicator
Engine coolant level indicator
Automatic lubrication system grease tank level indicator
DEF purge indicator lamp
Transmission lockout and LED
Starter lockout and LED
Heavy-duty battery disconnect switch
Stairway light switch
Service lighting switch (if equipped)
Fuel shutoff engine shutdown switch
Engine oil fast-fill port
Transmission oil fast-fill port
Steering and brake hydraulic oil fast-fill port
Steering and brake hydraulic oil drain port
Oil renewal system fast-fill port (if equipped)
Engine coolant fast-fill port
DEF fill port (HRC only)
Implement and cooling fan hydraulic oil fast-fill port
Implement and cooling hydraulic oil drain port
Automatic lubrication system grease tank fill port
24V jump-start receptacle
240V jacket water and engine oil heater plug (if equipped)
12V power port
VIMS key switch
14-pin machine data port

SERVICE

EH steering eliminates need for neutralizer adjustment
In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
Pump efficiency monitoring
Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings
Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
Rock guards on linkage grease lines
Cat O-ring face seal couplings
Lockable service access doors
Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
High-speed engine oil change system
Ground-level fast-fill fuel system
Transmission guard
Drawbar hitch with pin
Cat XT™ hoses
Left-side service center
Oil sampling valves
Automatic Autolube filling shutoff valve
Telematics and Cat Electronic Technician service port in bumper
Air filter remaining useful life sensor
Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
Rear access to cab and service platform
Load-sensing steering
Supplemental steering system
Vandalism protection caplocks
Cooling cleanout service package
VIMS download and Cat Electronic Technician service port in bumper
Service lights (engine bay, service center)
EH steering eliminates need for neutralizer adjustment

EFFICIENCY

On demand throttle, HP Plus, and Enhanced ECO Modes
Variable displacement implement pumps
Variable displacement load sensing steering
Variable displacement cooling fan pump
Torque converter lock-up clutch

Optional Equipment

POWER TRAIN

Oil Renewal System (ORS)* (for increased time between oil changes)

Downloads

995 Technical Specifications Download

995 Key Features and Benefits Download

995 Product Brochure Download

995 Poster Download

995 Benefits Download

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® 3516E	Cat® 3516E
Emissions	U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent	U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent
Engine Power - ISO 14396	1377 kW	1847 HP
Gross Power - SAE J1995	1394 kW	1870 HP
Net Power - SAE J1349 - Standard Ambient	1297 kW	1739 HP
Net Power - SAE J1349 - High Ambient	1265 kW	1696 HP
Bore	170 mm	6.7 in
Stroke	215 mm	8.5 in
Displacement	78.1 l	4766 in³
Peak Torque - 1,200 rpm - SAE J1995	11591 N·m	8549 lb/ft
Torque Rise	39%	39%
Note (1)	The power ratings apply when tested under the reference conditions for the specified standard.	The power ratings apply when tested under the reference conditions for the specified standard.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.
Note (3)	The gross power advertised is with the fan at maximum speed.	The gross power advertised is with the fan at maximum speed.

Operating Specifications

Operating Weight - Standard	246651 kg	543772 lb
Operating Weight - High Lift	248421 kg	547675 lb
Rated Payload - Standard Lift (Low to Moderate Digging Resistance)	54.4 t	60 ton (US)
Rated Payload - Standard Lift (Moderate to High Digging Resistance)	45.3 t	50 ton (US)
Rated Payload - High Lift (Low to Moderate Digging Resistance)	49.9 t	55 ton (US)
Rated Payload - High Lift (Moderate to High Digging Resistance)	45.3 t	50 ton (US)
Note	*Please contact your local dealer to determine if your application is suitable for this increased rated payload.	*Please contact your local dealer to determine if your application is suitable for this increased rated payload.
Cat Truck Match - Standard	785/789	785/789
Cat Truck Match - High Lift	789/793/794	789/793/794
Bucket Capacity Range	17.2-43.6 m3 (22.3-57 yd3)	17.2-43.6 m3 (22.3-57 yd3)

Transmission

Transmission Type	Cat Planetary Power Shift	Cat Planetary Power Shift
Forward - 1	7.4 km/h	4.6 mile/h
Forward - 2	12.9 km/h	8 mile/h
Forward - 3	21.9 km/h	13.6 mile/h
Reverse - 1	8.1 km/h	5 mile/h
Reverse - 2	14.1 km/h	8.8 mile/h
Reverse - 3	24 km/h	14.9 mile/h
Direct Drive - Forward 1	Lock-up disables	Lock-up disables
Direct Drive - Forward 2	14 km/h	8.7 mile/h
Direct Drive - Forward 3	24.5 km/h	15.2 mile/h
Direct Drive - Reverse 1	Lock-up disables	Lock-up disables
Direct Drive - Reverse 2	15.5 km/h	9.6 mile/h
Direct Drive - Reverse 3	27 km/h	16.8 mile/h
Note	Travel speeds based on 58/85-57 tires.	Travel speeds based on 58/85-57 tires.

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit	Positive Flow Control	Positive Flow Control
Lift/Tilt System - Pump	Variable Displacement Piston	Variable Displacement Piston
Maximum Flow at 1,700 rpm Engine Speed	2047 l/min	541 gal/min
Relief Valve Setting - Lift/Tilt	34500 kPa	5004 psi
Cylinders, Double Acting - Lift, Bore and Stroke	370 × 1713 mm (14.6 × 67.4 in)	370 × 1713 mm (14.6 × 67.4 in)
Cylinders, Double Acting - Tilt, Bore and Stroke	310 × 1086 mm (12.2 × 42.8 in)	310 × 1086 mm (12.2 × 42.8 in)
Pilot System	Open Loop and Pressure Reducing	Open Loop and Pressure Reducing

Hydraulic Cycle Times

Rack Back	4.9 s	4.9 s
Raise	12.6 s	12.6 s
Dump	3.1 s	3.1 s
Lower Float Down	4.2 s	4.2 s

Complete System Fill

Fuel Tank - Standard	3240 l	856 gal (US)
Fuel Tank - With 24 hr Attachment	5350 l	1414 gal (US)
Cooling System	520 l	138 gal (US)
Engine Crankcase	288 l	76 gal (US)
Transmission	416 l	110 gal (US)
Differential - Final Drives - Front	833 l	220 gal (US)
Differential - Final Drives - Rear	757 l	200 gal (US)
Hydraulic Tank - Implement and Hydraulic Fan	1022 l	270 gal (US)
Hydraulic Tank - Steering and Braking	379 l	100 gal (US)
Oil Renewal System (ORS)*	75.7 l	20 gal (US)
Note	*Not available on Tier 4 Final/Stage V machines. Not available in all regions.	*Not available on Tier 4 Final/Stage V machines. Not available in all regions.

Axles

Front	Fixed	Fixed
Rear	Trunnion	Trunnion
Oscillation Angle	9°	9°

Brakes

Brakes	ISO 3450:2011	ISO 3450:2011

Cooling System

Ambient Capability Hydraulically Driven Demand Fan - Standard	43 °C	109.4 °F
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent)	55 °C	131 °F
Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final)	53 °C	127.4 °F

Sound Performance - Standard

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent	74 dB(A)	74 dB(A)
Machine Sound Level (ISO 6395:2008)	119 dB(A)	119 dB(A)
Note	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Suppression

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent	73 dB(A)	73 dB(A)
Machine Sound Level (ISO 6395:2008)	117 dB(A)	117 dB(A)
Note	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.	The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Hydraulic System - Steering

Steering System - Circuit	Pilot, Load Sensing	Pilot, Load Sensing
Steering System - Pump	Piston, Variable Displacement	Piston, Variable Displacement
Total Steering Angle	80 degrees	80 degrees
Steering Cycle Times - Low Idle	7.6 s	7.6 s
Steering Cycle Times - High Idle	4.3 s	4.3 s

Dimensions - Standard Lift - Approximate

B-Pin Height - Maximum Lift	8800 mm	28.8 ft
Clearance at Maximum Lift	6039 mm	19.8 ft
Dump Angle at Maximum Lift	–50.0 degrees	–50.0 degrees
Front Axle Centerline to Bucket Tip	6688 mm	21.9 ft
Ground to Bumper Clearance	1355 mm	4.4 ft
Ground to Center of Axles	1830 mm	6 ft
Ground to Lower Hitch Clearance	898 mm	2.9 ft
Ground to Top of Exhaust Stacks	7067 mm	23.2 ft
Ground to Top of Hood	5682 mm	18.6 ft
Ground to Top of ROPS	7119 mm	23.4 ft
Maximum Overall Height - Bucket Raised	11966 mm	39.3 ft
Maximum Overall Length	19693 mm	64.6 ft
Note	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift	59.5 degrees	59.5 degrees
Rack Back Angle - Carry	47.7 degrees	47.7 degrees
Rack Back Angle - Ground Level	39.7 degrees	39.7 degrees
Reach - Maximum Lift	2946 mm	9.6 ft
Rear Axle - Centerline to Bumper	6205 mm	20.4 ft
Tread Width	4300 mm	14.1 ft
Wheel Base	6800 mm	22.3 ft
Width - Over Tires - With Bulge	5758 mm	18.8 ft

Dimensions - High Lift - Approximate

B-Pin Height - Maximum Lift	9657 mm	31.6 ft
Clearance at Maximum Lift	6896 mm	22.6 ft
Dump Angle at Maximum Lift	–50.0 degrees	–50.0 degrees
Front Axle Centerline to Bucket Tip	7383 mm	24.2 ft
Ground to Bumper Clearance	1355 mm	4.4 ft
Ground to Center of Axles	1830 mm	6 ft
Ground to Lower Hitch Clearance	898 mm	2.9 ft
Ground to Top of Exhaust Stacks	7067 mm	23.2 ft
Ground to Top of Hood	5682 mm	18.6 ft
Ground to Top of ROPS	7119 mm	23.4 ft
Maximum Overall Height - Bucket Raised	12823 mm	42.1 ft
Maximum Overall Length	20388 mm	66.9 ft
Note	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.	Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.
Rack Angle at Maximum Lift	59.4 degrees	59.4 degrees
Rack Back Angle - Carry	53.5 degrees	53.5 degrees
Rack Back Angle - Ground Level	45 degrees	45 degrees
Reach - Maximum Lift	2884 mm	9.4 ft
Rear Axle - Centerline to Bumper	6205 mm	20.4 ft
Tread Width	4300 mm	14.1 ft
Wheel Base	6800 mm	22.3 ft
Width - Over Tires - With Bulge	5760 mm	18.8 ft

Features

SAFETY

Designed for visibility, with a taller windshield that provides a 25% increase in glass surface area for a better view to the bucket, standard rear-view camera, optional Detect 270-degree cameras, standard LED lighting and six-mirror system.
Improved access and egress, with integrated powered access system that can be raised and lowered from cab or ground, 45-degree-angle wide stairs, emergency egress ladder, and full handrails on each side.
Wide walkways with non-skid surfaces, windshield cleaning platform, and integrated lockout/tagout points designed into the service areas.

OPERATOR COMFORT

Increased leg room and increased width by the operator’s knees compared to 994K.
Reduced vibration, low sound levels and automatic temperature controls.
Electro-hydraulic speed-sensing steering with force feedback for shift-long comfort.
Pressurized cab featuring Next Gen Seat with 9-inch travel, active cooling and heating, adjustable lumbar support, seat cushion tilt adjustment, and air-adjustable bolsters on the seat and backrest.

CONFIDENT & EMPOWERED OPERATORS

Low-effort integrated controls that make cycles smoother and faster while reducing fatigue.
Large, easy-to-read, color LED displays that provide access to the Electronic Operation & Maintenance Manual.
Operator coaching, which helps empower operators to exceed targets by measuring and providing feedback to reinforce proper operating techniques.
New Autodig Components that boost efficiency and reduce tire wear by automating critical parts of the digging cycle.
Payload Overload Prevention, which inhibits severe payloads from being raised to full truck height.

PRODUCTIVITY

Increased rated payload and 6% increase in hydraulic force compared to 994K.
Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS), which reduce the potential for wheel slippage without reducing hydraulic efficiency.
Superior loading with Cat Performance Series Buckets, which are engineered to dig into piles quickly and load efficiently — with fill factors up to 115%.
3516E engine, which delivers optimum performance through the use of a 16-cylinder, four-stroke design, plus turbochargers and aftercoolers that deliver on-demand performance.
Excellent stability thanks to optimized weight distribution, helping operators be more confident and productive.

EFFICIENCY-BOOSTING FEATURES

Tire Slip Prevention, which reduces rimpull when there is less downforce on the tire and increases rimpull when there is more downforce on the tire — providing maximum rimpull when you can use it.
Tire Set, which automatically applies a lift command at the optimal time to increase traction on the tire, allowing for an increase in usable rimpull.
Lift Stall Prevention, which automatically applies the impeller clutch when necessary to prevent hydraulic stall when lifting up through the face — keeping the lift motion continuous, without excessive use of the impeller clutch.
Positive Flow Control Hydraulic System, which boosts efficiency with concurrent pump and valve control and increases bucket feel and control to deliver consistent performance.
On-demand throttle feature that allows operators to maintain normal operation with the left pedal and implements while the 995 manages the engine speed.

SERVICEABILITY

Reduced time spent on regular maintenance procedures thanks to features such as ground-level or platform access to filters; grouped service points; swing-out doors on both sides of the engine compartment; improved access for engine and pump drive service as well as to cooling package; and automatic lubrication system that greases the linkage, hitch, steering and axle trunnion bearings.
Service station that provides easy access to functions such as coolant and oil as well as level indicators; Cat battery charging connector; and indicator lights for full fuel tanks.
Redesigned pump bay, which offers improved access to transmission components, discharge ports located on the side of pumps, and lines routed directly to screen.
Reduced number of steering hoses and tubes; removal of brackets and neutralizers, eliminating the need for neutralizer adjustment; and addition of pilot accumulator, EH valve and pilot filter.
Improvements in filters and diagnostics across the machine, with groundline service that includes a steering pilot filter, transmission filters and steering pump discharge screen; pump bay that includes a brake pump filter, implement pilot filter and implement discharge screens; and diagnostic ports that are accessible from the front walk deck and pump bay.

BUCKETS AND GET

Approved for higher payloads in low to moderate digging resistance applications; increased payload intended for rehandled material in the ROM pad area or stockpile material, such as coal.
Variety of bucket options, including rock buckets for loading limestone or other unprocessed rock; heavy-duty rock buckets for applications like face loading tightly compacted pit materials or handling materials of moderate abrasion and high impact; coal buckets for light density non-abrasive materials; and iron ore buckets for extremely aggressive applications.
Performance Series Buckets feature extended floor, dual radius and angled side bars for fast loading; larger bottom box section for increased strength, high fill factors and good material retention; and taller side plate with a level top surface improves operator visibility to the bucket from the cab.
Cat Ground Engaging Tools (GET) that feature CapSure™ Retention Technology, which simplifies component replacement with hammerless retention for fast, easy and safe installation.

DURABILITY

Highly durable structures, with full box-section rear frame that resists torsional shock and twisting forces to maximize life of mounted components.
Frames that utilize castings in key areas to maximize frame durability and optimize efficiency.
Rear axle mounting to frame that is optimized to better disperse loads for increased structural integrity.
Loads efficiently transmitted by the field-proven solid steel lift arms, with enhanced strength in key pin areas through the use of one-piece castings.
Frame, powertrain, engine and components that all built to be rebuilt — using new, remanufactured or rebuilt parts and components — to deliver multiple lives of like-new performance at a fraction-of-new price.

TECHNOLOGY

Cat MineStar™ Terrain for loading, which provides real-time feedback on payloads and design plan progress to increases productivity and accuracy, reduce rework, enhance ore control and improve shift-to-shift operator performance.
MineStar Object Detection, which combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
MineStar Health, which delivers critical event-based machine condition and operating data and includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.
Upgraded touchscreen information display that provides intuitive operation and easy navigation and keeps operators informed about machine systems to decrease service time.
Cat ProductLink™, which provides remote access to information on machine systems and diagnostic codes; allows you to track utilization, fuel usage and payload summaries; and gives access to machine location, service meter hours and reporting status.

SUSTAINABILITY

Designed to be more efficient and use less fuel, which reduces engine emissions and carbon footprint; Tier 4 Final engine reduces NOx and particulate matter.
Engine Idle Shutdown, which saves fuel by making it possible to avoid unnecessary idling.
Better control of fluids through use of Cat anti-drain filter housings and component ecology drains.
Retrofits and upgrades for older machines — to incorporate efficiency improvements and emission reductions, and to keep them in production longer to conserve energy and minimize the need for raw materials
Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.

POWER TRAIN

Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI™-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled
Engine prelube
Fuel priming pump (electric)
Ground-level engine shutoff
Engine air intake (above hood) precleaner
Aluminum Modular Radiator (AMR)
Automatic, ether starting aid
Electronic throttle lock
Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system
Rimpull control system
Planetary powershift, 3F/3R electronic control transmission
Delayed engine shutdown
Oil-cooled, multi-disc, service brakes
Electro-hydraulic parking brake

LINKAGE

Standard lift

ELECTRICAL

Alternator
Batteries, low maintenance
10/15 amp, 24V to 12V converter
Disconnect switch to bumper
LED warning lights (pattern selectable)
LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)
Emergency jump-start receptacle
Starter and transmission lockout in bumper
24V starting and charging system
Electric starters

OPERATOR ENVIRONMENT

Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
Bonded glass, tinted
Trainer seat
Dual-lever lift and tilt function controls
Implement kickouts
Air conditioner
Cab pressure indicator
Graphical touchscreen information display conveys real-time operating information
Heater, defroster, auto temperature controls
Powered cab precleaner
Operator presence status
Starting/charging system malfunction
Electronic OMM
Operator controls help
Two USB charging ports
CB mounting, 12V/24V power and antenna
14-pin service port
12V power
Selectable application profiles
Entertainment radio mute
Push-To-Start (PTS)
Warning/indicator instrumentation
Keypad control with indicator lights
Dome light in cab
Lunchbox and beverage holders
Electro-hydraulic force feedback steering
Vital Information Management System (VIMS™) with information display: external data port, cycle timer
Coat hook
Gauge instrumentation with configurable widgets: – Status indicators – Wheel rev counter – Simplified payload – Tire pressure monitoring system (optional) – Bucket angle – Coolant temperature – Hydraulic oil temperature – Fuel level – Power train oil temperature – Engine speed (tachometer) – Transmission gear – Ground speed – Engine hour meter

SAFETY

Ground-access ladders
Rear-vision camera
Front frame access with steps
Front walkway around cab
Pump bay access ladders with T-handle and platform
Tie-offs on ROPS and radiator guards
Steering frame lock
Stairways on both sides of the machine
LED stairway and access lights
Toe kicks
Electric (field and shop) horns
Retractable seatbelt, 76 mm (3 in) wide
Trainer seat with lap belt, 76 mm (3 in) wide
Back-up alarm
Secondary steering

MACHINE CONTROL AND GUIDANCE

MineStar™ Health ready
MineStar GUIDE ready
MineStar Edge ready

FUEL TANK

12 hour (3240 L/856 gal)

COOLING

Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

GROUND-LEVEL SERVICE CENTER

Service center light
Implement and cooling fan oil level indicator
Steering and brake oil level indicator
Window washer solvent level indicator
Transmission oil level indicator
DEF level indicator (if equipped)
Fuel level indicator
Engine oil level indicator
Engine coolant level indicator
Automatic lubrication system grease tank level indicator
DEF purge indicator lamp
Transmission lockout and LED
Starter lockout and LED
Heavy-duty battery disconnect switch
Stairway light switch
Service lighting switch (if equipped)
Fuel shutoff engine shutdown switch
Engine oil fast-fill port
Transmission oil fast-fill port
Steering and brake hydraulic oil fast-fill port
Steering and brake hydraulic oil drain port
Oil renewal system fast-fill port (if equipped)
Engine coolant fast-fill port
DEF fill port (HRC only)
Implement and cooling fan hydraulic oil fast-fill port
Implement and cooling hydraulic oil drain port
Automatic lubrication system grease tank fill port
24V jump-start receptacle
240V jacket water and engine oil heater plug (if equipped)
12V power port
VIMS key switch
14-pin machine data port

SERVICE

EH steering eliminates need for neutralizer adjustment
In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
Pump efficiency monitoring
Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings
Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
Rock guards on linkage grease lines
Cat O-ring face seal couplings
Lockable service access doors
Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
High-speed engine oil change system
Ground-level fast-fill fuel system
Transmission guard
Drawbar hitch with pin
Cat XT™ hoses
Left-side service center
Oil sampling valves
Automatic Autolube filling shutoff valve
Telematics and Cat Electronic Technician service port in bumper
Air filter remaining useful life sensor
Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
Rear access to cab and service platform
Load-sensing steering
Supplemental steering system
Vandalism protection caplocks
Cooling cleanout service package
VIMS download and Cat Electronic Technician service port in bumper
Service lights (engine bay, service center)
EH steering eliminates need for neutralizer adjustment

EFFICIENCY

On demand throttle, HP Plus, and Enhanced ECO Modes
Variable displacement implement pumps
Variable displacement load sensing steering
Variable displacement cooling fan pump
Torque converter lock-up clutch
