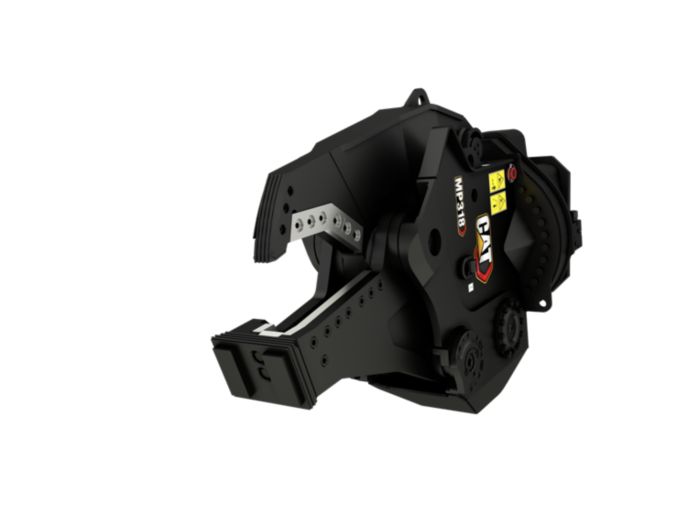

MP318 Shear Jaw
Multi-Processor with Shear Jaw makes fast work of structural steel.
Multi-Processors with Shear Jaws are ideal for primary demolition.
360º rotation allows you to attack your project from any angle.
Multi-Processors with Shear Jaws are ideal for secondary demolition and scrap metal processing.
336E with MP324 and Shear Jaw

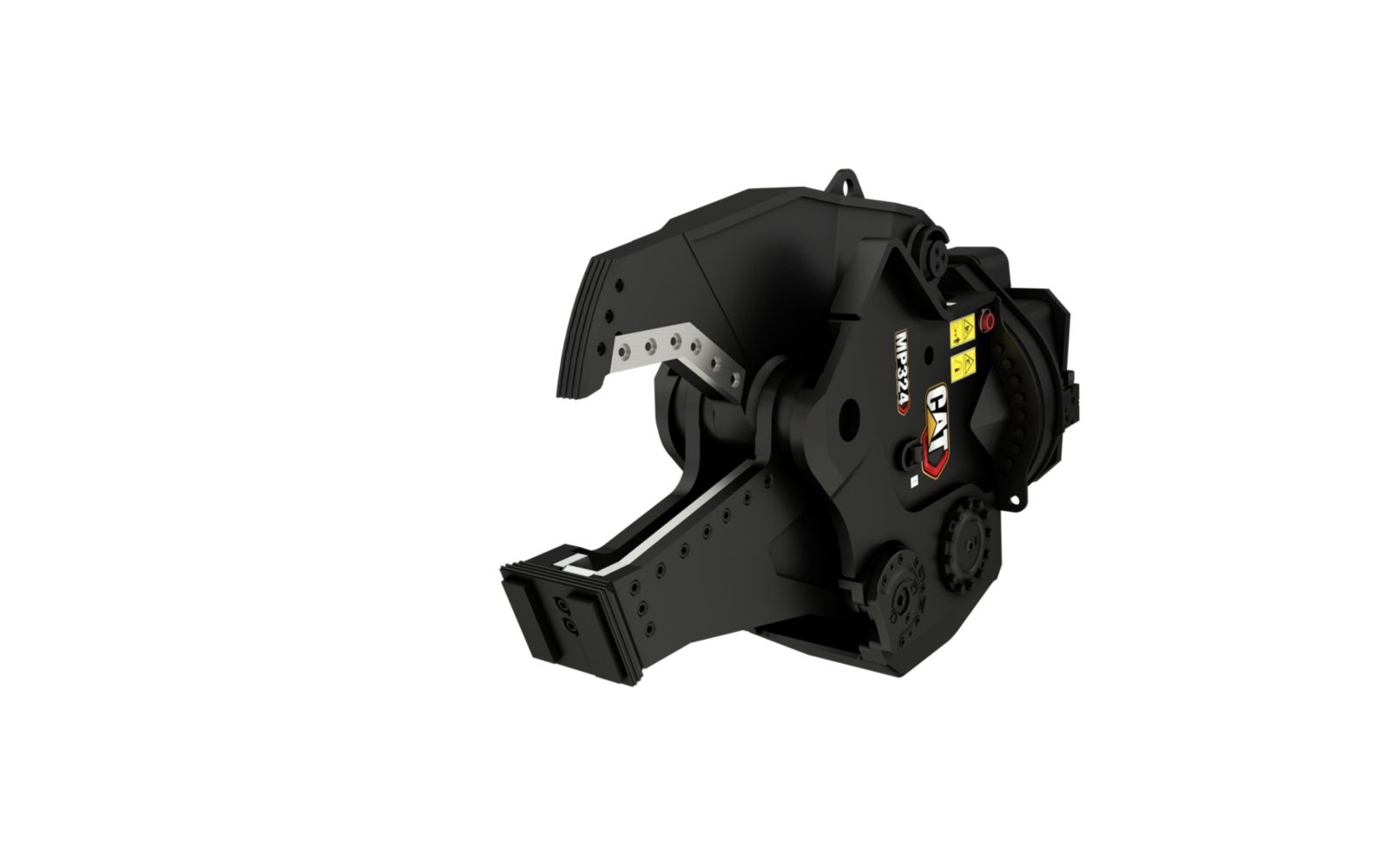

MP324 with available jaw sets.
Videos
MP318 Shear Jaw
MP318 Shear Jaw
Multi-Processor with Shear Jaws
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
1.6 s/1.6 s
Cycle Time - Close
1.0 s/1.0 s
Cutting Force - Blade Throat
450.9 Sh Ton/4012 kN
Cutting Force - Blade Center
205.4 Sh Ton/1827 kN
Key Features
Cycle Times are 50 Percent Faster
Up to 19 Percent More Force
Change Jaw in 15 Minutes
Durable and Maintainable
Specifications
Metric
|
Imperial
Performance
Cycle Time - Open
1.6 s
1.6 s
Cycle Time - Close
1.0 s
1.0 s
Cutting Force - Blade Throat
450.9 Sh Ton
4012 kN
Cutting Force - Blade Center
205.4 Sh Ton
1827 kN
Cutting Force - Blade Tip
113.6 Sh Ton
1011 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure
4786 psi
33000 kPa
Jaw Circuit - Max. Oil Flow
59.4 gpm
225 L/min
Rotation Circuit - Max. Oil Pressure
2031 psi
14000 kPa
Rotation Circuit - Max. Oil Flow
10.6 gpm
40.0 L/min
Dimensions - Jaw
Jaw Depth
19.3 in
490 mm
Cutter Length
15.0 in
382 mm
Jaw Opening - Maximum
12.7 in
322 mm
Jaw Width - Fixed
12.3 in
312 mm
Jaw Width - Moveable
3.7 in
93 mm
Dimensions - Housing + Jaw
Width
31.2 in
793 mm
Length
74.7 in
1897 mm
Height
51.1 in
1298 mm
Weight
Weight - Housing, Jaw and Bracket
4131.5 lb
1874 kg
Weight - Jaw Only
1461.7 lb
663 kg
Recommended Carrier Weight
Excavator Minimum
18 tons
Excavator Maximum
25 tons
