Photos

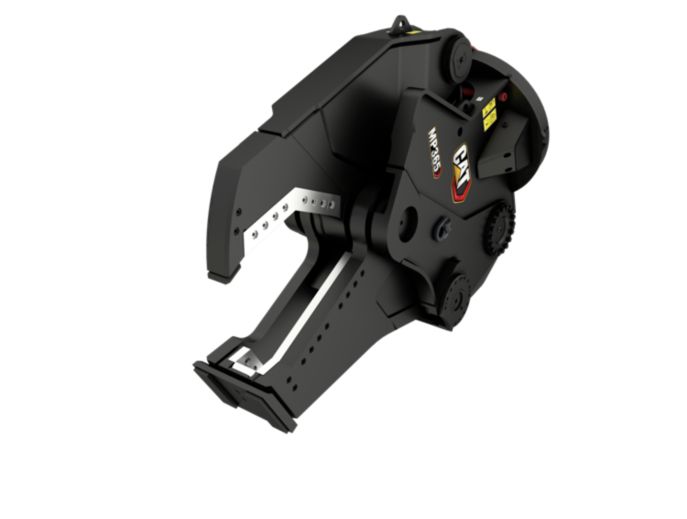

MP365 Shear Jaw
Multi-Processor with Shear Jaw makes fast work of structural steel.
Multi-Processors with Shear Jaws are ideal for primary demolition.
360º rotation allows you to attack your project from any angle.
Multi-Processors with Shear Jaws are ideal for secondary demolition and scrap metal processing.
336E with MP324 and Shear Jaw
MP324 with available jaw sets.
Videos
MP365 Shear Jaw
MP365 Shear Jaw
Multi-Processor with Shear Jaws
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
2.1 s/2.1 s
Cycle Time - Close
1.6 s/1.6 s
Cutting Force - Blade Throat
1270 Sh Ton/11295 kN
Cutting Force - Blade Center
490 Sh Ton/4357 kN
Key Features
Cycle Times are 50 Percent Faster
Up to 19 Percent More Force
Change Jaws in 15 Minutes
Durable and Maintainable
Specifications
Metric
|
Imperial
Performance
Cycle Time - Open
2.1 s
2.1 s
Cycle Time - Close
1.6 s
1.6 s
Cutting Force - Blade Throat
1270 Sh Ton
11295 kN
Cutting Force - Blade Center
490 Sh Ton
4357 kN
Cutting Force - Blade Tip
263 Sh Ton
2342 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure
5076 psi
350 bar
Jaw Circuit - Max. Oil Flow
119 gpm
450 L/min
Rotation Circuit - Max. Oil Pressure
2321 psi
160 bar
Rotation Circuit - Max. Oil Flow
13 gpm
50 L/min
Dimensions - Jaw
Jaw Depth
33.9 in
860 mm
Cutter Length
28.1 in
714 mm
Jaw Opening - Maximum
21.7 in
552 mm
Jaw Width - Fixed
19.3 in
490 mm
Jaw Width - Moveable
5.7 in
146 mm
Dimensions - Housing + Jaw
Width
102.2 in
2597 mm
Length
84.0 in
2133 mm
Height
43.3 in
1100 mm
Weight
Weight - Housing, Jaw and Bracket
12897 lb
5850 kg
Weight - Jaw Only
6102 lb
2768 kg
Recommended Carrier Weight
Excavator Minimum
65 tons
Excavator Maximum
90 tons
