Photos

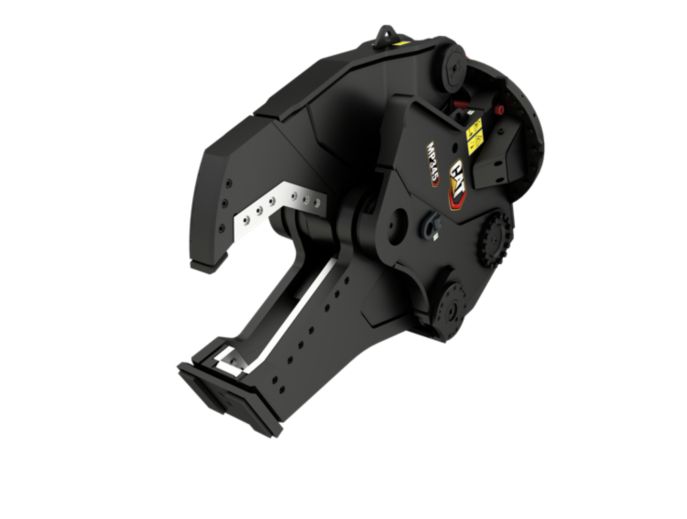

MP345 Shear Jaw
Multi-Processor with Shear Jaw makes fast work of structural steel.
Multi-Processors with Shear Jaws are ideal for primary demolition.
360� rotation allows you to attack your project from any angle.
Multi-Processors with Shear Jaws are ideal for secondary demolition and scrap metal processing.
336E with MP324 and Shear Jaw
MP324 with available jaw sets.
Videos
MP345 Shear Jaw
MP345 Shear Jaw
Multi-Processor with Shear Jaws
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
1.9 s/1.9 s
Cycle Time - Close
1.4 s/1.4 s
Cutting Force - Blade Throat
951.3 Sh Ton/8463 kN
Cutting Force - Blade Center
408.8 Sh Ton/3637 kN
Key Features
Cycle Times are 50 Percent Faster
Up to 19 Percent More Force
Change Jaws in 15 Minutes
Durable and Maintainable
Specifications
Metric
|
Imperial
Performance
Cycle Time - Open
1.9 s
1.9 s
Cycle Time - Close
1.4 s
1.4 s
Cutting Force - Blade Throat
951.3 Sh Ton
8463 kN
Cutting Force - Blade Center
408.8 Sh Ton
3637 kN
Cutting Force - Blade Tip
218.6 Sh Ton
1945 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure
4786 psi
33000 kPa
Jaw Circuit - Max. Oil Flow
95.1 gpm
360 L/min
Rotation Circuit - Max. Oil Pressure
2321 psi
16000 kPa
Rotation Circuit - Max. Oil Flow
13.2 gpm
50 L/min
Dimensions - Jaw
Jaw Depth
29.3 in
744 mm
Cutter Length
22.8 in
579 mm
Jaw Opening - Maximum
19.7 in
500 mm
Jaw Width - Fixed
17.1 in
434 mm
Jaw Width - Moveable
5.7 in
146 mm
Dimensions - Housing + Jaw
Width
39.6 in
1005 mm
Length
90.4 in
2296 mm
Height
73.4 in
1865 mm
Weight
Weight - Housing, Jaw and Bracket
9524.0 lb
4320 kg
Weight - Jaw Only
4354.1 lb
1975 kg
Recommended Carrier Weight
Excavator Minimum
45 tons
Excavator Maximum
65 tons
