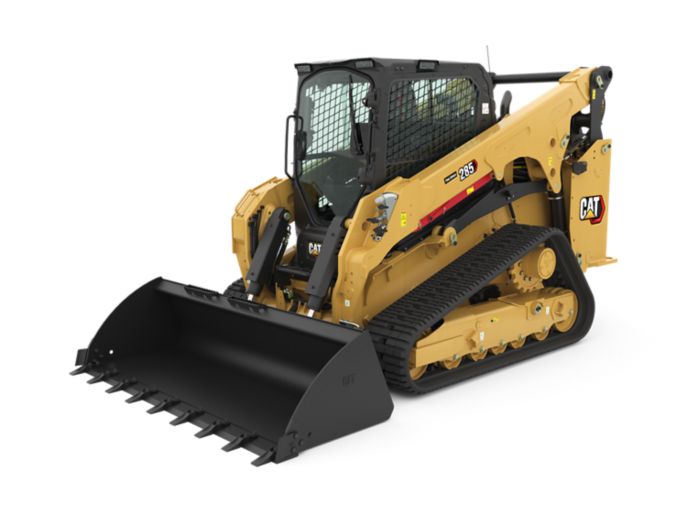

285

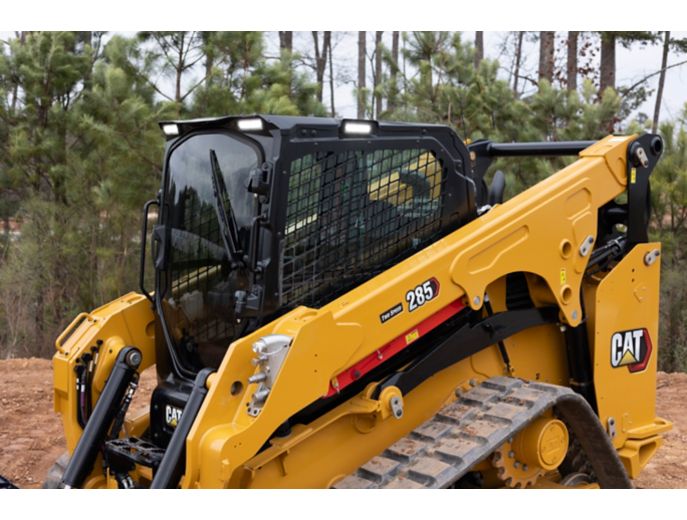

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 285 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.

The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.

Three levels of auxiliary hydraulic performance are available – Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications

The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.

The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.

The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

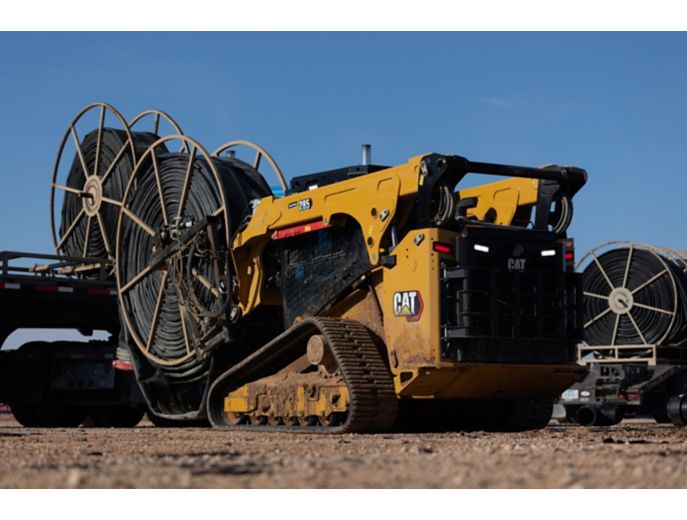

Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.

STANDARD EQUIPMENT

1. Quick Coupler: Manual or Hydraulic
2. High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
3. Steel Imbed Rubber Track – 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
4. Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers

PERFORMANCE PACKAGES

1. Performance Package HP1: Standard Flow Hydraulics
2. Performance Package HP3: High Flow XPS Hydraulics

COMFORT PACKAGES

1. Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)
2. Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

TECHNOLOGY PACKAGES

1. T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.
2. T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
3. T5 – T4 + 2 additional side view cameras.

RADIO

1. Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
2. Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
3. Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.

PRODUCT LINK™

1. Product Link™ Basic series PL243
2. Product Link Elite series PLE643

COOLING FAN

1. On-demand, variable speed hydraulic cooling fan
2. On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation

GUARDING AND SEALING PACKAGES

1. HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)
2. HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
3. HD2 – most comprehensive guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, DPF wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner.)

ELECTRICAL

1. Work Tool Electrical Harness
2. Heavy duty battery
3. Battery disconnect with lockout feature
4. 12-volt Electrical System
5. 85 Ampere Alternator
6. LED Work Lights
7. Auto Reverse Lights
8. Switch Backlighting
9. Interior LED Dome Light
10. Backup Alarm
11. Electrical Outlet, Beacon
12. Exterior Courtesy Lighting
13. Automatic Work light notification flash when parking brake is released

OPERATOR ENVIRONMENT

1. Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
2. Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
3. Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
4. Fold In Ergonomic Contoured Armrest
5. Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking
6. Brake Engages
7. ROPS Cab, Tilt Up
8. FOPS, Level I
9. Top and Rear Windows
10. Floor Mat
11. Headliner
12. Interior Rearview Mirror
13. Horn
14. Hand (Dial) Throttle, Electronic
15. Seat Mounted Joystick Controls
16. Cell Phone Storage Pocket
17. Cup Holder
18. 12-volt power port
19. Foot Throttle

HYDRAULICS

1. Selectable control pattern – ISO or H
2. Electro/hydraulic implement control
3. Electro/hydraulic hydrostatic transmission control
4. Speed sensor guarding
5. Heavy duty flat faced quick disconnects with integrated pressure release lever
6. Hydraulic oil level sight gauge

POWER TRAIN

1. Cat C3.6TA turbocharged, after-cooled diesel engine, meeting Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA: • Glow plugs starting aid • Liquid cooled, direct injection
2. Extended life antifreeze (–37° C, –34° F)
3. Air cleaner, dual element, radial seal
4. Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil
5. Ecology drain – coolant
6. Radiator coolant level sight gauge
7. Radiator expansion bottle
8. Filter, hydraulic supply, cartridge type
9. Filter, hydraulic return, cartridge type
10. Filter, canister type, engine oil
11. Filter, canister type, fuel and water separator
12. Radiator/hydraulic oil
13. Cooler (side-by-side)
14. Spring applied, hydraulically released, parking brakes
15. Hydrostatic transmission
16. Lockable fuel cap
17. Hydraulic demand cooling fan
18. Auto engine idle

UNDERCARRIAGE

1. Torsion Suspension (4 independent torsion axles)
2. Two speed travel
3. Integrated tie downs on track frame (4)

FRAME

1. Machine tie down points (9)
2. Removable panels for machine frame cleanout
3. Support, lift arm
4. Steel rear and front bumpers, welded
5. Fuel fill, machine right hand side

OTHER

1. Auxiliary Hydraulics, Continuous Flow
2. Telematics, Product Link, Cellular
3. Steel engine door with replaceable louvers
4. Engine door – lockable
5. Work tool attachment coupler
6. Cat ToughGuardTM hose

OPTIONAL EQUIPMENT

1. External Counterweights
2. Beacon, LED
3. Engine Block Heater – 120V
4. Oil, Hydraulic, Cold Operation
5. 4-point machine lifting eyes
6. Paint, Custom
7. Speed Sensitive Ride Control
8. Bluetooth Key Security
9. Attachment Hose Guide
10. Corrosion Inhibitor Coating
