Skid Steer and Compact Track Loaders

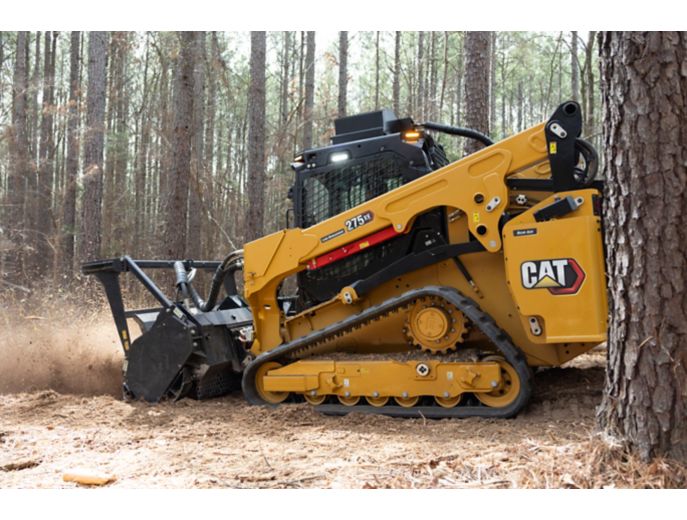

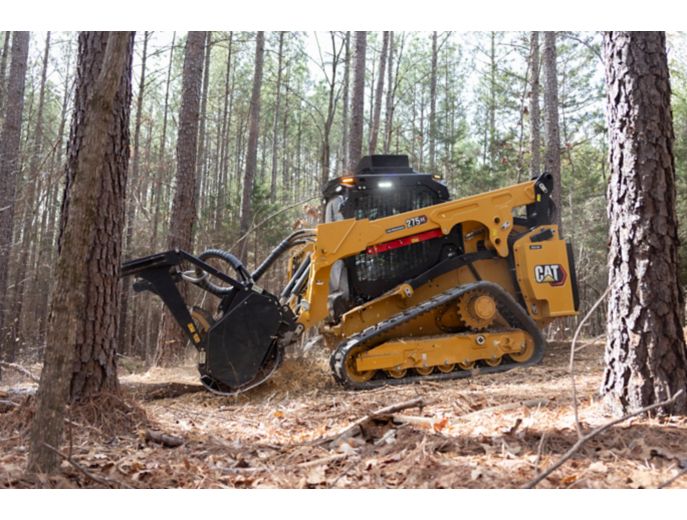

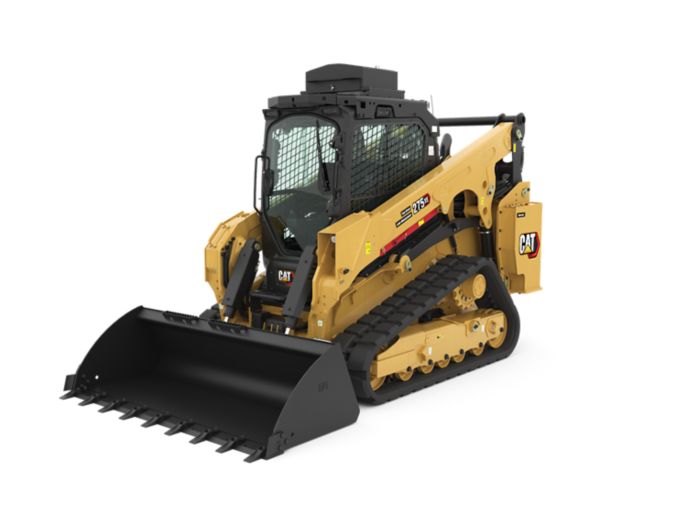

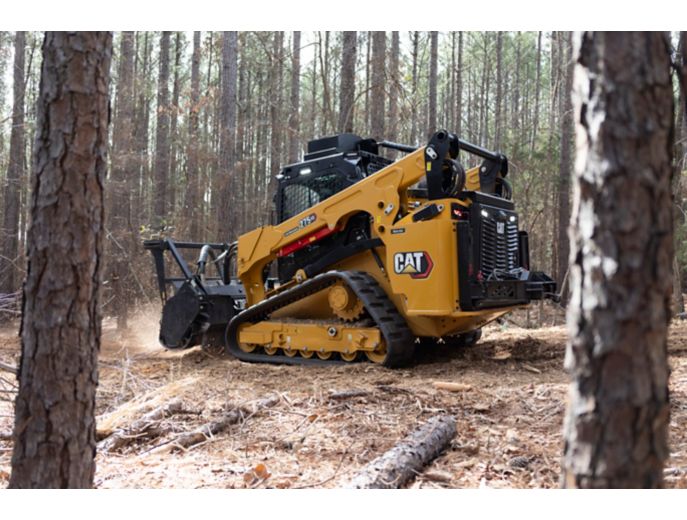

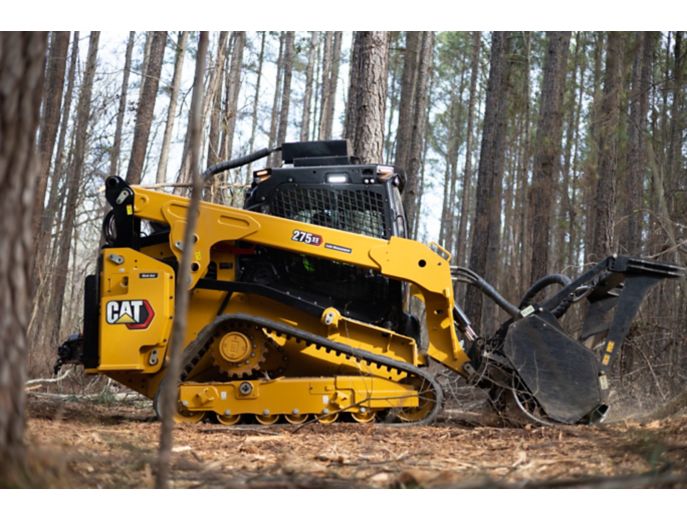

275 XE

The Cat® 275 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995	91 kW	122 hp
Bore	120 mm	4.7 in
Displacement	3.6 l	221 in²
Net Power - ISO 9249	89 kW	120 hp
Net Power - SAE 1349	111 kW	82 hp
Peak Torque at 1,360 rpm SAE J1995	501 N·m	370 lb/ft
Peak Torque - 1,500 rpm - SAE J1995	551 N·m	406 lb/ft
Engine Model	Cat® C3.6 TA (turbocharged after-cooled)	Cat® C3.6 TA (turbocharged after-cooled)
Stroke	98 mm	3.9 in

Hydraulic System

Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure	31000 kPa	4496 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow	129 l/min	34 gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*	150 l/min	40 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure	24130 kPa	3500 psi
Hydraulic Flow - XE - Hydraulic Power (calculated)	77.5 kW	103.9 hp
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	60.2 kW	80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	86 l/min	23 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	2800 kPa	4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	34.6 kW	46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow	86 l/min	23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	24130 kPa	3500 psi

Weights*

Operating Weight	5763 kg	12705 lb
Counterweight Adds to Operating Weight	194 kg	428 lb
Counterweight Adds to Operating Weight - ROC (35%)	126 kg	279 lb
Counterweight Adds to Operating Weight - Tip Load	361 kg	796 lb
Enclosed Cab Adds to Operating Weight	99 kg	218 lb
Enclosed Cab Adds to Operating Weight - ROC (35%)	48 kg	105 lb
Enclosed Cab Adds to Operating Weight - Tip Load	136 kg	214 lb
Note	* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).	* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).

Service Refill Capacities

Cooling System	17.5 l	4.6 gal (US)
Engine Crankcase	9 l	2.4 gal (US)
Fuel Tank	136.1 l	36.9 gal (US)
Hydraulic System	41 l	10.8 gal (US)
Hydraulic Tank	26 l	6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank	11 l	2.9 gal (US)

Operating Specifications

Rated Operating Capacities - 35% Tipping Load	1280 kg	4205 lb
Breakout Force - Lift Cylinder	2913 kg	6422 lb
Breakout Force - Tilt Cylinder	4519 kg	9963 lb
Ground Contact Area - With 450 mm/17.7 in Track	1.81 m²	2808 in²
Ground Pressure - With 450 mm/17.7 in Track	31.3 kPa	4.5 psi
Rated Operating Capacities - 50% Tipping Load	1829 kg	4033 lb
Rated Operating Capacity with Optional Counterweight	1359 kg	2996 lb
Tipping Load	5450 kg	12015 lb

Dimensions

Bucket Pin Height - Carry Position	205 mm	8.1 in
Bucket Pin Height - Maximum Lift	3415 mm	134.4 in
Bucket Pin Reach - Maximum Lift	415 mm	16.3 in
Clearance at Maximum Lift and Dump	2694 mm	106.1 in
Departure Angle	29.5°	29.5°
Ground Clearance	280 mm	11 in
Height - Top of Cab	2230 mm	87.8 in
Length - Track on Ground	1836 mm	72.3 in
Length - With Bucket on Ground	3880 mm	152.8 in
Length - Without Bucket	3250 mm	128 in
Maximum Overall Height	4193 mm	165.1 in
Maximum Reach - With Arms Parallel to Ground	1171 mm	46.1 in
Overall Length - Track	2341 mm	92.2 in
Rack Back Angle - Maximum Height	86.7°	86.7°
Reach at Maximum Lift/Dump	814 mm	32 in
Roll Back Angle	27.3°	27.3°
Turning Radius from Center - Bucket (racked)	2320 mm	91.3 in
Turning Radius from Center - Coupler	1531 mm	60.3 in
Turning Radius from Center - Machine Rear	1931 mm	76 in
Vehicle Width (450 mm/17.7 in tracks)	1976 mm	77.8 in
Maximum Dump Angle	44.7°	44.7°

Cab

FOPS	ISO 3449:2005 Level I	ISO 3449:2005 Level I
ROPS	ISO 3471:2008	ISO 3471:2008
FOPS Level II	ISO 3449:2005 Level II (Optional)	ISO 3449:2005 Level II (Optional)

Power Train

Travel Speed - Forward or Reverse - One Speed	8.4 km/h	5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed	12.5 km/h	7.8 mile/h

Dimensions*

Vehicle Width (400 mm/15.7 in tracks)	1926 mm	75.8 in

Features

Redesigned Operator Station

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 275 XE provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

Available ventilated and heated high-back air ride seat

Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.

High-performance power train

The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.

XE Hydraulic system

The XE hydraulic system provides the highest flow and highest pressure, delivering great hydraulic horsepower to efficiently run even the most power-hungry attachments.

Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine

The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.

Standard equalizer bar (E-bar) undercarriage and standard two-speed travel

The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.

Advanced Touchscreen Monitor

The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

Advanced Joysticks

Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

Ground-level access

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Cat Attachments

Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.

Standard Equipment

STANDARD EQUIPMENT

Quick Coupler: Manual or Hydraulic
High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
Steel Imbed Rubber Track – 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers

PERFORMANCE PACKAGES

Performance Package HP1: Standard Flow Hydraulics
Performance Package HP3: High Flow XPS Hydraulics

COMFORT PACKAGES

Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)
Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

TECHNOLOGY PACKAGES

T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.
T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
T5 – T4 + 2 additional side view cameras.

RADIO

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.

PRODUCT LINK™

Product Link™ Basic series PL243
Product Link Elite series PLE643

COOLING FAN

On-demand, variable speed hydraulic cooling fan
On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation

GUARDING AND SEALING PACKAGES

HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)
HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
HD2 – most comprehensive guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, DPF wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner.)

ELECTRICAL

Work Tool Electrical Harness
Heavy duty battery
Battery disconnect with lockout feature
12-volt Electrical System
85 Ampere Alternator
LED Work Lights
Auto Reverse Lights
Switch Backlighting
Interior LED Dome Light
Backup Alarm
Electrical Outlet, Beacon
Exterior Courtesy Lighting
Automatic Work light notification flash when parking brake is released

OPERATOR ENVIRONMENT

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking
Brake Engages
ROPS Cab, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Headliner
Interior Rearview Mirror
Horn
Hand (Dial) Throttle, Electronic
Seat Mounted Joystick Controls
Cell Phone Storage Pocket
Cup Holder
12-volt power port
Foot Throttle

HYDRAULICS

Selectable control pattern – ISO or H
Electro/hydraulic implement control
Electro/hydraulic hydrostatic transmission control
Speed sensor guarding
Heavy duty flat faced quick disconnects with integrated pressure release lever
Hydraulic oil level sight gauge

POWER TRAIN

Cat C3.6TA turbocharged, after-cooled diesel engine, meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection
Extended life antifreeze (–37° C, –34° F)
Air cleaner, dual element, radial seal
Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil
Ecology drain – coolant
Radiator coolant level sight gauge
Radiator expansion bottle
Filter, hydraulic supply, cartridge type
Filter, hydraulic return, cartridge type
Filter, canister type, engine oil
Filter, canister type, fuel and water separator
Radiator/hydraulic oil
Cooler (side-by-side)
Spring applied, hydraulically released, parking brakes
Hydrostatic transmission
Lockable fuel cap
Hydraulic demand cooling fan
Auto engine idle

UNDERCARRIAGE

Torsion Suspension (4 independent torsion axles)
Two speed travel
Integrated tie downs on track frame (4)

FRAME

Machine tie down points (9)
Removable panels for machine frame cleanout
Support, lift arm
Steel rear and front bumpers, welded
Fuel fill, machine right hand side

OTHER

Auxiliary Hydraulics, Continuous Flow
Telematics, Product Link, Cellular
Steel engine door with replaceable louvers
Engine door – lockable
Work tool attachment coupler
Cat ToughGuardTM hose

Optional Equipment

OPTIONAL EQUIPMENT

External Counterweights
Beacon, LED
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
4-point machine lifting eyes
Paint, Custom
Speed Sensitive Ride Control
Bluetooth Key Security
Attachment Hose Guide
Corrosion Inhibitor Coating
