994K

Large Wheel Loaders

Cat Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton.
Introduced in 1990, the 994 has become the top customer choice in its size class for over 25 years. Focused on helping our customers succeed, we have continued to build upon each new series' legacy of reliability, safety, operator comfort, serviceability and sustainability.
All images included in this Specalog show a U.S. EPA Tier 1/EU Stage I Equivalent configuration. It's important to note that the Tier 4 Final/EU Stage V Equivalent will have some physical differences, including the presence of a DEF tank.

Net Power

1739 hp/1297 kW

Engine Model

Cat® 3516E

Bore

6.7 in/170 mm

Stroke

8.5 in/215 mm

Get a quote Search used Compare

Downloads Specs

Key Features

Structures

Power Train

Hydraulics

Operator Station

Technology Solutions

Cat MineStar System

Safety

Serviceability

Customer Support

Sustainability

Buckets and Ground Engaging Tools

System Match Efficiency

Specifications

Metric | Imperial

Engine

Net Power

1739 hp 1297 kW

Engine Model

Cat® 3516E

Bore

6.7 in 170 mm

Stroke

8.5 in 215 mm

Displacement

4766 in³ 78.1 l

Rated Speed

1,600 rpm

Emissions

U.S. EPA Tier 4 Final/EU Stage IV* or U.S. EPA Tier 1/EU Stage I Equivalent

Gross Power - SAE J1995:2014

1870 hp 1394 kW

Peak Torque - 1,200 rpm - SAE J1995

8549 lb/ft 11591 N·m

Gross Power - ISO 14396

1847 hp 1377 kW

Torque Rise

39%

Net Power - SAE J1349 - Standard Ambient

1739 hp 1297 kW

Note (4)

*Tier 4 Final/EU Stage IV configuration is ready to meet Stage V emission requirements once in effect.

Net Power - SAE J1349 - High Ambient

1696 hp 1265 kW

Note (1)

The power ratings apply when tested under the reference conditions for the specified standard.

Note (2)

The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and muffler.

Note (3)

The gross power advertised is with the fan at maximum speed.

Operating Specifications

Operating Weight

534852 lb 242605 kg

Bucket Capacity Range

17.2 - 43.6 m³ (22.3 - 57 yd³)

Rated Payload - Standard Lift (Moderate to High Digging Resistance)

45 ton (US) 40.8 t

Rated Payload - Standard Lift (Low to Moderate Digging Resistance)

60 ton (US) 54.4 t

Rated Payload - High Lift (Moderate to High Digging Resistance)

42 ton (US) 38.1 t

Rated Payload - High Lift (Low to Moderate Digging Resistance)

55 ton (US) 49.9 t

Bucket Capacity Range - Iron Ore

17.2 - 21.4 m³ (22.3 - 28 yd³)

Bucket Capacity Range - Rock

19.1 - 29.1 m³ (25 - 38 yd³)

Bucket Capacity Range - Coal

32.1 - 43.6 m³ (42 - 57 yd³)

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Transmission

Transmission Type

Cat Planetary Power Shift

Forward - 1

4.6 mile/h 7.4 km/h

Forward - 2

8 mile/h 12.9 km/h

Forward - 3

13.6 mile/h 21.9 km/h

Reverse - 1

5 mile/h 8.1 km/h

Reverse - 2

8.8 mile/h 14.1 km/h

Reverse - 3

14.9 mile/h 24 km/h

Direct Drive - Forward 3

15.2 mile/h 24.5 km/h

Direct Drive - Reverse 3

16.8 mile/h 27 km/h

Direct Drive - Reverse 1

Lock-up disables

Direct Drive - Forward 2

8.7 mile/h 14 km/h

Direct Drive - Reverse 2

9.6 mile/h 15.5 km/h

Direct Drive - Forward 1

Lock-up disables

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Hydraulic System - Lift/Tilt

Relief Valve Setting - Lift/Tilt

4587 psi 32500 kPa

Maximum Flow at 1,700 rpm Engine Speed

541 gpm 2047 L/min

Cylinders, Double Acting - Tilt, Bore and Stroke

310 × 1086 mm (12.2 × 42.8 in)

Cylinders, Double Acting - Lift, Bore and Stroke

370 × 1713 mm (14.6 × 67.4 in)

Pilot System

Open Loop and Pressure Reducing

Lift/Tilt System - Pump

Variable Displacement Piston

Lift/Tilt System - Circuit

Positive Flow Control

Hydraulic Cycle Times

Raise

12.6 s 12.6 s

Dump

3.1 s 3.1 s

Rack Back

4.9 s 4.9 s

Lower Float Down

4.2 s 4.2 s

Total Hydraulic Cycle Time - Empty Bucket

23.5 s 23.5 s

Complete System Fill

Hydraulic Tank - Steering and Braking

100 gal (US) 379 l

Transmission

110 gal (US) 416 l

Fuel Tank - Standard

910 gal (US) 3445 l

Hydraulic Tank - Implement and Hydraulic Fan

270 gal (US) 1022 l

Engine Crankcase

76 gal (US) 288 l

Cooling System

138 gal (US) 520 l

Fuel Tank - With 24 hr Attachment

1500 gal (US) 5678 l

Differential - Final Drives - Rear

200 gal (US) 757 l

Differential - Final Drives - Front

220 gal (US) 833 l

Oil Renewal System (ORS)*

20 gal (US) 75.7 l

Diesel Exhaust Fluid (DEF) (Tier 4 Final/Stage IV)

137 gal (US) 519 l

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Buckets

Bucket Capacities

19.1-43.6 m3 (25-57 yd3)

Axles

Front

Fixed

Rear

Trunnion

Oscillation Angle

9°

Brakes

ISO 3450:2011

Sound Performance - Standard

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent

72 dB(A) 72 dB(A)

Machine Sound Level (ISO 6395:2008)

119 dB(A) 119 dB(A)

Operator Sound Level (ISO 6396:2008) - Tier 4 Final/EU Stage IV*

72 dB(A) 72 dB(A)

Sound Performance

The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Hydraulic System - Steering

Maximum Flow at 1,700 rpm Engine Speed

541 gpm 2047 L/min

Relief Valve Setting - Steering

4496 psi 31000 kPa

Steering System - Circuit

Pilot, Load Sensing

Total Steering Angle

80 degrees

Steering System - Pump

Piston, Variable Displacement

Steering Cycle Times - Low Idle

7.6 s 7.6 s

Steering Cycle Times - High Idle

4.3 s 4.3 s

Cooling System

Ambient Capability Hydraulically Driven Demand Fan - Standard

40.8 °F 43 °C

Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final)

127.4 °F 53 °C

Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent)

131 °F 55 °C

Dimensions - Standard Lift - Approximate

Front Axle Centerline to Bucket Tip

21.3 ft 6503 mm

Rack Back Angle - Ground Level

39.7 degrees

Clearance at Maximum Lift

20.2 ft 6167 mm

Ground to Top of ROPS

23.4 ft 7118.5 mm

Maximum Overall Length

64 ft 19508 mm

Maximum Overall Height - Bucket Raised

38.6 ft 11771 mm

Reach - Maximum Lift

8.8 ft 2688 mm

Rack Angle at Maximum Lift

59.5 degrees

Ground to Top of Exhaust Stacks

23.2 ft 7067 mm

Ground to Bumper Clearance

4.4 ft 1355 mm

Dump Angle at Maximum Lift

–50.0 degrees

Width - Over Tires - With Bulge

18.8 ft 5758 mm

Ground to Center of Axles

6 ft 1820 mm

Tread Width

14.1 ft 4300 mm

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

B-Pin Height - Maximum Lift

28.8 ft 8790 mm

Rack Back Angle - Carry

53.7 degrees

Rear Axle - Centerline to Bumper

20.4 ft 6205 mm

Ground to Lower Hitch Clearance

2.9 ft 898 mm

Ground to Top of Hood

18.6 ft 5682 mm

Wheel Base

22.3 ft 6800 mm

Dimensions - High Lift - Approximate

Rack Back Angle - Carry

53.7 degrees

Reach - Maximum Lift

8.8 ft 2688 mm

Ground to Lower Hitch Clearance

2.9 ft 898 mm

Maximum Overall Length

64 ft 19508 mm

Ground to Bumper Clearance

4.4 ft 1355 mm

Rack Back Angle - Ground Level

39.7 degrees

Tread Width

14.1 ft 4300 mm

Clearance at Maximum Lift

20.2 ft 6167 mm

Dump Angle at Maximum Lift

–50.0 degrees

Rear Axle - Centerline to Bumper

20.4 ft 6205 mm

Ground to Center of Axles

6 ft 1820 mm

Wheel Base

22.3 ft 6800 mm

Maximum Overall Height - Bucket Raised

38.6 ft 11771 mm

Ground to Top of Hood

18.6 ft 5682 mm

Width - Over Tires - With Bulge

18.8 ft 5758 mm

B-Pin Height - Maximum Lift

28.8 ft 8790 mm

Ground to Top of Exhaust Stacks

23.2 ft 7067 mm

Front Axle Centerline to Bucket Tip

21.3 ft 6503 mm

Rack Angle at Maximum Lift

59.5 degrees

Ground to Top of ROPS

23.4 ft 7118.5 mm

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Sound Performance - Suppression

Operator Sound Level (ISO 6396:2008) - Tier 4 Final/EU Stage IV*

72 dB(A) 72 dB(A)

Note

*In Low to Moderate Digging Resistance: please contact your local dealer to determine if your application is suitable for this increased rated payload

Machine Sound Level (ISO 6395:2008)

119 dB(A) 119 dB(A)

Sound Performance

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent

72 dB(A) 72 dB(A)

Equipment

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI™-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled
Engine prelube
Fuel priming pump (electric)
Ground-level engine shutoff
Engine air intake (above hood) precleaner
Aluminum Modular Radiator (AMR)
Automatic, ether starting aid
Electronic throttle lock
Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system
Rimpull control system
Planetary powershift, 3F/3R electronic control transmission
Delayed engine shutdown
Oil-cooled, multi-disc, service brakes
Electro-hydraulic parking brake

LINKAGE

Standard lift (40.8 tonnes/45 tons face, 54.4 tonnes/60 tons loose)

ELECTRICAL

Alternator
Dry batteries
10/15 amp, 24V to 12V converter
Disconnect switch to bumper
LED warning lights (pattern selectable)
LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)
Emergency jump-start receptacle
Starter and transmission lockout in bumper
24V starting and charging system
Electric starters
24V starting and charging system
Electric starters

OPERATOR ENVIRONMENT

Bonded glass, tinted
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable length seat cushion
Dual lever lift and tilt function controls
Implement kickouts
Air conditioner
Cab pressure indicator
Graphical touchscreen information display conveys real-time operating information and payload measurement
Heater, defroster, auto temperature controls
Gauge instrumentation
– DEF Level, if equipped
– Coolant temperature
– Hydraulic oil temperature
– Fuel level
– Power train oil temperature
– Engine speed (tachometer)
– Transmission gear
– Ground speed
– Engine hour meter
Warning/indicator instrumentation
– Low DEF Level, if equipped
– Three category action alert system
– Brake malfunction
– Bucket float status
– Delayed engine shutdown status
– Engine idle shutdown status
– Engine malfunction
– Fuel economy mode enable status
– Hydraulic lockout
– Lockup clutch enable status
– Low fuel level
– Parking brake status
– Quick shift enable status
– Rimpull control enable status
– Seat belt warning
– Secondary steering
– Throttle lock status
– Transmission gear
– Turn signal
Keypad control with indicator lights
– Fuel economy mode
– Implement kickouts
– Lockup clutch
– Manual lube
– Quickshift enable
– Rimpull control system
– Side rearview mirror heater
– Throttle lock
– Turn signals
– Dash backlight control
– Hazard lights
Dome light in cab
Lunchbox and beverage holders
Steering and Transmission Integrated Control (STIC™) system
Sun screen, pull down (front and rear)
Vital Information Management System (VIMS™) with Information Display: external data port, Cycle Timer, integrated Cat Production Measurement (CPM)
Keypad, messenger, ET, VIMS
Coat hook

SAFETY

Electric (field and shop) horns
Ground-access ladders
Rear-vision camera

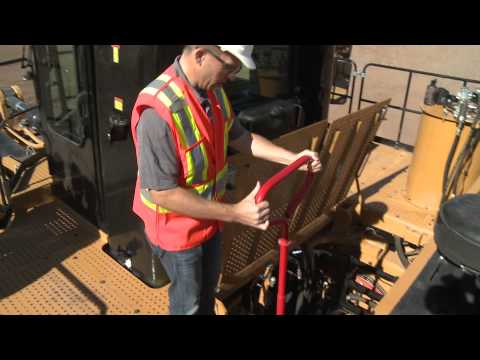

Front frame access with steps
Front walkway around cab
Pump bay access ladders with T-handle and platform
Tie-offs on ROPS and radiator guards
Steering frame lock
Stairways on both sides of the machine
LED stairway and access lights
Toe kicks
Retractable seatbelt, 76 mm (3 in) wide
Trainer seat with lap belt, 76 mm (3 in) wide
Back-up alarm
Secondary steering

MACHINE CONTROL AND GUIDANCE

CPM Payload Weighing System

FUEL TANK

12 hour (3440 L/910 gal)

COOLING

Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

SERVICE

Ground-level service center including:
– Service center light
– Implement and cooling fan oil level indicator
– Steering and brake oil level indicator
– Window washer solvent level indicator
– Transmission oil level indicator
– DEF level indicator (if equipped)
– Fuel level indicator
– Engine oil level indicator
– Engine coolant level indicator
– Automatic lubrication system grease tank level indicator
– DEF purge indicator lamp
– Starter lockout and LED
– Heavy-duty battery disconnect switch
– Stairway light switch
– Service lighting switch (if equipped)
– Fuel shutoff engine shutdown switch
– Engine oil fast-fill port
– Transmission oil fast-fill port
– Steering and brake hydraulic oil fast-fill port
– Steering and brake hydraulic oil drain port
– Oil renewal system fast-fill port
– Engine coolant fast-fill port
– DEF fill port (HRC only)
– Implement and cooling fan hydraulic oil fast-fill port
– Implement and cooling hydraulic oil drain port
– Automatic lubrication system grease tank fill port
– 24V jump-start receptacle
– 240V jacket water and engine oil heater plug (if equipped)
– 12V power port
– VIMS key switch
– 14-pin machine data port
– VIMS Messenger display
In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
Pump efficiency monitoring
Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings
Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
Rock guards on linkage grease lines
Cat O-ring face seal couplings
Lockable service access doors
Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
High-speed engine oil change system
Ground-level fast-fill fuel system
Transmission guard
Drawbar hitch with pin
Cat XT™ hoses
Left-side service center
Oil sampling valves

EFFICIENCY

Economy Mode
Variable displacement implement pumps
Variable displacement load sensing steering
Variable displacement cooling fan pump
Torque converter lock-up clutch

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

SPARE RIMS

1118 mm (44″) 152 mm (44 _ 57) (6″) flange
1194 mm (47″) 152 mm (44 _ 57) (6″) flange
1194 mm (47″) 127 mm (47 _ 57) (5″) flange

SOUND

Sound-suppression package

RIMS AND TIRES

Rims – 1118 mm (44″) (44 _ 57) 152 mm (6″) flange. For use with 53.5/85-5776PR L5 tires
Tires – 53.5/85-57 FS 76PR L5 (require 44″ rims)
Rims – 1194 mm (47″) (47 _ 57) 127 mm (5″) flange. For use with 60/80 R57L5R XMine D2 SR tires
Tires – 58/85-57 84PR L4 (require 47″ rims)
Rims – 1194 mm (47″) (47 _ 57) 152 mm (6″) flange. For use with 58/85-5784PR L4 tires

ELECTRICAL

Service lights

POWER TRAIN

Oil Renewal System (ORS) (Not available on Tier 4 Final machines. Not available in all regions.)

LINKAGE

High lift (38.1 tonnes/42 tons face, 49.9 tonnes/55 tons loose)

OPERATOR ENVIRONMENT

Rubber-mounted, high-impact resistant solar control glass (Complies with AS/NZS 2080)
Joystick lift and tilt function controls
AM/FM/AUX radio
AM/FM/AUX/USB/BT/CD/SAT radio

SAFETY

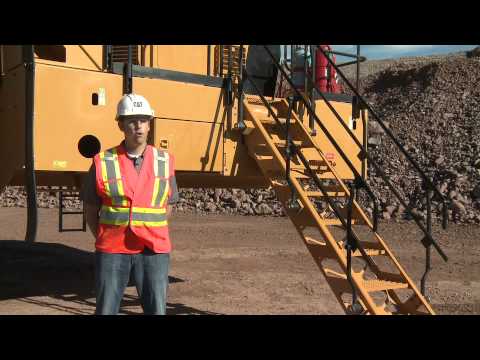

Powered ground-access stairs
Cat Detect (Rear Object Detection)
Wheel chocks

COLD WEATHER

Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])
Heavy-duty starter (provides an additional electric starter motor and two additional batteries for a total of three starter motors and six batteries) (recommended for temperatures below 0� C [32� F])
240V engine oil and coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
Heated mirrors (recommended for below-freezing temperatures)

MACHINE CONTROL AND GUIDANCE
