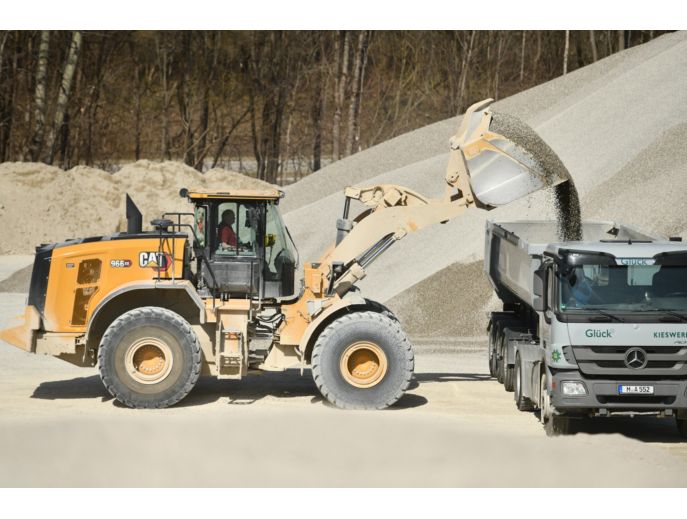

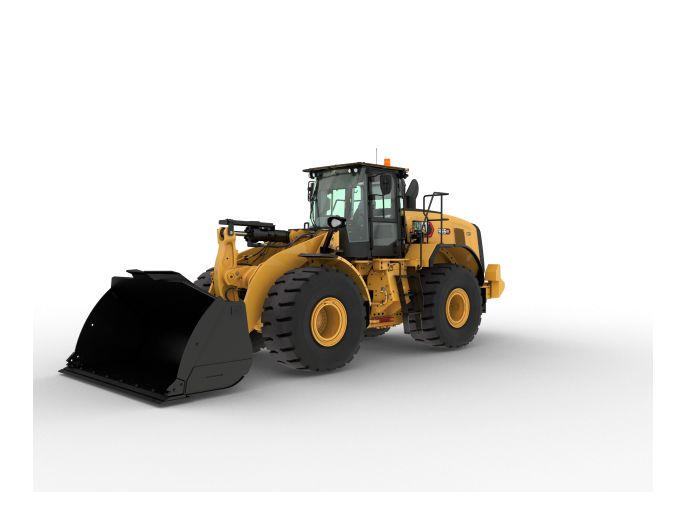

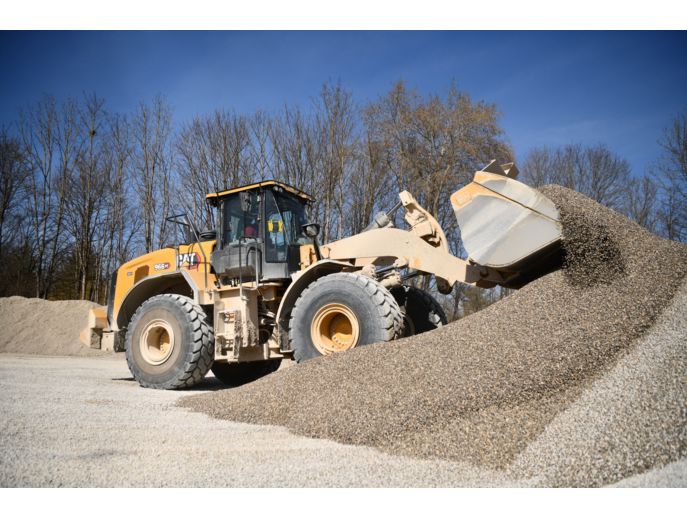

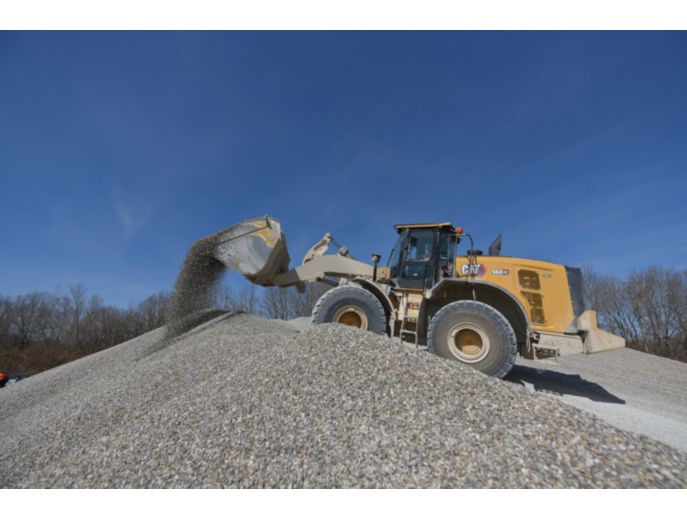

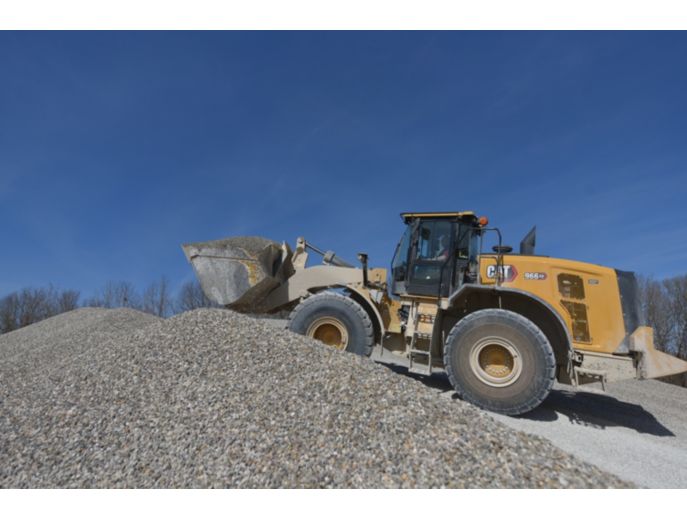

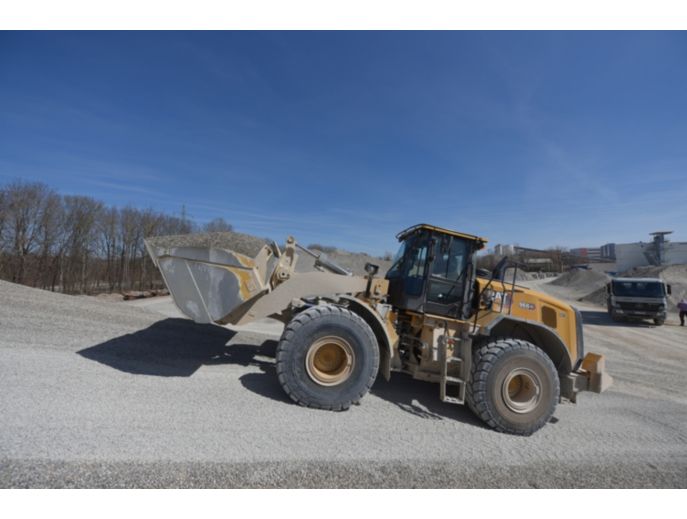

966 XE


• Collision Warning System with Motion Inhibit helps to improve worker safety on the ground.  It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators.  People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine.  When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.



• Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
      *Cat Command is not available in all regions or for all models.  Please consult with your Cat dealer for machine compatibility and availability in your area.



• The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes.  It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload.  Available in Europe, Turkey, Australia, and New Zealand.**
      ** Country certifications vary. Contact your Cat dealer for more information.



• Auto front differential lock removes the burden from the operator by automatically engaging the differential lock to improve overall traction.



• Job Aids help operator improve and optimize their operating skills.



• 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.



• Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.



• Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.



• Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.



• Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.



• Application Profile settings allow each operator to set customized forward/reverse default speed ranges and rimpull limits and are easily visible on the front dash.


• Deep system integration of the Cat continuously variable transmission, engine, hydraulic, and cooling systems results in significantly increased performance and fuel efficiency.



• Eliminating the torque converter allows the capability to control engine rpm and machine speed independently, resulting in efficient digging, fine control, and easy operation.



• Lower rated engine speed reduces component wear and operating noise.



• Power dense engine burns less fuel by providing power and torque when needed.


• Continuously variable transmission delivers smooth, fast acceleration and speed on grade.



• Machine maneuvering on grade is made easy with speed-hold and anti-rollback.



• Integrated continuously variable transmission provides maximum, steady power at optimal speeds.



• Advanced rimpull control for best loading efficiency in the pile and tire wear reduction.



• Autodig with Auto Set Tires for consistent high bucket fill factors.



• Application Profiles optimize machine settings for different applications at one push of a button.



• Job Aids help operators improve and optimize their operating skills.



• Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.



• Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.



• Dual ride control accumulator system enables a wide payload range and better ride quality.



• Standard auto front differential lock provides additional traction when needed.  Auto front and rear differential locks are available as an option.



• Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**



• Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.

**Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.


• The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes.  It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload.  Available in Europe, Turkey, Australia, and New Zealand.*



• Standard Cat technologies to monitor, manage, and enhance your jobsite operations.

– Cat Payload** with Assist provides accurate weighing of the bucket payloads. Data is displayed in real time to improve productivity and loading accuracy with manual tip-off.
– VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.*** Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
– Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.


• Optional Cat Advanced Payload**** with Assist:

– Tip Off Assist automatizes load adjustment of the final bucket to match hauling unit target.
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
– e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.


• Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.

* Country certifications vary. Contact your Cat dealer for more information
** Not legal for trade
*** Data field availability can vary by equipment manufacturer
**** Legal for trade certified in certain regions


• Cat C9.3B engine offers high power density with a combination of proven electronics, fuel, and air systems.



• Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.



• Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.



• Thorough component design and machine validation processes result in unmatched reliability and uptime.


• Collision Warning System with Motion Inhibit helps to improve worker safety on the ground.  It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators.  People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine.  When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.



• Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
      *Cat Command is not available in all regions or for all models.  Please consult with your Cat dealer for machine compatibility and availability in your area.



• Rear-vision camera enhances visibility behind the machine, helping you work more safely.



• 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.



• Cab access with wide door, optional remote door opening, and inclined steps add solid stability.



• Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.



• Computerized monitoring system includes several warning indicators.



• Monitored seat belt is standard and can be enhanced with an optional exterior indicator.



• Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.



• Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.



• Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.


• Long fluid and filter change intervals help to reduce downtime.



• Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.



• Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.



• Convenient access to hydraulic and electrical service centers for easy ground-level servicing.



• Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.



• Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.



• VisionLink helps you manage fleet location, hours, and maintenance schedules.  It also alerts you for required maintenance and allows you to request service from your local Cat dealer.



• Integrated Autolube extends component and service life.



• One-piece tilting hood makes engine compartment access fast and easy.


• Heavy-duty axles designed to handle extreme applications.



• Cat Continuously Variable transmission features durable, long-lasting components.



• Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.


• Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).



• Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.



• Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.



• Automatic air conditioning system keeps the cab cool as desired.



• In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.



• Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.



• The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.  An HMU steering wheel is also available.



• Ride control works as a shock absorber, improving ride quality over rough terrain.


• Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:

– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

1. Cab, pressurized, sound suppression
2. Door, remote opening system
3. EH implement controls, parking brake
4. Steering, joystick
5. Seat belt, monitored
6. Seat, suede/cloth, air suspension, heated
7. Touchscreen display
8. Keypad, programmable buttons
9. Mirrors, heated
10. Air conditioner, heater, defroster (auto temp, fan)
11. Sun visor, front, retractable
12. Sun visor, rear, retractable
13. Windows, front, laminated

ON-BOARD TECHNOLOGIES

1. Cat Payload scale
2. Autodig with Auto Set Tires
3. Operator ID & machine security
4. Application Profiles
5. Job Aids
6. Controls Help and eOMM (not available in all languages)
7. Key Features Inform
8. Bucket Carry Display Widget
9. Remote Flash

POWERTRAIN

1. Cat C9.3B engine
2. Electric fuel priming pump
3. Fuel-water separator and secondary fuel filter
4. Engine, air precleaner
5. Axles, auto front differential lock
6. Axles, ecology drains
7. Transmission, continuous variable
8. Rimpull control
9. Throttle lock mode
10. Hill and speed hold on grades
11. Service brakes, hydraulic, fully enclosed wet disc, wear indicators
12. Park brake, caliper on front axles, spring applied-pressure released

HYDRAULICS

1. Implement system, load sensing with electro-hydraulic variable displacement piston pump
2. Steering system, load sensing with dedicated variable displacement piston pump
3. Ride control, dual accumulators
4. Oil sampling valves, Cat XT™ hoses

ELECTRICAL

1. Starting and charging system, 24V
2. Starter, electric, heavy duty
3. Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearvision lights
4. Lights: roading with turn signals

MONITORING SYSTEM

1. Front dash with analog gauges, LCD display, and warning lights
2. Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
3. Maintenance reminders

LINKAGE

1. Standard lift, Z-bar
2. Kickouts: lift and tilt

SAFETY

1. Visibility: mirrors, rear-vision camera
2. Window cleaning platform, front

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

1. Footrest
2. Implement joystick (2V, 3V only)
3. Entertainment radio (FM, AM, USB, BT)
4. Entertainment radio (DAB+)
5. CB radio ready
6. Seat, leather/cloth, air suspension, heated/cooled
7. Windows, front, heavy duty
8. Full cab window guard

ON-BOARD TECHNOLOGIES

1. Cat Advanced Payload
2. Cat Payload Printer with E-ticket
3. Cat Payload for Trade (Available in Europe, Türkiye, Australia, and New Zealand. Country certifications vary. Contact your Cat dealer for more information.)
4. Remote Control

POWERTRAIN

1. Turbine, air precleaner
2. Radiator, high debris
3. Cooling fan, reversible
4. Axles, auto front and rear differential locks
5. Axles, AOC ready, extreme temperature seals
6. Axles, oil cooler

HYDRAULICS

1. 3rd and 4th auxiliary functions with ride control
2. Quick coupler control

ELECTRICAL

1. Cold start, 120V or 240V
2. Lights: LED

MONITORING SYSTEM

1. Tire pressure monitor

LINKAGE

1. High lift, Z-bar

ADDITIONAL EQUIPMENT

1. Cat Autolube system
2. Fenders, roading
3. Guards: power train, crankcase, cab, cylinders, rear
4. Biodegradable hydraulic oil
5. High-speed oil change system
6. Toolbox

SAFETY

1. Cat Detect rear radar system
2. Dedicated rearview screen
3. Multiview (360°) vision system
4. 4-point seat belt retractor
5. Reversing strobe lights (not compatible with roading arrangements)
6. Secondary steering system, electrical (Standard where mandated)
7. Wheel chocks
8. Warning beacon
9. Collision Warning System with Motion Inhibit and People Detection

SPECIAL CONFIGURATIONS

1. Aggregate handler
2. Waste and industrial
3. Forestry
4. Corrosion resistant
