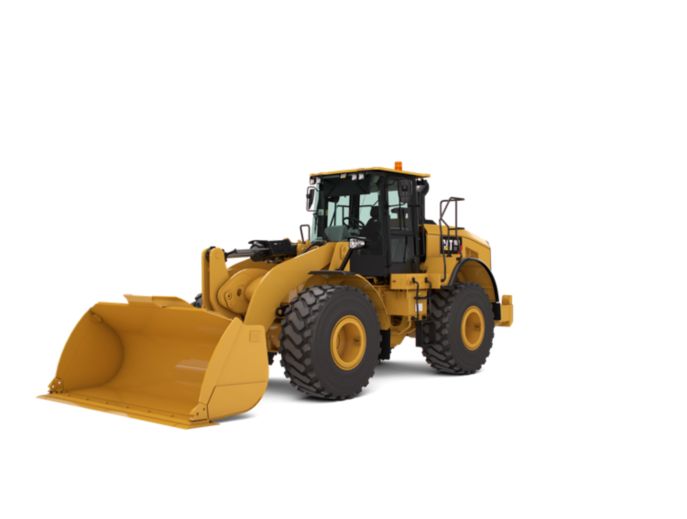

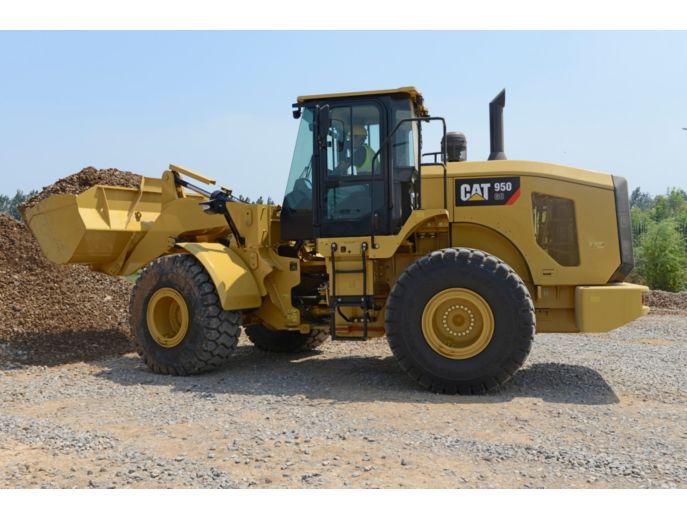

950 GC

• Cat® C7.1 engine offers high power density with a combination of proven electronic, fuel, and air systems.
• Engine emissions are equivalent to U.S. EPA Tier 3.
• Thorough component choice, design, and in-machine validation processes result in excellent reliability and uptime.

• The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearance, this results in low fuel consumption and exceptional production capabilities.
• Cat designed, electronically controlled, automatic powershift transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
• Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

• Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
• Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
• Load sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

• The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
• Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
• The adjustable steering column includes the F-N-R shifter and turn signal control lever.
• Unmatched viewing area with a wide, flat, and distortion-free front windshield.
• The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
• The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
• Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

• Ladders are standard on both sides of the machine to easily access the platforms.
• Platforms are equipped with guard- and handrails for safe access to the cab.
• The main cab door opens to the front and provides wide access to the operator environment.
• Front and back wipers ensure that a clear view is maintained.
• External rearview mirrors with integrated spot mirrors are standard.
• A rear vision camera is standard to clearly monitor movement behind the machine.
• Hinged wheel guards, easy removal/re-install.
• Optional windshield and power train guards.

• Grouped service points and sight gauges allow for easy daily maintenance.
• Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
• Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
• A rear swing-up grill gives easy cleaning access to the cooling cores.
• Hinged wheel guards are easy to remove/re-install, providing wide access to all maintenance points and to the engine compartment.
• Optional power train bottom guard protects the machine against damage to reduce downtime.
• Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
• Caterpillar design and manufacturing techniques assure outstanding service life.

• This optional kit is simple to install compared to other 3rd party payload systems*.
• On-the-go weighing** for precise load targets with proven accuracy, flexible installation, and easy calibration and setup.
• Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
• Increases productivity, weighing while lifting with no interruptions in loading cycle.
• High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
• Improve efficiency with less rework; save time, labor, fuel,and costs.

  * Not available in all markets
  ** Not legal for trade

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

1. Engine – Cat C7.1 Stage IIIA/Tier 3
2. Torque converter
3. Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
4. Brakes, full hydraulic enclosed wet-disc
5. EIMS (Engine Idle Management System)
6. Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
7. Filter, fuel primary/secondary/tertiary
8. Fuel/water separator
9. Filters, engine air, primary/secondary
10. Fuel priming pump (manual)
11. Muffler, sound suppressed
12. Radiator, unit core (9.5 fpi) with ATAAC
13. Starting aid, glow plugs
14. Switch, transmission neutralizer lockout

HYDRAULICS

1. Load sensing implement system pilot operated
2. Dedicated load sensing steering pump
3. Dedicated brake and fan gear pump

ELECTRICAL

1. Alarm, back-up/main disconnect switch
2. Alternator (115-amp, brush type)
3. Batteries, maintenance free (2×900 CCA)
4. Ignition key; start/stop switch
5. Lighting system, halogen (6 total): – Four (4) halogen work lights – Two (2) halogen roading lights
6. Starting and charging system (24-volt)
7. Starter, electric (heavy duty)

OPERATOR ENVIRONMENT

1. Air conditioning with 10 vents and filter unit located outside of cab
2. Bucket/work tool function lockout
3. Cab, pressurized and sound suppressed
4. Hydroformed (ROPS/FOPS) structure
5. 12V power port (10A)
6. Coat hook
7. Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
8. Heater and defroster
9. Horn
10. Cup holders and personal tray on right console
11. Storage tray behind seat
12. Mirrors, rearview internal and external
13. Seat, Cat Comfort (cloth) mechanical suspension, auto-retractable seat belt
14. Steering column, adjustable angle
15. Wipers/washers (front and rear)
16. Window, sliding (left and right side)
17. Computerized monitoring system

OTHER STANDARD EQUIPMENT

1. Lift and return-to-dig kick outs (Electro‑Magnetic), mechanical adjustment
2. Doors, service access (locking)
3. Fenders (front and rear) steel
4. Grill, airborne debris
5. Hitch, drawbar with pin
6. Hood, non-metallic on steel structure
7. Counterweight, 1800 kg
8. Linkage, Z-bar, fabricated crosstube/tilt lever
9. S·O·S oil sampling valves
10. Product Link Ready
