Next Generation Cat® 140 Motor Grader Pre-Launch Guide

The wait is over. Caterpillar has released the next-generation Cat® 140 Motor Grader and calling it a refresh would be underselling it considerably. This is a ground-up rebuild that touches virtually every major system on the machine.

That matters because the 140 isn’t some niche product. It’s been the world’s best-selling motor grader for decades, a fixture on road construction sites, mining access roads, civil projects and local government maintenance fleets right across WA, NSW and the ACT. When Caterpillar redesigns this machine, the whole industry pays attention.

The 140 accounts for a significant portion of all Cat motor grader sales in Australia and New Zealand. About half of those go to government customers. So, when WesTrac customers flagged feedback about visibility, comfort, technology integration and maintenance costs over the years, there was genuine motivation to get this right. From what we’ve seen, they have.

What follows is a detailed look at what’s changed, what it means day-to-day on site, and how the new machine compares to the outgoing model.

1. A Ground-Up Redesign, Not Just an Update

The previous Cat 140 received its last significant update back in 2007, when the M Series arrived. In the years since, there have been emissions updates and incremental tweaks, but nothing that fundamentally changed the machine. This time is different.

Caterpillar has moved to a new common global platform shared across the 140, 150 and 160 models. That’s a reduction from four separate platform designs down to one, which has real implications for customers: more consistent build quality, a wider parts network, and a machine that can be specified much more precisely to the work at hand.

A single global platform. Your choice of controls, drivetrain, emissions standard, and grade technology.

What’s actually different:

• Completely redesigned cab with unprecedented rear visibility and full premium comfort options
• Standard 10-inch touchscreen replacing the old analogue gauge cluster
• New 9-speed transmission with a dedicated finish gear
• Integrated rearview camera on the main display, standard
• LED lighting standard throughout
• Reversing fan and swing-out radiator for easier servicing
• Integrated fuel tank in the front frame hitch, sized for a 12-hour shift
• External parking brake for faster maintenance access
• Eco Mode for better fuel efficiency
• Push to Start ignition
• Tyre pressure monitoring system
• Preventive maintenance alert sync
• Optional High-Performance Circle (HPC): up to 70% reduction in circle maintenance cost
• Optional Cat Detect People Detection

2. Australian Availability: When can you order?

Production is underway. Here’s the current timeline for WesTrac customers:

• 140 (JOY) – Platform 16A (T3 and T4f) – Mid 2026
• 150/160 – Platform 16A (T3 and T4f) – September 2026

Worth noting: If you’re weighing up whether to order now or wait for the new generation, it’s worth talking to your WesTrac representative sooner rather than later.

3. Redesigned Cab: Lighter, More Space, Better Sightlines

Talk to any experienced grader operator about what frustrates them in the cab, and visibility comes up quickly. The new 140 cab is a genuine response to that. Caterpillar describes it as offering “unprecedented rear visibility,” and when you look at what’s changed structurally, that claim holds up: larger glass panels, angled door frames, a tapered engine enclosure and a sloped rear window all improve sightlines to the moldboard, front wheels and the rear of the machine.

Premium comfort options on the new cab include:

• Premium leather seat with air-adjustable lumbar and bolsters
• Optional heated and cooled seat cushions
• 4-point restraint ready
• Sliding windows
• Internal side extension mirrors
• Industry-standard controls positioning
• Optional corner guards for vegetation-heavy applications

At the centre of the operator environment is the new 10-inch touchscreen. It consolidates machine information, grade technology readouts and the rearview camera feed into a single display, no separate monitor required. The camera can be set to activate automatically in reverse, or left on continuously, operator preference.

Operator Tip: Eliminating the separate camera monitor means less head movement across a shift, which matters more than it sounds on busy or tight sites.

Vision can be expanded through a tiered set of optional systems: Rear Vision only, Front and Rear Vision, 360° Surround Vision, or 360° Surround Vision with People Detect. Up to six feeds can be shown simultaneously, covering rear cab, cab left and right, front, nose left and nose right.

5. Technology: Built for the Modern Jobsite

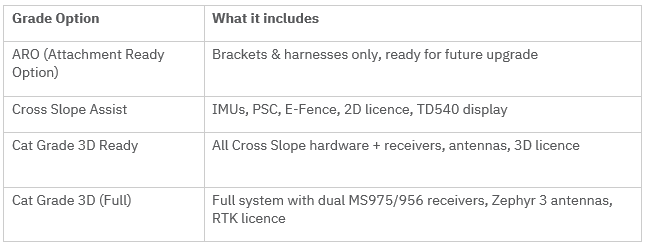

The next-gen 140 is built around the assumption that grade technology will be part of the picture, whether from day one or somewhere down the track. Cat Grade is scalable from basic Cross Slope with Assist all the way through to full mastless Grade 3D, and the machine ships with factory-installed wiring, mounting points and harnesses throughout. No expensive retrofitting if your needs change.

Cross Slope Assist

Cross Slope Assist takes over one side of the blade while the operator manages the other. It includes E-Fence avoidance to keep the moldboard within set boundaries, and a 2D licence is included. In practice it reduces cognitive load on the operator and tends to deliver more consistent cross slope results in fewer passes.

Stable Blade System

This one works through an accelerometer monitoring machine bounce. When bounce is detected, the system automatically steps engine rpm down in 15% increments until the machine stabilises, then ramps back up. The benefit shows up as a smoother finish surface and less rework, particularly when grading at higher speeds.

Blade Assist

New to the next-gen 140, Blade Assist automates some of the repetitive blade positioning inputs that would otherwise fall to the operator. Fewer manual adjustments, more consistent results, and operators can get up to speed faster.

E-Fence

E-Fence ships with Cross Slope Assist and above. It establishes virtual boundaries that prevent the blade straying outside defined parameters. Useful anywhere you’re working near kerbs, infrastructure or sensitive adjacent surfaces.

Cat Detect: People Detection (Optional)

Cat Detect People Detection combines rear camera coverage with radar to alert the operator when someone enters the machine’s hazard zone. It can be set up as a warning-only system, or integrated with automatic emergency braking (AEB) for the highest level of worksite protection. Detection event footage will be reviewable through VisionLink from Q1 2026.

VisionLink & Product Link Elite

Product Link Elite comes standard on the next-gen 140, giving fleet managers remote visibility of asset location, engine hours, fuel consumption, idle time and fault codes through VisionLink. New for 2026: Preventive Maintenance Alert Sync, Display Initiated Remote Flash, and Health Equipment Insight (HEI) integration for more proactive fleet management.

30-Day Grade Demo Licence

New Grade 3D Ready machines can be activated on a 30-day / 100-hour demo licence, giving customers a chance to run the full 3D grade control system before committing to the licence purchase. Ask your WesTrac representative about this option.

6. Performance & Drivetrain

The jump from an 8-speed to a 9-speed transmission might sound incremental, but the extra ratio serves a specific purpose: it’s a dedicated finish gear, giving operators a very controlled, very low speed for final-pass grading, curb work and precision applications where consistency is everything. Shifts are smooth and the transmission is matched to the engine for strong torque delivery.

Other drivetrain changes on the next-gen 140:

• Selectable Inching for precise low-speed control
• Eco Mode that adjusts fuel consumption to actual load demand
• Reversing fan with auto purge on a timed cycle, or manual purge via the display; a practical win in dusty Australian conditions
• Swing-out radiator for much easier maintenance access
• Optimised weight distribution for better traction and stability

The machine continues to sit in the sweet spot of the motor grader range for power-to-weight ratio. Rear tandem drive and all-wheel drive (AWD) are both available. The AWD system includes steering compensation that speeds the outside front wheel and slows the inside through turns, which makes a real difference on soft or low-traction surfaces.

7. Serviceability & Lower Owning Costs

For WesTrac customers, machine uptime isn’t an abstract metric. Every hour a grader is down has a real cost. The next-gen 140 has been engineered with that in mind throughout.

Integrated Front Frame Fuel Tank

The fuel tank is now built into the front frame hitch, doing away with the standalone external tank of earlier models. It’s sized for a 12-hour shift based on a 160-type working regime and is fast-fill ready from the factory. The fill point has moved to ground level at the front frame, away from the rear wheels, making refuelling faster and safer.

External Parking Brake

On the legacy 140, getting to the parking brake meant pulling apart the transmission, a job that took roughly 2.5 hours. The new external design changes that completely: the brake can be visually checked, accessed and repaired without touching the transmission. That’s a meaningful saving across a fleet over time.

No-Bolt Removable Side Covers

Side covers now come off without tools, opening up the engine bay for daily checks, filter changes and general inspection in seconds rather than minutes.

Banked Filters & Extended Fluid Intervals

Filters have been consolidated into a centralised bank. Fluid and filter change intervals have been extended and aligned across systems, so a technician can service multiple systems in a single visit rather than making separate trips.

Cartridge-in-Canister Filters

The new filter design cuts the risk of contamination or spills during changes and makes disposal more straightforward.

High Performance Circle (HPC): Optional

Up to 70% reduction in circle maintenance cost compared to the traditional Top Adjust system.

The HPC swaps out the traditional shim-and-shoe Top Adjust system for an excavator-style sealed bearing design, drawing on components proven in the Cat 320 Excavator swing drive and Cat 14 Motor Grader worm drive. The practical upshot is close to zero circle maintenance.

The Key Benefits of High Performance Circle:

• Up to 70% reduction in maintenance cost vs. Top Adjust
• No shimming, centring or replacement of circle shoes, drawbar or circle wear strips
• Rotatable circle ring extends replacement intervals
• Fully enclosed circle drive gear with removable inspection cover
• Circle can be rotated 180° to extend wear life
• Centralised grease bank for fast servicing
• Reduced blade chatter for a better finish surface
• Less wear on drawbar and circle structure

For operations running high circle usage, the HPC can represent a substantial cut in labour and parts costs over the machine’s working life. It’s worth raising at time of order.

8. Safety Features

The next-gen 140 arrives with a full suite of standard and optional safety systems:

• Safety Start: audible and visual alert before machine movement
• Integrated hazard lights, factory-fitted
• Seatbelt indication on the display
• Auto-Articulation Return-to-Centre
• Operator presence monitoring
• Push to Start (replaces key ignition)
• Tyre Pressure Monitoring System (TPMS)
• Dead Engine Lower: blade can be lowered safely without the engine running
• Operator Training QR Code: direct access to training videos via the display
• Optional: Cat Detect People Detection (see Technology section)
• Optional: Surround Vision with 360° bird’s-eye view, up to 6 cameras
• Optional: Cat Detect Collision Mitigation with AEB

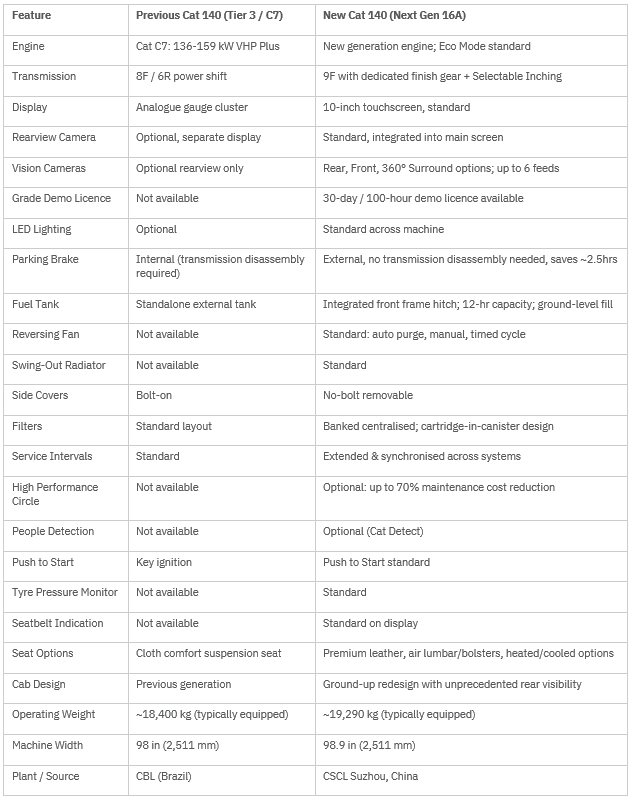

9. New Cat 140 vs. Previous Model: Feature Comparison

Side by side, here’s how the next-gen 140 measures up against the outgoing Tier 3 model.

Specifications based on published data at time of writing. Contact WesTrac for full spec sheets.

10. Who Is the New Cat 140 For?

The 140 has always earned its reputation through sheer versatility, and that hasn’t changed. The new model works across a wide range of applications:

• Road construction and maintenance
• Civil infrastructure: site prep, sub-base, finish and fine grade
• Mining access road construction and maintenance
• Ditch cutting and bank sloping
• Snow clearing, particularly with AWD and the optional snow arrangement
• Rental fleets: transport width, operator familiarity and versatility make it a natural fit
• Local and state government: road maintenance across regional and rural networks

What makes the 140 genuinely easy to deploy across different jobs and operators is the combination of compact transport width, a broad gear range, and the flexibility now on offer with both control and drivetrain configurations. It’s not a machine you have to work around.

11. Frequently Asked Questions

What’s new on the next-generation Cat 140?

In short: almost everything. It’s a complete ground-up redesign on a new global platform. The cab has been rebuilt for better visibility and comfort, there’s a standard 10-inch touchscreen, a 9-speed transmission with a dedicated finish gear, standard LED lighting and rearview camera, mastless Grade 3D now available on lever models, an integrated front frame fuel tank, external parking brake, reversing fan, swing-out radiator, push to start, tyre pressure monitoring, and optional High Performance Circle and People Detection.

How does the new 140 compare to the previous Tier 3 model?

The analogue gauge cluster is gone, replaced by a 10-inch touchscreen. There’s an extra forward gear specifically for finish work. LED lighting and the rearview camera are now standard rather than optional. Lever-model operators can now access mastless 3D Grade for the first time. The standalone fuel tank has been replaced with an integrated unit in the front frame, and the parking brake has moved external, saving roughly 2.5 hours per service visit. The cab is a complete redesign, and service intervals have been extended and synchronised across systems.

What is the High Performance Circle and is it worth specifying?

The HPC replaces the traditional shim-and-shoe circle system with an excavator-style sealed bearing design. Day-to-day, that means no shimming or centring: up to 70% reduction in circle maintenance cost compared to the Top Adjust system. For any operation with high circle usage, it’s a strong case for upgrading at time of order. Talk to your WesTrac specialist about whether it suits your application.

What finance options are available through WesTrac?

WesTrac offers a range of Cat Financial solutions Speak to your WesTrac representative or visit the financial services page for current rates and offers.

---
