395

Machine Setup Simplification


• At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.



• The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Grade 3D Ready


• The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. This option provides an easier upgrade path for customers who want to add Grade with 3D after their initial purchase. To activate, contact your Cat Dealer to purchase the required 3D software licenses. Licenses can be installed remotely or manually loaded onto the machine.

Cat Payload and Advanced Payload*


• Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™** to analyze jobsites and individual assets for remote management of production targets and key metrics.

*Payload technologies are not legal for trade.
**VisionLink subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07H


• Work up to 3000 m (9,840 ft) above sea level without de-rating.



• The exclusive hydrostatic swing circuit has a dedicated bi-directional swing pump, swing motors, charge pump, and charge accumulator. The swing pump supplies oil to the swing motor; the charge pump and charge accumulator prevent cavitation (air bubbles) and overheating. The circuit enables regenerating swing brake energy and independent management of cylinder oil flow, resulting in higher efficiency and smoother, more predictable performance when you multitask with the excavator.



• Powerful swing torque easily handles changes in momentum, uneven terrain, and consistent high-impact connections, helping operators make their work swift and precise.



• Did you know baffle plates help increase an excavator’s strength-to-weight ratio? That is why Caterpillar incorporates the plates in high-stress areas like the boom, stick, and frame. Reinforcing the machine without adding significantly more weight also helps provide years of reliable performance, even in the harshest environments.



• The cylinder rods are reinforced with additional wear rings to help reduce oil leaks. The car body has thick baffle plates for a long service life. The thick track link has large bolt joints to help maintain bolt retention. Track rollers have a large shaft diameter to help prevent bending and oil leaks while increasing the 395’s loading capacity, which means more reliable production for you.



• Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.



• The center track guiding guard helps align the excavator track when traveling and working on slopes.



• The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.



• Auxiliary hydraulic options allow you to use a wide range of Cat® attachments.



• Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.



• Match the excavator to the job with three operating modes: Power, Smart, and Eco.



• Smart mode automatically adjusts power for the highest fuel efficiency – less power for tasks such as swinging and more power for digging.



• Enhanced heavy lift mode increases system pressure to help you easily pick and place heavy material.



• Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.



• Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and a standard cold start capability of –18° C (-0.4° F).



• The engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards with an aftertreatment system that requires no operator input or downtime.


• The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.



• Cat® Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.



• Cat® 2D E-Fence restricts the front linkage from moving beyond operator-defined preset boundaries for the ceiling, floor, wall, swing, and cab. It helps operators avoid jobsite hazards such as traffic, keeps personnel safe, and helps you save on costly repairs, equipment downtime, and potential jobsite fines.



• Cat® Detect – People Detection for excavators is an intelligent vision camera system that can alert an operator when someone enters a machine’s hazard zone.*



• Cat® Grade with Assist helps operators stay on grade simply and effortlessly with semi-autonomous digging. It automates boom, stick, and bucket movements to deliver more accurate cuts with less effort.



• Cat® Grade with 2D for excavators is an indicate system that helps operators reach grade faster.* Select your target depth and slope and watch the Grade with 2D system use on-board processors and sensors to provide real-time guidance on the distance to grade.



• Cat® Grade with 3D for excavators helps operators grade more quickly, accurately, and efficiently, improving productivity.* It incorporates GNSS technology and RTK positioning guidance to streamline the grading process for complex designs commonly encountered on large infrastructure and commercial projects. This system allows operators to work confidently, eliminating guesswork while cutting and filling to precise specifications.



• The Cat® Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. Activation requires the purchase of additional 3D software licenses, contact your Cat Dealer for details.



• Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.



• All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.



• Cat® Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing.



• Combine Payload with VisionLink™ to analyze jobsites and individual assets for remote management of production targets and key metrics.



• Cat® Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site. Gain data-based insights towards operators and operations when you pair Operator Coaching with VisionLink™.** There are two coaching tip categories –


  1. Operational Efficiency Tips: Help operators stay at the top of their game by identifying areas to increase skill and efficiency, such as digging technique and idle times.



  2. Machine Health Tips: Some actions are inefficient and cause unnecessary wear and tear on the machine and its components. Following Machine Health Tips can help extend the life of the machine, improve digging technique, and reduce fuel waste.





*The system may not detect personnel in certain circumstances, such as fast swing speeds, people lying down or crouching, or when cameras are impaired by low light conditions (dusk, dawn, overcast), inclement weather (snow, rain, fog), or other similar conditions. For limitations of use, refer to the operation and maintenance manual.
** VisionLink™ subscription required.

Availability may vary by region, consult your Cat Dealer for more details.


• VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It’s all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You’ll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.



• Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink™ so you can keep a close eye on your fleet.



• Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.



• Cat® Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.



• The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.


• The 395’s extended and synchronized service intervals and reduced hydraulic oil capacity help you save time and money.



• The excavator is auto-lube ready with built-in mounting points; an available auto-lube retrofit kit provides additional hardware to mount a grease pump and line guards – all to help do the job of lubing safer, cleaner, and trouble-free.



• Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and parts needed so you don’t experience unnecessary downtime.



• Track your excavator’s filter life and maintenance intervals via the in-cab monitor.



• Fuel and engine oil filters are accessible from the upper platform and synchronized to be changed at 1,000 hours.



• The latest hydraulic oil filter provides high-quality filtration performance and features anti-drain valves to keep oil clean when the filter is replaced, and the 3,000-hour extended replacement interval offers efficiency and convenience.



• Scheduled Oil Sampling (S·O·S^SM) ports with extended sampling intervals are on ground level, simplifying maintenance and allowing for quick, easy extraction of samples for fluid analysis.



• Using Cat® genuine oil and filters and doing typical S∙O∙S monitoring will extend the current service interval, giving you more uptime.



• The high-efficiency hydraulic fan has a programmable automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.



• The advanced air intake filter with pre-cleaner has a high dust-holding capacity.



• The latest engine air cleaners with an integrated pre-cleaner surpass radial seal air cleaners’ lifespan.


• Sites where excavators work are typically rugged and challenging. That’s why it’s important that the 395 cab help protect the operator as much as possible from fatigue, stresses, sounds, and temperatures of the job.



• Comfort and efficiency of movement help keep operators productive and alert all shift long. The standard seat is wide and adjustable for operators of virtually any size.



• The tip-up left console makes getting in and out of the seat easy.



• Two cab options – Deluxe, and Premium – let you choose the level of comfort you need.



• The Deluxe cab package includes a heated air suspension seat; the Premium seat is heated and cooled.



• The cab is sound-suppressed and sealed.



• Advanced viscous mounts reduce cab vibration



• Control the excavator comfortably with easy-to-reach controls located in front of you.



• The touchscreen monitor makes it easy to access critical information and settings. Shortcut keys make it easy, and two are for entertainment, heating, and air conditioning. There is also a shortcut key for apps and functions that you can set.



• Standard automatic climate control keeps you at the right temperature throughout your shift.



• Convenience features include Bluetooth® integrated radio, USB charging and phone connectivity ports, 12V DC outlets, and an AUX port.



• Cup and bottle holders are easy to reach, and storage spaces are located conveniently throughout the cab.



• Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.


• Optional Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology** features (Grade, Payload, Assist, etc.).



• Operator ID keeps your excavator secure. To enable the push-button starting feature, use your PIN code on the monitor or the optional Bluetooth key fob.



• Serrated steps, anti-skid plating, and handrails help you avoid slips and trips – a major contributor to workplace injuries.



• Standard Lift Assist quickly calculates the actual load you are lifting and compares it to the rated load the excavator is capable of handling. Visual and auditory alerts tell you if you are within safe working range or need to take immediate action to avoid tipping.



• See all around the machine with the premium 360 lighting package. The 1800-lumen lights on the chassis, cab, boom, sides, and rear illuminate the jobsite for operators and ground personnel.



• Add optional inspection lighting to illuminate the engine, pump, battery, and cooling compartments, making service work more accessible.



• Whether you are using a bucket, hammer, grapple, or clamshell, standard 2D E-fence automatically stops excavator motion using boundaries you set in the monitor for the entire working envelope – above, below, sides, and front. E-fence protects equipment from damage and helps reduce fines related to zoning or underground utility damage. Automatic boundaries even help prevent operator fatigue by reducing overswinging and overdigging. A travel direction indicator helps operators know which way to activate the travel levers.



• Small cab pillars, large windows, and a flat engine hood design help you enjoy great visibility into the trench, in each swing direction, and behind you.



• Add a swing alarm to alert people when rotating from the trench to the stockpile.



• Rear and right-hand-sideview cameras are standard. Upgrade to 360° visibility, and you’ll easily visualize objects and personnel around the excavator in a single view.



• A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.



• The right-hand service platform design help provide easy, safe, and quick access to the upper service platform; the service platform steps use serrated steps and an anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867:2011 requirements.

*Operator assist features for the Command Console are not available in Australia and New Zealand.
** Not all technology features are available on the Command Console and vary by model. Consult your Cat dealer for details.


• The 395 uses a keyless push-button engine start. This adds security for the machine by using Operator ID codes to limit and track machine access. Codes can be entered manually via an optional Bluetooth key fob.



• Most machine settings can be controlled through the high-resolution touchscreen monitor. It offers several languages and is easy to reach from the seat – no twisting or turning.



• A second 254 mm (10 in) monitor is available for the Cat® Grade and Cat® Grade with 3D.



• Operating can be made easier with the touch of a joystick button. The joystick function can be customized through the monitor. The joystick pattern and response can be set to match operator preference. All preferences are saved with the Operator ID and restored at login.



• Make moving the excavator much easier with Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.



• You can also add an auxiliary relay to power on or turn off a CB radio, beacon light, or other attachment so you don’t have to take your hands off the joysticks.



• Program up to four depth and slope offsets so you can easily get to grade without a grade checker – saving time and enhancing safety on the jobsite.



• Operator coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.



• Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips on the touchscreen monitor.



• Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as


• Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.



• Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.



• Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.



• Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.



• Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.



• Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.



• Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.



• Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Not all attachments are available in all regions. Contact your Cat Dealer for details.


• The Cat® C18 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.



• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.



• A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.



• Cat® Grade technologies combine advanced guidance with optional automated machine control, helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.



• Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.



• Cat® Payload for excavators provides on-the-go material weighing, which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.



• Cat® 2D E-fence keeps the front linkage within a predefined work area to aid in avoiding hazards such as traffic – not only helping keep personnel safe but also helping you avoid repairs, downtime, and costly job site fines.



• Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters replaced over the machine’s life.



• Cat® VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.



• Remote Flash helps minimize downtime and maintenance time while keeping your asset running at maximum efficiency. Alerts for machine updates are sent virtually from your Cat® dealer, and updates can be deployed without a dealer technician needing to be onsite.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of  blends higher than 20% biodiesel, consult your Cat dealer)

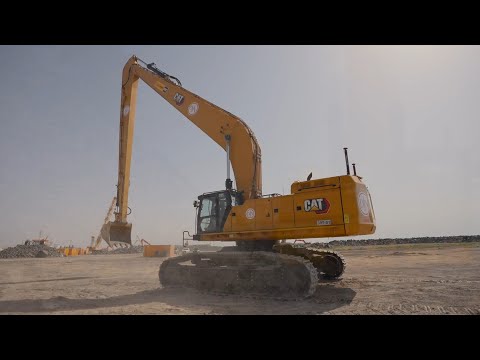

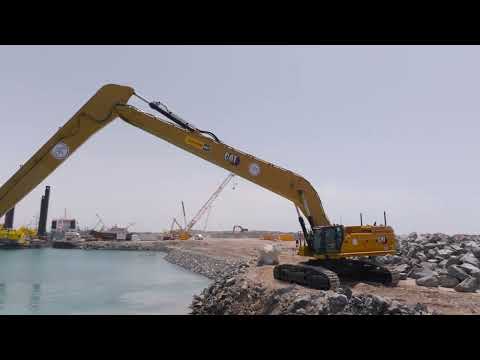

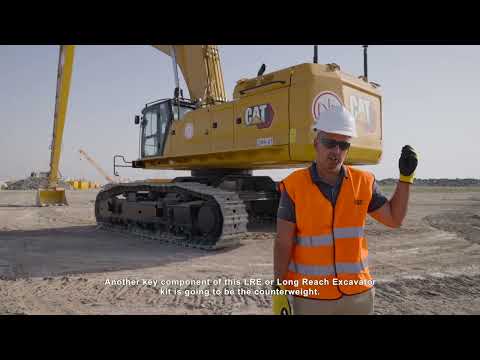

The Cat® 395 Long Reach (LRE) hydraulic excavator is engineered for applications that demand extended reach, precise material placement, and dependable performance. Designed for dredging, canal maintenance, river work, slope finishing, and large-scale infrastructure projects, the 395 Long Reach helps contractors take on challenging jobs with confidence.


• The 395 LRE combines premium performance and simple-to-use technology including Cat Grade Control and Cat Payload.



• Choose between two purpose‑built extended‑reach front configurations – 21.5 m reach with 12.5 m (41’0″) boom + 9.5 m (31’2″) stick or 28 m reach with 15.5 m (50’10”) boom + 11.8 m (38’9″) stick – both designed to maximize reach, depth and stable performance in demanding dredging applications.



• The 395 LRE has a maximum reach capability of 28 meters (91’10″) and a dig depth of 21 700 mm (71’2”).



• The long and extended undercarriage and choice of either a 15.4 mt (34,060 lb) counterweight or a 21.6 mt (47,600 lb) provide a stable platform for long-reach digging.



• This machine excels in ultimate long-distance dredging, ditch cleaning, settling pond clean-out, waterway and canal maintenance.

NOTE

1. Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

1. High-resolution 254 mm (10″) LCD touch screen monitor
2. Heated seat with air-adjustable suspension (Deluxe only)
3. Heated and cooled seat with auto adjustable suspension (Premium only)
4. Sound suppressed cab with viscous mounts
5. Automatic bi-level air conditioner
6. Jog dial and shortcut keys for monitor control
7. Keyless push-to-start engine control
8. Height-adjustable console, infinite with no tool
9. Tilt-up left-side console
10. 51 mm (2″) orange seat belt
11. Bluetooth integrated radio (including USB, aux port and microphone)
12. 2 x 12V DC outlets
13. Cup and storage compartments
14. Openable two-piece front window (Premium optional)
15. Upper radial wiper with washer (Deluxe only)
16. Parallel wiper with washer (Premium only)
17. Openable polycarbonate skylight hatch (Premium optional)
18. LED dome light
19. Floor welcome light
20. Roller front sunscreen
21. Roller rear sunscreen (Deluxe optional)
22. Rear window emergency exit
23. Washable floor mat
24. Beacon Ready

CAT TECHNOLOGY

1. VisionLink™
2. Remote Flash
3. Remote Troubleshoot
4. Work tool recognition and tracking (PL161)
5. Cat Grade with 2D
6. Cat Assist
7. Cat Payload

ELECTRICAL SYSTEM

1. Maintenance-free 1,400 CCA batteries (x2)
2. Centralized electrical disconnect switch
3. Chassis light

ENGINE

1. Three selectable modes: Power, Smart, and Eco
2. Auto engine speed control
3. Up to 4500m (14,760 ft) altitude capability
4. 52°C (126°F) high-ambient cooling capacity
5. -18°C (-0.4°F) cold start capability
6. Hydraulic reverse fan
7. Double element air filter with integrated pre-cleaner
8. 3 vertical side-by-side cooling system
9. Remote disable
10. 95 Amp alternator

HYDRAULIC SYSTEM

1. Boom and stick regeneration circuit
2. Electronic main control valve
3. Dedicated closed loop swing circuit
4. Anti-reaction valve
5. Auto hydraulic oil warmup
6. Auto swing parking brake
7. High performance hydraulic return filter
8. Two speed travel
9. Bio hydraulic oil capability

SAFETY AND SECURITY

1. Caterpillar One Key security system
2. 2D E-Fence
3. Lockable fuel drain compartment
4. Lockable external tool / storage box
5. Lockable door, fuel, and hydraulic tank locks
6. Lockable disconnect switch
7. Service platform with anti-skid plate & recessed bolts
8. Full handrail mount on platform
9. Mirror package
10. Signaling/warning horn
11. Travel alarm
12. Ground-level secondary engine shutoff switch
13. Rearview and right-hand-sideview cameras
14. Walkway

SERVICE AND MAINTENANCE

1. Integrated vehicle health management system
2. Auto lube ready
3. Reversing cooling fan
4. Grouped location of engine oil & fuel filters
5. Scheduled Oil Sampling (S·O·S) ports
6. QuickEvac maintenance ready

UNDERCARRIAGE AND STRUCTURES

1. Long variable gauge undercarriage
2. Grease lubricated track
3. Swivel guard
4. HD bottom guard
5. HD travel motor guard
6. Standard counterweight
7. Towing eye on base frame

NOTE

1. Standard and optional equipment may vary. Consult your Cat® dealer for details.

BOOMS AND STICKS

1. 7.25 m (23’9″) Mass boom
2. 8.4 m (27’7″) GP boom
3. 10 m (32’10”) Reach boom
4. 2.92 m (9’7″) GP stick
5. 2.92 m (9’7″) Mass stick
6. 3.4 m (11’2″) Mass stick
7. 3.4 m (11’2″) GP stick
8. 3.7 m (12’2″) GP stick
9. 4.4 m (14’5″) HD Reach stick
10. 5.5 m (18’1″) HD Reach stick
11. Bucket linkage, HB2 type without lifting eye, Autolube ready
12. Bucket linkage, HB2 type without lifting eye, Autolube ready
13. Bucket linkage, JC type with lifting eye, Autolube ready
14. Bucket linkage, JC type without lifting eye, Autolube ready

CAB

1. Operator Protective Guards (OPG)
2. Additional high-resolution LCD touch screen monitor for Cat® Grade Advanced 2D and 3D
3. Cat® Stick Steer
4. Auxiliary relay

CAT TECHNOLOGY

1. Operator Coaching
2. Cat Grade with 2D with Attachment Ready Option (ARO)
3. Cat Grade with 3D (single or dual GNSS)
4. Cat Grade 3D Ready
5. Cat Grade Connectivity
6. Cat Advanced Payload
7. Cat Tiltrotator (TRS) integration

ELECTRICAL SYSTEM

1. LED boom and cab lights
2. 1,800 lumen LED premium surround lights

ENGINE

1. Cold start block heaters
2. -32°C (-25°F) cold start capability

HYDRAULIC SYSTEM

1. SmartBoom™
2. Advanced tool control
3. Medium-pressure auxiliary circuit
4. Quick coupler circuit
5. Hydraulic efficiency monitoring

SAFETY AND SECURITY

1. Swing alarm
2. 360° visibility
3. Boom lowering check valve
4. Stick lowering check valve
5. Tilt-up walkway
6. Inspection lighting
7. Cat Command (remote control)

SERVICE AND MAINTENANCE

1. Fast-fill fuel system
2. QuickEvac maintenance ready
3. Electric refueling pump with auto shutoff

UNDERCARRIAGE AND STRUCTURES

1. 650mm (26″) HD double grouser track shoes
2. 750mm (30″) HD double grouser track shoes
3. 900mm (35″) HD double grouser track shoes
4. Three-piece segmented track guiding guards
5. Two-piece segmented track guiding guards
6. Counterweight with removal device

OTHER OPTIONAL CONFIGURATION

1. Long Reach (LRE)
