301.7 CR

• Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

• Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

• Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

• Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

• Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

• Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

• Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

• The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
• Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
• Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
• Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
• The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
• Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
• Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

ENGINE

1. Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
2. Automatic Engine Idle
3. Automatic Engine Shutdown
4. Automatic Two Speed Travel
5. Fuel Water Separator
6. Power on Demand (not available in all regions)
7. Variable Displacement Piston Pump
8. Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

1. Smart Tech Electronic Pump
2. Accumulator
3. Automatic Swing Brake
4. Auxiliary Hydraulic Lines
5. One and Two Way Auxiliary Flow
6. Continuous Auxiliary Flow
7. Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

1. Tilt-up Canopy
2. Top Guard ISO 10262:1998 Level I
3. ROPS – ISO 12117-2:2008
4. TOPS – ISO 12117:1997
5. Machine 2-Point Lifting
6. Stick Steer Mode
7. Travel Cruise Control
8. Control Pattern Changer (optional in some regions)
9. Adjustable Wrist Rests
10. Washable Floor Mat
11. Travel Pedals and Hand Levers
12. Machine Security
13. Machine Security – Standard Key with Pass Code
14. Vinyl Non-Suspension Seat
15. Hydraulic Lockout – All Controls
16. Retractable High Visibility Seat Belt (75 mm/3 in)
17. Coat Hook
18. Cup Holder
19. Storage Pocket
20. Skylight
21. Mounting Bosses for Front
22. Signaling/Warning Horn
23. Boom Light, Halogen
24. Utility Space for Mobile Phone
25. Next Generation Color LCD Monitor (IP66)
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Hour Meter with Wake Up Switch

UNDERCARRIAGE

1. Expandable Undercarriage
2. Rubber Belt (230 mm/9 in wide)
3. Dozer Blade
4. Dozer Blade Float
5. Hydraulic Track Adjusters
6. Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

1. One Piece Boom (1780 mm/70 in)
2. Standard Stick (960 mm/37.8 in)
3. Front Shovel Capable
4. Front Shovel Capable – Pin-On
5. Thumb Ready (not available in all regions)
6. Certified Lifting Eye (optional in some regions)

ELECTRICAL

1. 12 Volt Battery
2. Software (machine and monitor)
3. Maintenance Free Battery
4. Signaling/Warning Horn
5. 12 Volt Power Socket

OPERATOR ENVIRONMENT

1. Control Pattern Changer (optional in some regions)
2. No Travel Pedals and Hand Levers
3. Machine Security – Push to Start with Key Fob/Pass Code
4. Vinyl Suspension Seat
5. LED Front Lights
6. LED Front and Rear Lights
7. LED Boom Light
8. Mirrors Left and Right
9. Seat Belt Reminder System

UNDERCARRIAGE

1. Steel Track (230 mm/9 in wide)

BOOM, STICK AND LINKAGES

1. Long Stick (1160 mm/45.7 in)

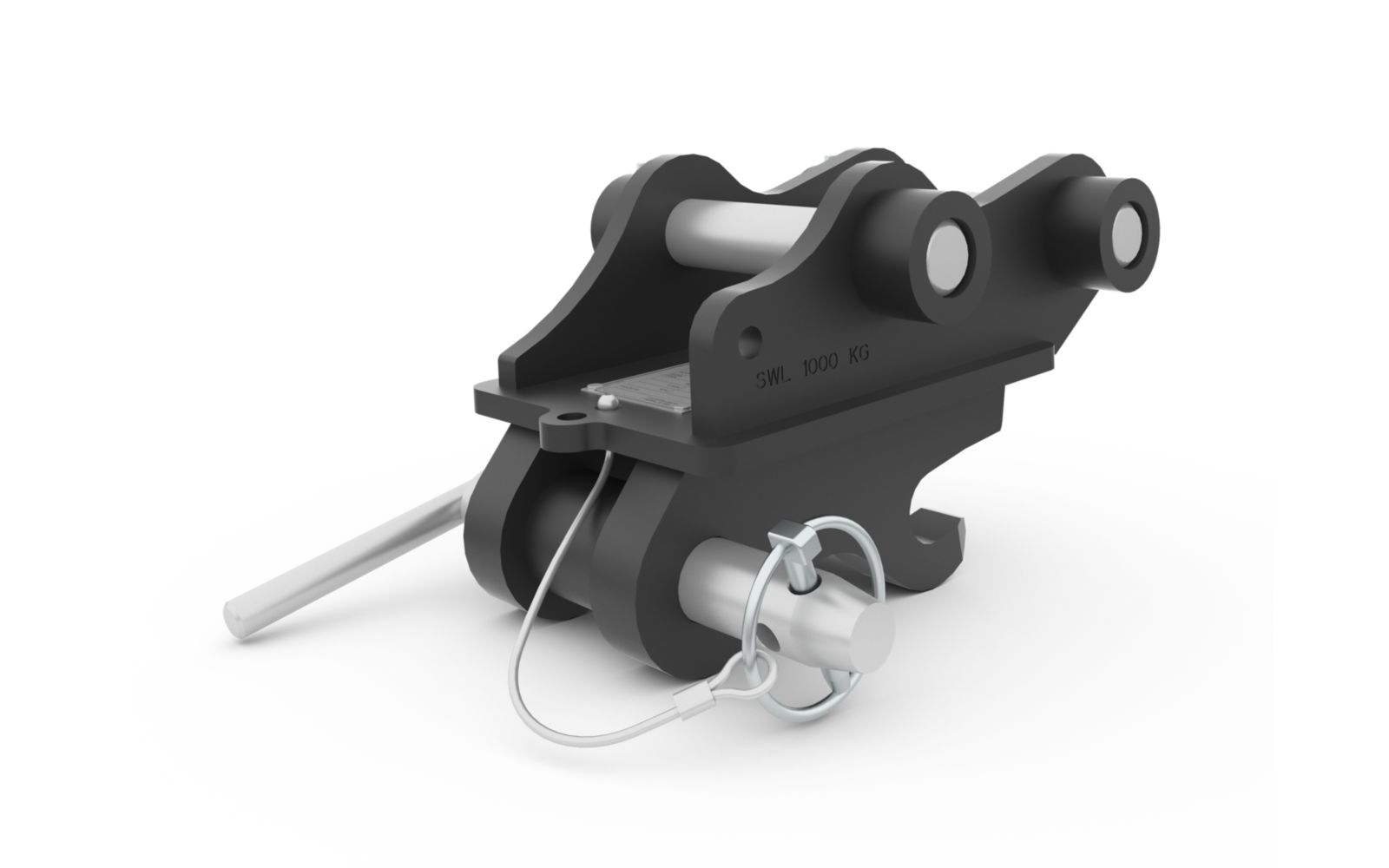

2. Front Shovel Capable – Dual Lock Manual Coupler

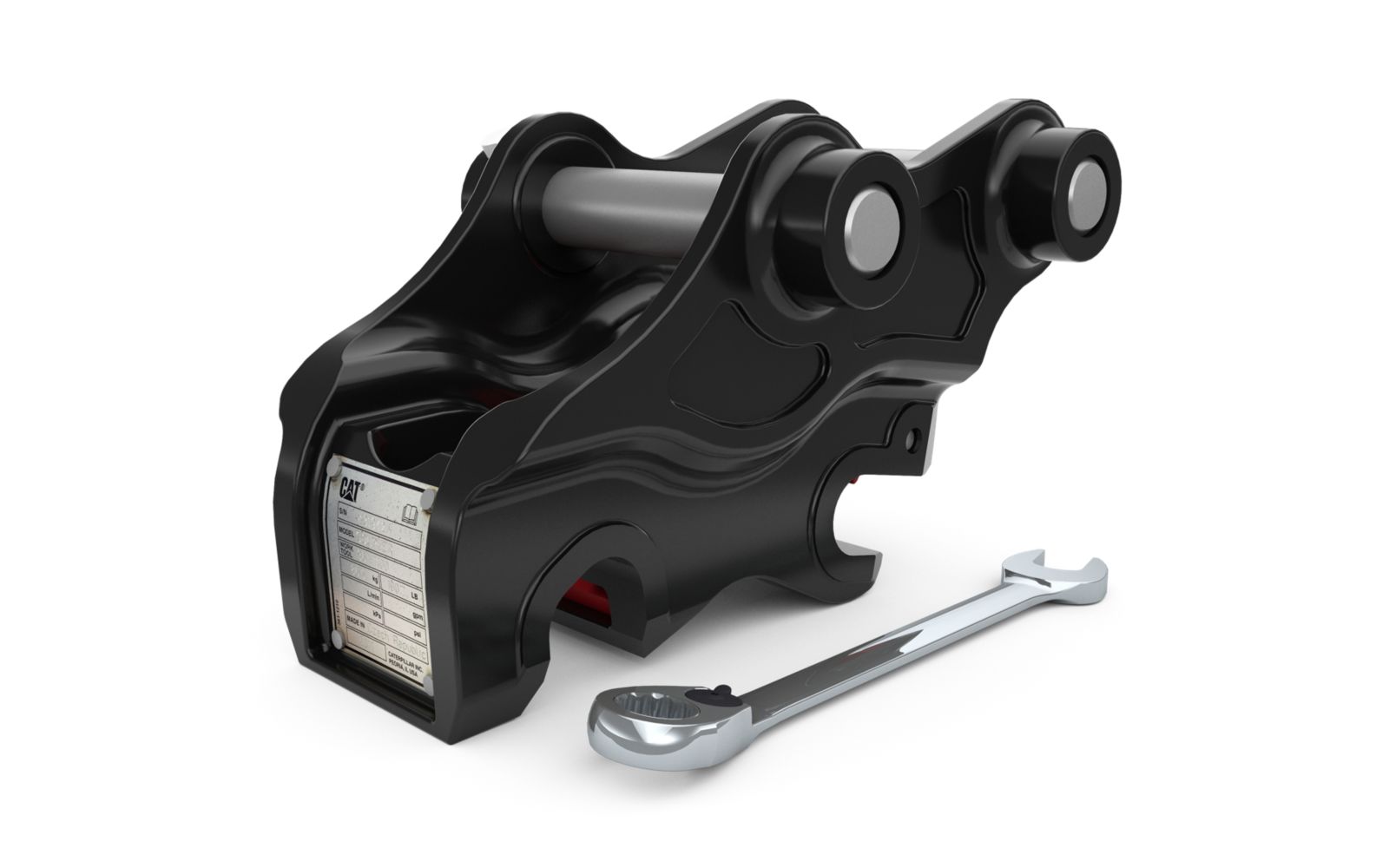

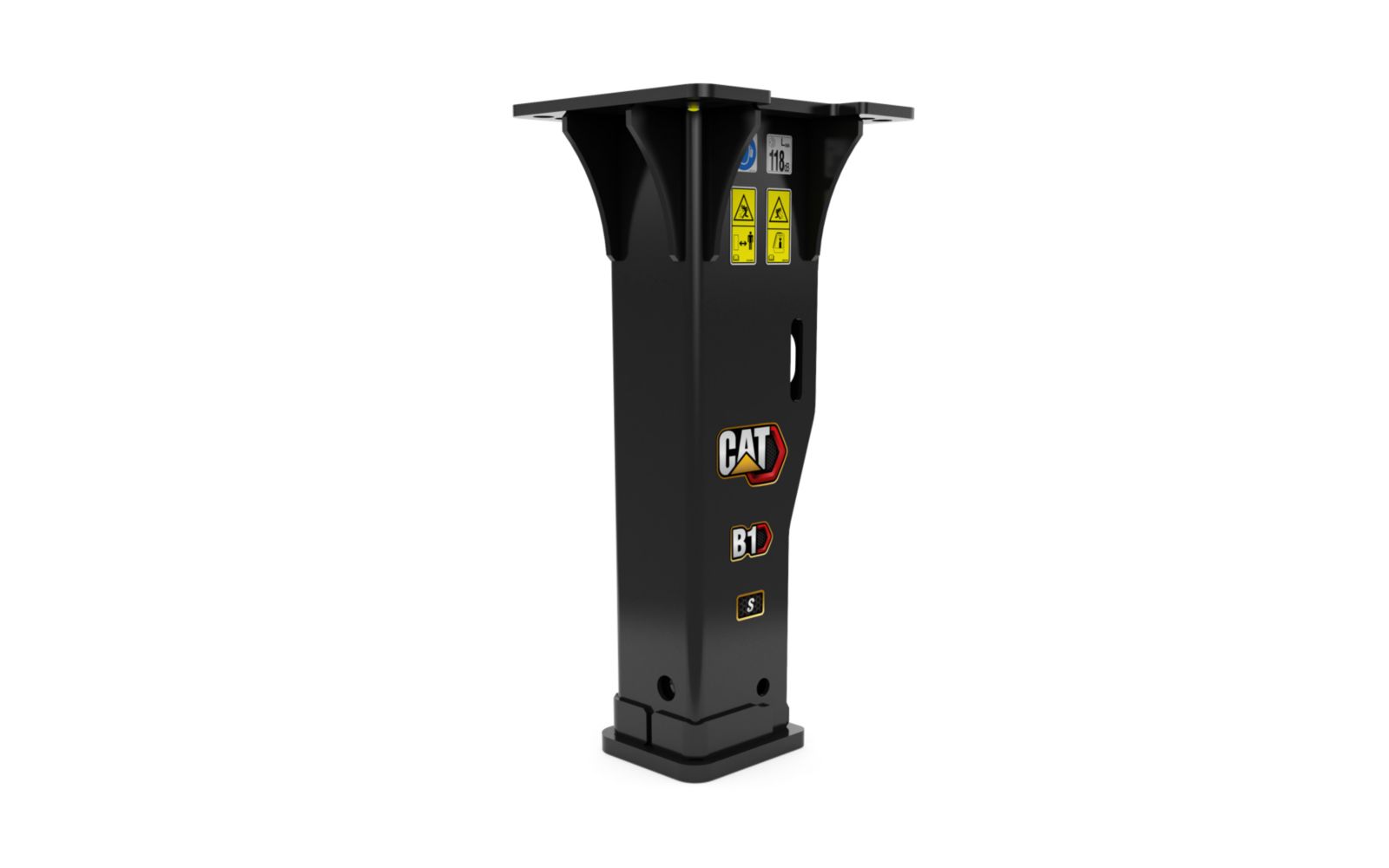

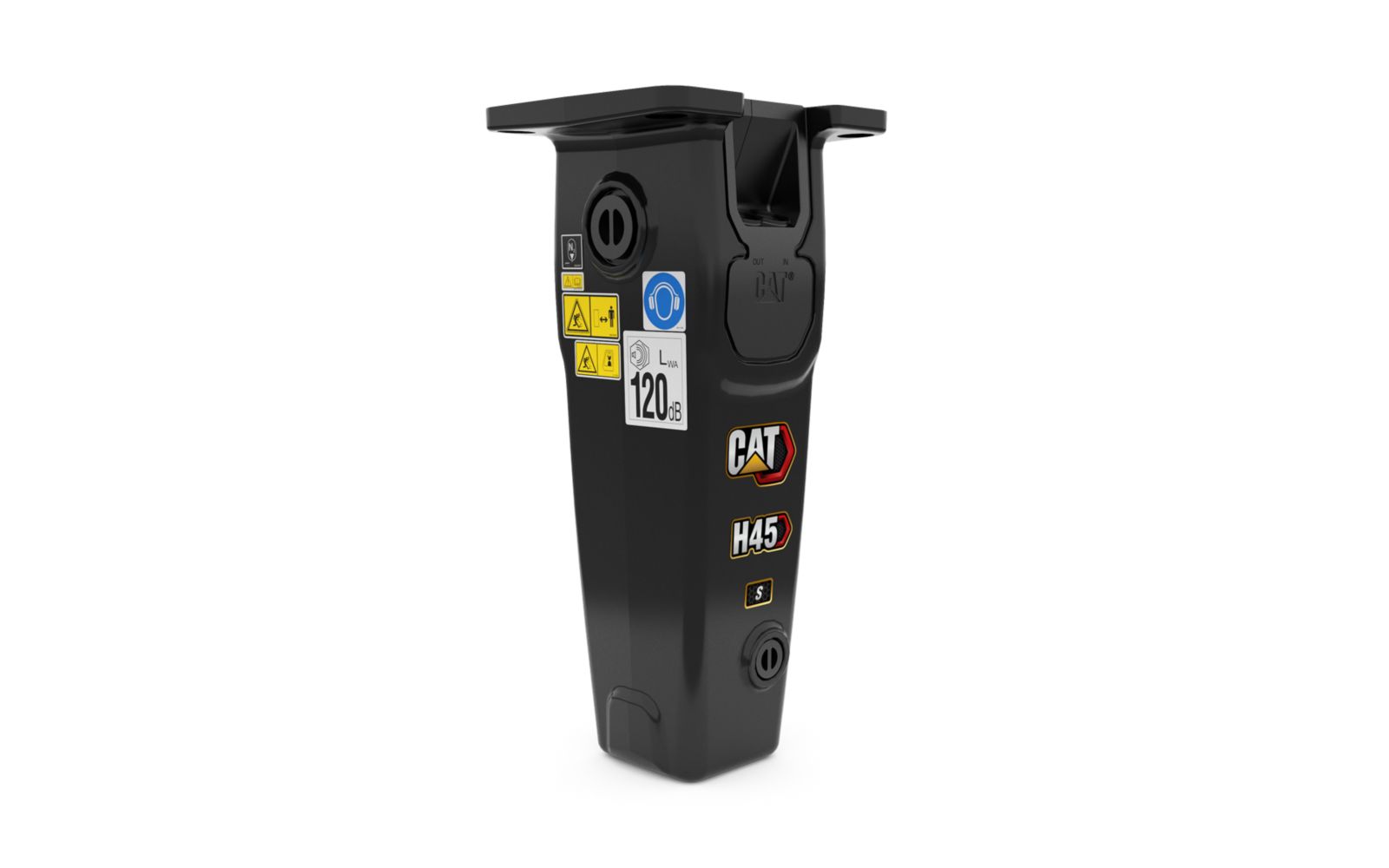

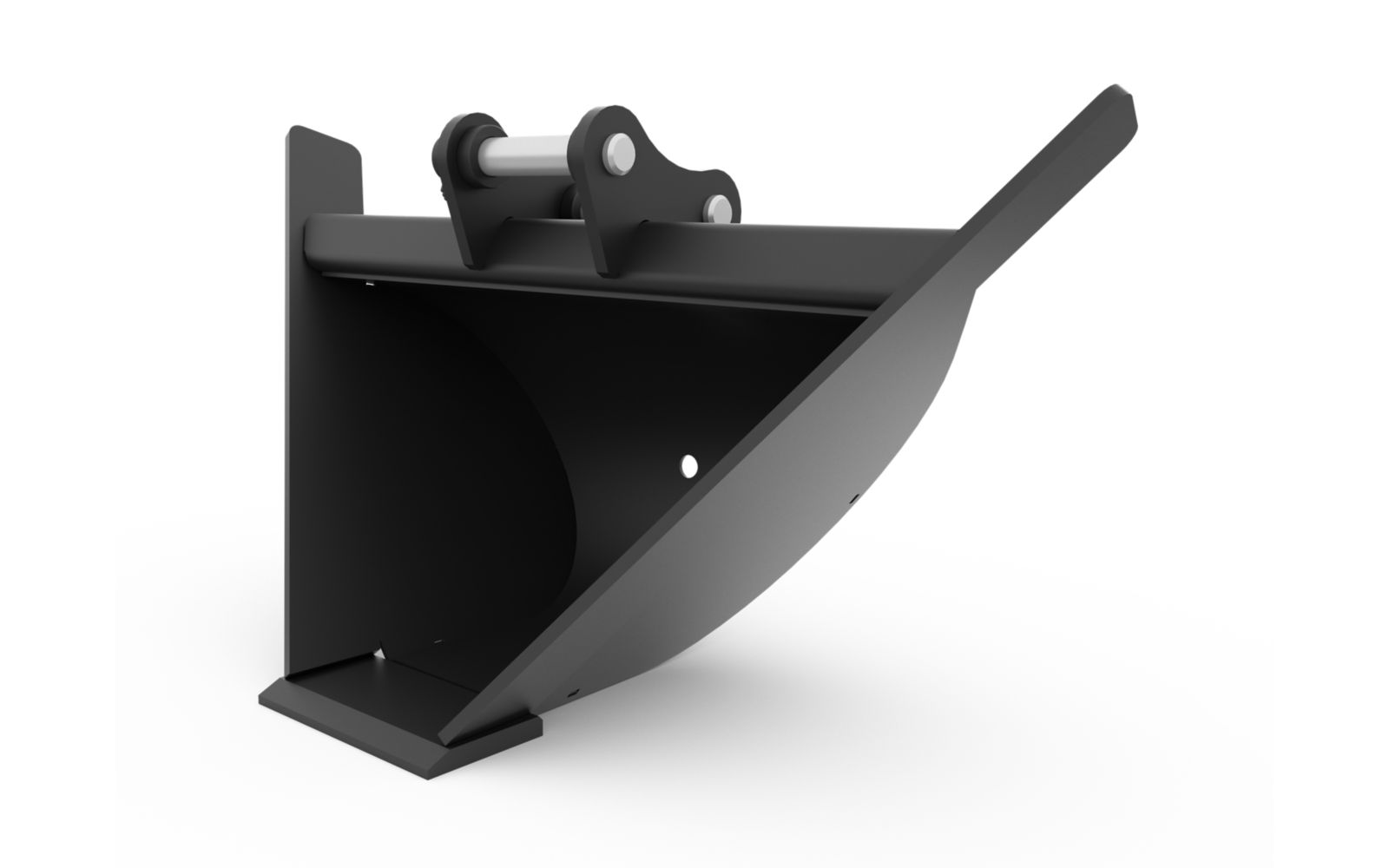

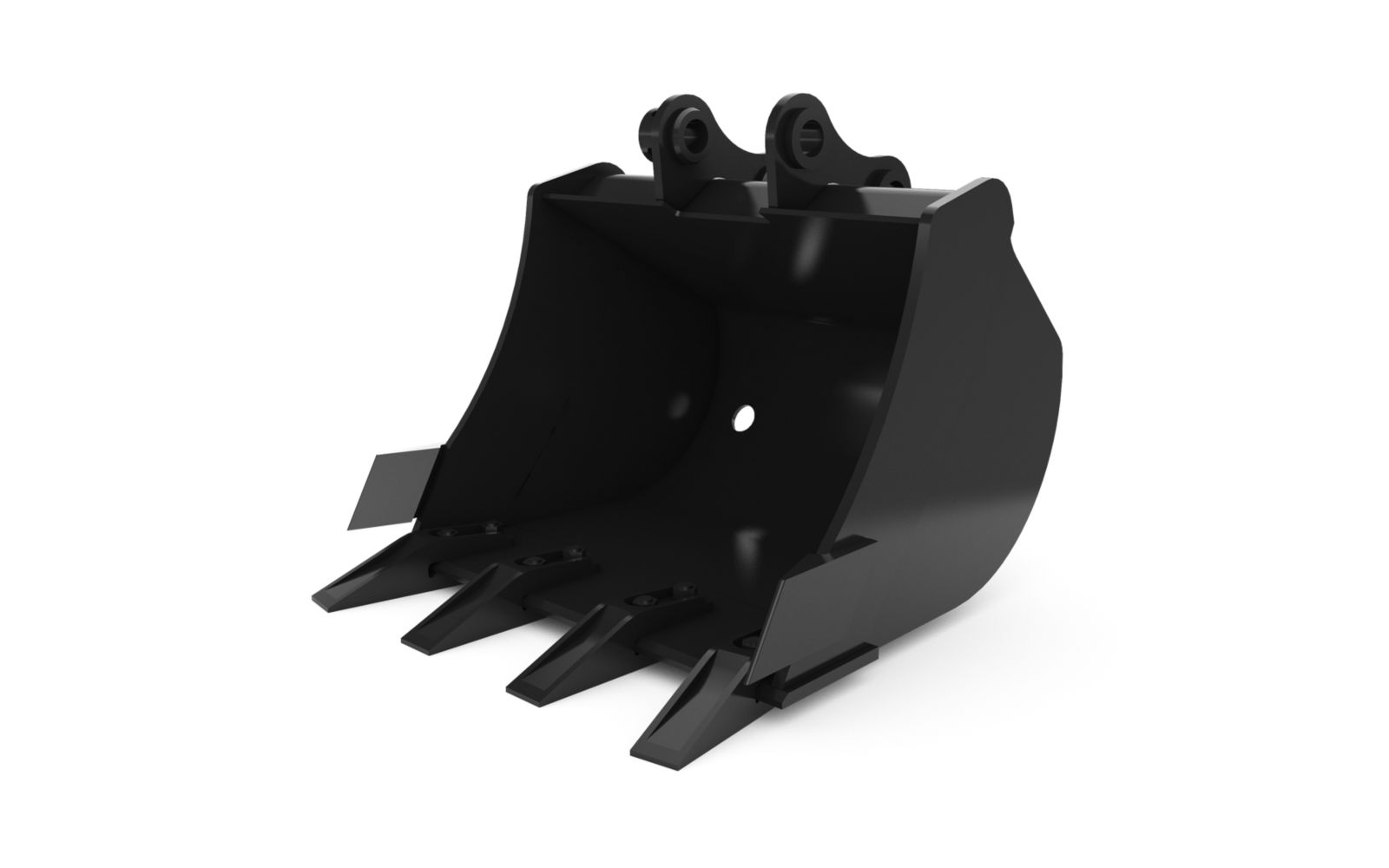

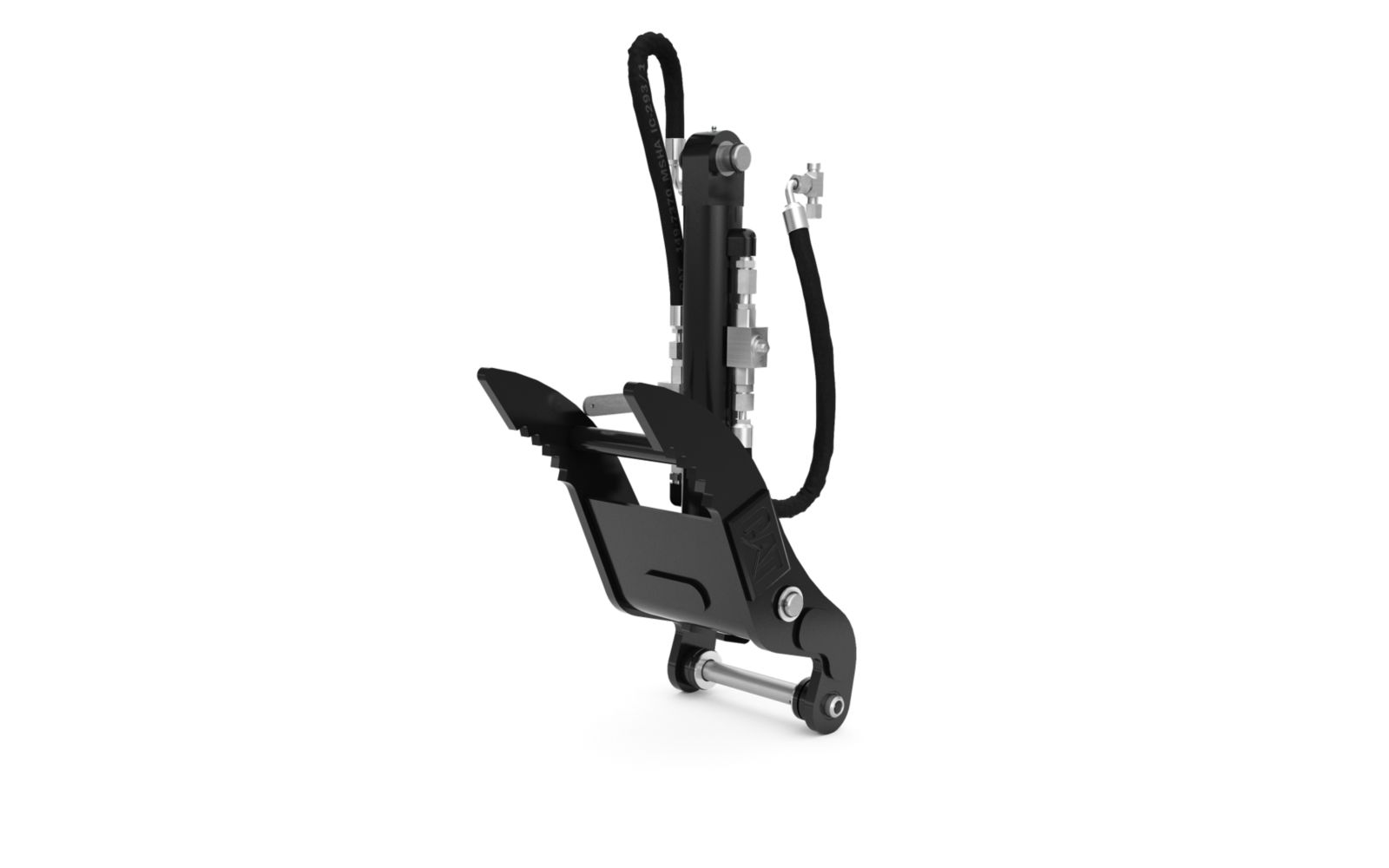

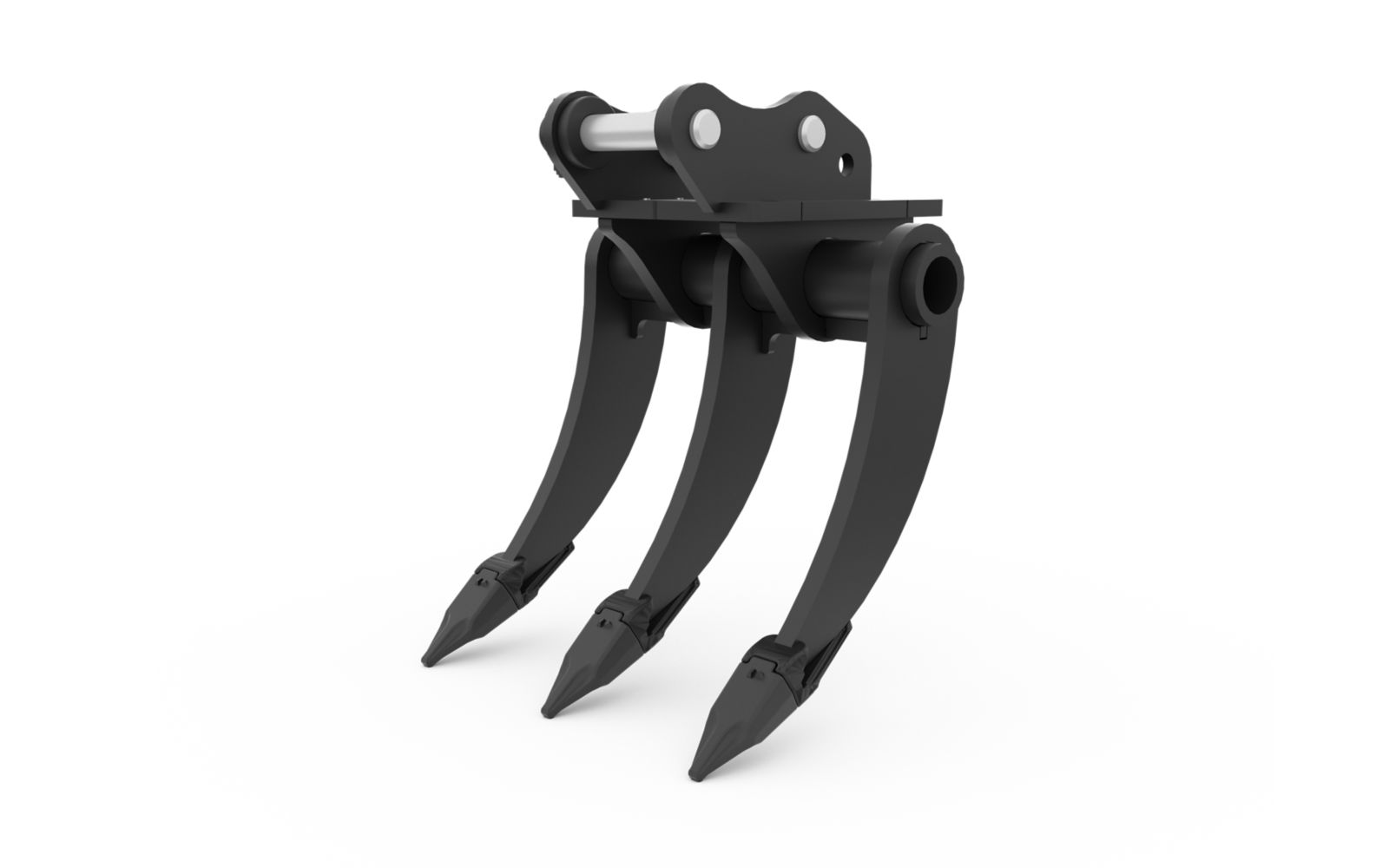

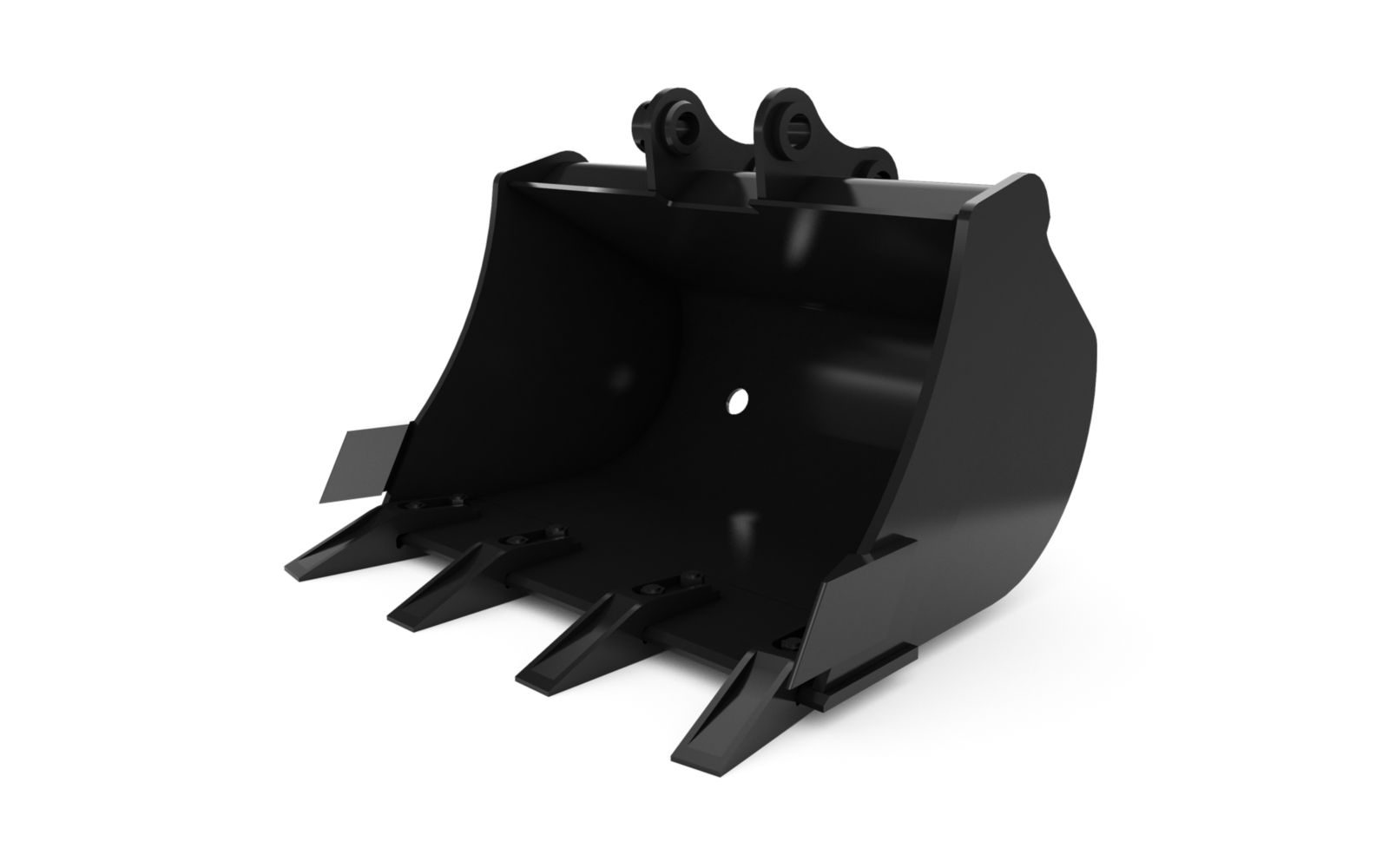

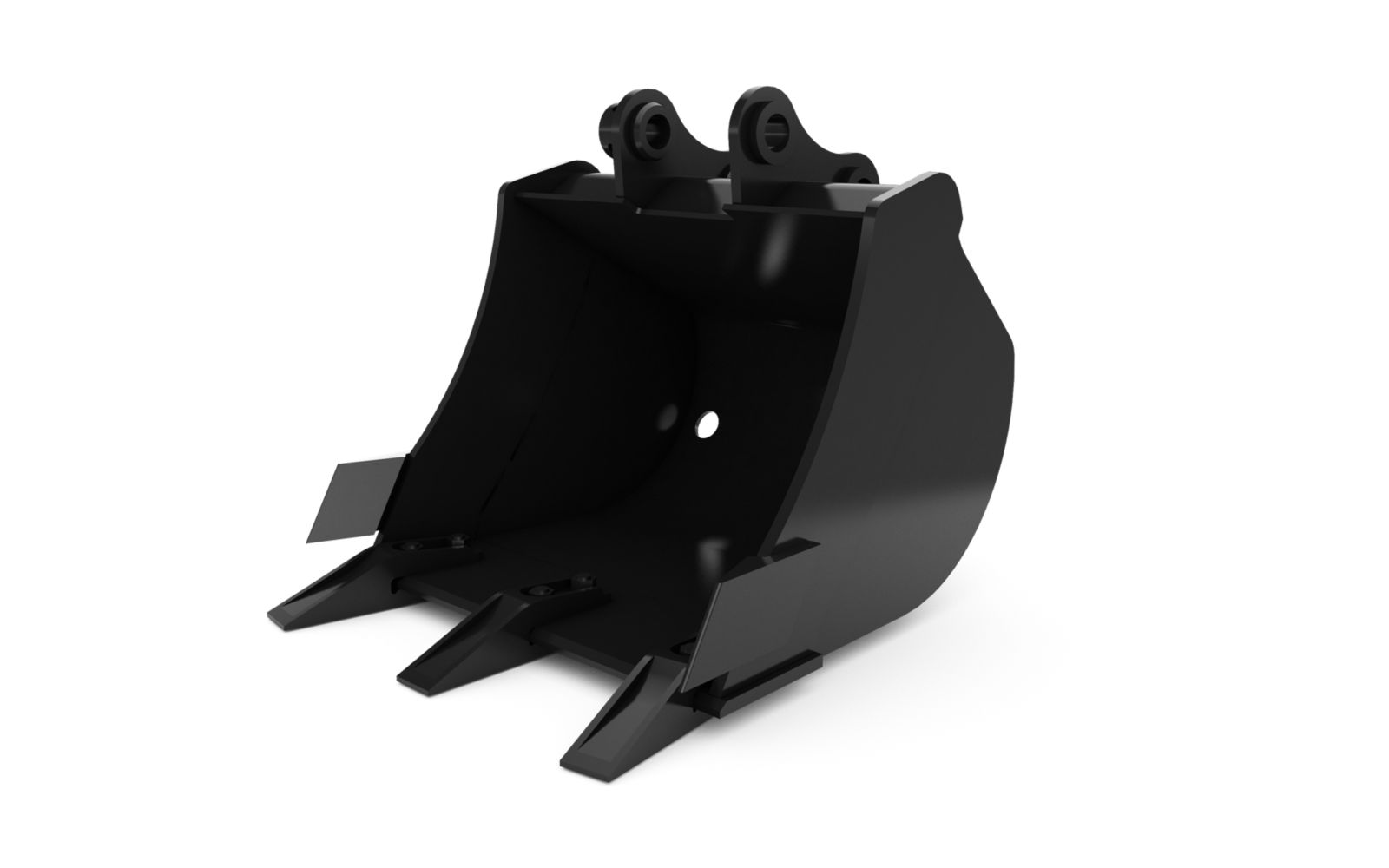

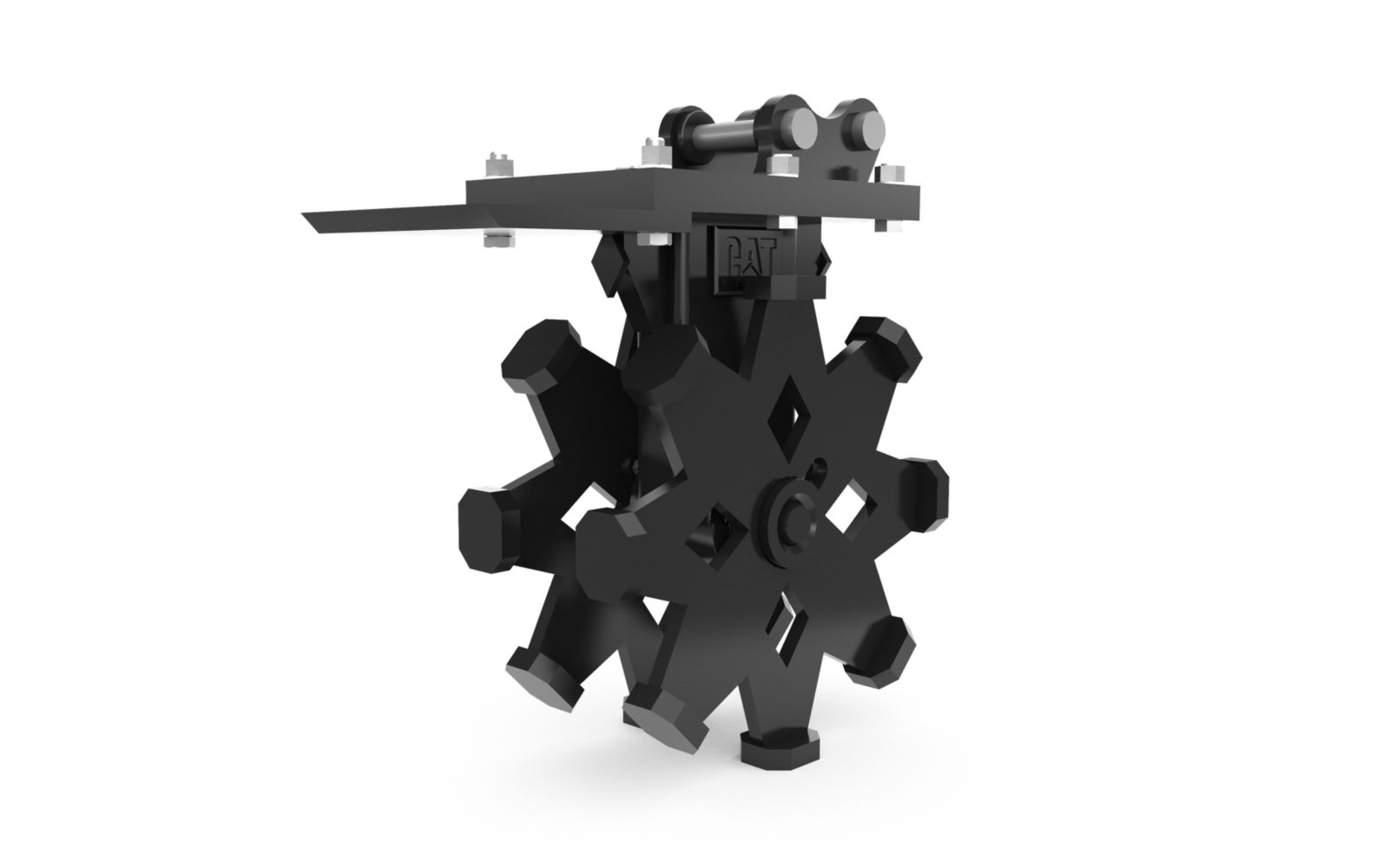

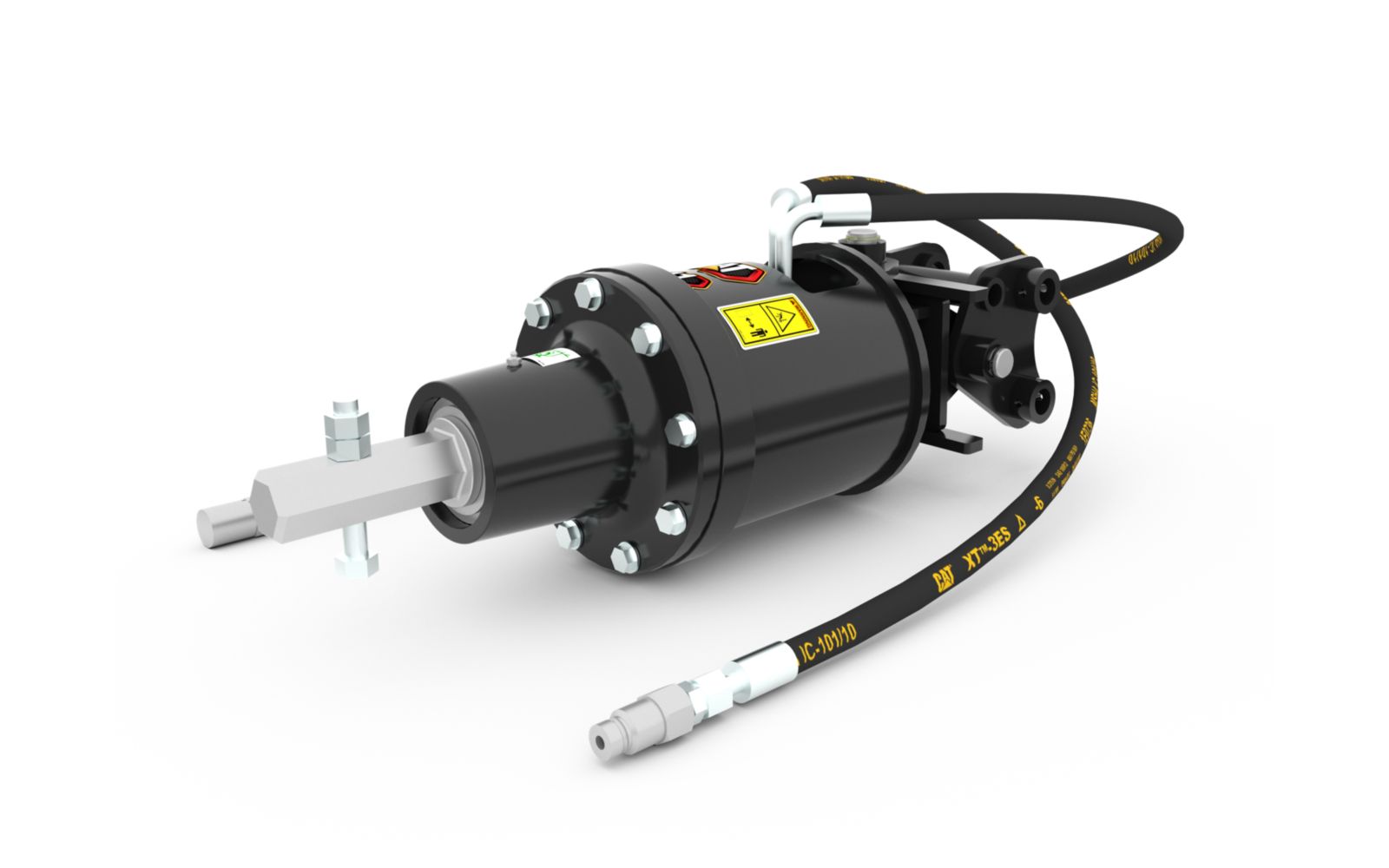

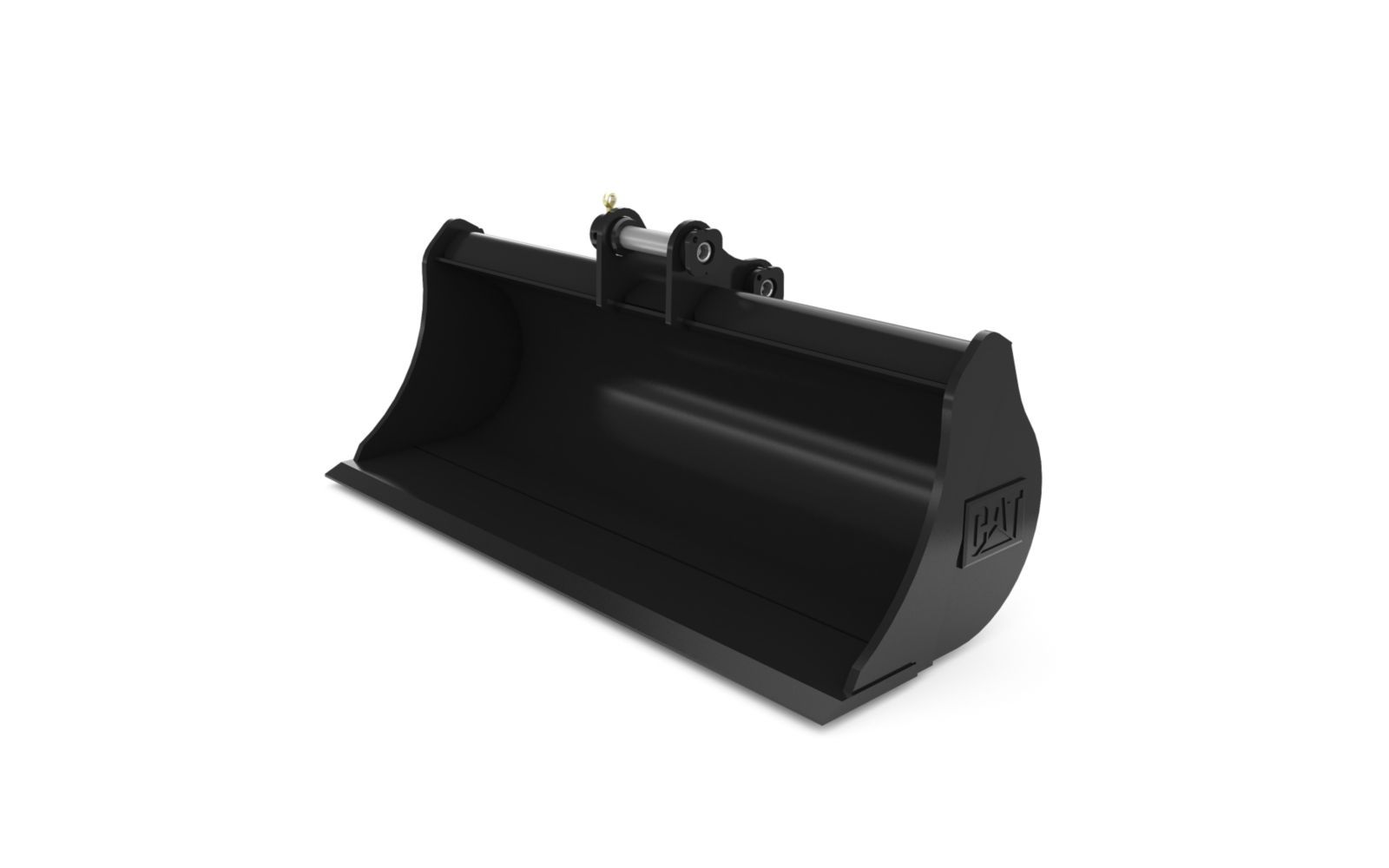

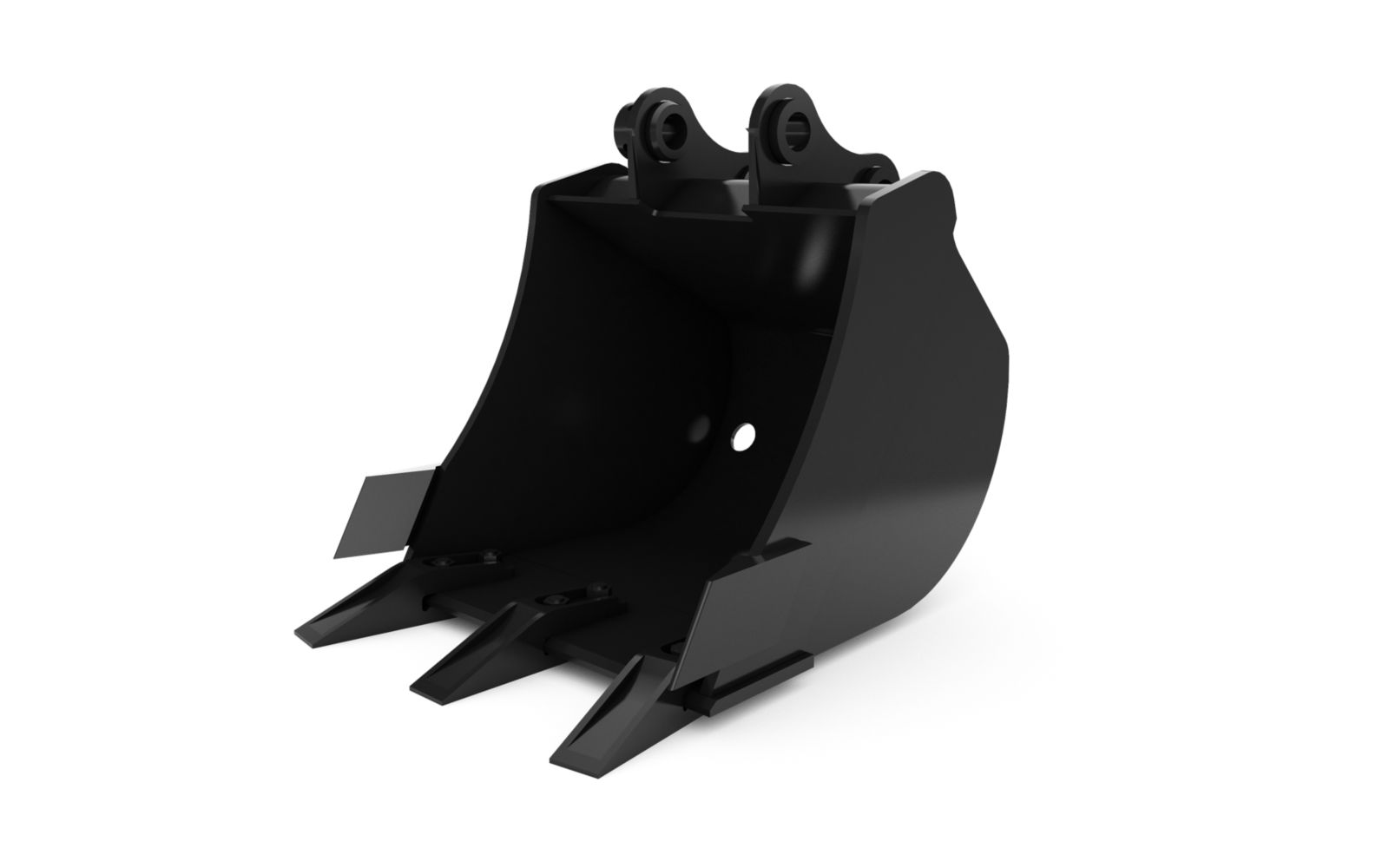

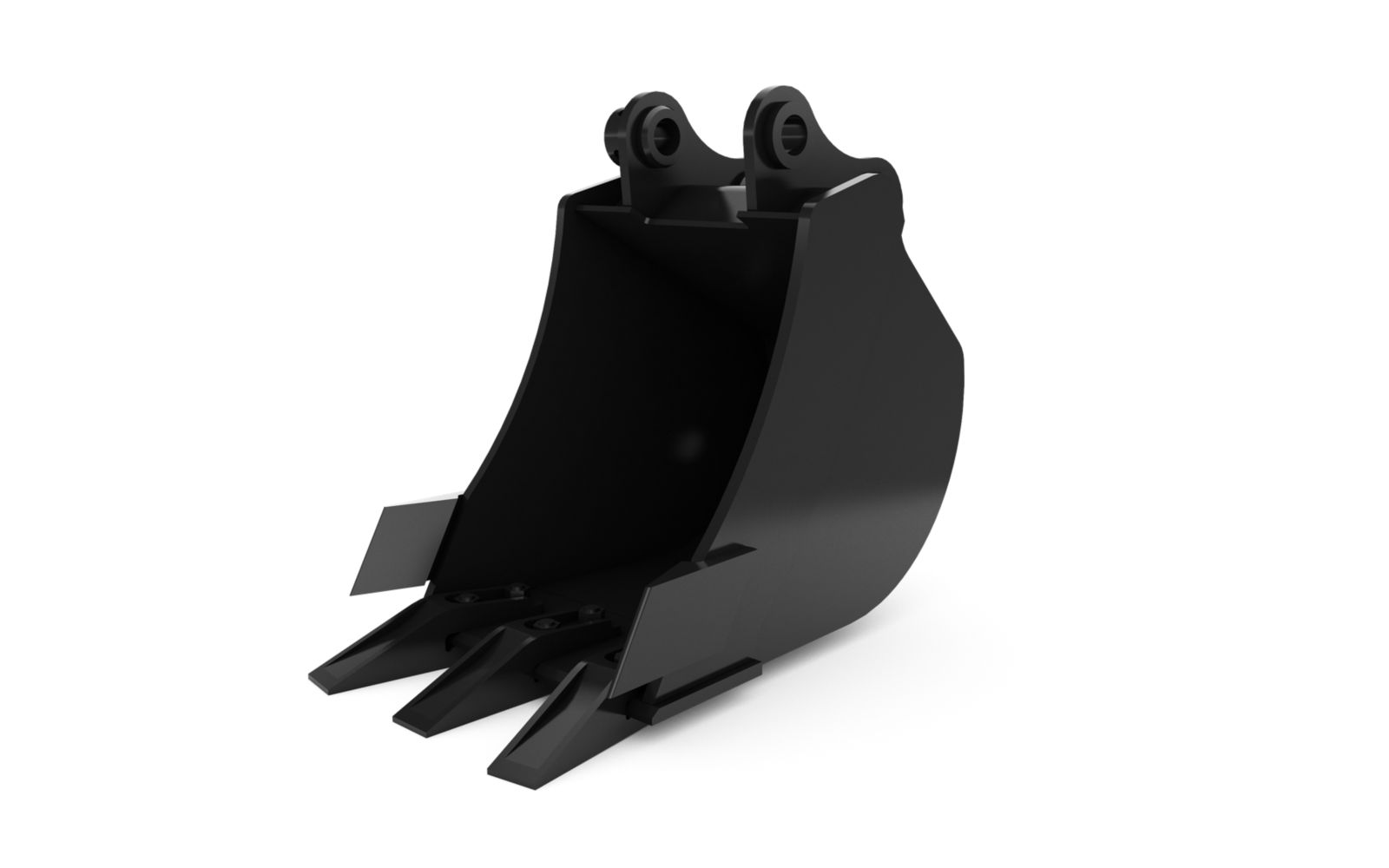

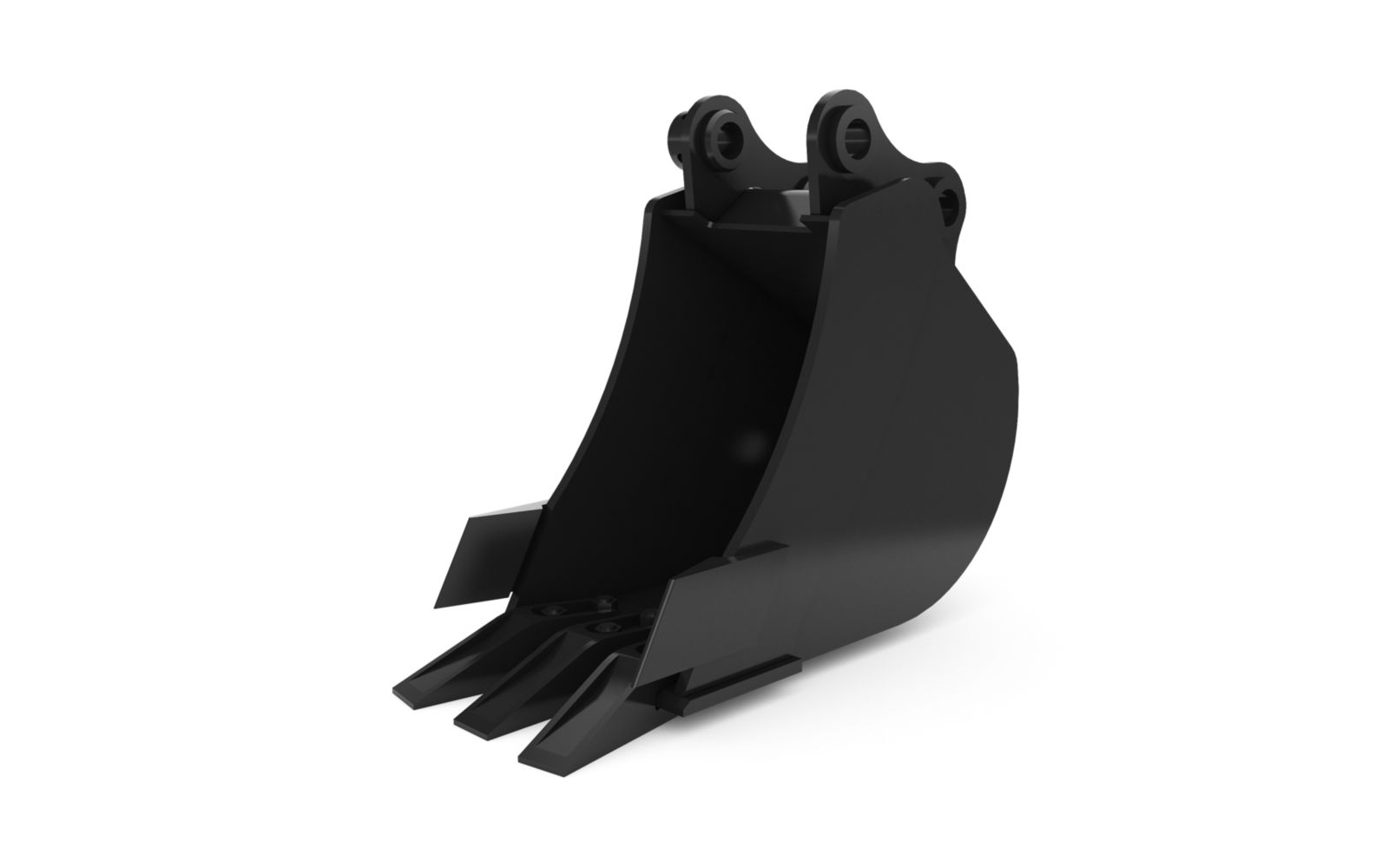

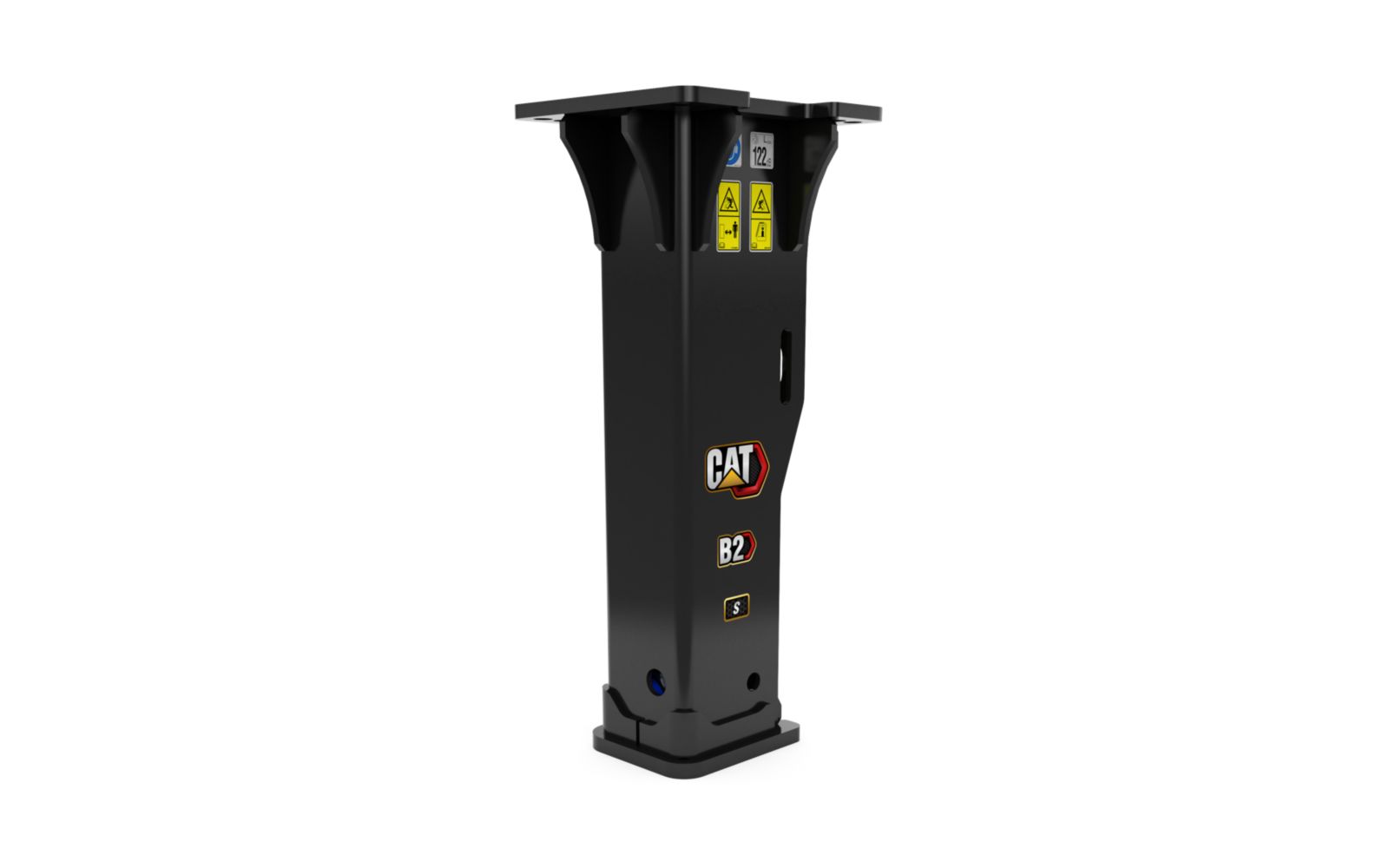

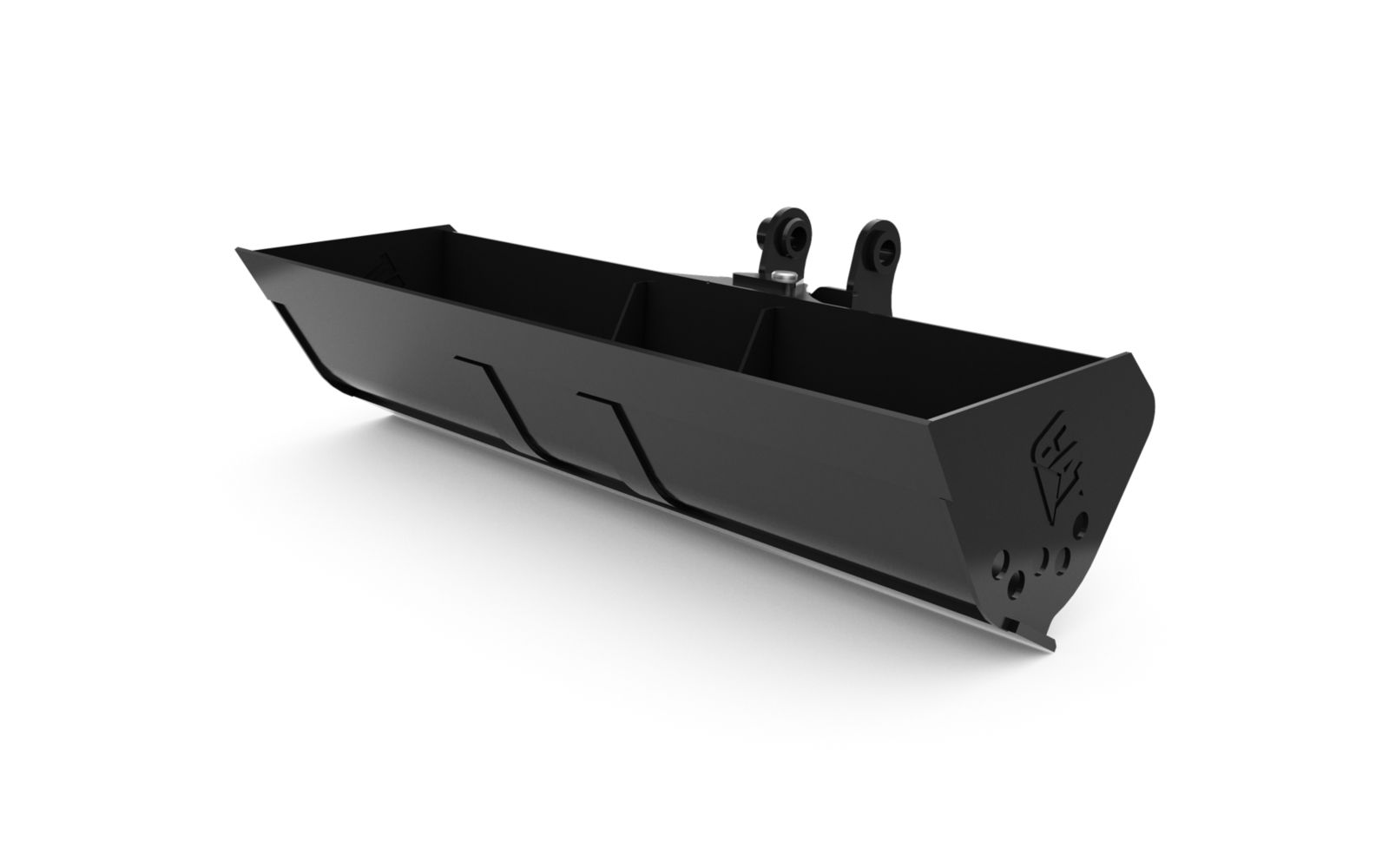

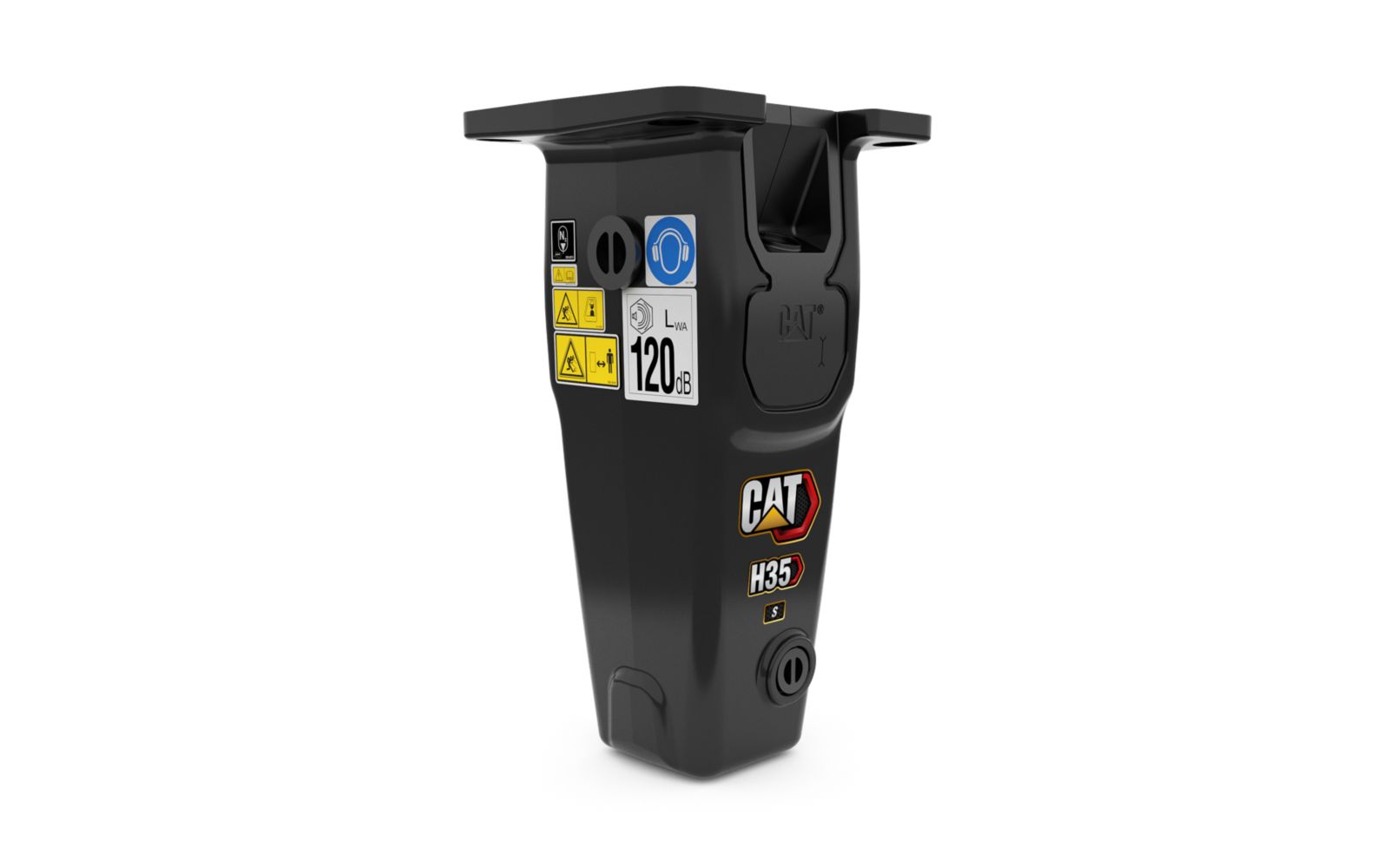

3. Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
4. 2nd Auxiliary Hydraulic Lines
5. Boom Lowering Check Valve
6. Stick Lowering Check Valve
7. Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

1. Battery Disconnect
2. Product Link PL243 (regulations apply)
3. Product Link PLE643 (regulations apply)
4. Travel Alarm (standard in some regions)

GUARDING

1. Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)
2. Polycarbonate Half Height Front Guard (Canopy only)

OTHER

1. Bio Oil Capable
2. Eco Drain
3. Water Jacket Heater
4. Heavy Counterweight
