Excavators

305 CR

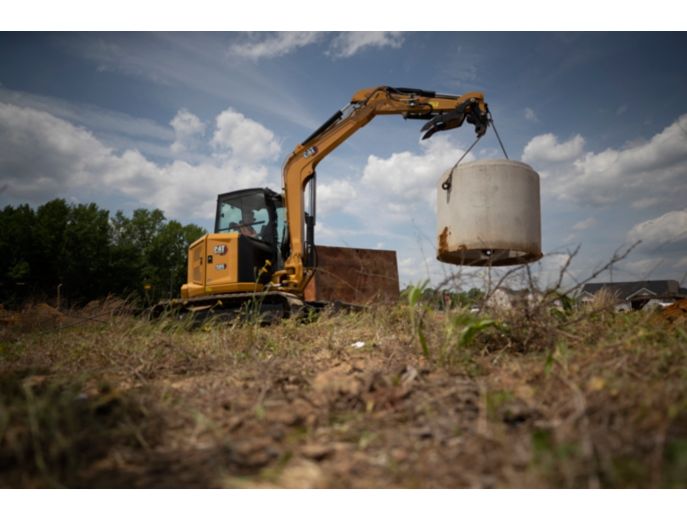

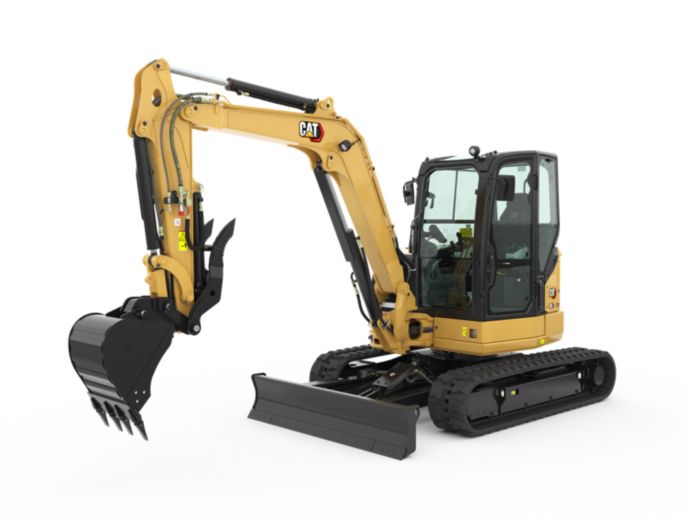

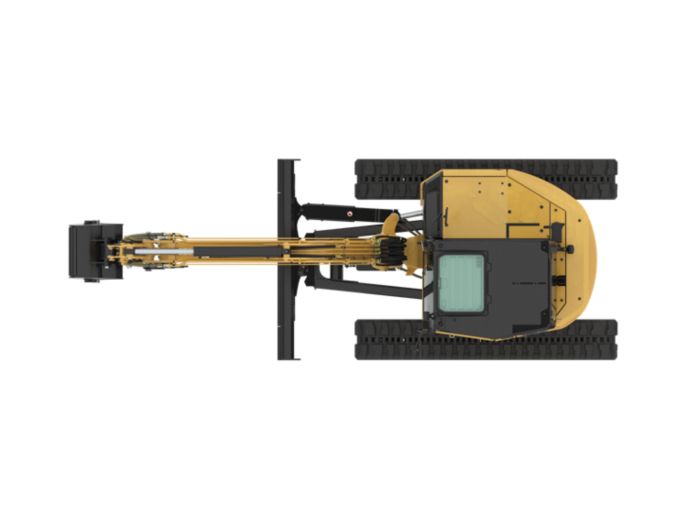

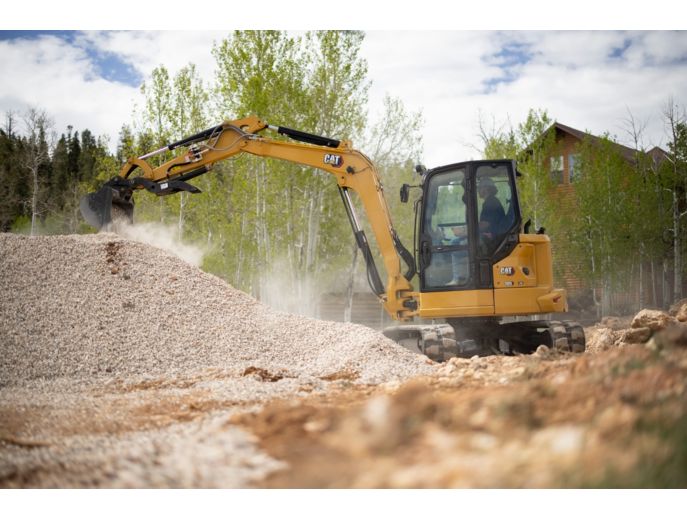

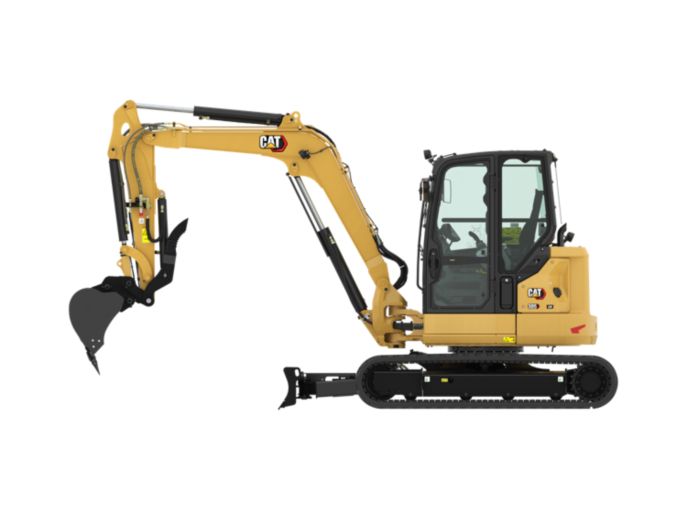

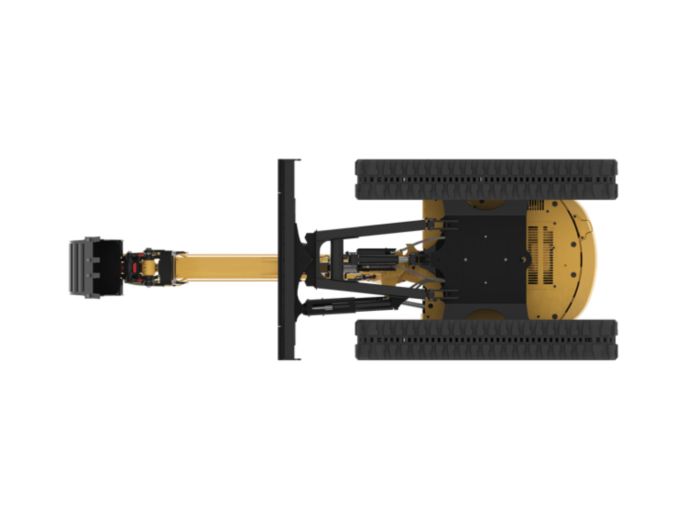

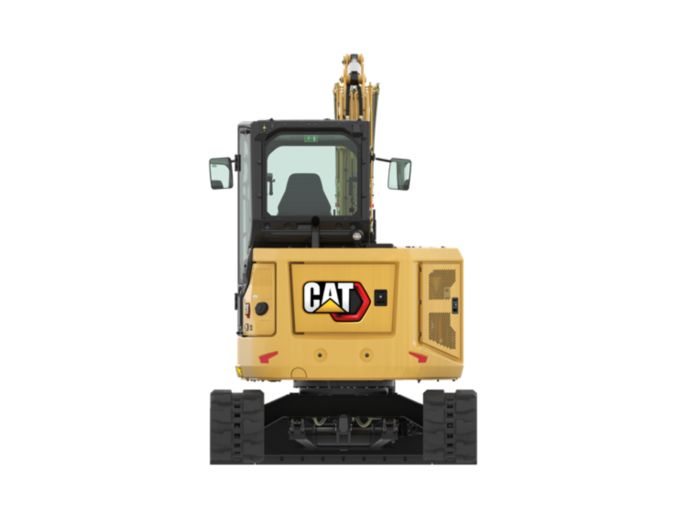

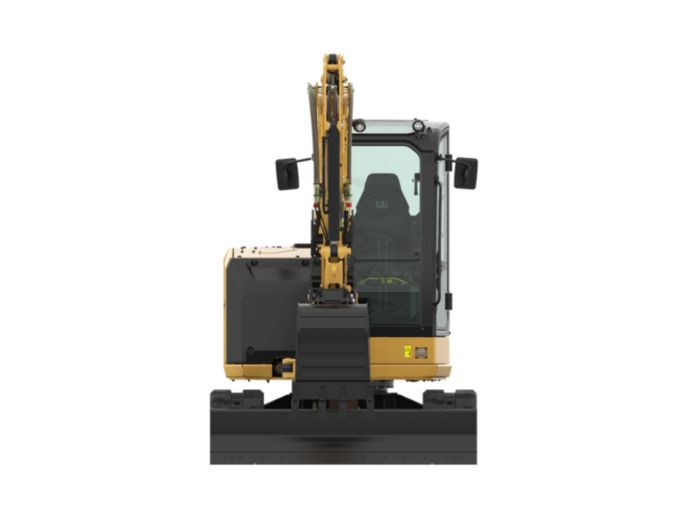

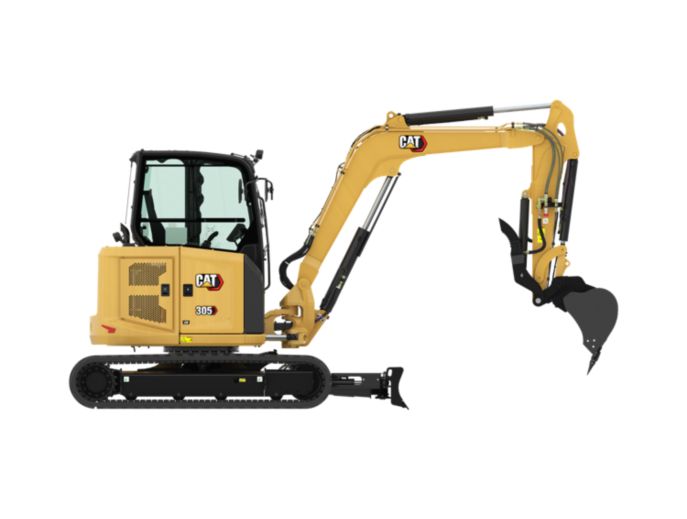

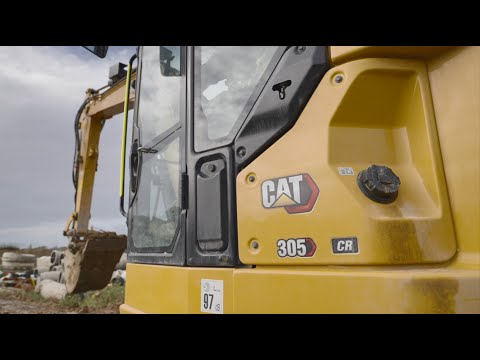

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	33.6 kW	45 HP
Engine Model	C1.7 Turbo	C1.7 Turbo
Displacement	1.662 l	101 in³
Gross Power - 2,400 rpm - SAE J1995:2014	36.1 kW	48.4 HP
Stroke	100 mm	3.9 in
Bore	84 mm	3.3 in
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	33.6 kW	45 HP
Note	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.

Weights

Operating Weight	5754 kg	12688 lb
Note (2)	**Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.	**Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.
Minimum Operating Weight with Cab*	5105 kg	11257 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Minimum Operating Weight with Canopy*	5006 kg	11038 lb
Maximum Operating Weight with Canopy**	5665 kg	12491 lb
Maximum Operating Weight with Cab**	5764 kg	12710 lb

Dimensions - Long Stick

Dig Depth	3670 mm	144.5 in
Maximum Reach	5990 mm	235.8 in
O/A Shipping Height	2550 mm	100.4 in
Vertical Wall	2560 mm	100.8 in
Track Width	1980 mm	78 in
Overall Shipping Length*	5340 mm	210.2 in
Maximum Dump Clearance	3845 mm	151.4 in
Tail Swing with Counterweight	1200 mm	47.2 in
Boom Swing - Right	865 mm	34.1 °
Boom Swing - Left	24.2 °	615 mm
Tail Swing without Counterweight	1095 mm	43.1 in
Track Belt/Shoe Width	400 mm	15.7 in
Maximum Reach - Ground Level	5835 mm	229.7 in
Stick Length	1601 mm	63 in
Swing Bearing - Height	619 mm	24.4 in
O/A Undercarriage Length	2580 mm	101.6 in
Boom In Reach	2580 mm	101.6 in
Maximum Blade Depth	650 mm	25.6 in
Maximum Blade Height	400 mm	15.7 in
Maximum Dig Height	5355 mm	210.8 in
Boom Height - Shipping Position	1895 mm	74.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Ground Clearance	335 mm	13.2 in

Service Refill Capacities

Hydraulic Tank	60 l	16 gal (US)
Engine Oil	6 l	1.6 gal (US)
Hydraulic System	75 l	20 gal (US)
Fuel Tank	68 l	18 gal (US)
Cooling System	11 l	2.9 gal (US)

Swing System

Boom Swing - Left	72 Degrees	72 Degrees
Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Right	50 Degrees	50 Degrees

Hydraulic System

Digging Force - Bucket	49.2 kN	11061 lbf
Auxiliary Circuit - Secondary - Pressure	265 bar	3843 psi
Operating Pressure - Equipment	265 bar	3843 psi
Auxiliary Circuit - Secondary - Flow	28 l/min	7 gal/min
Operating Pressure - Travel	265 bar	3843 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Stick - Standard	28.3 kN	6362 lbf
Auxiliary Circuit - Primary - Pressure	265 bar	3843 psi
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	133 l/min	35 gal/min
Auxiliary Circuit - Primary - Flow	80 l/min	21 gal/min
Operating Pressure - Swing	200 bar	2901 psi
Digging Force - Stick - Long	25.2 kN	5665 lbf

Dimensions - Standard Stick

Tail Swing without Counterweight	1095 mm	43.1 in
Boom Swing - Left	615 mm	24.2 °
Boom Swing - Right	865 mm	34.1 °
Maximum Dig Height	5215 mm	205.3 in
Vertical Wall	2335 mm	91.9 in
Maximum Blade Height	400 mm	15.7 in
Swing Bearing - Height	619 mm	24.4 in
Boom Height - Shipping Position	1820 mm	71.7 in
Overall Shipping Length*	5305 mm	208.9 in
O/A Shipping Height	2550 mm	100.4 in
Dig Depth	3420 mm	134.6 in
Maximum Reach - Ground Level	5590 mm	220.1 in
Maximum Dump Clearance	3700 mm	145.7 in
Maximum Reach	5755 mm	226.6 in
Boom In Reach	2570 mm	101.2 in
Maximum Blade Depth	650 mm	25.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
O/A Undercarriage Length	2580 mm	101.6 in
Track Belt/Shoe Width	400 mm	15.7 in
Stick Length	1351 mm	53.2 in
Tail Swing with Counterweight	1200 mm	47.2 in
Ground Clearance	335 mm	13.2 in

Travel System

Maximum Traction Force - High Speed	24.7 kN	5553 lbf
Travel Speed - High	5 km/h	3.1 mile/h
Travel Speed - Low	2.8 km/h	1.7 mile/h
Ground Pressure - Maximum Weight	32.2 kPa	4.7 psi
Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Minimum Weight	27.3 kPa	4 psi
Maximum Traction Force - Low Speed	50.5 kN	11353 lbf

Weight Increase from Minimum Configuration

Counterweight	242 kg	534 lb
Angle Blade	92 kg	203 lb
Long Stick	34 kg	75 lb
Steel Tracks with Pads	375 kg	827 lb

Blade

Angle Blade - Right	25 degrees	25 degrees
Angle Blade Width	1980 mm	78 in
Angle Blade Height	400 mm	15.7 in
Straight Blade Width	1980 mm	78 in
Straight Blade Height	390 mm	15.4 in
Angle Blade - Left	25 degrees	25 degrees

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Top Guard	ISO 10262:1998 Level I	ISO 10262:1998 Level I

Sound

Operator Sound Pressure (ISO 6396:2008)	76 dB(A)	76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A)	97 dB(A)
Note	European Union Directive "2000/14/EC"	European Union Directive "2000/14/EC"

Sustainability

Recyclability	96%	96%

Features

ALL DAY COMFORT

Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

GUARDING

ROPS ISO 12117-2:2008
Top Guard ISO 10262:1998 (Level I)

ENGINE

Cat® C1.7 Turbo Engine (EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Canopy or Cab (Canopy not available in some regions)
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen (not available in all regions)
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (400 mm/15.7 in)
Dozer Straight Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2716 mm/106.9 in)
Standard Stick (1351 mm/53.2 in)
Front Shovel Capable – Pin-On
Thumb Ready
Certified Lifting Eye

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Battery Disconnect
12 Volt Power Socket
Travel Alarm (optional in some regions)

Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
No Travel Pedals and Hand Levers (optional in some regions)
Machine Security – Push to Start with Key Fob/Pass Code
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors, Left, Right and Rear
Camera
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

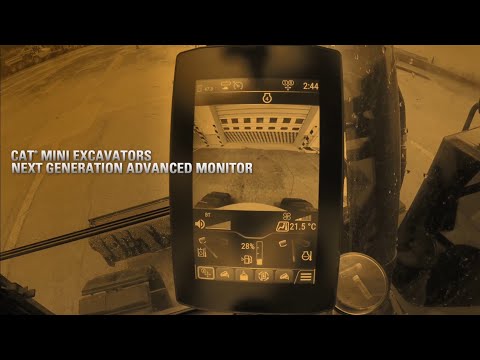

Next Generation Advanced Monitor – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code
Seat Belt Reminder System
Cat Grade with 3D
Cat Grade with Advanced 2D

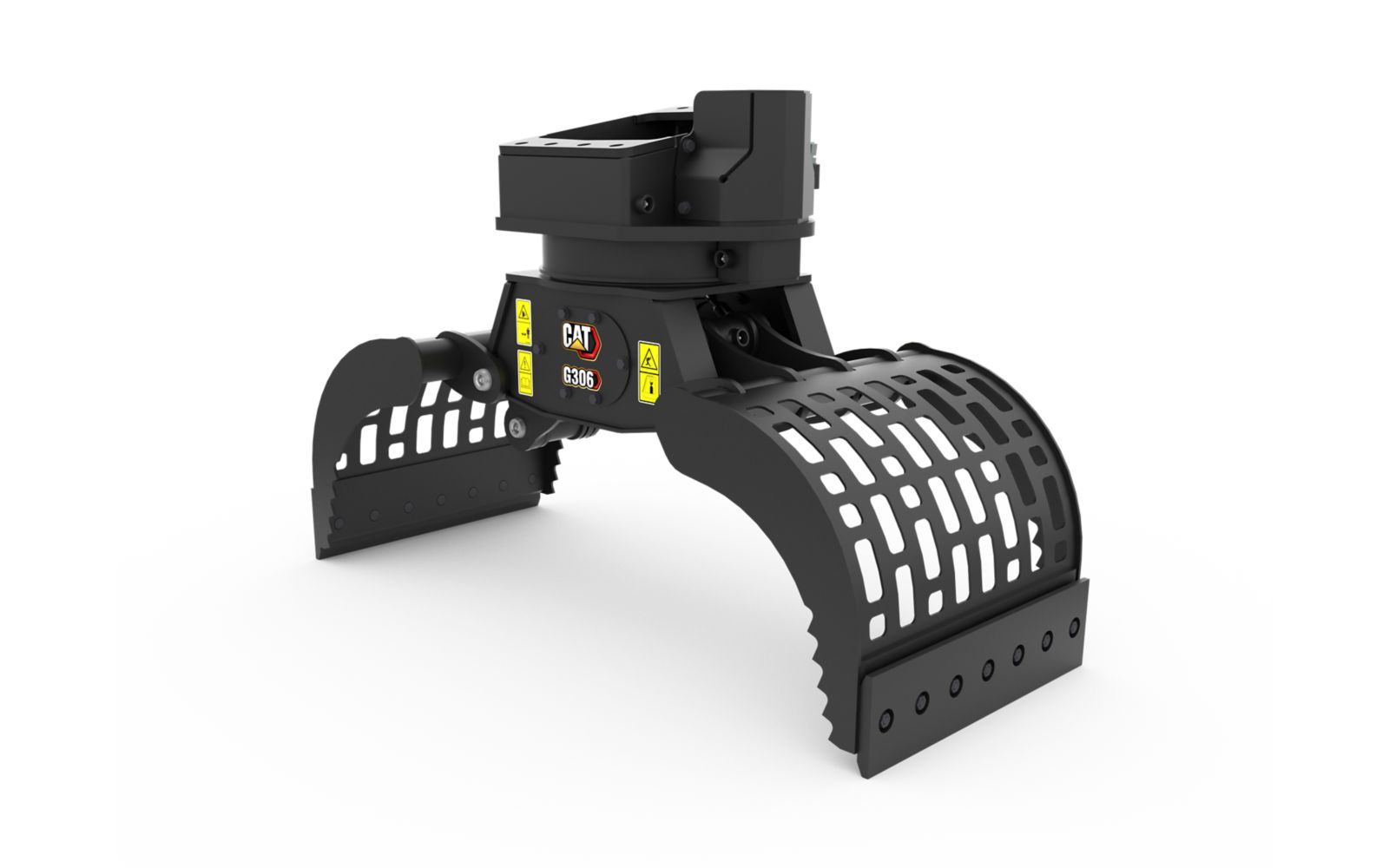

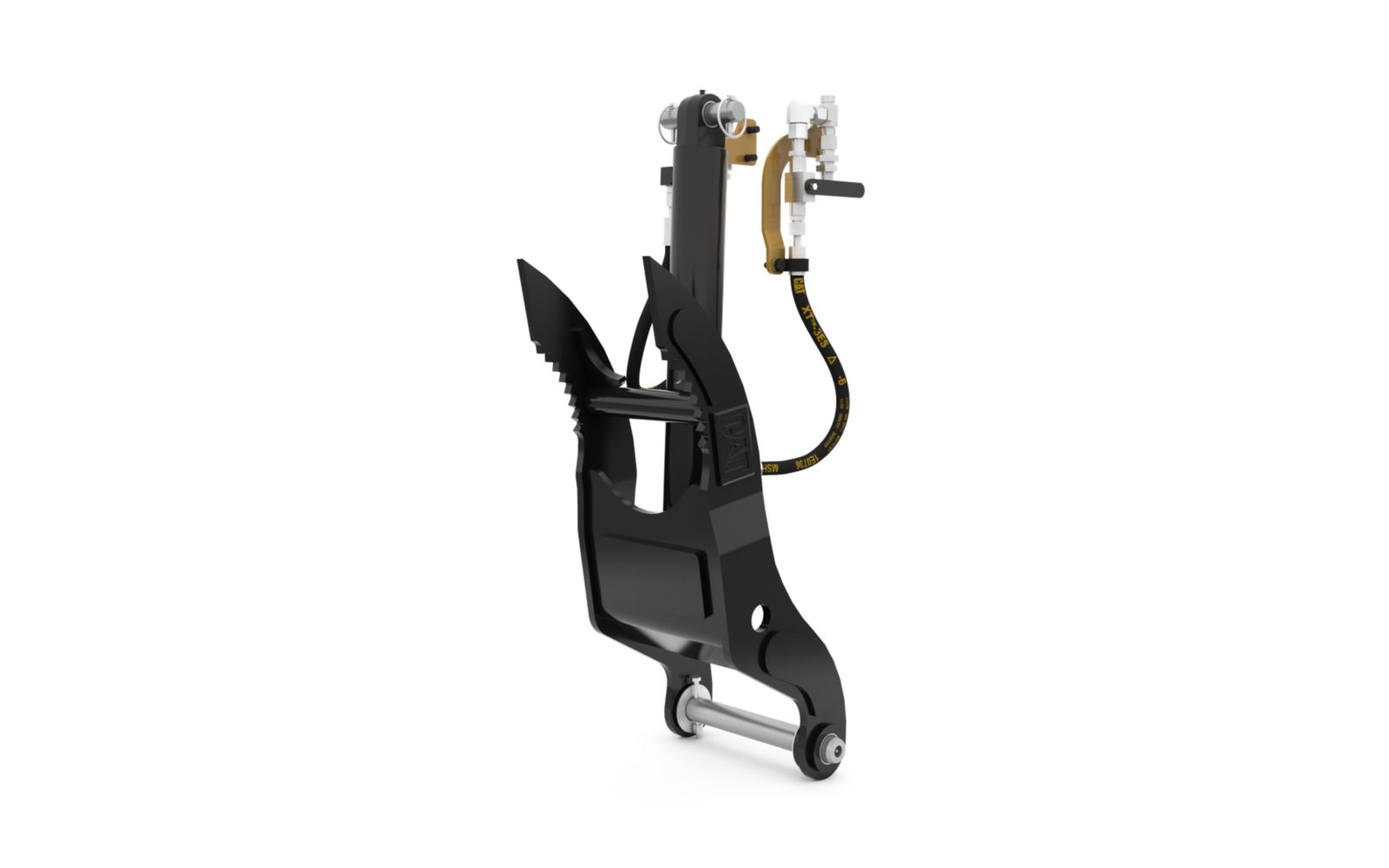

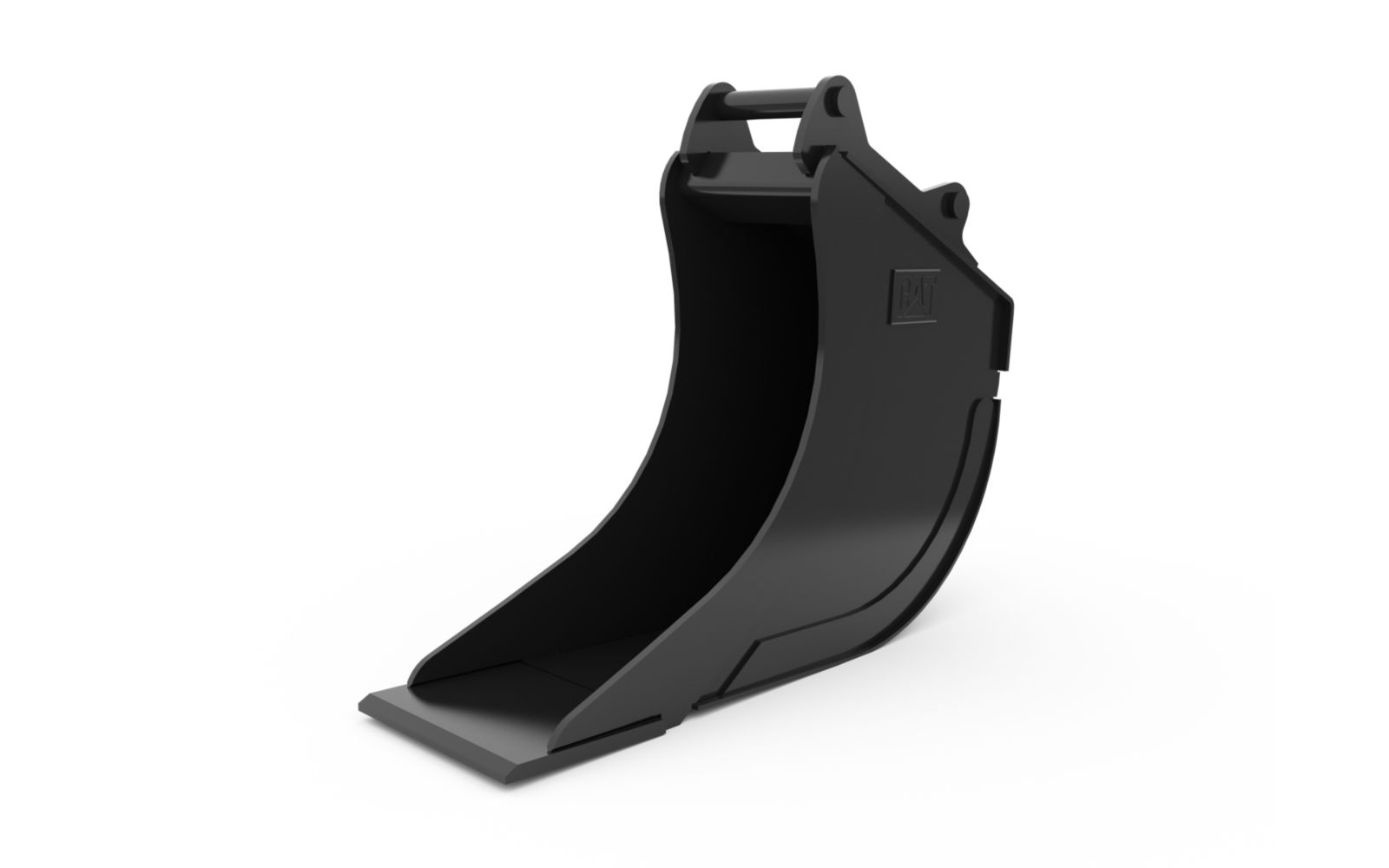

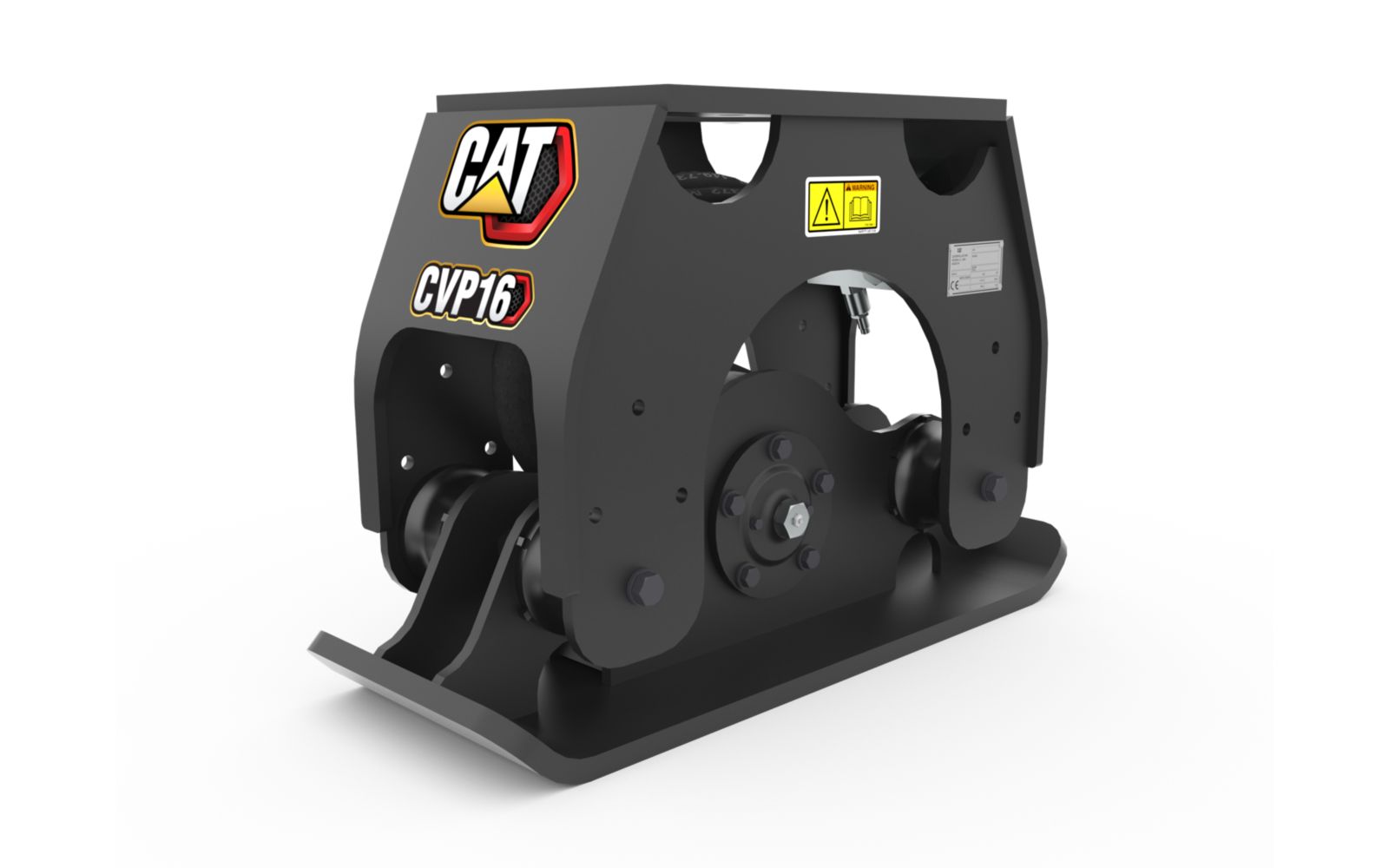

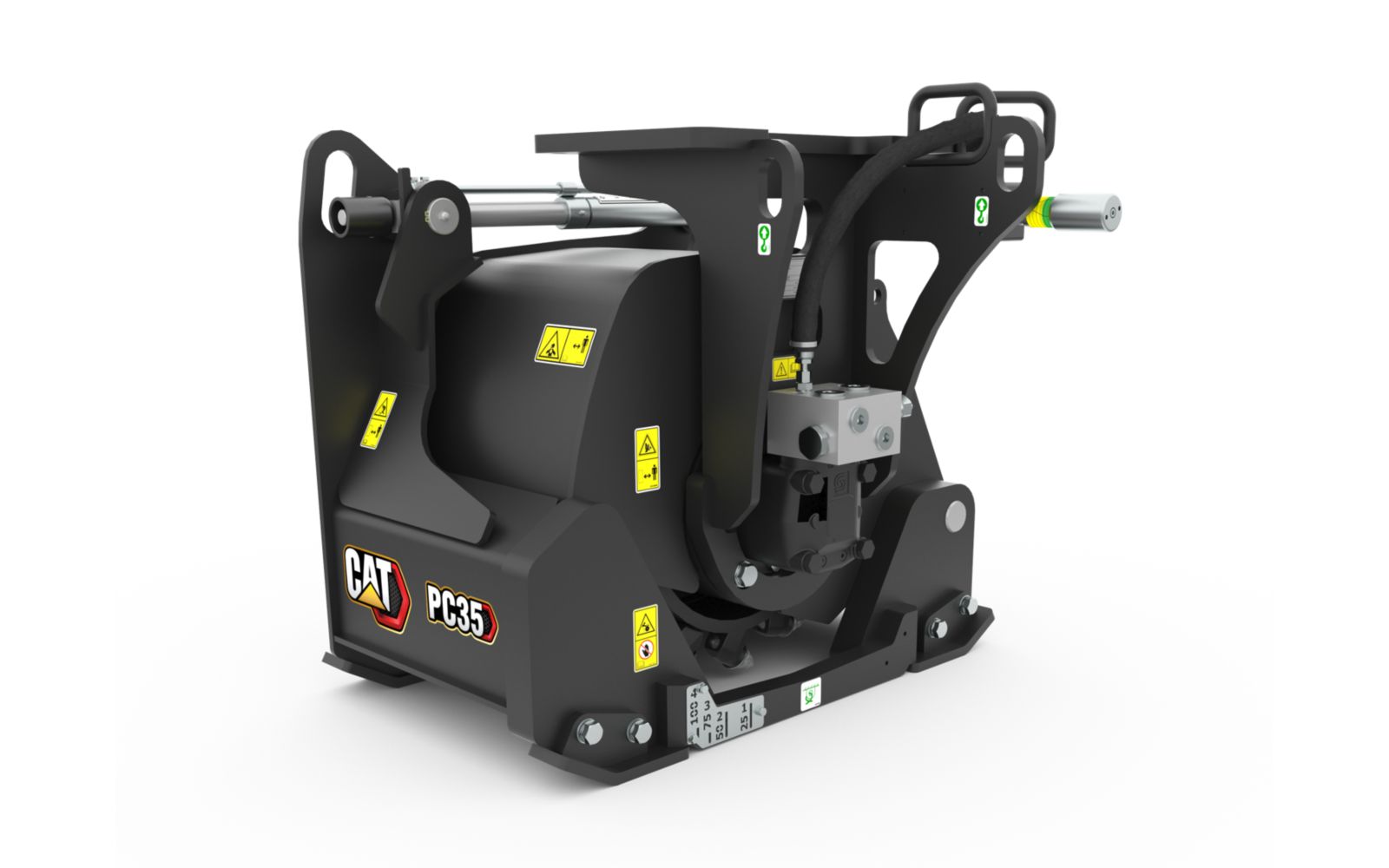

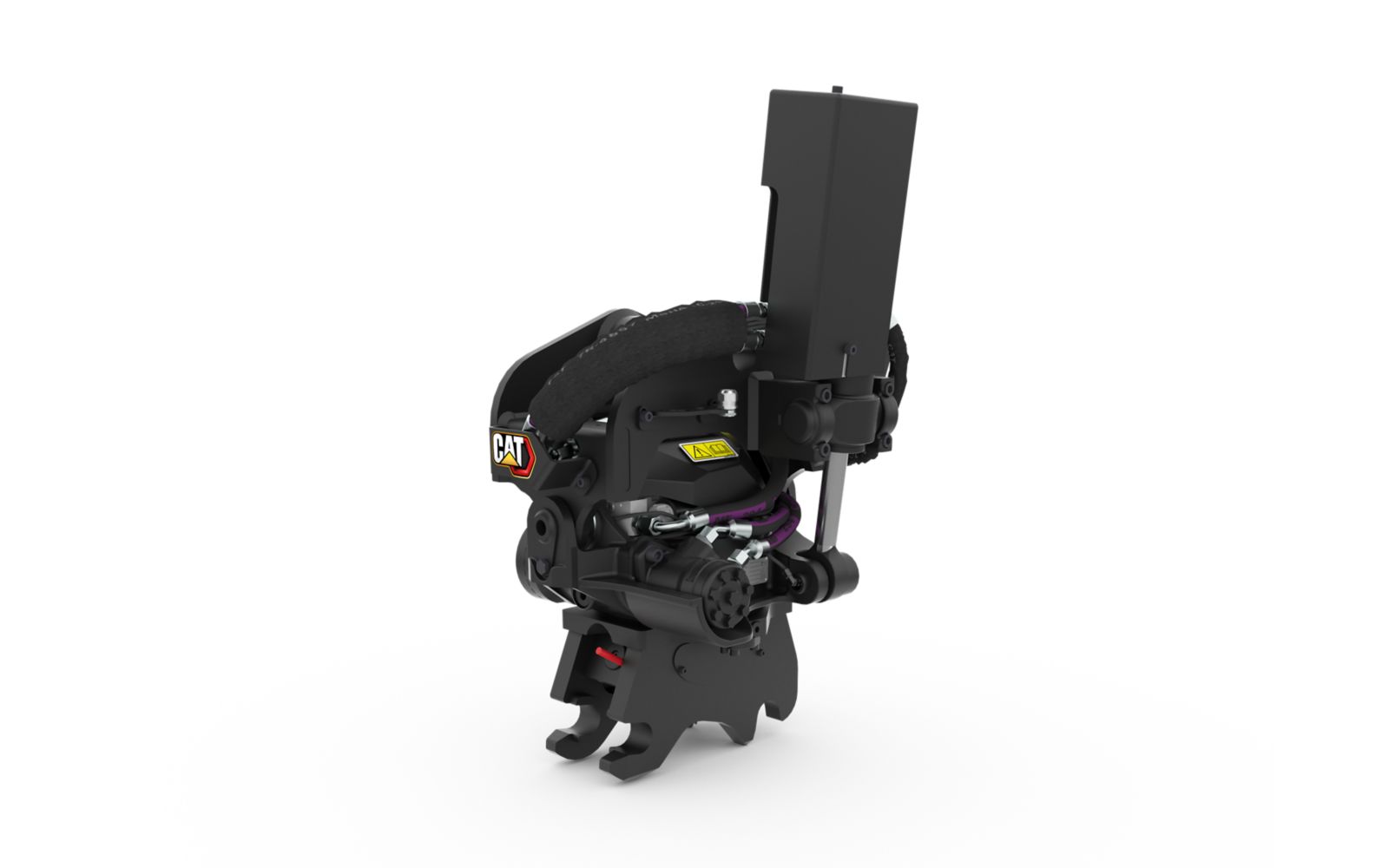

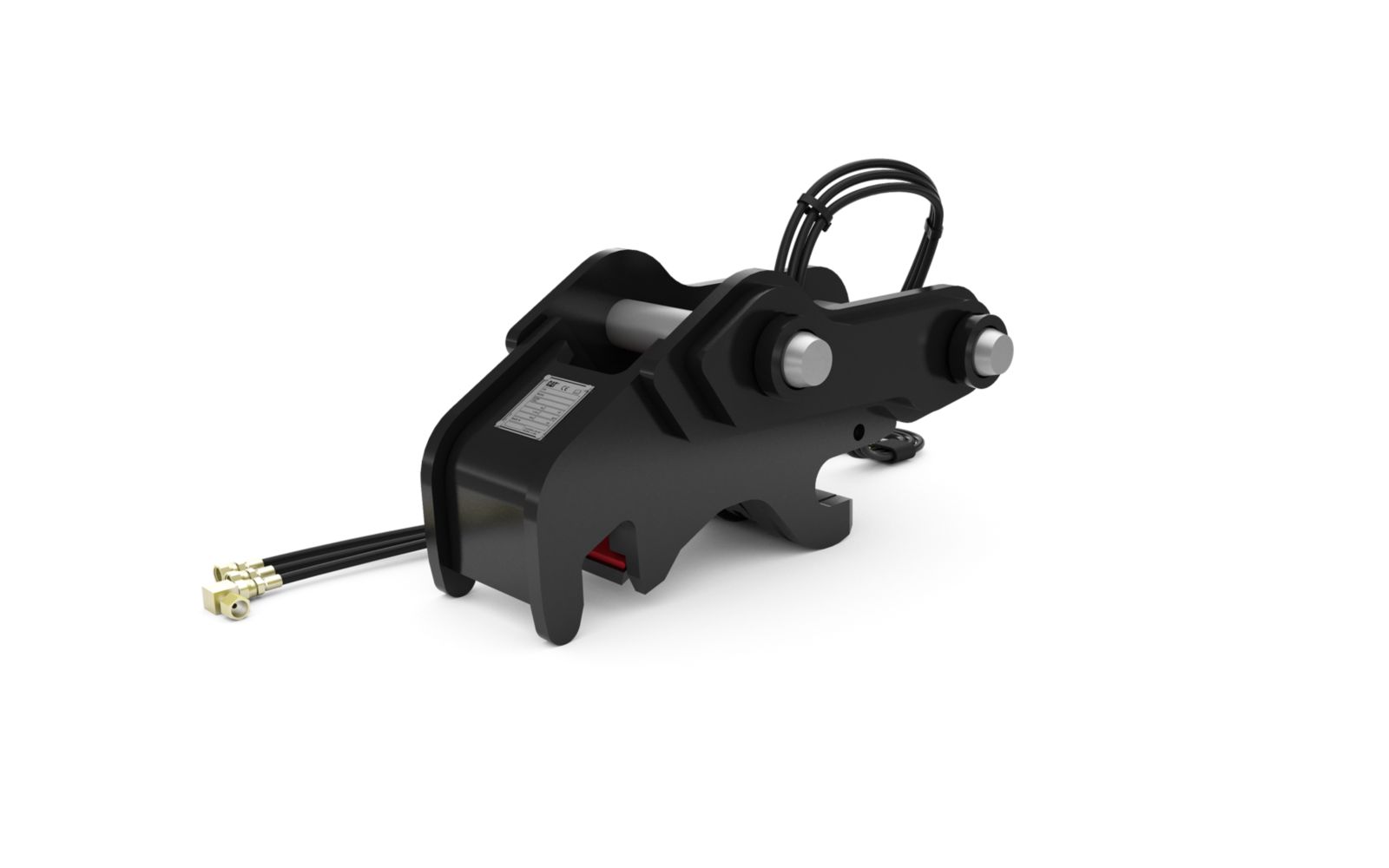

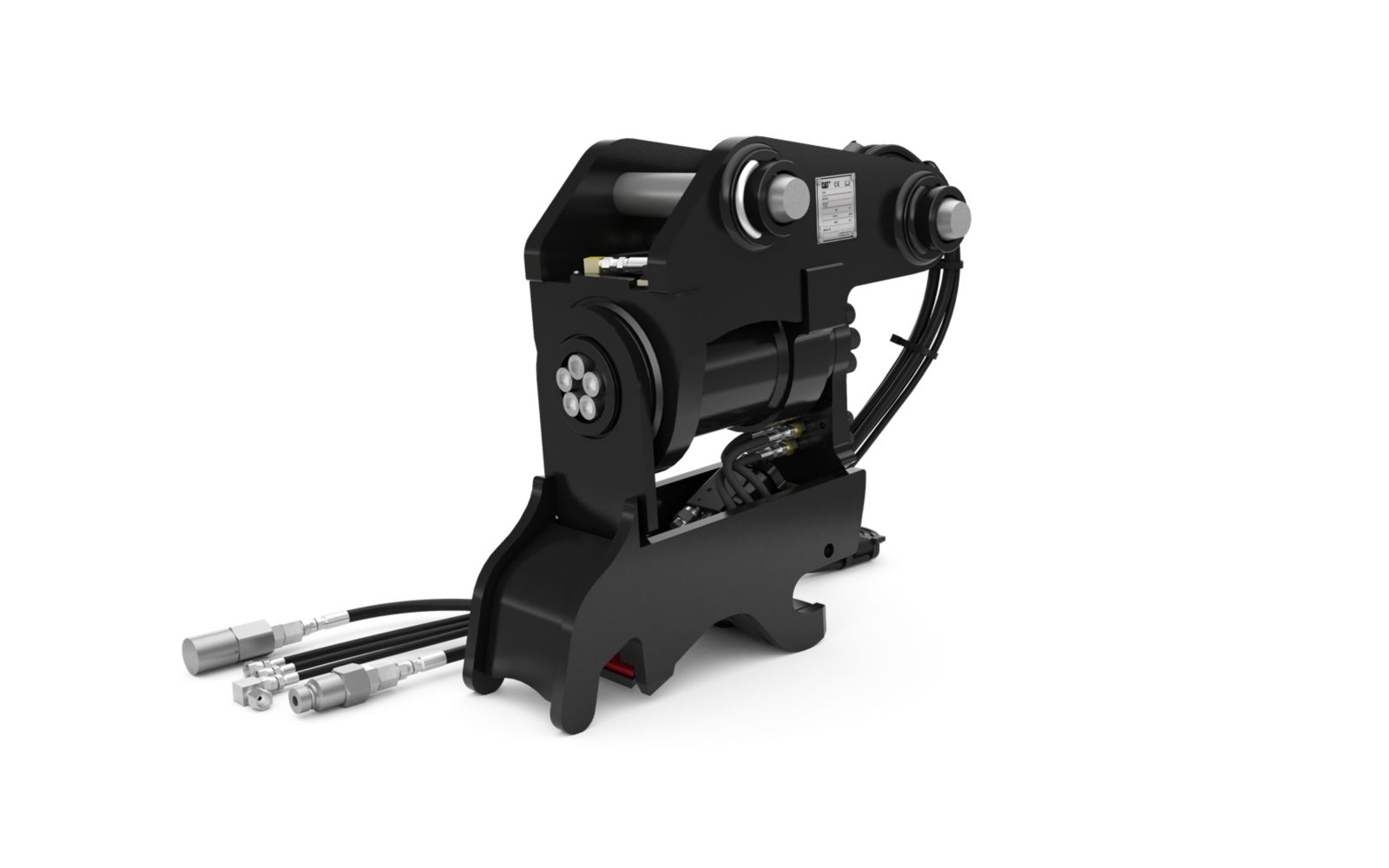

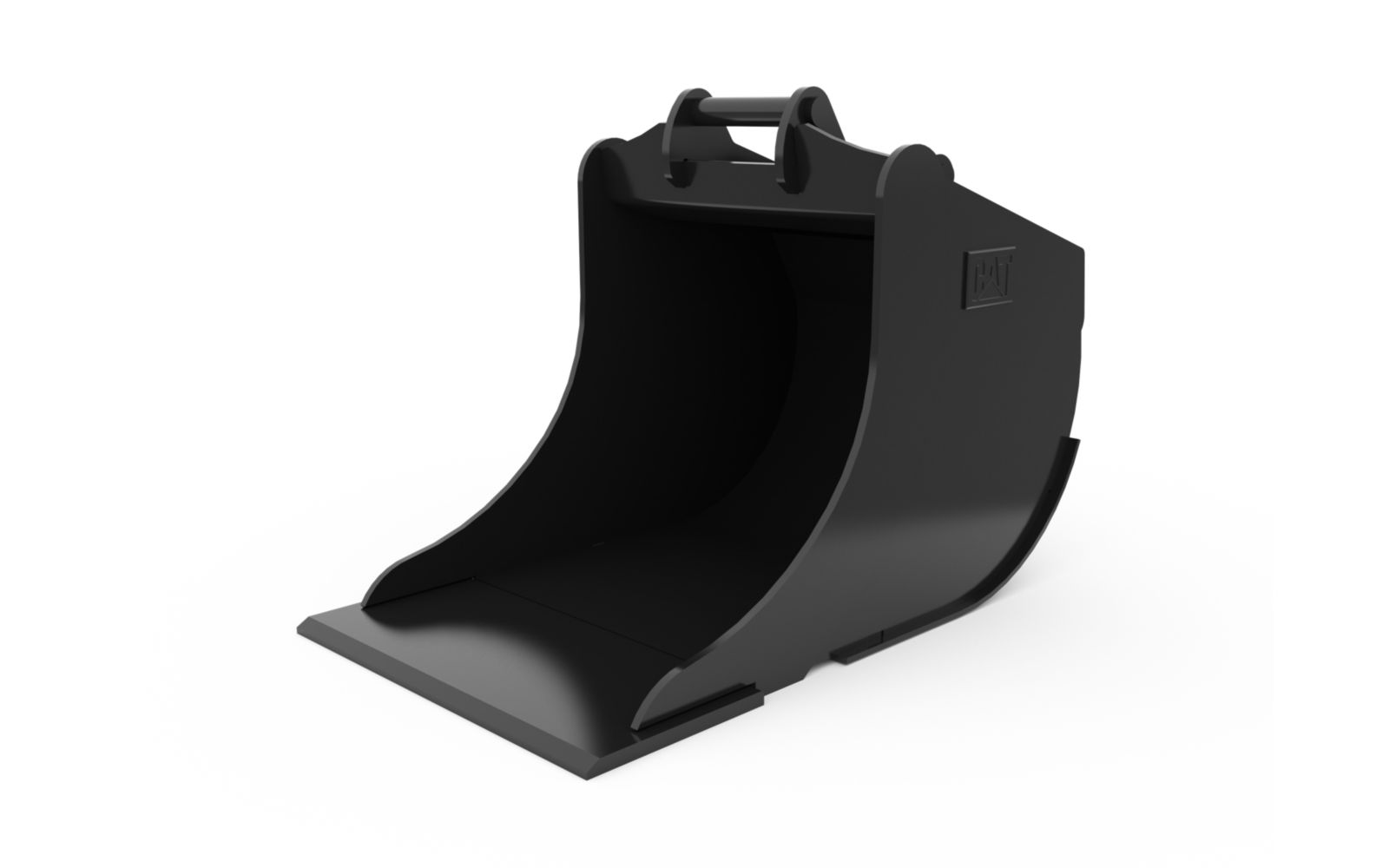

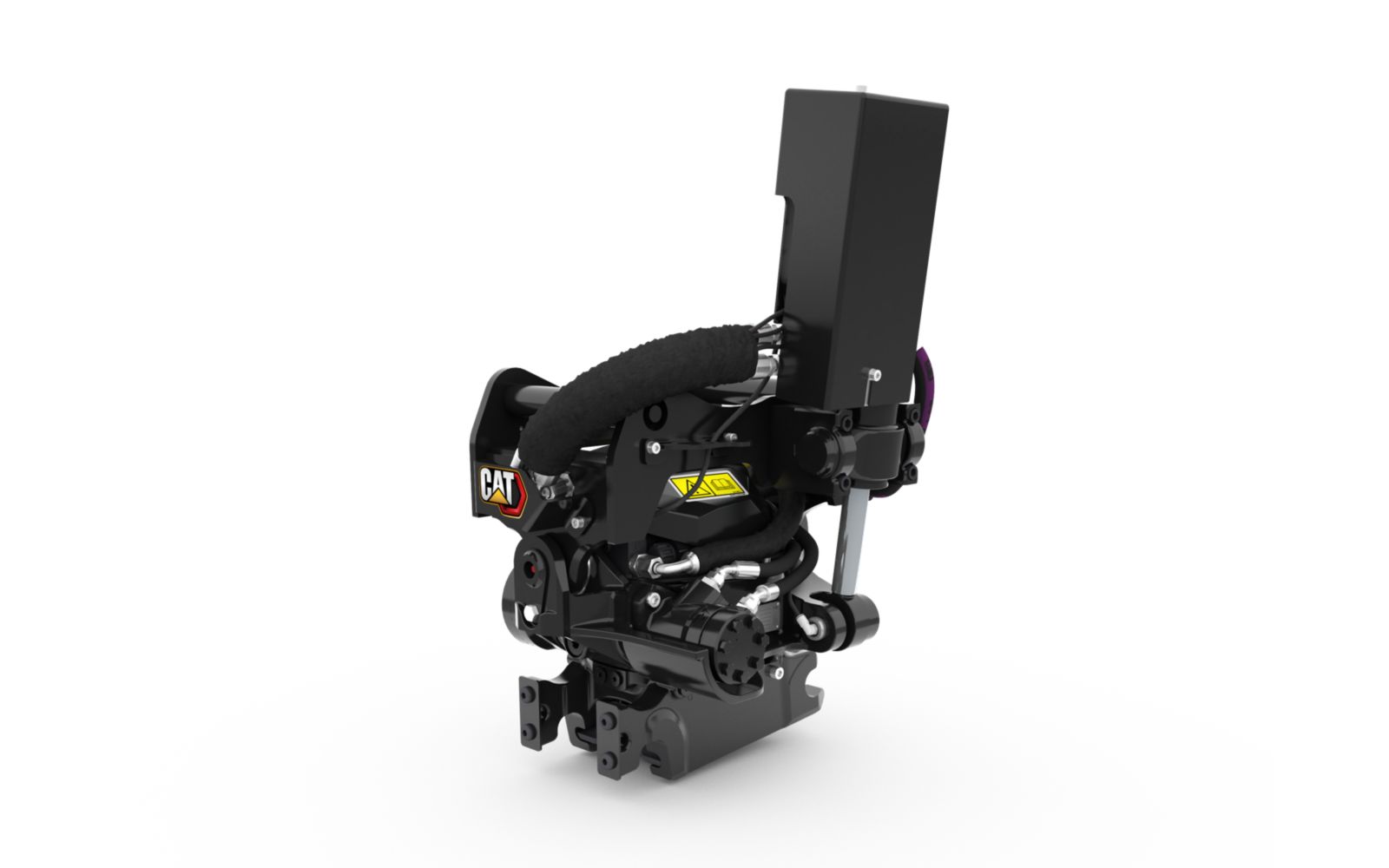

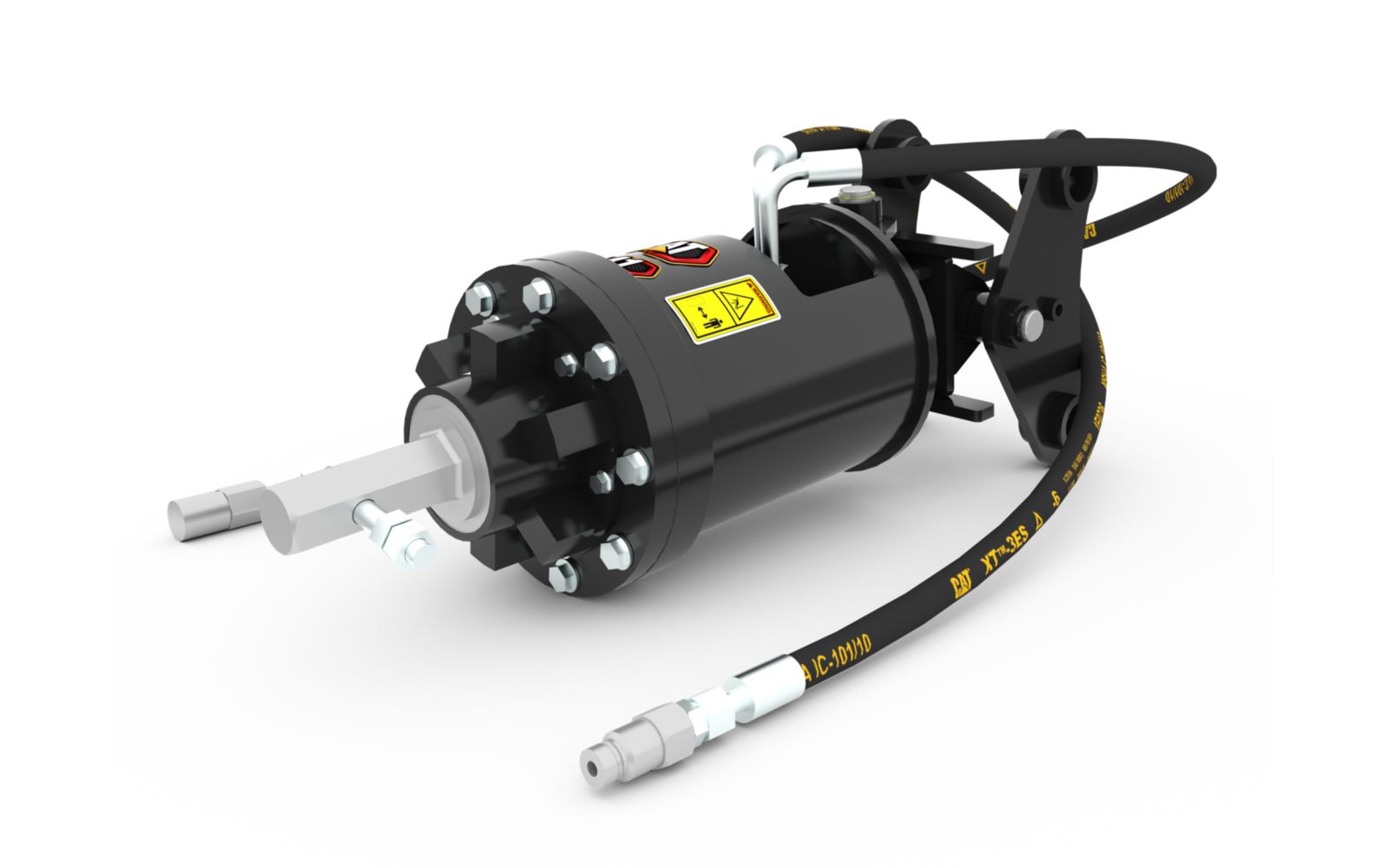

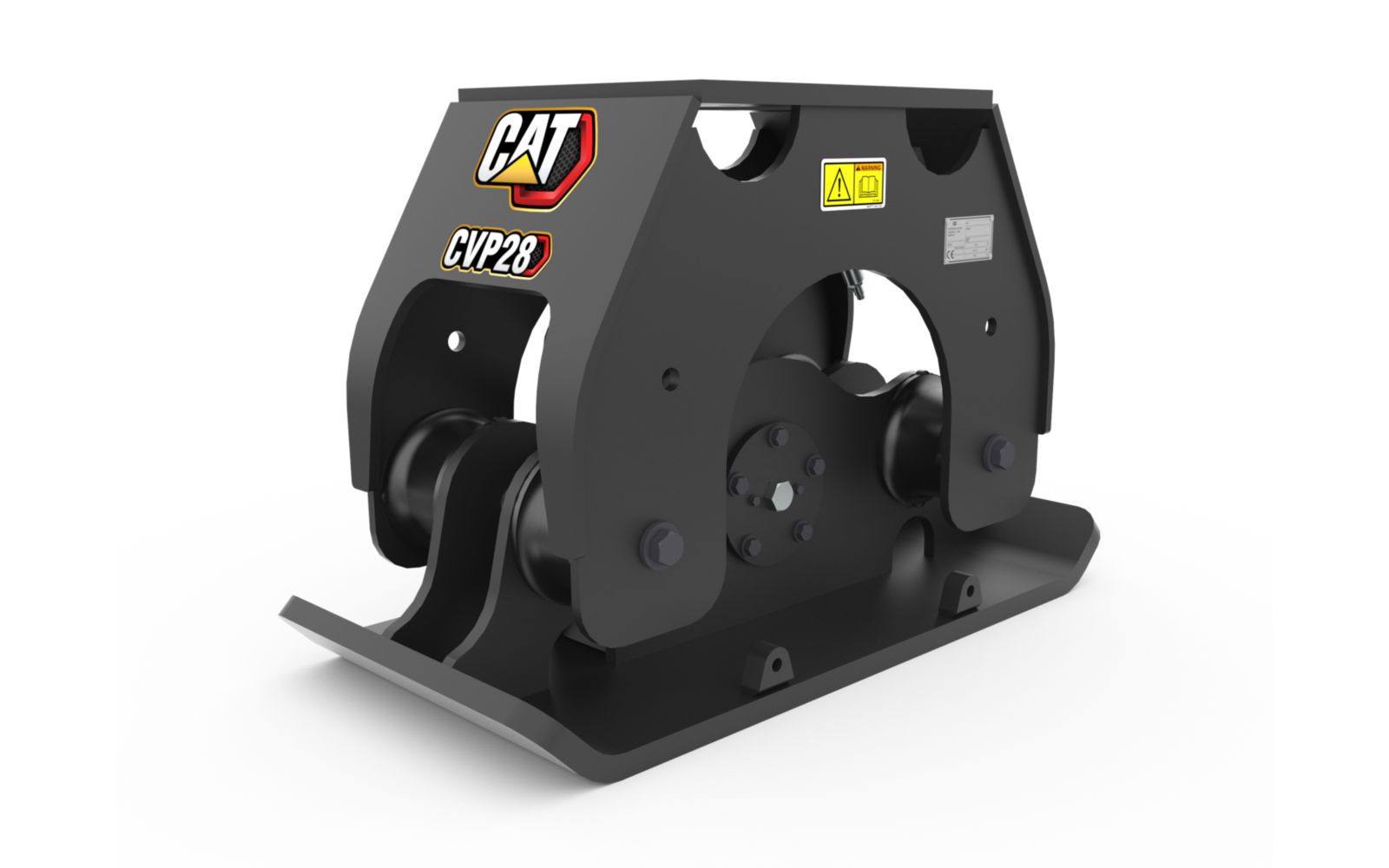

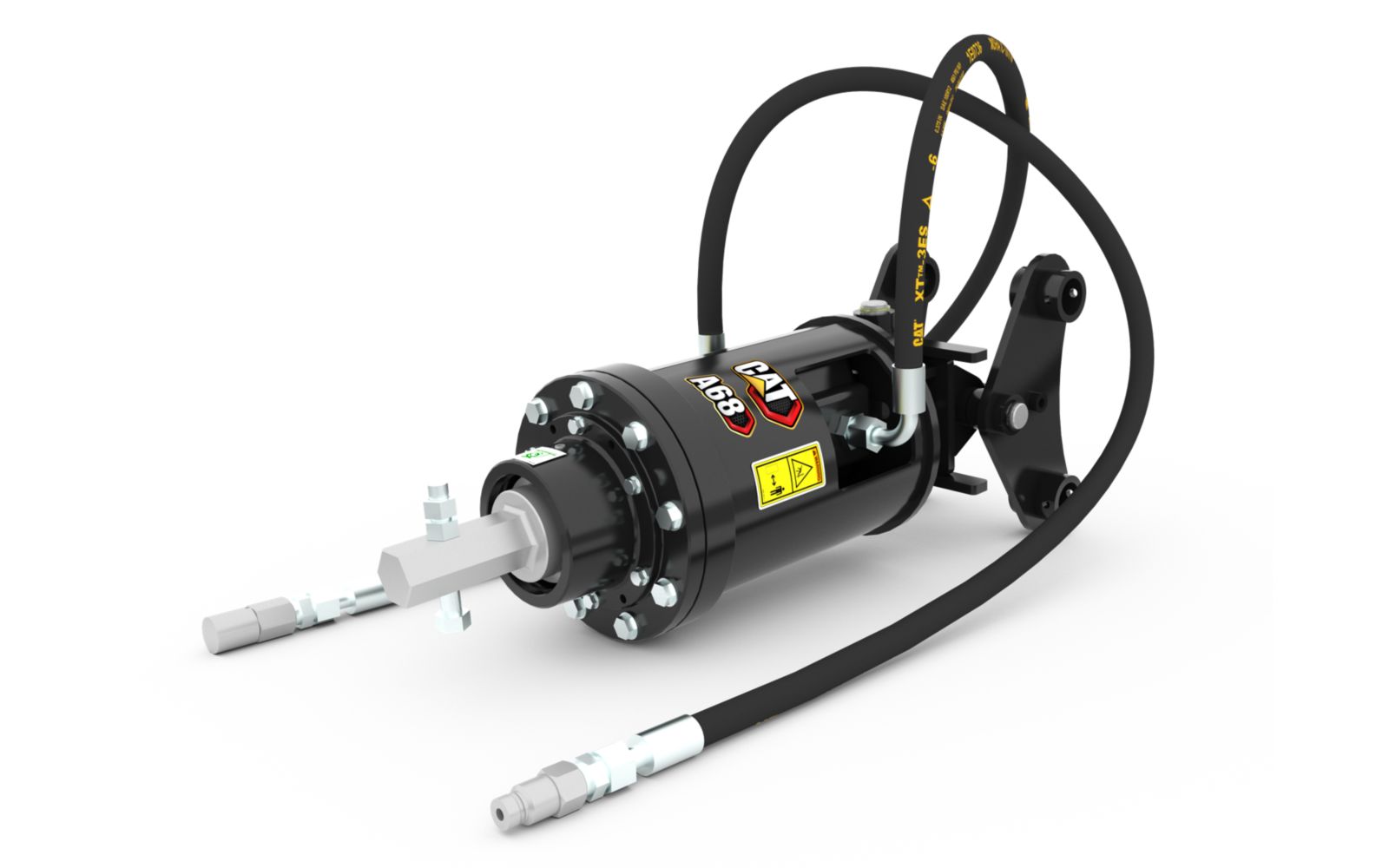

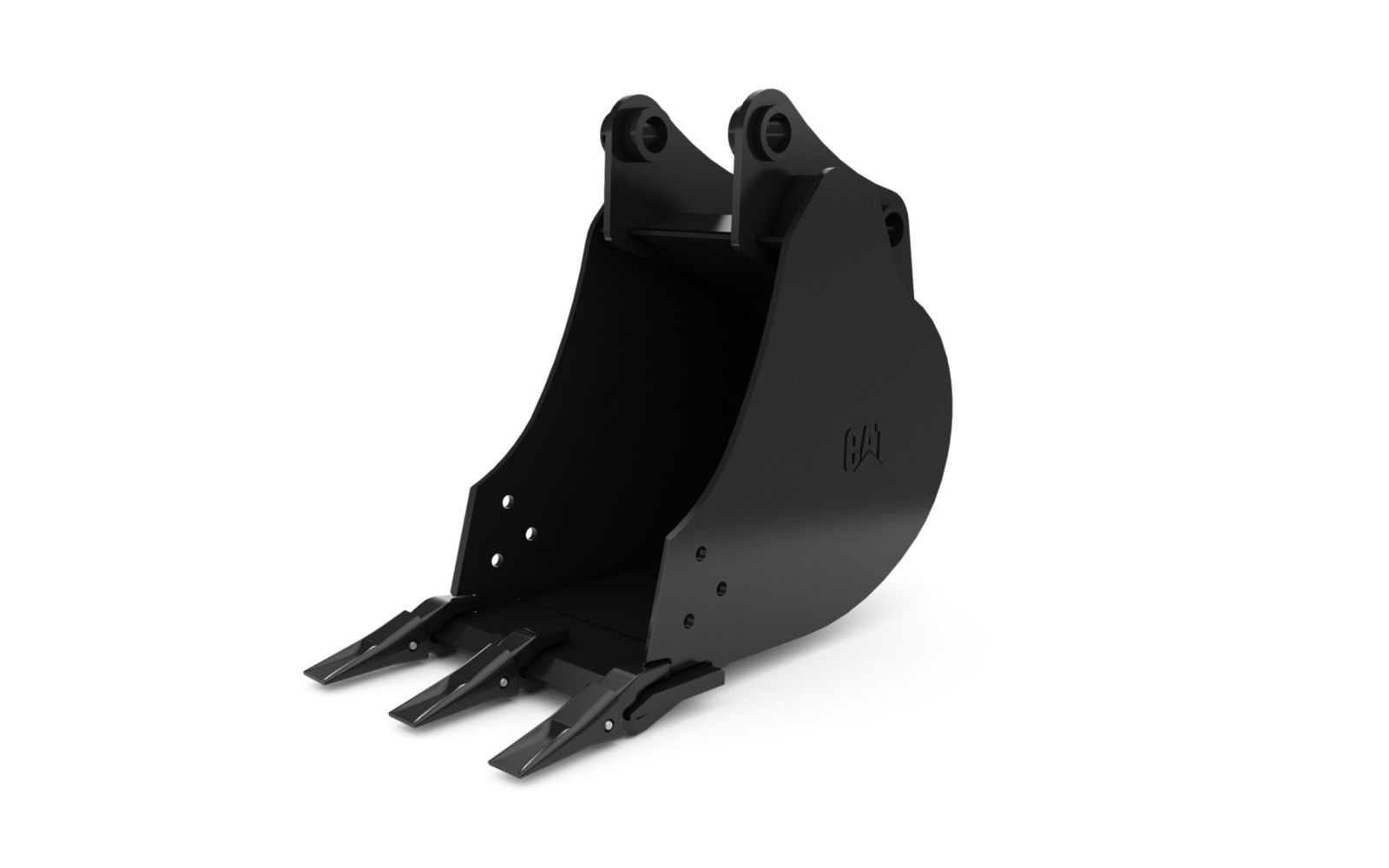

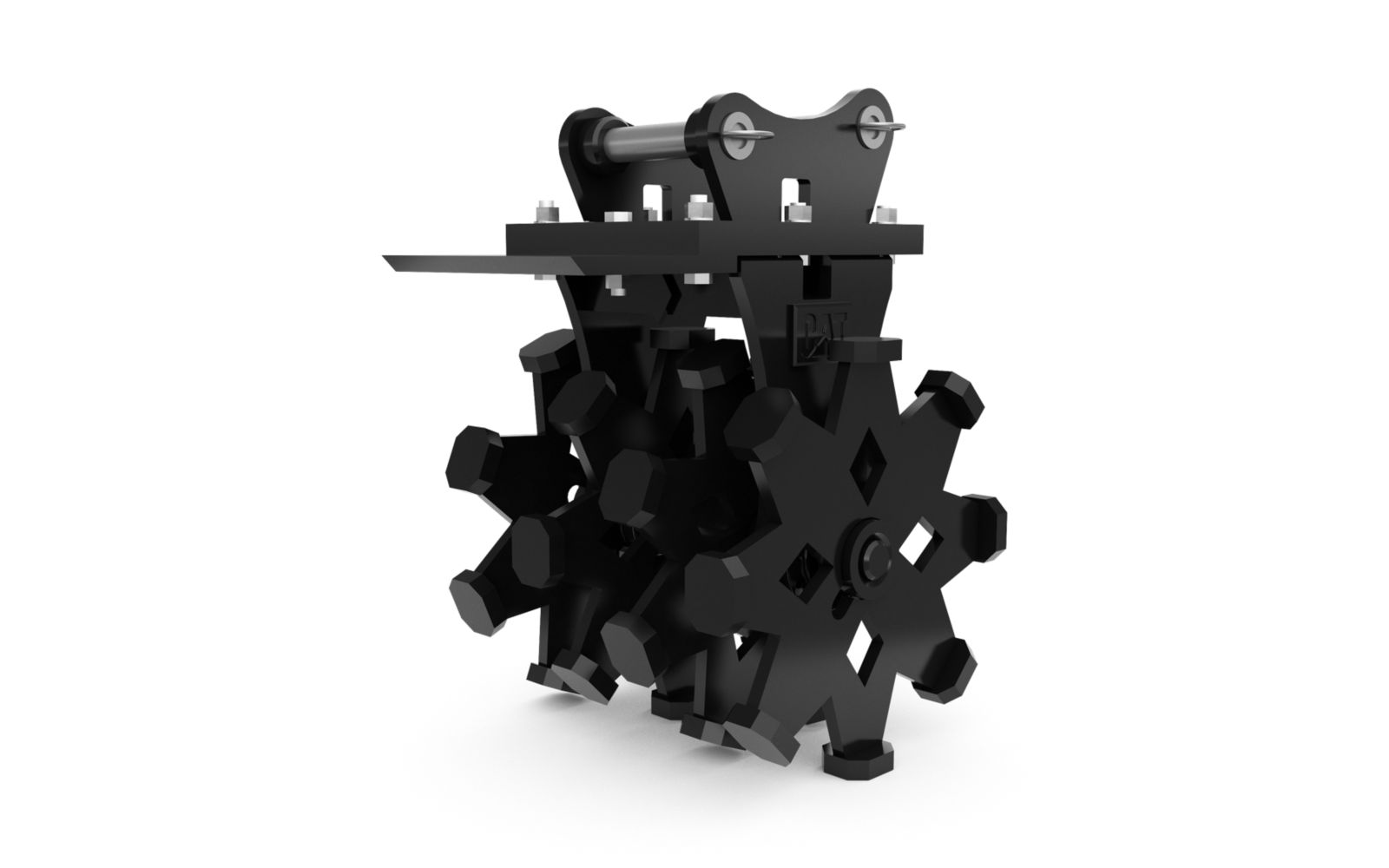

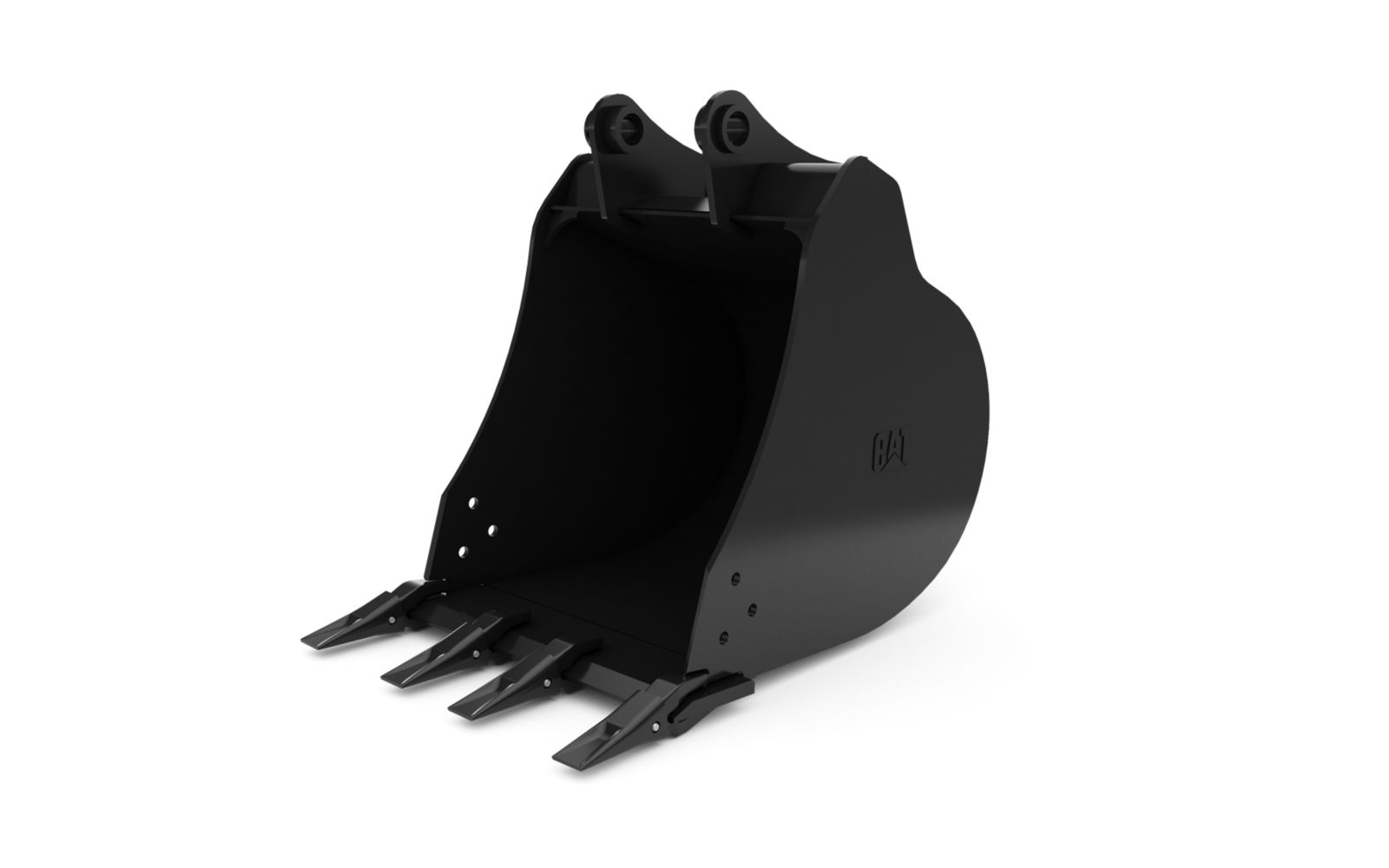

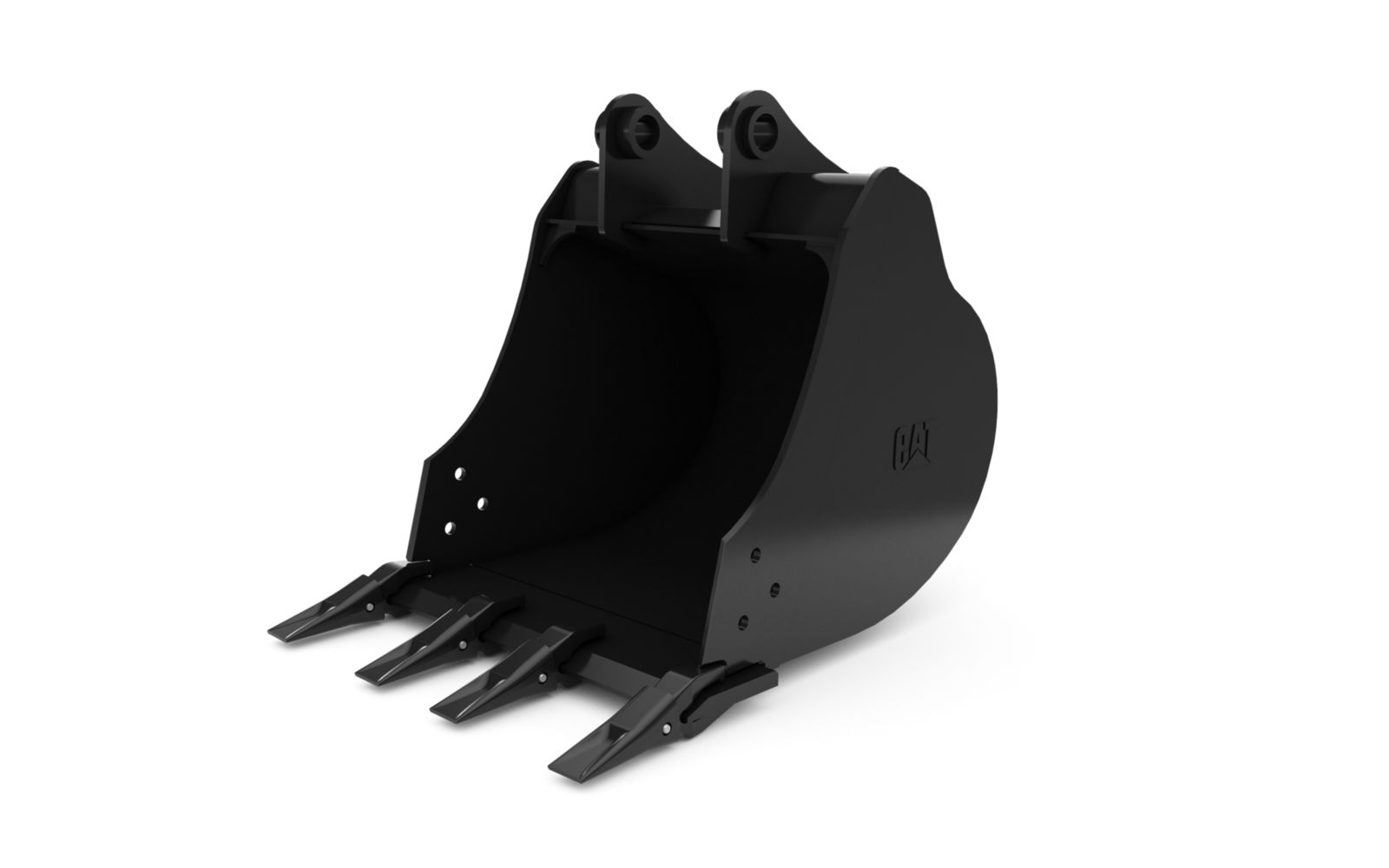

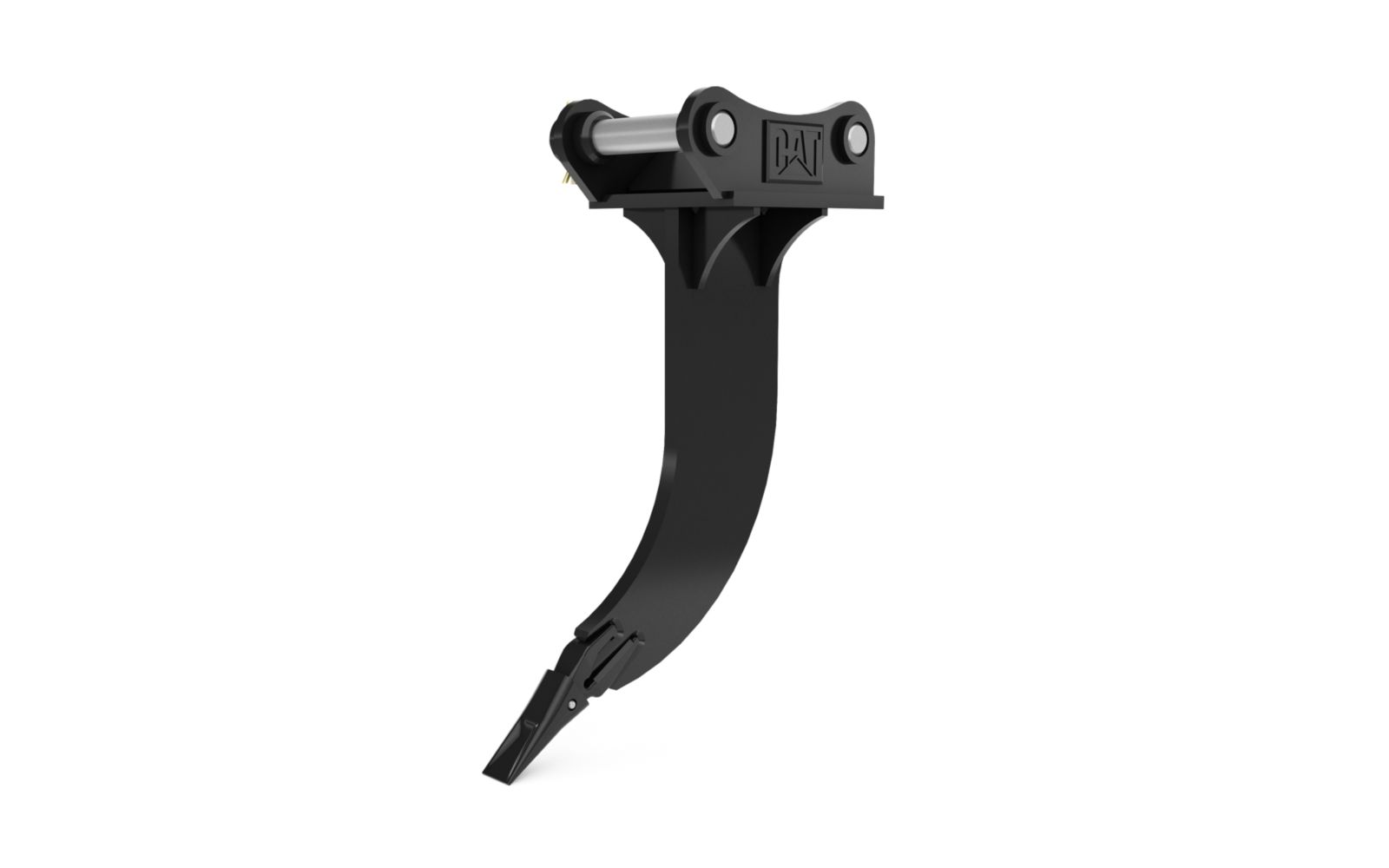

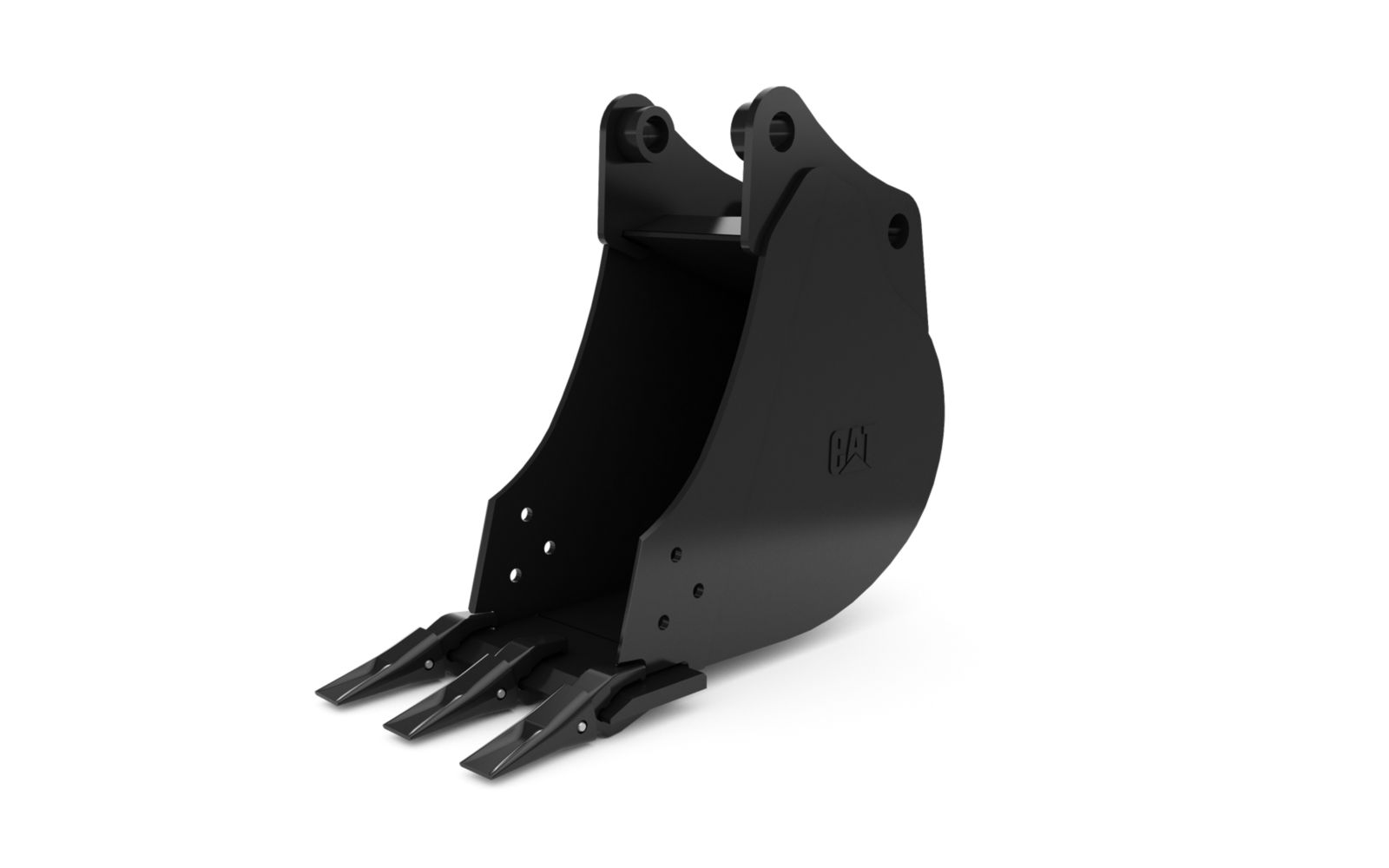

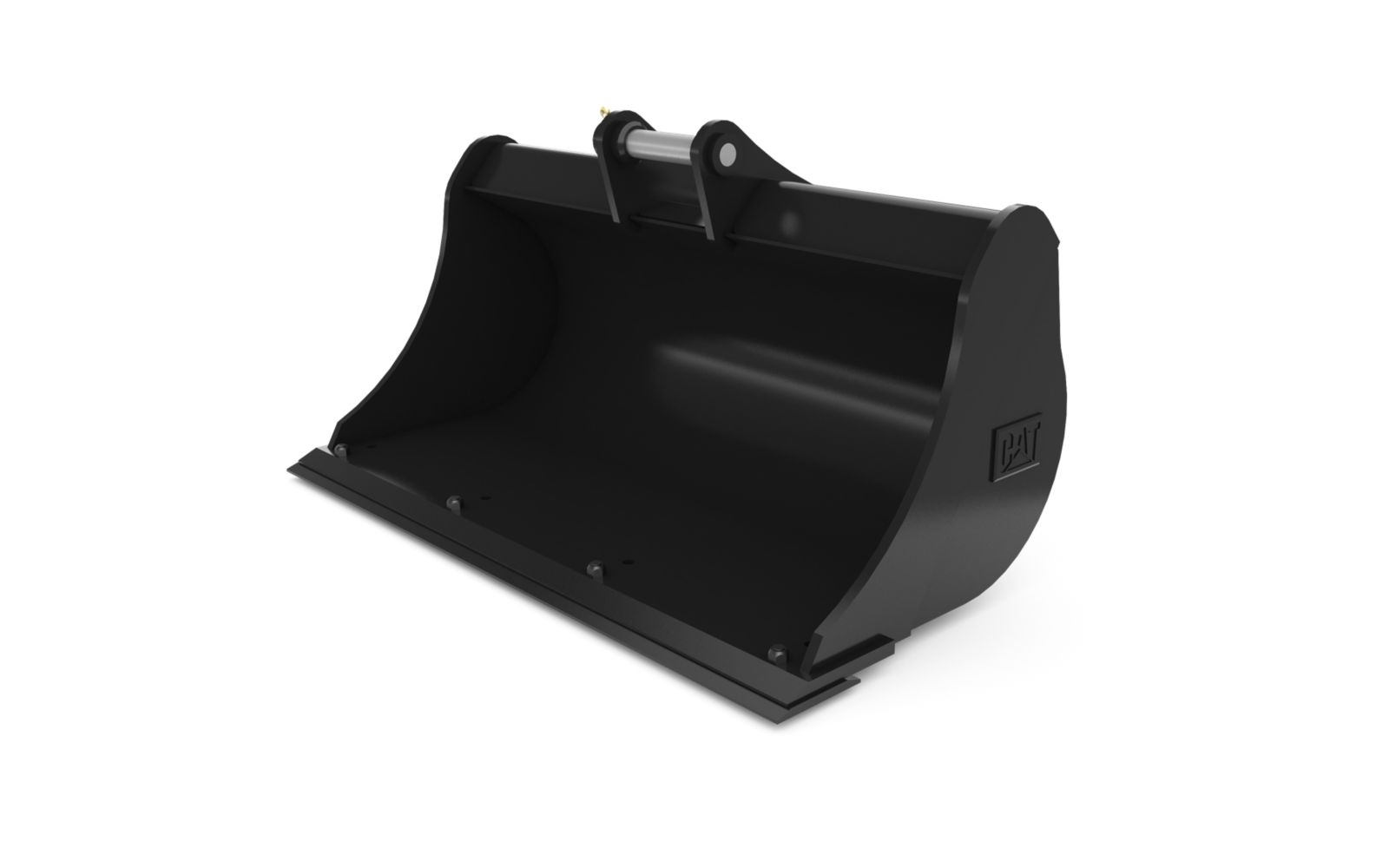

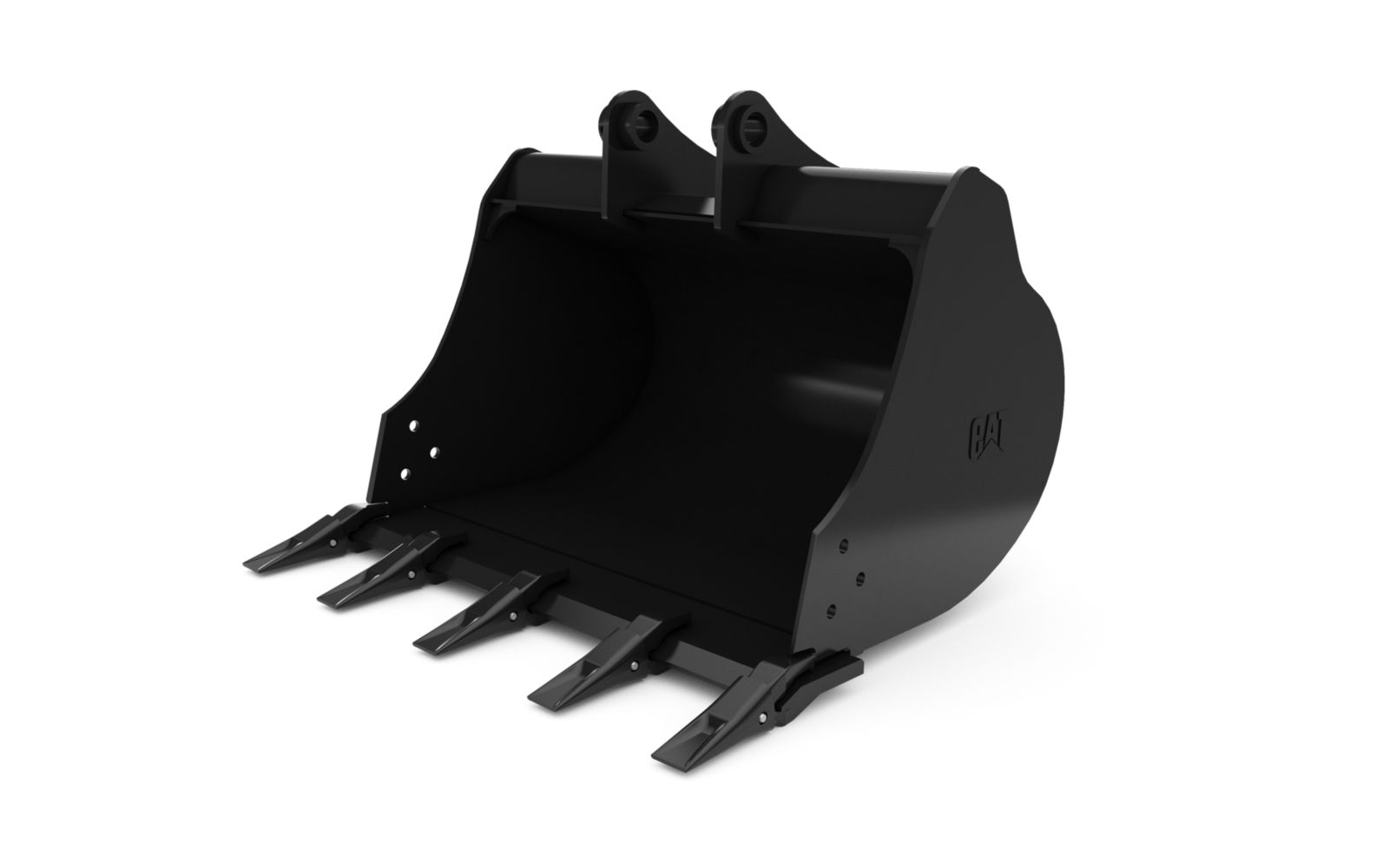

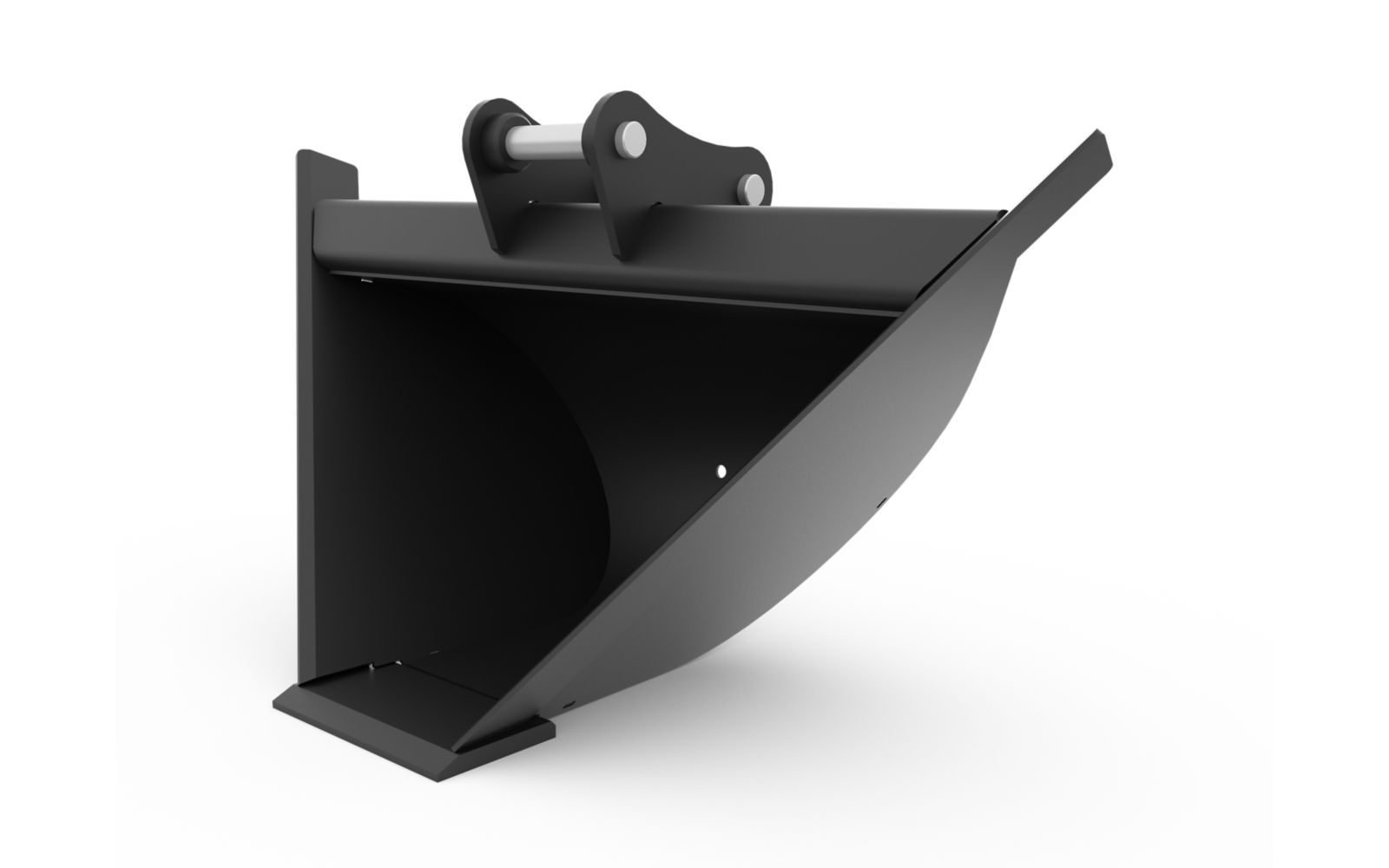

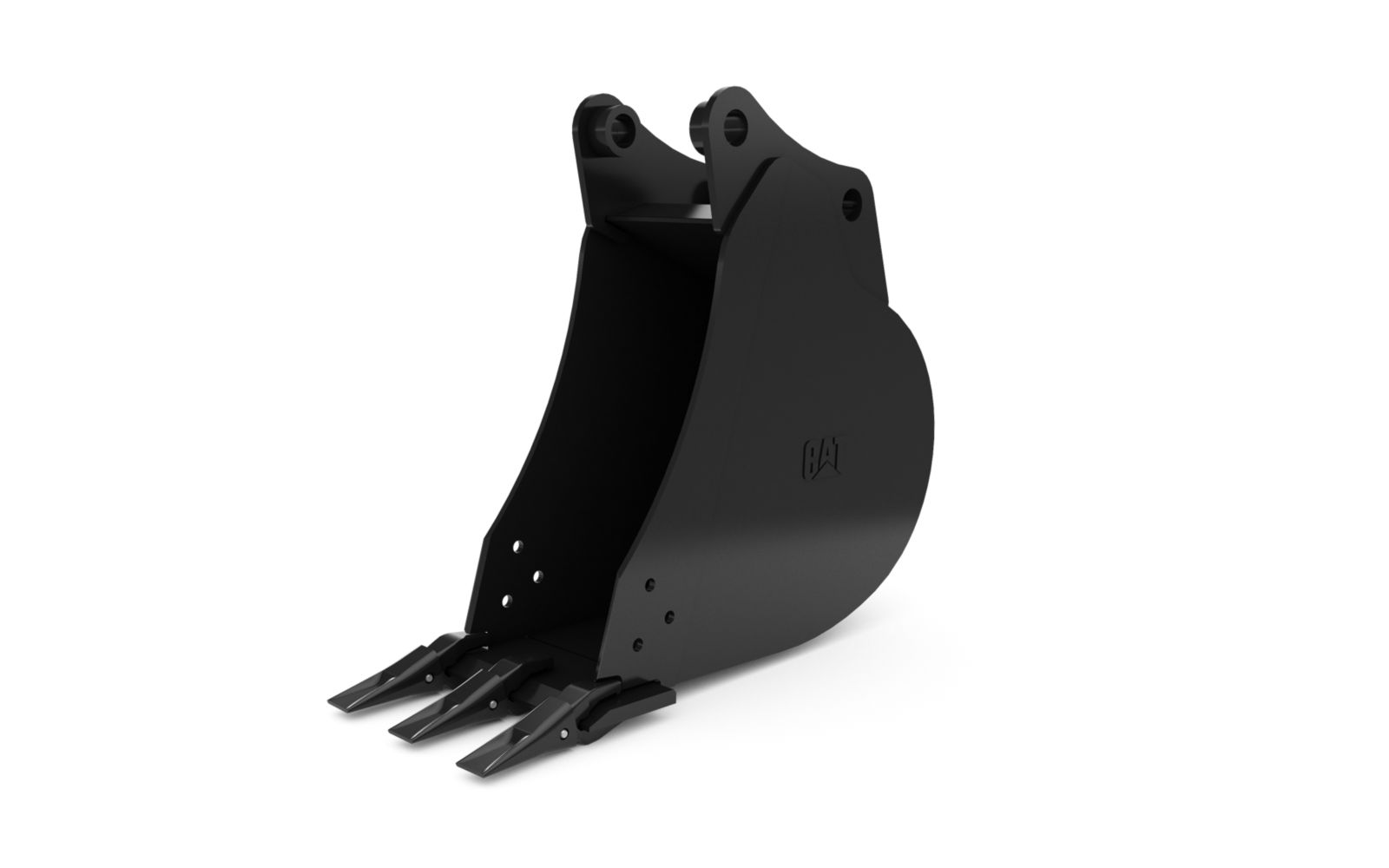

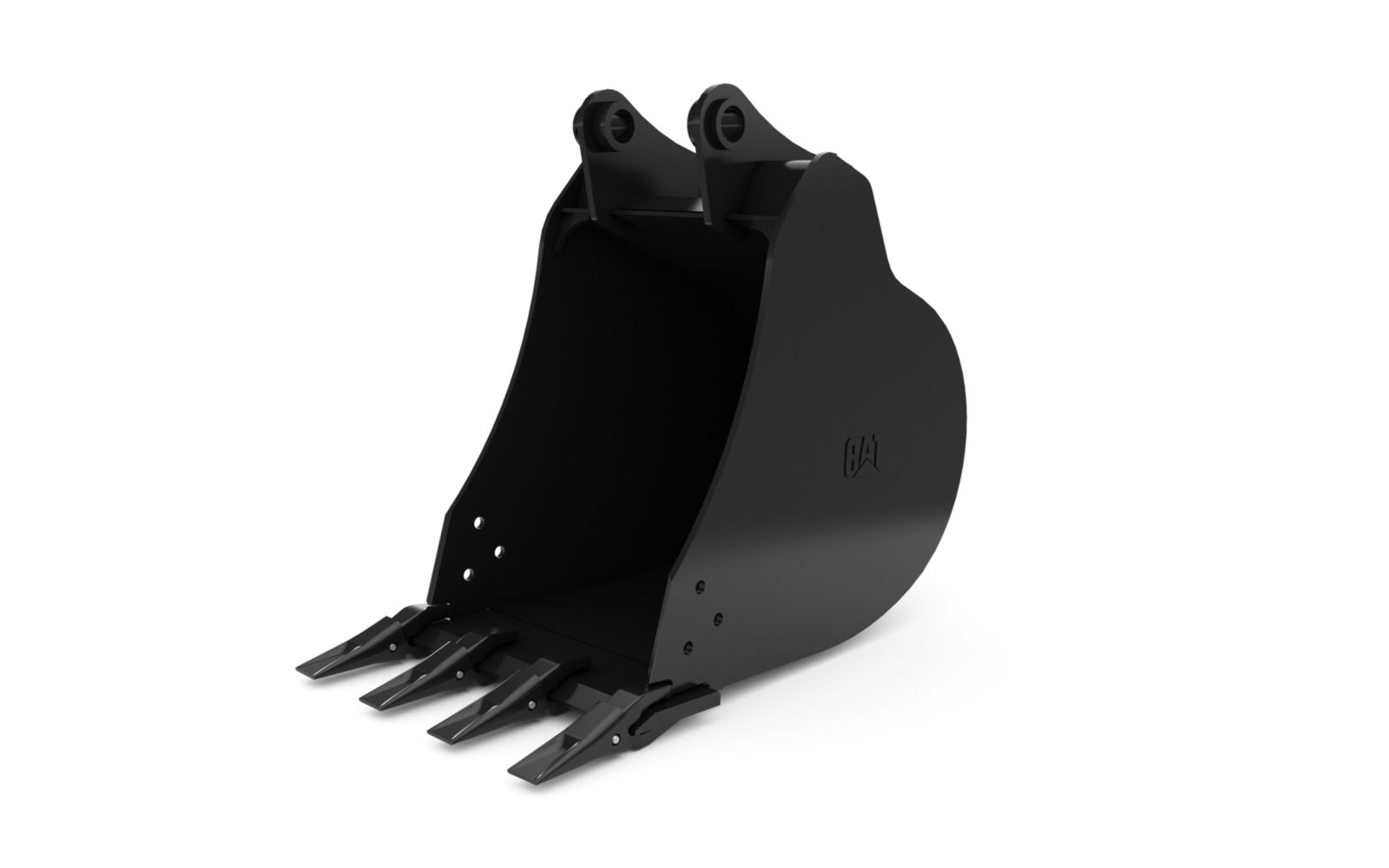

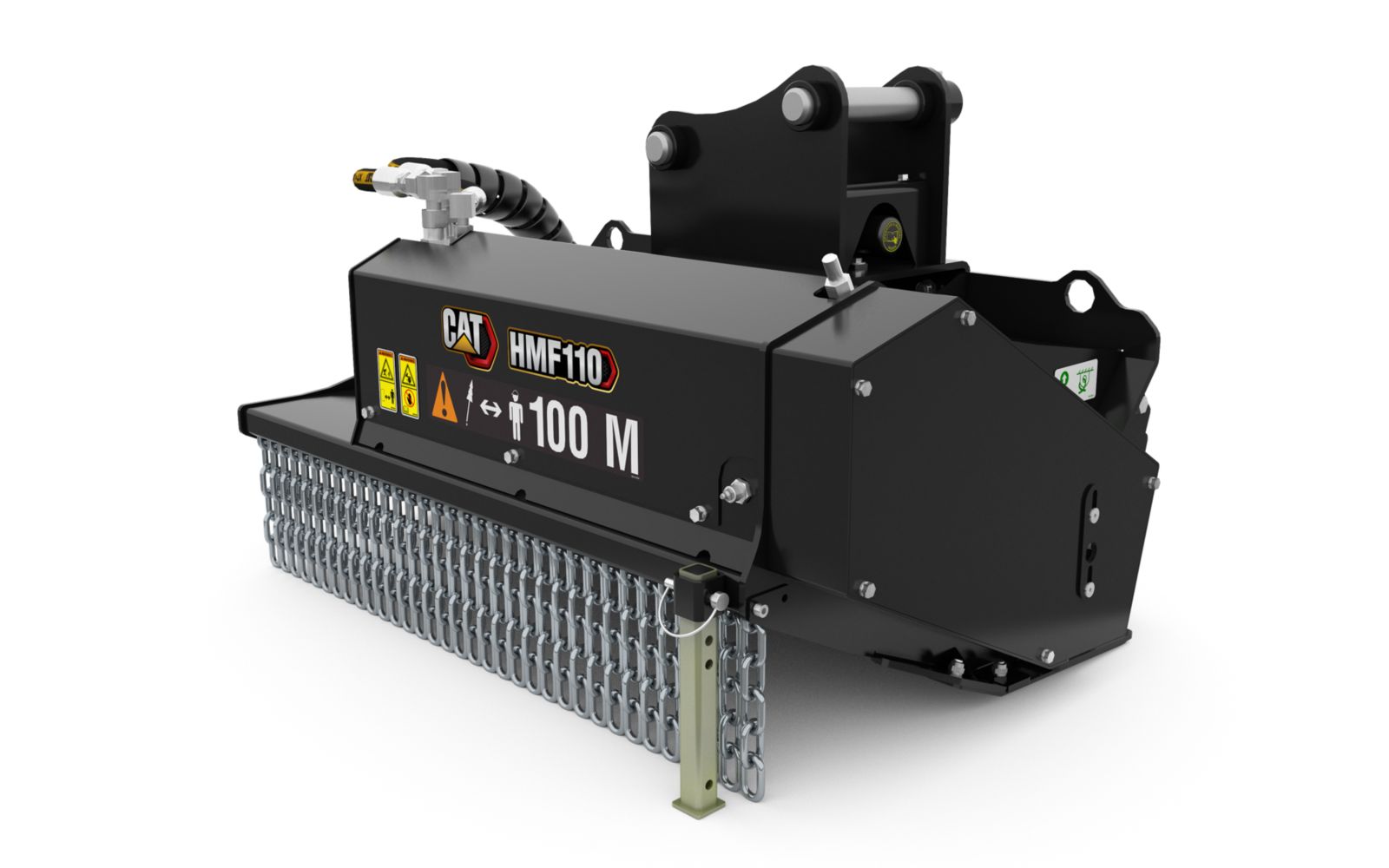

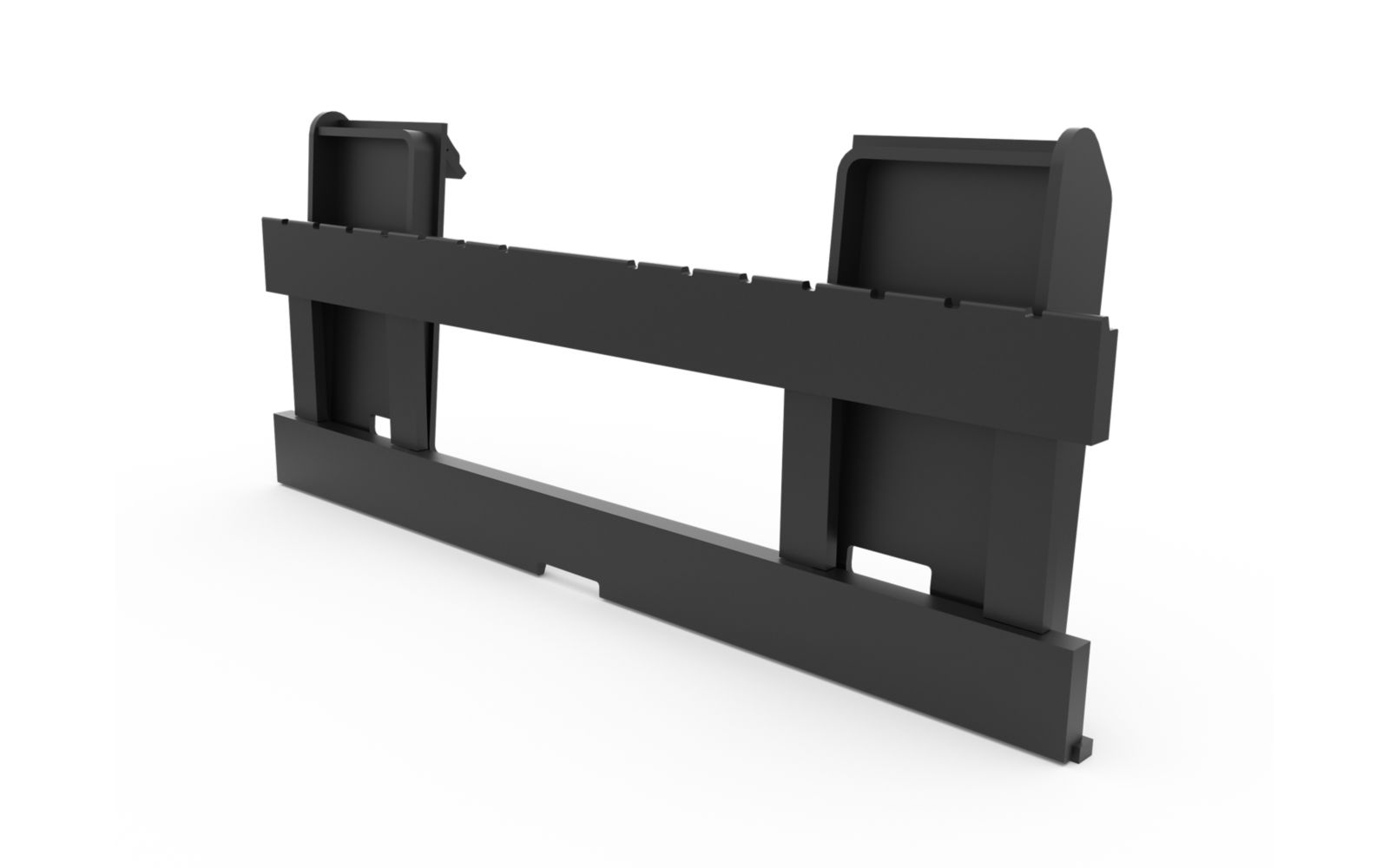

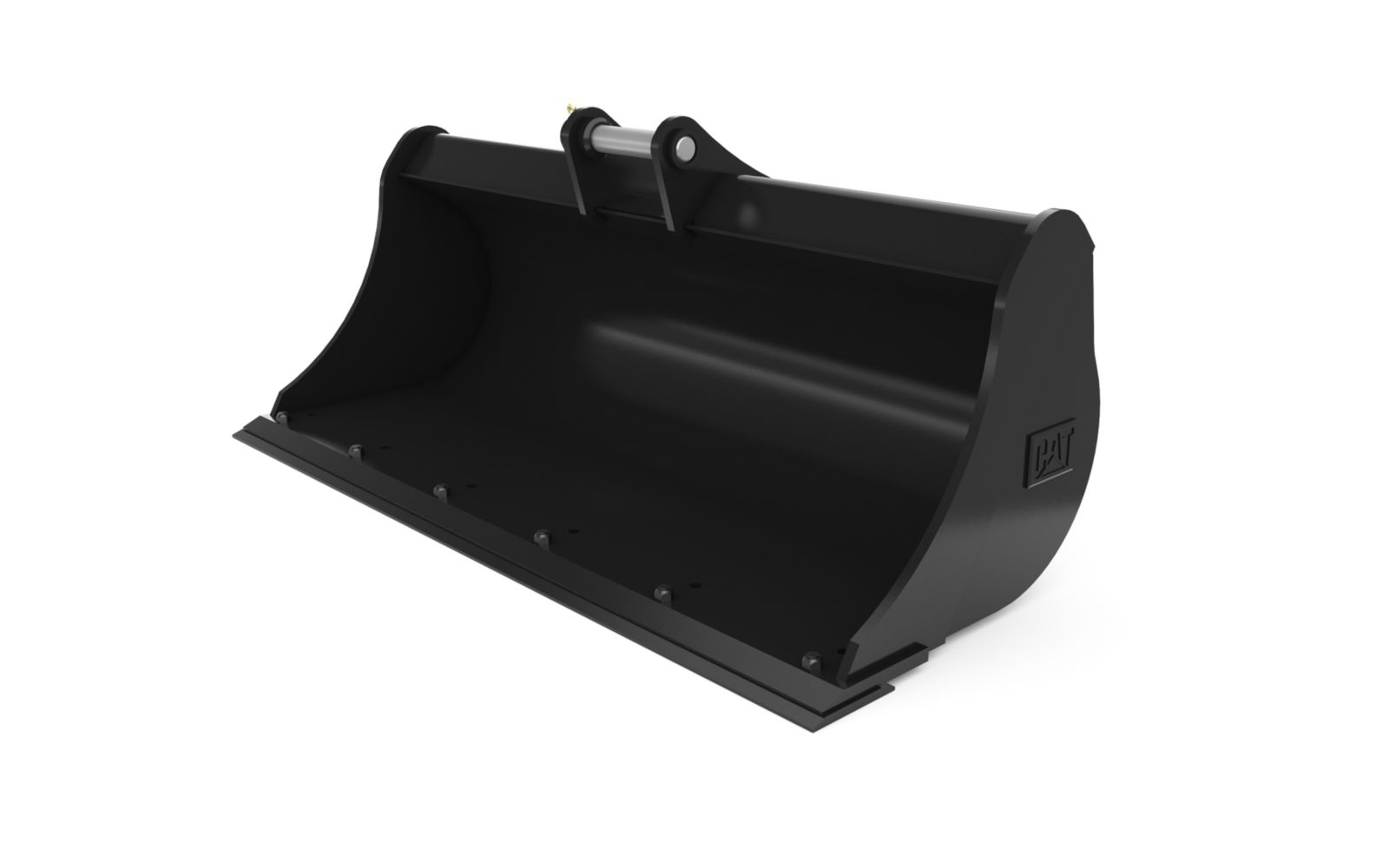

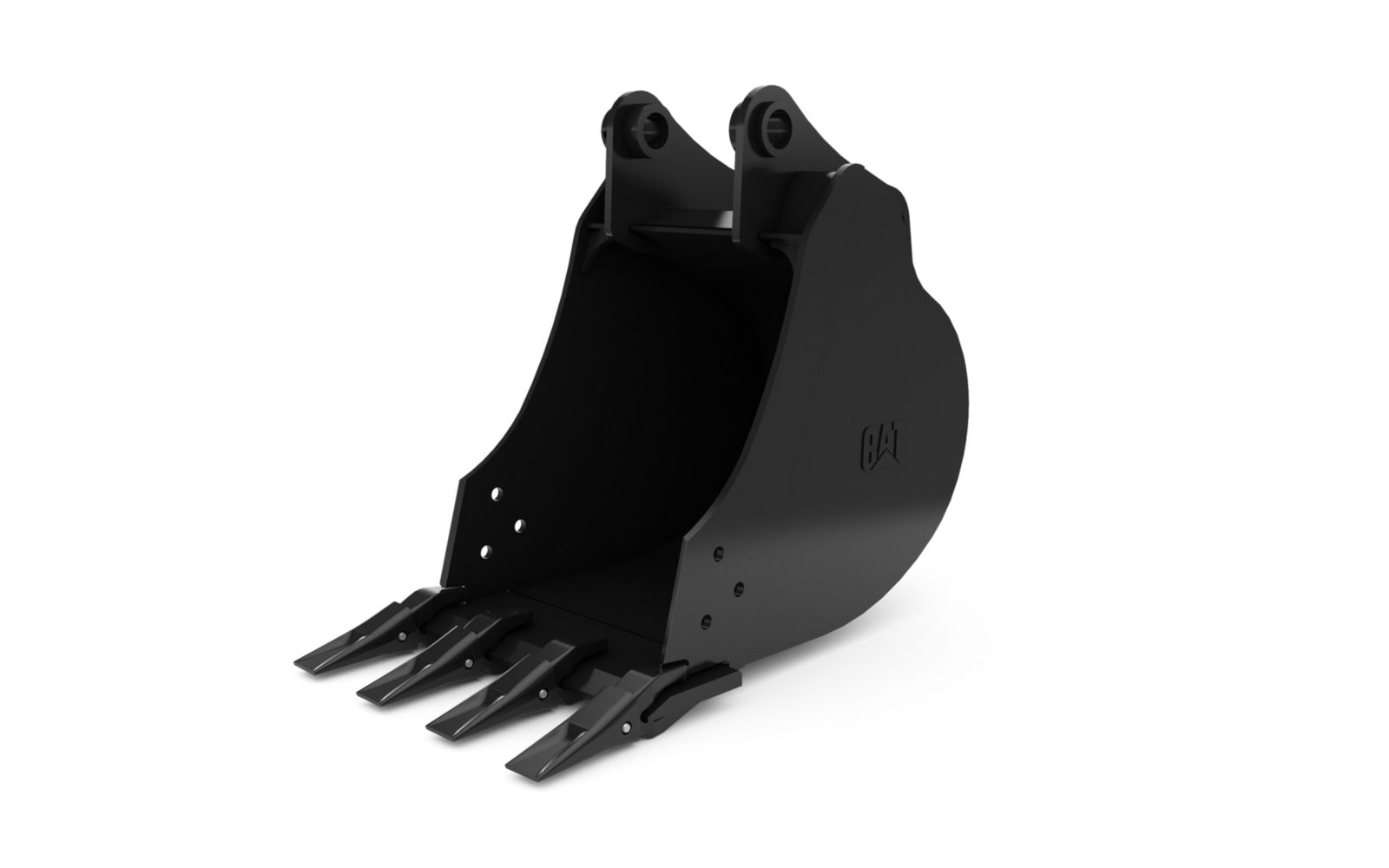

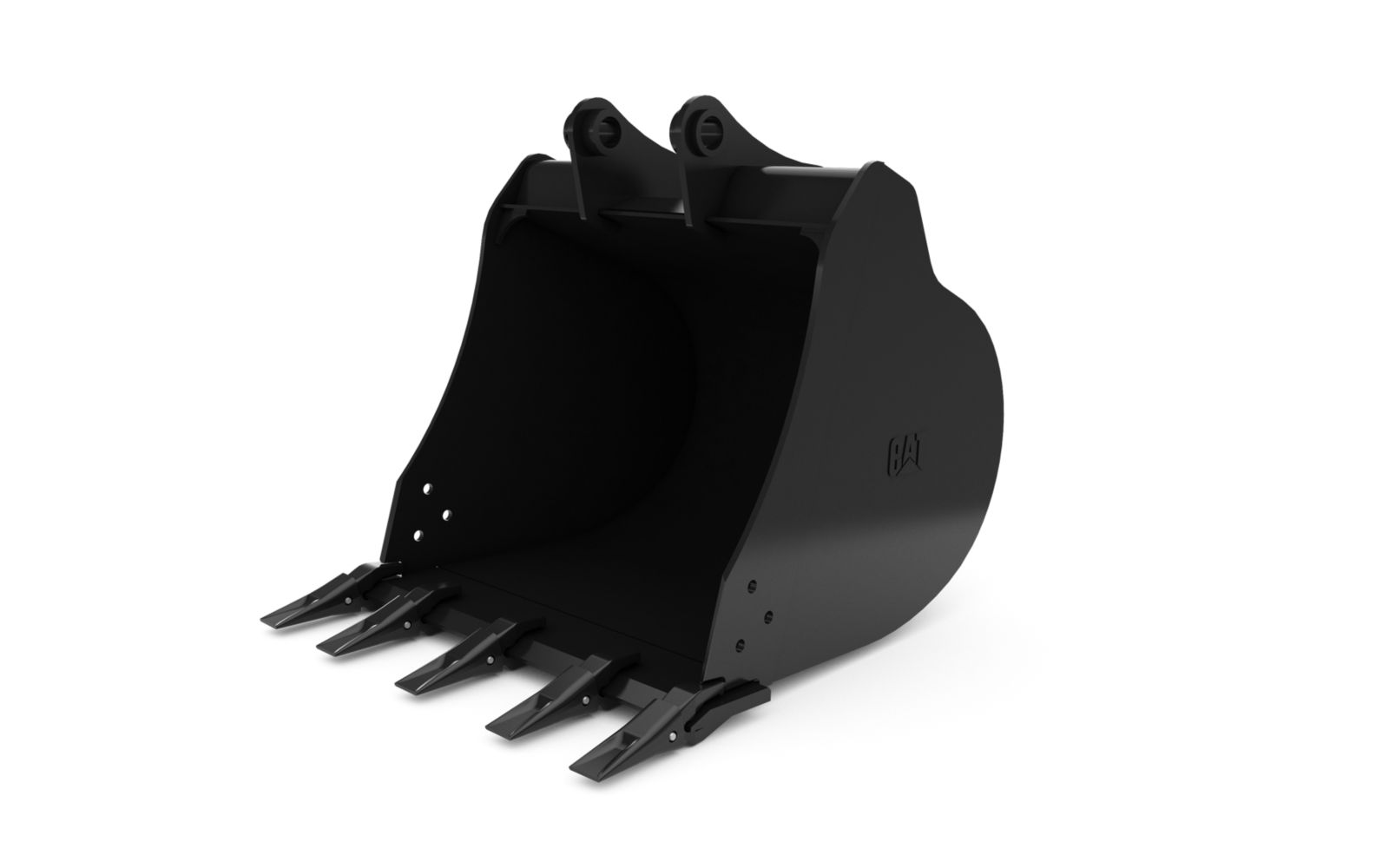

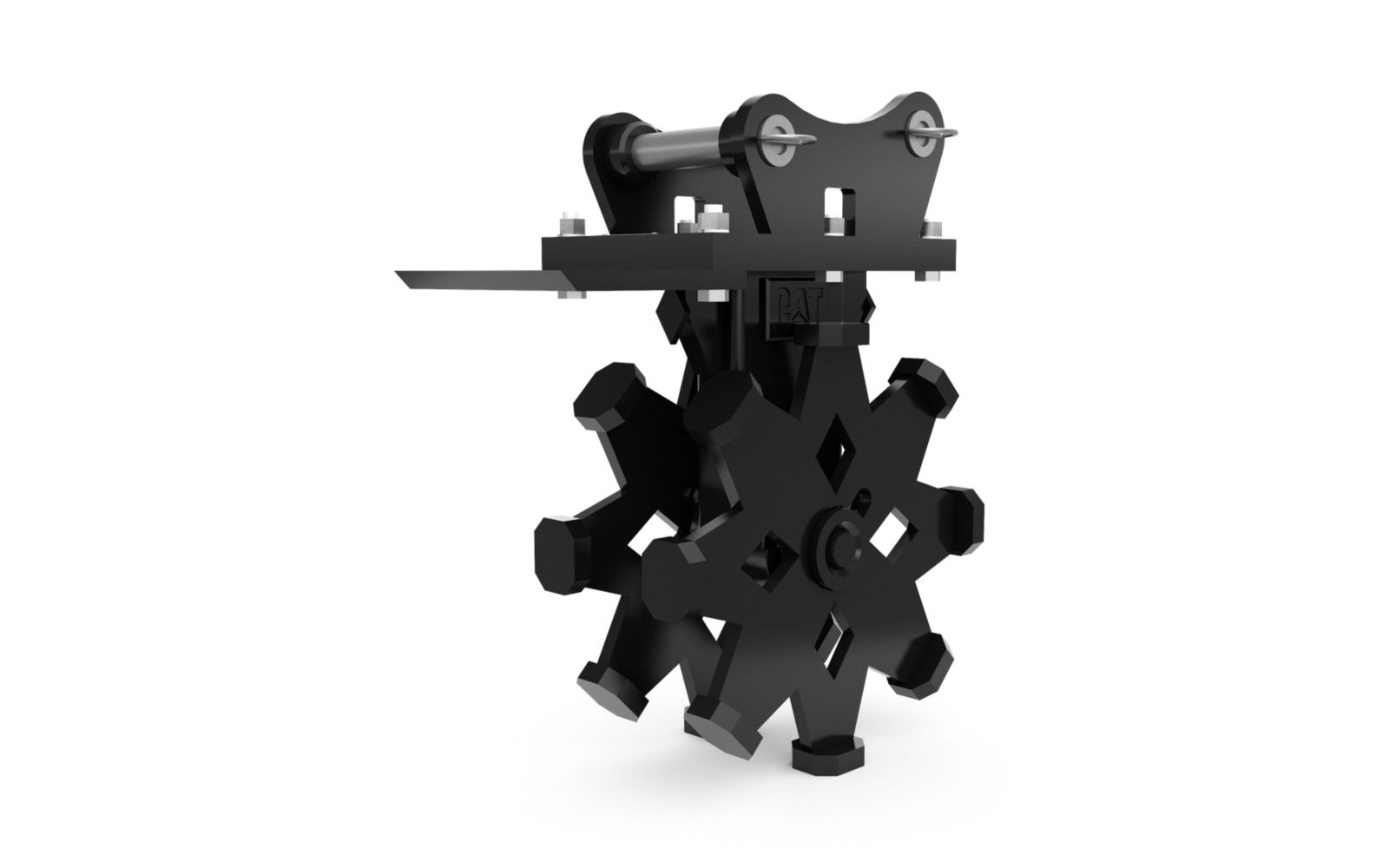

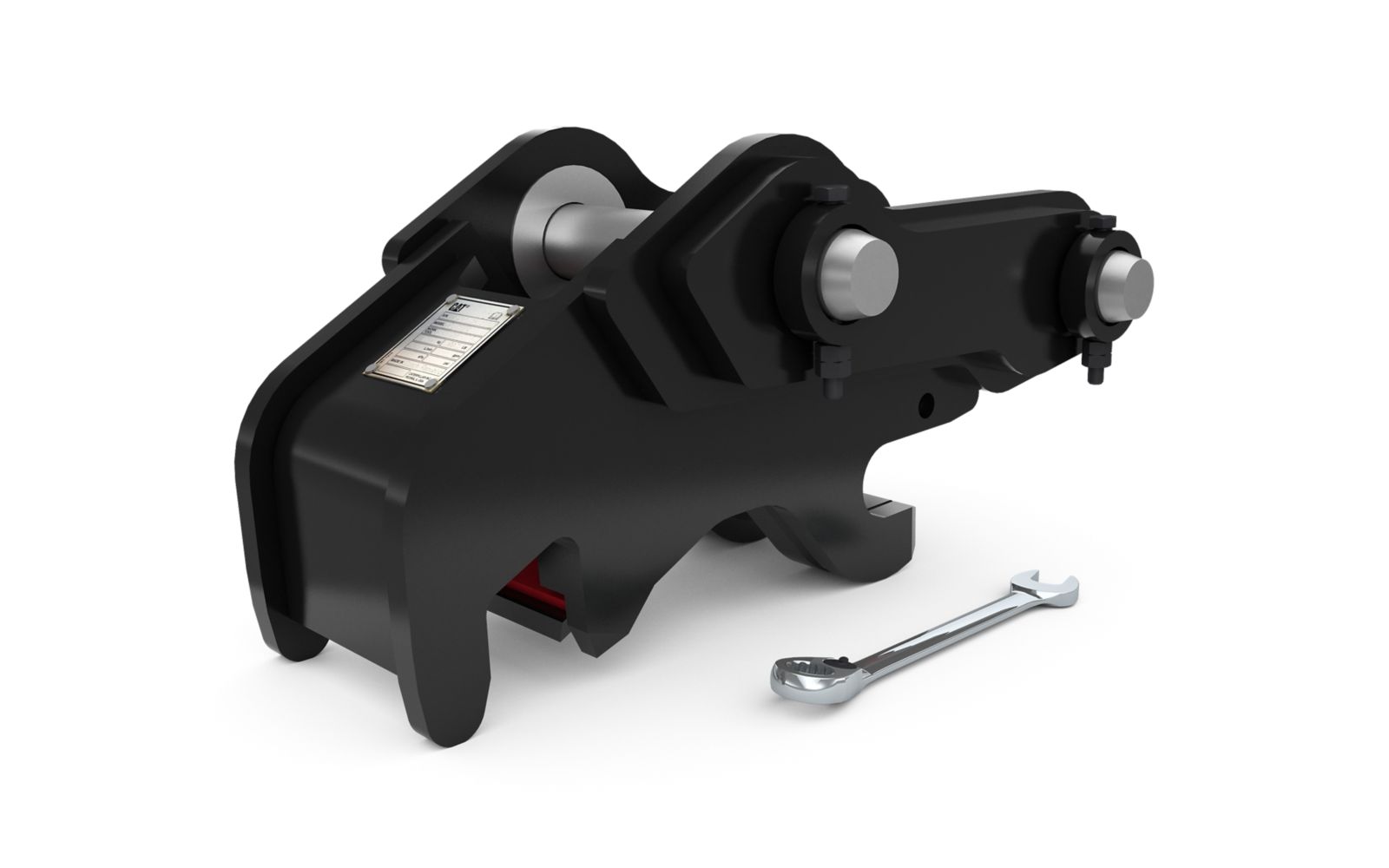

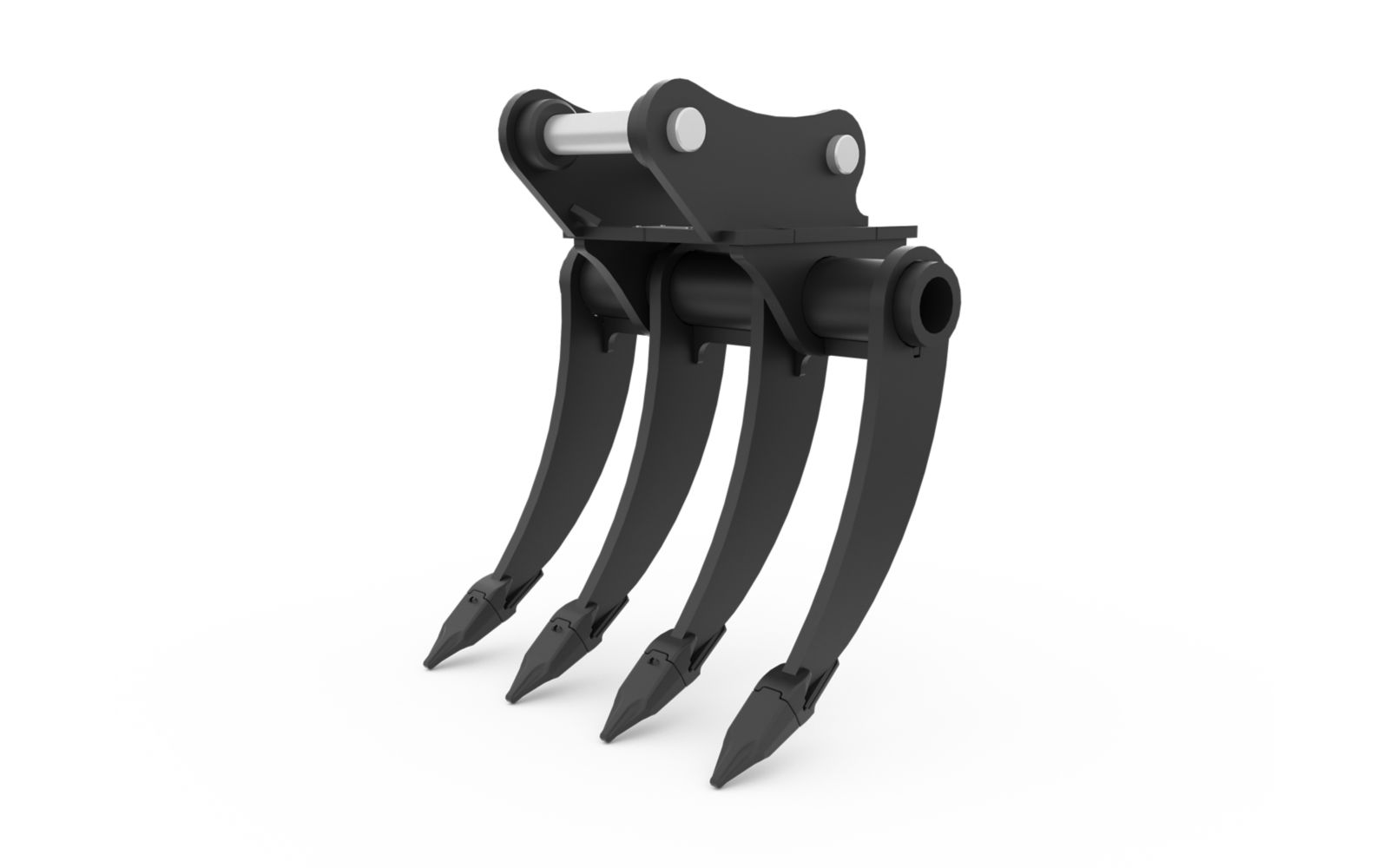

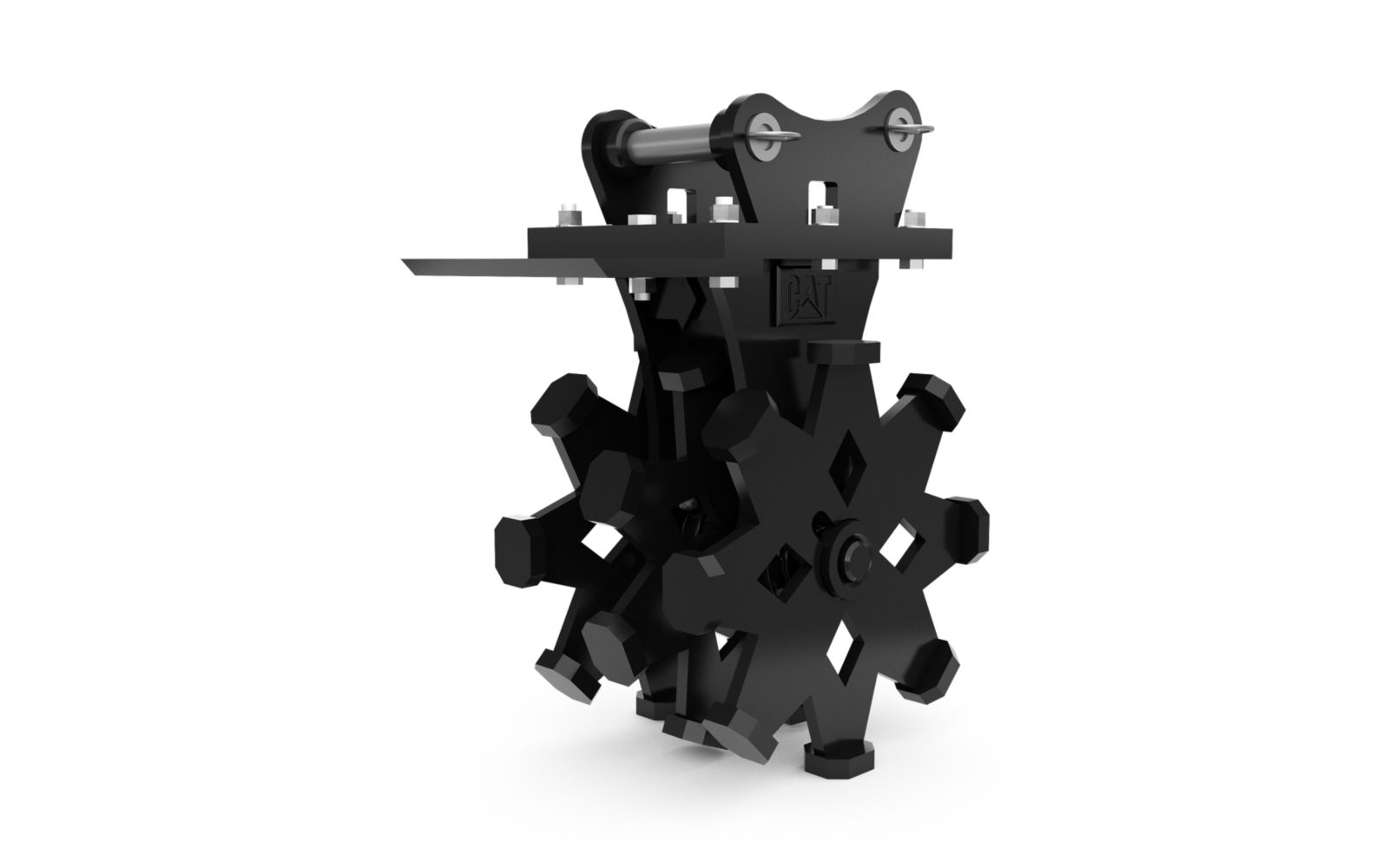

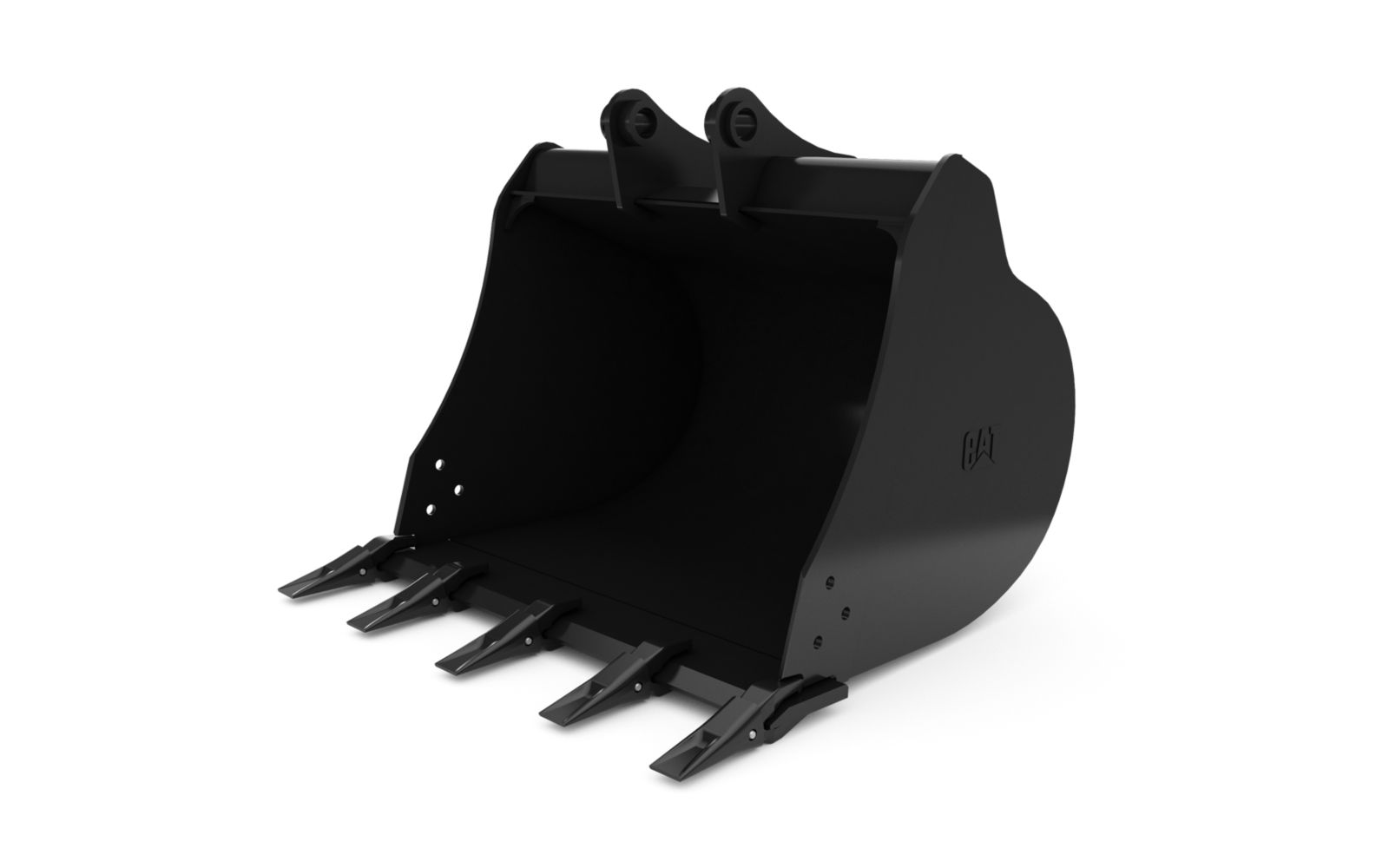

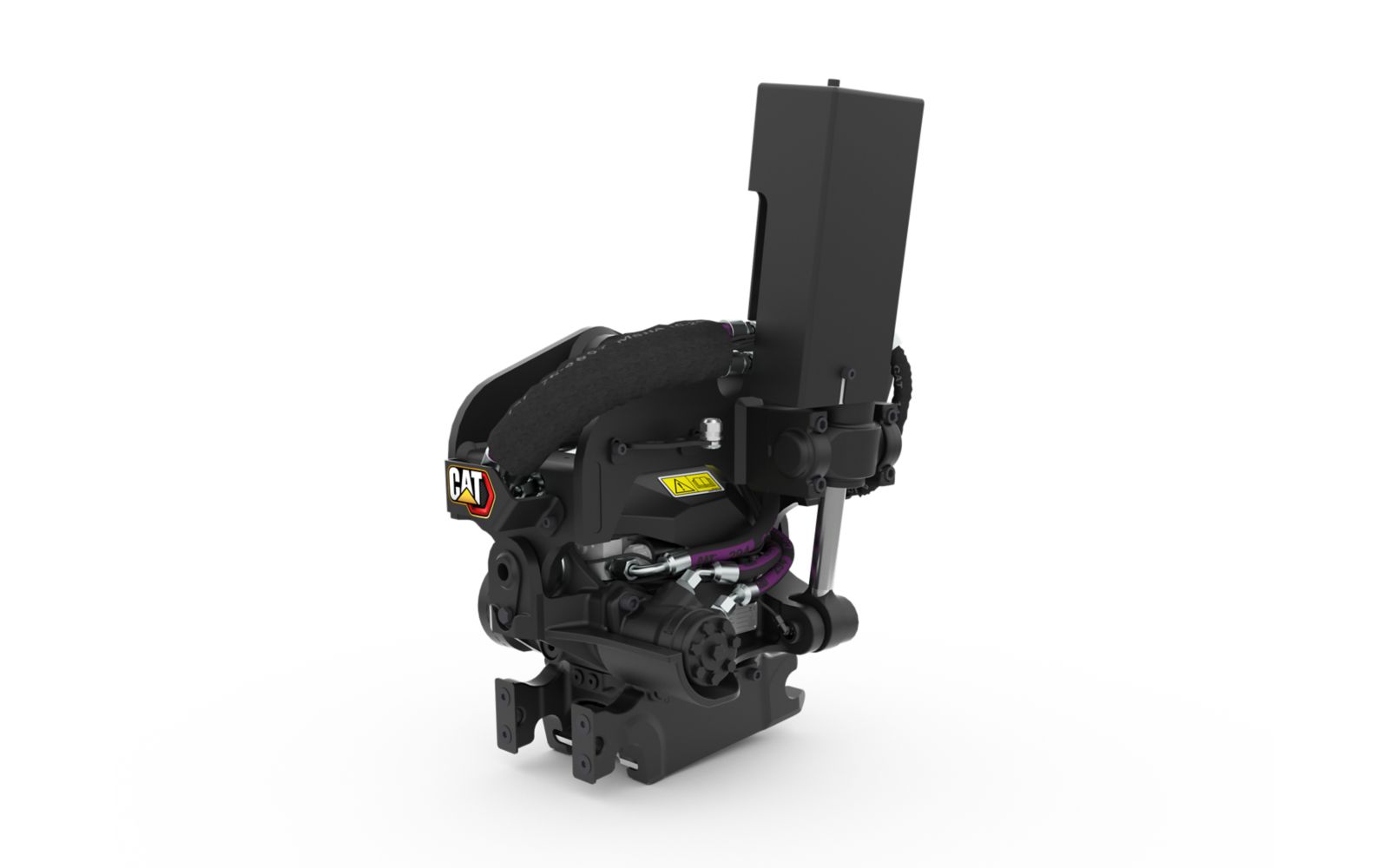

Attachments

Overview

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	33.6 kW	45 HP
Engine Model	C1.7 Turbo	C1.7 Turbo
Displacement	1.662 l	101 in³
Gross Power - 2,400 rpm - SAE J1995:2014	36.1 kW	48.4 HP
Stroke	100 mm	3.9 in
Bore	84 mm	3.3 in
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	33.6 kW	45 HP
Note	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.

Weights

Operating Weight	5754 kg	12688 lb
Note (2)	**Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.	**Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.
Minimum Operating Weight with Cab*	5105 kg	11257 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Minimum Operating Weight with Canopy*	5006 kg	11038 lb
Maximum Operating Weight with Canopy**	5665 kg	12491 lb
Maximum Operating Weight with Cab**	5764 kg	12710 lb

Dimensions - Long Stick

Dig Depth	3670 mm	144.5 in
Maximum Reach	5990 mm	235.8 in
O/A Shipping Height	2550 mm	100.4 in
Vertical Wall	2560 mm	100.8 in
Track Width	1980 mm	78 in
Overall Shipping Length*	5340 mm	210.2 in
Maximum Dump Clearance	3845 mm	151.4 in
Tail Swing with Counterweight	1200 mm	47.2 in
Boom Swing - Right	865 mm	34.1 °
Boom Swing - Left	24.2 °	615 mm
Tail Swing without Counterweight	1095 mm	43.1 in
Track Belt/Shoe Width	400 mm	15.7 in
Maximum Reach - Ground Level	5835 mm	229.7 in
Stick Length	1601 mm	63 in
Swing Bearing - Height	619 mm	24.4 in
O/A Undercarriage Length	2580 mm	101.6 in
Boom In Reach	2580 mm	101.6 in
Maximum Blade Depth	650 mm	25.6 in
Maximum Blade Height	400 mm	15.7 in
Maximum Dig Height	5355 mm	210.8 in
Boom Height - Shipping Position	1895 mm	74.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Ground Clearance	335 mm	13.2 in

Service Refill Capacities

Hydraulic Tank	60 l	16 gal (US)
Engine Oil	6 l	1.6 gal (US)
Hydraulic System	75 l	20 gal (US)
Fuel Tank	68 l	18 gal (US)
Cooling System	11 l	2.9 gal (US)

Swing System

Boom Swing - Left	72 Degrees	72 Degrees
Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Right	50 Degrees	50 Degrees

Hydraulic System

Digging Force - Bucket	49.2 kN	11061 lbf
Auxiliary Circuit - Secondary - Pressure	265 bar	3843 psi
Operating Pressure - Equipment	265 bar	3843 psi
Auxiliary Circuit - Secondary - Flow	28 l/min	7 gal/min
Operating Pressure - Travel	265 bar	3843 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Stick - Standard	28.3 kN	6362 lbf
Auxiliary Circuit - Primary - Pressure	265 bar	3843 psi
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	133 l/min	35 gal/min
Auxiliary Circuit - Primary - Flow	80 l/min	21 gal/min
Operating Pressure - Swing	200 bar	2901 psi
Digging Force - Stick - Long	25.2 kN	5665 lbf

Dimensions - Standard Stick

Tail Swing without Counterweight	1095 mm	43.1 in
Boom Swing - Left	615 mm	24.2 °
Boom Swing - Right	865 mm	34.1 °
Maximum Dig Height	5215 mm	205.3 in
Vertical Wall	2335 mm	91.9 in
Maximum Blade Height	400 mm	15.7 in
Swing Bearing - Height	619 mm	24.4 in
Boom Height - Shipping Position	1820 mm	71.7 in
Overall Shipping Length*	5305 mm	208.9 in
O/A Shipping Height	2550 mm	100.4 in
Dig Depth	3420 mm	134.6 in
Maximum Reach - Ground Level	5590 mm	220.1 in
Maximum Dump Clearance	3700 mm	145.7 in
Maximum Reach	5755 mm	226.6 in
Boom In Reach	2570 mm	101.2 in
Maximum Blade Depth	650 mm	25.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
O/A Undercarriage Length	2580 mm	101.6 in
Track Belt/Shoe Width	400 mm	15.7 in
Stick Length	1351 mm	53.2 in
Tail Swing with Counterweight	1200 mm	47.2 in
Ground Clearance	335 mm	13.2 in

Travel System

Maximum Traction Force - High Speed	24.7 kN	5553 lbf
Travel Speed - High	5 km/h	3.1 mile/h
Travel Speed - Low	2.8 km/h	1.7 mile/h
Ground Pressure - Maximum Weight	32.2 kPa	4.7 psi
Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Minimum Weight	27.3 kPa	4 psi
Maximum Traction Force - Low Speed	50.5 kN	11353 lbf

Weight Increase from Minimum Configuration

Counterweight	242 kg	534 lb
Angle Blade	92 kg	203 lb
Long Stick	34 kg	75 lb
Steel Tracks with Pads	375 kg	827 lb

Blade

Angle Blade - Right	25 degrees	25 degrees
Angle Blade Width	1980 mm	78 in
Angle Blade Height	400 mm	15.7 in
Straight Blade Width	1980 mm	78 in
Straight Blade Height	390 mm	15.4 in
Angle Blade - Left	25 degrees	25 degrees

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Top Guard	ISO 10262:1998 Level I	ISO 10262:1998 Level I

Sound

Operator Sound Pressure (ISO 6396:2008)	76 dB(A)	76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A)	97 dB(A)
Note	European Union Directive "2000/14/EC"	European Union Directive "2000/14/EC"

Sustainability

Recyclability	96%	96%

Features

ALL DAY COMFORT

Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

GUARDING

ROPS ISO 12117-2:2008
Top Guard ISO 10262:1998 (Level I)

ENGINE

Cat® C1.7 Turbo Engine (EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Canopy or Cab (Canopy not available in some regions)
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen (not available in all regions)
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (400 mm/15.7 in)
Dozer Straight Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2716 mm/106.9 in)
Standard Stick (1351 mm/53.2 in)
Front Shovel Capable – Pin-On
Thumb Ready
Certified Lifting Eye

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Battery Disconnect
12 Volt Power Socket
Travel Alarm (optional in some regions)

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
No Travel Pedals and Hand Levers (optional in some regions)
Machine Security – Push to Start with Key Fob/Pass Code
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors, Left, Right and Rear
Camera
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
Next Generation Advanced Monitor – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code
Seat Belt Reminder System
Cat Grade with 3D
Cat Grade with Advanced 2D
