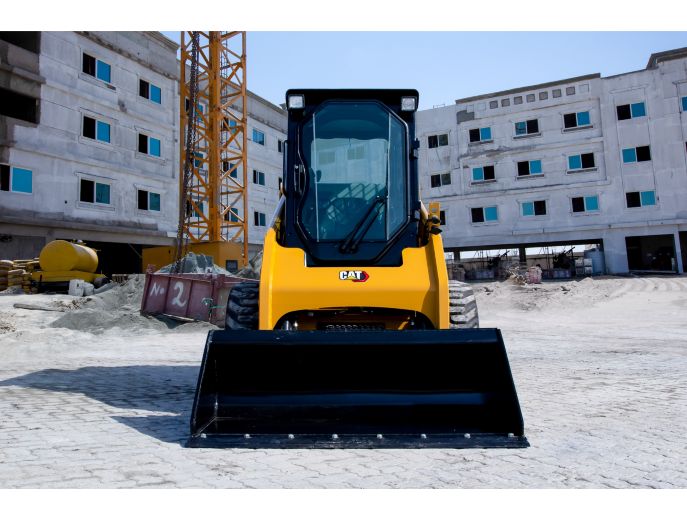

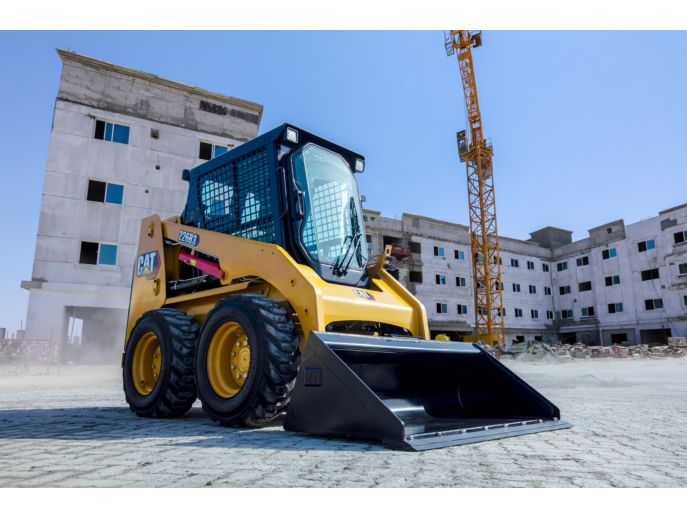

226B3

Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability – no belts are used. The hydraulic system also features:

• Standard auxiliary hydraulics to power work tools that are available through quick connect hydraulic couplings rigidly mounted to the loader arm.
• Cat ToughGuardâ„¢ hoses for increased reliability and durability.

Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day.

Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader:

• Augers
• Backhoes
• Blades (angle, dozer)
• Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
• Brooms (angle, pickup, utility)
• Brushcutters
• Cold Planers
• Forks (pallet, industrial grapple, utility grapple, utility)
• Hydraulic Hammers
• Landscape Tillers
• Landscape Rakes
• Material Handling Arm
• Power Box Rakes
• Shear
• Snow Blowers
• Stump Grinders
• Trenchers
• Vibratory Compactors
• Wheel Saws

ELECTRICAL

1. 12 volt Electrical System
2. 85 ampere Alternator
3. Automatic Glow Plug Activation
4. Ignition Key Start/Stop Switch
5. Lights: Gauge backlighting, two rear tail lights, two adjustable front and rear halogen lights, dome light.

OPERATOR ENVIRONMENT

1. Gauges: Fuel level, hour meter
2. Operator Warning System Indicators: Air filter restriction, alternator output, armrest raised/operator out of seat, engine coolant temperature, engine oil pressure, glow plug activation, hydraulic filter restriction, hydraulic oil temperature, parking brake engaged
3. Vinyl seat
4. Pull Down Ergonomic Contoured Armrest
5. Control Interlock System, when operator leaves seat or armrest raised: Hydraulic system disables, hydrostatic transmission disables, parking brake engages
6. ROPS Cab, Open, Tilt Up
7. FOPS, Level I
8. Top and Rear Windows
9. Floor Mat
10. Interior Rear View Mirror
11. 12 volt Electric Socket
12. Horn
13. Backup Alarm
14. Hand and Foot Throttle

POWER TRAIN

1. Cat C2.2 T Diesel Engine
2. Engine is Tier 4 Interim/Stage IIIA/Bharat Stage III Equivalent
3. Engine meets Brazil Mar-1 emission standards equivalent to Tier 4 Interim and Stage IIIA
4. Air Cleaner, Dual Element, Radial Seal
5. S·O·SSM Sampling Valve, Hydraulic Oil
6. Filters, Spin-on, Hydraulic
7. Filters, Bayonet-type, Fuel and Water Separator

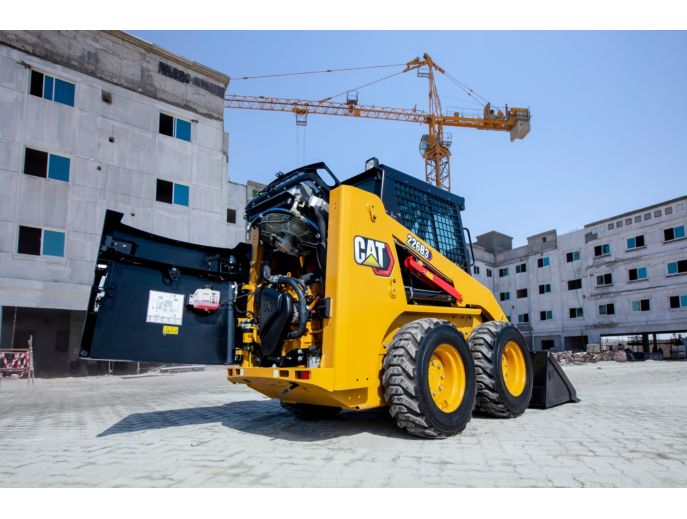

8. Tilt Up Radiator/Hydraulic Oil Cooler
9. Spring Applied, Hydraulically Released Parking Brakes
10. Hydrostatic Transmission
11. Four Wheel Chain Drive

OTHER

1. Engine Enclosure, Lockable
2. Extended Life Antifreeze, –36° C (–33° F)
3. Machine Tie Down Points (4)
4. Support, Lift Arm
5. Hydraulic Oil Level Sight Gauge
6. Radiator Coolant Level Sight Gauge
7. Radiator, Expansion Bottle
8. Cat ToughGuard™ Hose
9. Auxiliary, Hydraulics, Continuous Flow
10. Heavy Duty, Flat Faced Quick Disconnects
11. Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
12. Electrical Outlet, Beacon
13. Belly Pan Cleanout

MANDATORY EQUIPMENT

1. Quick Coupler, Mechanical or Hydraulic
2. Seat Belt, 50 mm (2 in) or 75 mm (3 in)
3. Cooling Fan, Demand or Standard
4. Comfort Packages (must select one of the following):
   – Open ROPS (C0): Static Seat
   – Open ROPS (C1): Suspension Seat, Deluxe Headliner
   – Enclosed ROPS (C2): Features of C1 Package plus Heater, Cab Door, Side Windows, Cup Holder, Cab Debris Barrier
   – Enclosed ROPS (C3): Features of C2 Package plus Air Conditioner
5. Control Packages (must select one of the following):
   – Control Package 1: On/Off Auxiliary Hydraulics Basic
   – Control Package 2: Proportional Auxiliary Hydraulics Deluxe
   – Control Package 3: Proportional Auxiliary Hydraulics Deluxe, Work Tool Harness
   – Control Package 4: High Flow Hydraulics

OPTIONAL EQUIPMENT

1. Variable Speed Demand Fan (not available in all regions)
2. Counterweight
3. Beacon, Rotating
4. Engine Block Heater, 120V or 240V
5. Heavy Duty Battery, 880 CCA
6. Oil, Hydraulic, Cold Operation
7. Door, Glass or Polycarbonate
8. Self-Leveling
9. Paint, Custom
