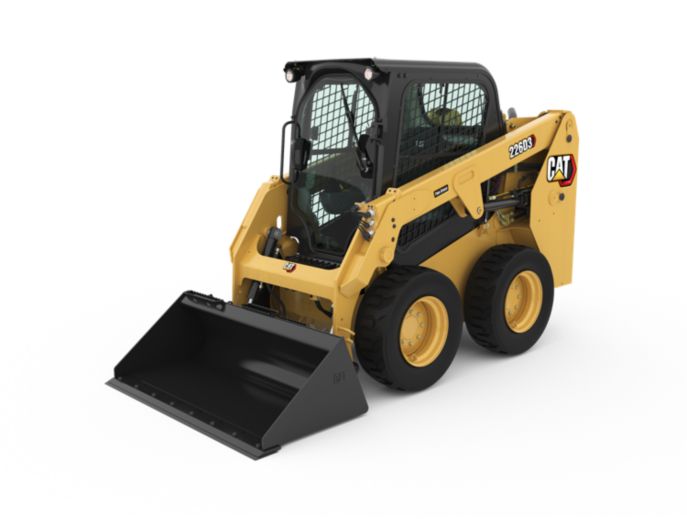

226D3 Skid Steer Loader
Videos
226D3
360º View
226D3
226D3
Skid Steer Loaders
The Cat® 226D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
Gross Power - SAE J1995:2014
67.1 hp/50.1 kW
Rated Operating Capacity
1550 lb/705 kg
Operating Weight
5849 lb/2653 kg
Wheel Base
41.5 in/1054 mm
Key Features
Quiet and Comfortable
Maximum Performance
Making Your Job Easier
Optimized Machine Capability
Sustainability
Specifications
Metric
|
Imperial
Engine
Gross Power - SAE J1995:2014
67.1 hp
50.1 kW
Net Power - SAE 1349
65.8 hp
49.1 kW
Displacement
134.3 in³
2.2 l
Stroke
3.9 in
100 mm
Bore
3.3 in
84 mm
Engine Model
Cat C2.2 CRDI
Peak Torque - 1,500 rpm - SAE J1995
153 ft·lbf
208 N·m
Net Power - ISO 9249
66.5 hp
49.6 kW
Operating Specifications
Rated Operating Capacity
1550 lb
705 kg
Rated Operating Capacity with Optional Counterweight
1650 lb
750 kg
Tipping Load
3100 lb
1410 kg
Breakout Force - Tilt Cylinder
3927 lb
1781 kg
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Weights
Operating Weight
5849 lb
2653 kg
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Dimensions
Wheel Base
41.5 in
1054 mm
Length - With Bucket on Ground
127.3 in
3234 mm
Length - Without Bucket
99.4 in
2524 mm
Height - Top of Cab
79.8 in
2028 mm
Vehicle Width over Tires
58.9 in
1497 mm
Maximum Overall Height
143.8 in
3652 mm
Bucket Pin Height - Maximum Lift
110.9 in
2818 mm
Bucket Pin Height - Carry Position
8.5 in
215 mm
Reach - Maximum Lift/Dump
21 in
533 mm
Clearance at Maximum Lift and Dump
81.8 in
2077 mm
Ground Clearance
6.9 in
175 mm
Departure Angle
27.9°
Maximum Dump Angle
46.7°
Rack Back Angle - Maximum Height
88.9°
Bumper Overhang - Behind Rear Axle
35.2 in
8944 mm
Turning Radius from Center - Bucket
77.8 in
1977 mm
Maximum Reach - With Arms Parallel to Ground
50.7 in
1288 mm
Turning Radius from Center - Machine Rear
59.6 in
1513 mm
Turning Radius from Center - Coupler
43.5 in
1104 mm
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3336 psi
23000 kPa
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure
3336 psi
23000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
33.5 hp
26.5 kW
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
50.9 hp
38 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
18 gpm
69 L/min
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow
26 gpm
99 L/min
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - One Speed
7.6 mile/h
12.3 km/h
Travel Speed - Forward or Reverse - Two Speed Option
11.1 mile/h
17.8 km/h
Service Refill Capacities
Chain Box - Each Side
1.8 gal (US)
7 l
Cooling System
3.2 gal (US)
12 l
Engine Crankcase
2.6 gal (US)
10 l
Fuel Tank
15.1 gal (US)
57 l
Hydraulic System
11.9 gal (US)
45 l
Hydraulic Tank
9 gal (US)
34 l
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Noise Level
Outside Cab***
102 dB(A)
102 dB(A)
Inside Cab**
83 dB(A)
83 dB(A)
Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
