Skid Steer and Compact Track Loaders

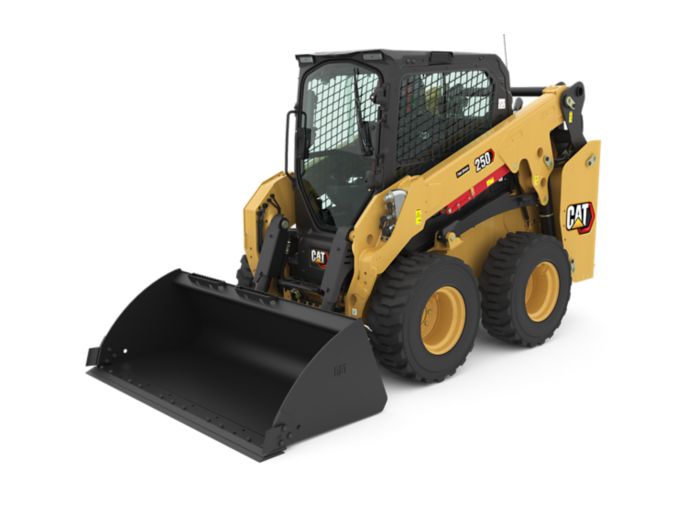

250

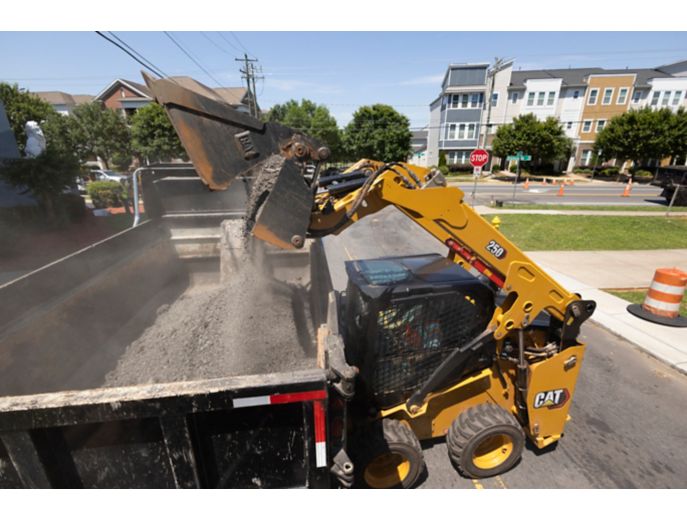

The Cat® 250 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995:2014	55 kW	74 hp
Net Power - SAE 1349	55 kW	73 hp
Displacement	2.8 l	171 in³
Stroke	110 mm	4.3 in
Bore	90 mm	3.5 in
Engine Model	Cat C2.8T (turbo)	Cat C2.8T (turbo)
Peak Torque - 1,600 rpm - SAE J1995	300 N·m	221 lb/ft
Net Power - ISO 9249	55 kW	73 hp
Note	Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.	Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.

Weights

Operating Weight	3551 kg	7829 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Wheel Base	1094 mm	43.1 in
Height - Top of Cab	2080 mm	81.9 in
Vehicle Width over Tires	1677 mm	66 in
Ground Clearance	195 mm	7.7 in
Departure Angle	23°	23°
Maximum Dump Angle	46°	46°
Maximum Overall Height	3957 mm	155.8 in
Bucket Pin Height - Maximum Lift	3150 mm	124 in
Clearance at Maximum Lift and Dump	2443 mm	96.2 in
Turning Radius from Center - Coupler	1296 mm	51 in
Bucket Pin Height - Carry Position	200 mm	7.9 in
Bucket Pin Reach - Maximum Lift	75 mm	3 in
Roll Back Angle	28°	28°
Maximum Reach - With Arms Parallel to Ground	833 mm	32.8 in
Length - Without Bucket	2800 mm	110.2 in
Length - With Bucket on Ground	3430 mm	135 in
Reach - Maximum Lift/Dump	448 mm	17.6 in
Rack Back Angle - Maximum Height	97°	97°
Turning Radius from Center - Bucket	2024 mm	79.7 in
Turning Radius from Center - Machine Rear	1649 mm	64.9 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	28000 kPa	4061 psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	113 l/min	30 gal/min
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	45.4 kW	70.7 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow	86 l/min	23 gal/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	43 kW	58 hp
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	34.6 kW	46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	24130 kPa	3335 psi
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	113 l/min	30 gal/min
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	24130 kPa	3500 psi

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level I	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 (Optional)	ISO 3449:2005 (Optional)

Power Train

Travel Speed - Forward or Reverse - Two Speed Option	16.9 km/h	10.5 mile/h
Travel Speed - Forward or Reverse - One Speed	12.9 km/h	8 mile/h

Service Refill Capacities

Chain Box - Each Side	8.3 l	2.2 gal (US)
Cooling System	11.5 l	3 gal (US)
Engine Crankcase	8 l	2.1 gal (US)
Fuel Tank	94.4 l	24.9 gal (US)
Hydraulic System	36.8 l	9.7 gal (US)
Hydraulic Tank	26 l	6.9 gal (US)

Operating Specifications

Rated Operating Capacity	1220 kg	2689 lb
Tipping Load	2440 kg	5378 lb
Breakout Force - Tilt Cylinder	3077 kg	6784 lb
Rated Operating Capacity with Optional Counterweight	1325 kg	2916 lb
Breakout Force - Lift Cylinder	2698 kg	5948 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Air Conditioning System (if equipped)

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.

Noise Level

Outside Cab**	101 dB(A)	101 dB(A)
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*	83 dB(A)	83 dB(A)
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Sustainability

Recyclability	94%	94%

Features

High Performance Power Train

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability.

Redesigned Operator Station

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 250 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

Ventilated and Heated High-Back Air Ride Seat

Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.

Three Levels of Auxiliary Hydraulic Performance

Three levels of auxiliary hydraulic performance available, Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications.

Electronically Controlled Cat C2.8T Engine

Electronically controlled Cat C2.8T engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA standards.

Ride Control

Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.

Advanced Touchscreen Monitor

The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

Advanced Joysticks

The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

Ground-Level Access

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Cat Attachments

The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.

Standard Equipment

ELECTRICAL

Work Tool Electrical Harness
Heavy duty battery
12-volt Electrical System
85 Ampere Alternator
LED Work Lights
Auto Reverse Lights
Switch Backlighting
Interior LED Dome Light
Backup Alarm
Electrical Outlet, Beacon
Exterior Courtesy Lighting
Automatic Work light notification flash when parking brake is released

OPERATOR ENVIRONMENT

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Headliner
Interior Rearview Mirror
Horn
Hand (Dial) Throttle, Electronic
Seat Mounted Joystick Controls
Cell Phone Storage Pocket
Cup Holder
12-volt power port
Foot Throttle

HYDRAULICS

Selectable control pattern – ISO or H
Electro/hydraulic implement control
Electro/hydraulic hydrostatic transmission control Speed sensor guarding
Heavy duty flat faced quick disconnects with integrated pressure release lever
Hydraulic oil level sight gauge

POWER TRAIN

Cat C2.8T turbocharged diesel engine, meeting Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA
Glow plugs starting aid
Liquid cooled, direct injection
Extended life antifreeze (–37°C, –34°F)
Air cleaner, dual element, radial seal
Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
Radiator coolant level sight gauge Radiator expansion bottle
Filter, hydraulic supply, cartridge type
Filter, hydraulic return, cartridge type
Filter, canister type, engine oil
Spring applied, hydraulically released, parking brakes
Hydrostatic transmission
Lockable fuel cap
Hydraulic demand cooling fan
Auto engine idle

OTHER

Auxiliary Hydraulics, Continuous Flow
Telematics, Product Link, Cellular
Steel engine door with replaceable louvers
Engine door – lockable
Work tool attachment coupler
Cat ToughGuard™ hose

MANDATORY EQUIPMENT

Auxiliary Hydraulics: Standard or High Flow XPS
Quick Coupler: Mechanical or Hydraulic
High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
Tires: 10 x 16.5 or 12 x 16.5
Axles: Standard or Special Application

PERFORMANCE PACKAGES

Performance Package HP1: Standard Flow Hydraulics
Performance Package HP3: High Flow XPS Hydraulics

COMFORT PACKAGES

Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

TECHNOLOGY PACKAGES

T2 – Standard 12.7 cm (5 in) LCD Monitor, Standard Joysticks and Rear-view camera.
T4 – 20.3 cm (8 in) Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
T5 – T4 + 2 additional side view cameras.

RADIO

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.

PRODUCT LINK™

Product Link Basic series PL243
Product Link Elite series PLE643

COOLING FAN

On-demand, variable speed hydraulic cooling fan
On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation

GUARDING AND SEALING PACKAGES

HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region

Optional Equipment

OPTIONAL EQUIPMENT

External Counterweights
Beacon, LED
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
4-point machine lifting eyes
Paint, Custom
Speed Sensitive Ride Control
Bluetooth Key Security
Attachment Hose Guide
Corrosion Inhibitor Coating
