Augers

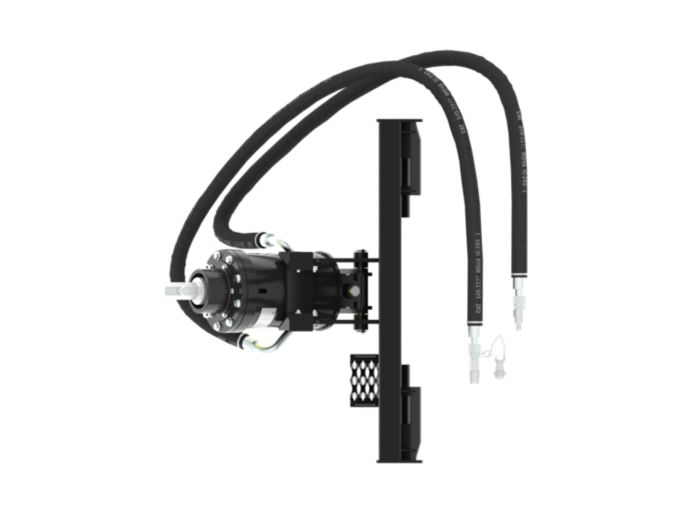

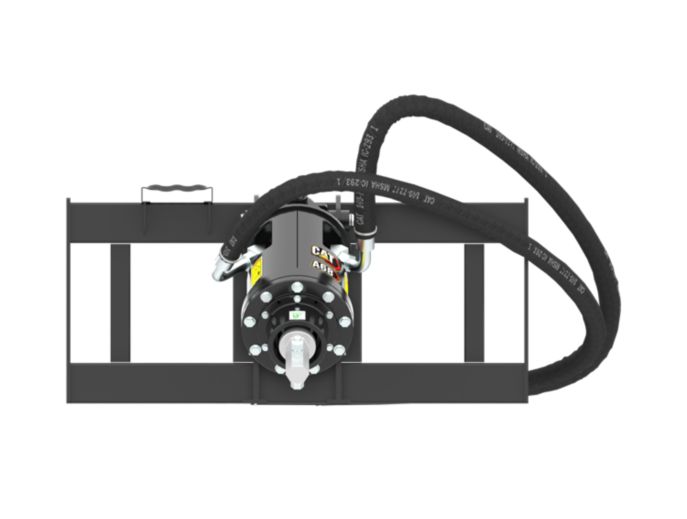

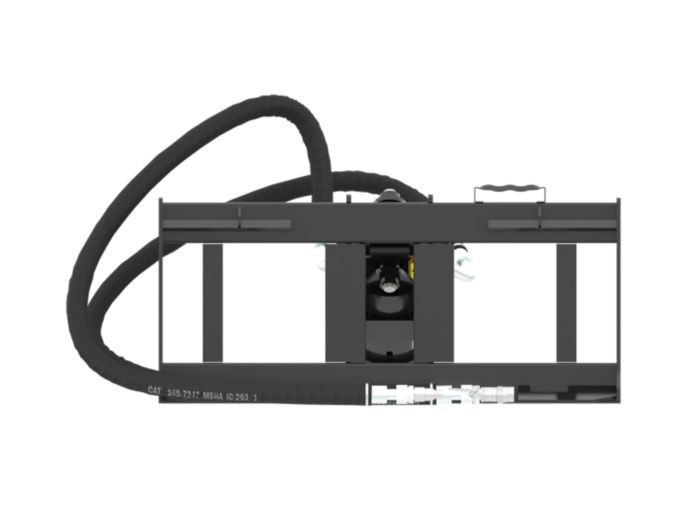

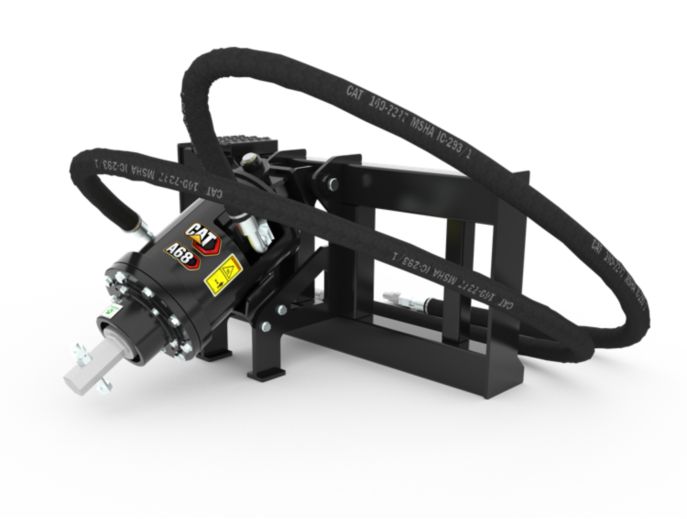

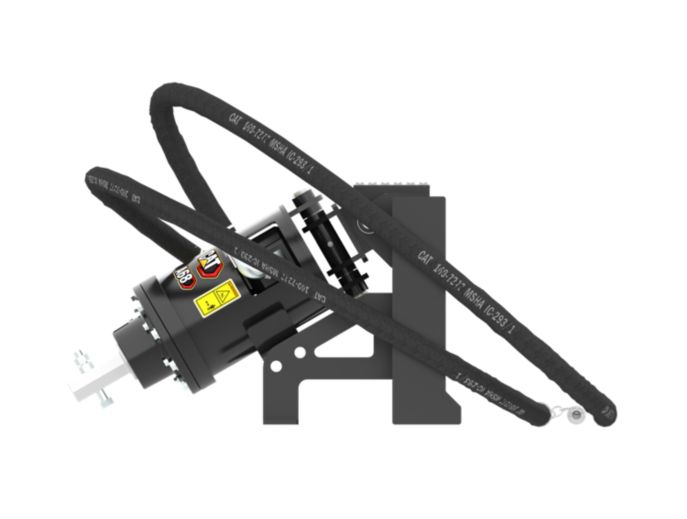

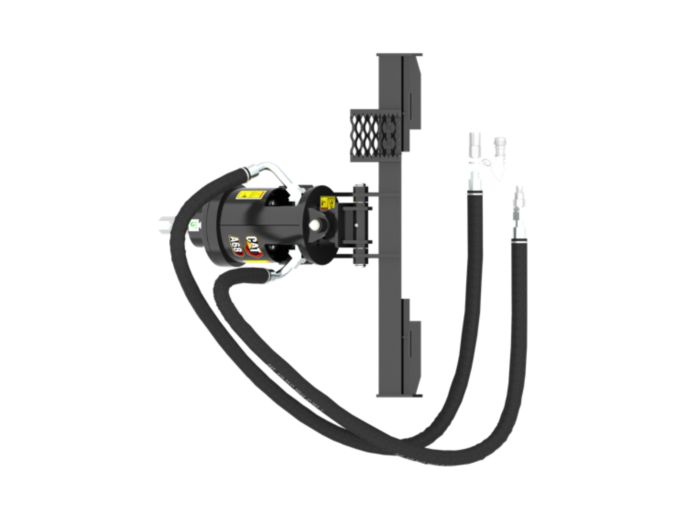

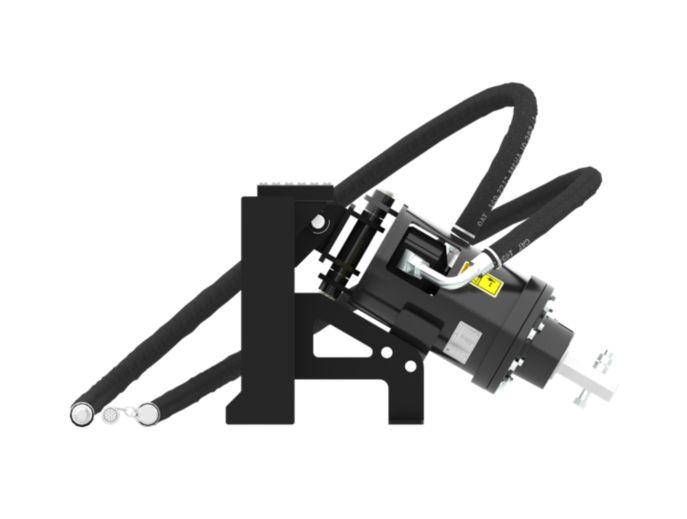

A68, Skid Steer Coupler

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Request a quote

Overview

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

UNITS:

Metric

Imperial

Drive Shaft Torque at Maximum Pressure	6826 N·m	5034.6 lb/ft
Drive Method	Gerotor Motor - Double Planetary Drive	Gerotor Motor - Double Planetary Drive
Mounting Bracket Design	Skid Steer Loader Coupler	Skid Steer Loader Coupler
Required Hydraulics	High Flow XPS	High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm)	95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi)	207-290 bar (3002-4206 psi)
Overall Width - With Bracket	1152 mm	45.4 in
Overall Length - With Bracket	598 mm	23.5 in
Overall Height	978 mm	38.5 in
Housing Diameter	252 mm	9.9 in
Swing Range	102 degrees	102 degrees
Swing Range (fore/aft)	120 degrees	120 degrees
Swing Range (L/R)	102 degrees	102 degrees
Weight	182 kg	401.2 lb
Motor Displacement	44 cm³	3 in³
Bit Speed at Maximum Flow	81 rpm	81 rpm
Hex Output Shaft Size	51 mm	2 in

Features

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Rugged Mounting Bracket

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.

Downloads
