Forest Machines

Compare Models

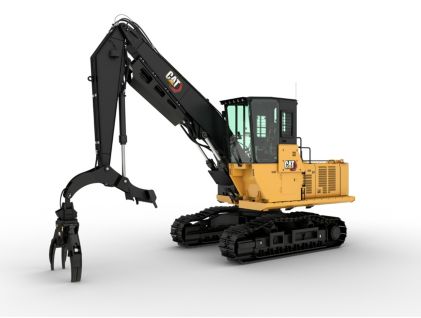

FM548 GF/FM548 LL
FM548 GF/FM548 LL
  • FM528 GF/FM528 LL
  • FM538 GF/FM538 LL
  • FM558 GF/FM558 LL
  • FM568 GF/FM568 LL
FM558 GF/FM558 LL
  • FM528 GF/FM528 LL
  • FM538 GF/FM538 LL
  • FM548 GF/FM548 LL
  • FM568 GF/FM568 LL
FM568 GF/FM568 LL
  • FM528 GF/FM528 LL
  • FM538 GF/FM538 LL
  • FM548 GF/FM548 LL
  • FM558 GF/FM558 LL
UNITS:
Metric
Imperial
Engine Model
Cat C7.1
Cat C7.1

Cat C7.1
Cat C7.1

Cat C9.3B
Cat C9.3B
Net Power - ISO 9249
202.4 kW
271 hp

222.5 kW
298 hp

257.9 kW
346 hp
Engine Power - ISO 14396
205 kW
275 hp

225.1 kW
302 hp

259 kW
347 hp
Net Power - ISO 9249 (DIN)
275 hp (metric)
275 hp (metric)

303 hp (metric)
303 hp (metric)

351 hp (metric)
351 hp (metric)
Engine Power - ISO 14396 (DIN)
279 hp (metric)
279 hp (metric)

306 hp (metric)
306 hp (metric)

352 hp (metric)
352 hp (metric)
Bore
105 mm
4.13 in

105 mm
4.13 in

115 mm
4.53 in
Stroke
135 mm
5.31 in

135 mm
5.31 in

149 mm
5.87 in
Displacement
7.1 l
433.3 in³

7.1 l
433.3 in³

9.3 l
567.5 in³
Biodiesel Capability
B20¹
B20¹

B20¹
B20¹

Up to B20¹
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Maximum Travel Speed
4.8 km/h
3 mile/h

4.4 km/h
2.8 mile/h

4.3 km/h
2.7 mile/h
Maximum Drawbar Pull
295 kN
66,319 lbf

350 kN
78,638 lbf

378 kN
84,978 lbf
Main System - Maximum Flow
502 l/min
132.6 gal/min

534 l/min
141 gal/min

581 l/min
153.4 gal/min
Maximum Pressure - Equipment
35000 kPa
5076 psi

35000 kPa
5076 psi

35000 kPa
5076 psi
Maximum Pressure - Equipment - Lift Mode
38000 kPa
5511 psi

38000 kPa
5511 psi

38000 kPa
5511 psi
Maximum Pressure - Travel
35000 kPa
5076 psi

35000 kPa
5076 psi

35000 kPa
5076 psi
Maximum Pressure - Swing
28000 kPa
4061 psi

27200 kPa
3945 psi

28400 kPa
4119 psi
Swing Speed
8.1 r/min
8.1 r/min

7.4 r/min
7.4 r/min

6.1 r/min
6.1 r/min
Maximum Swing Torque
136 kN·m
100308 lbf·ft

154 kN·m
113584 lbf·ft

206 kN·m
151938 lbf·ft
General Forestry
37800 kg
83300 lb

41500 kg
91490 lb

48500 kg
106920 lb
Note (1)
22" SEC Riser, High Wide undercarriage, Reach Boom, R2.95 m (9'8") Reach stick, 700mm (28") double grouser shoes, No bucket.
22" SEC Riser, High Wide undercarriage, Reach Boom, R2.95 m (9'8") Reach stick, 700mm (28") double grouser shoes, No bucket.

22" SEC Riser, High Wide undercarriage, 5.04mt CTWT, Reach Boom, R3.2 m (10'2") Reach stick, 700mm (28") double grouser shoes, 1.76 m³ (2.30 yd³) HD bucket.
22" SEC Riser, High Wide undercarriage, 5.04mt CTWT, Reach Boom, R3.2 m (10'2") Reach stick, 700mm (28") double grouser shoes, 1.76 m³ (2.30 yd³) HD bucket.

22" SEC Riser, High Wide undercarriage, Reach Boom, R3.9 m (12'10") Reach stick, 700mm (28") double grouser shoes, 1.64 m³ (2.14 yd³) HD bucket.
22" SEC Riser, High Wide undercarriage, Reach Boom, R3.9 m (12'10") Reach stick, 700mm (28") double grouser shoes, 1.64 m³ (2.14 yd³) HD bucket.
Log Loader (U/U)
40500 kg
89,290 lb

44700 kg
98550 lb

49300 kg
108690 lb
Note (2)
48" REC Riser, High Wide undercarriage, Log Loader boom, 3.76 m (12'4") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.
48" REC Riser, High Wide undercarriage, Log Loader boom, 3.76 m (12'4") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.

72" REC Riser, High Wide undercarriage, Log Loader boom, 4.05 m (13'3") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.
72" REC Riser, High Wide undercarriage, Log Loader boom, 4.05 m (13'3") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.

48" REC Riser(Easy Lock), High Wide undercarriage, Log Loader boom, 4.73 m (15'6") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.
48" REC Riser(Easy Lock), High Wide undercarriage, Log Loader boom, 4.73 m (15'6") Under/Under stick with live heel, 700mm (28") double grouser shoes, no grapple.
Fuel Tank
990 l
262 gal (US)

990 l
262 gal (US)

990 l
262 gal (US)
Cooling System
38 l
10 gal (US)

38 l
10 gal (US)

20 l
5 gal (US)
Engine Oil
25 l
7 gal (US)

25 l
7 gal (US)

32 l
8 gal (US)
Swing Drive
13.5 l
4 gal (US)

13.5 l
4 gal (US)

10.5 l
3 gal (US)
Final Drive - Each
9.5 l
3 gal (US)

9.5 l
3 gal (US)

9.5 l
3 gal (US)
Hydraulic System - Including Tank
348 l
92 gal (US)

348 l
92 gal (US)

383 l
101 gal (US)
Hydraulic Tank
185 l
49 gal (US)

185 l
49 gal (US)

185 l
49 gal (US)
DEF Tank
41 l
11 gal (US)

41 l
11 gal (US)

80 l
21 gal (US)
Note (1)
General Forestry
General Forestry

General Forestry
General Forestry

General Forestry configuration with high wide undercarriage, 559 mm (22") tilting riser, Reach boom, R3.9 m (12'10") Reach stick, 700 mm (28") double grouser shoes, and 1.64 m³ (2.14 yd³) HD bucket.
General Forestry configuration with high wide undercarriage, 559 mm (22") tilting riser, Reach boom, R3.9 m (12'10") Reach stick, 700 mm (28") double grouser shoes, and 1.64 m³ (2.14 yd³) HD bucket.
Shipping Height - Tilted Cab
3500 mm
11.5 ft

3610 mm
11.9 ft

3670 mm
12 ft
Handrail Height
3500 mm
11.5 ft

3520 mm
11.6 ft

3510 mm
11.5 ft
Length: General Forestry - Boom Stretched Out
12570 mm
41.3 ft

14060 mm
46.2 ft

15430 mm
50.6 ft
Length: Log Loader - Boom Stretched Out
15110 mm
49.6 ft

15730 mm
51.6 ft

16930 mm
55.6 ft
Tail Swing Radius
3530 mm
11.6 ft

3650 mm
11.6 ft

3790 mm
12.4 ft
Counterweight Clearance
1510 mm
4.9 ft

1510 mm
4.9 ft

1500 mm
4.9 ft
Ground Clearance
770 mm
2.5 ft

770 mm
2.5 ft

760 mm
2.5 ft
Track Length
5050 mm
16.6 ft

5160 mm
16.9 ft

5490 mm
18 ft
Track Length to Center of Rollers
4020 mm
13.2 ft

4120 mm
13.5 ft

4450 mm
14.6 ft
Track Gauge
2790 mm
9.2 ft

2920 mm
9.6 ft

2920 mm
9.6 ft
Transport Width
3530 mm
11.6 ft

3650 mm
12 ft

3650 mm
12 ft
Max Reach at Stick Nose at Ground Level - General Forestry Road Builder
8980 mm
29.5 ft

10740 mm
35.3 ft

11690 mm
38.3 ft
Max Reach at Grapple Mount on Heel at Ground Level - Log Loader Under/Under
10490 mm
34.4 ft

11980 mm
39.3 ft

13130 mm
43.1 ft
Note (1)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22" Riser CAB)/2.2 (48"/72" Riser CAB) kg of refrigerant, which has a CO2 equivalent of 3.003/3.146 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22" Riser CAB)/2.2 (48"/72" Riser CAB) kg of refrigerant, which has a CO2 equivalent of 3.003/3.146 metric tonnes.

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22" Riser CAB)/2.2 (48"/72" Riser CAB) kg of refrigerant, which has a CO2 equivalent of 3.003/3.146 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22" Riser CAB)/2.2 (48"/72" Riser CAB) kg of refrigerant, which has a CO2 equivalent of 3.003/3.146 metric tonnes.

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22"/48" Riser CAB)/2.2 (72" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 3.003/3.146 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.1 (22"/48" Riser CAB)/2.2 (72" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 3.003/3.146 metric tonnes.
