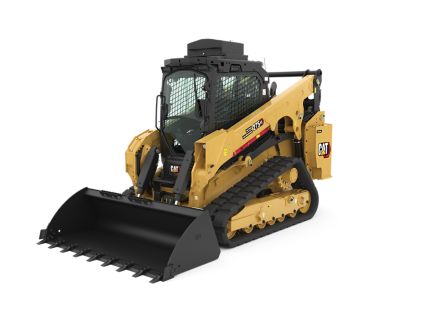

Skid Steer and Compact Track Loaders
Compare Models
UNITS:
Metric
Imperial
Engine
Gross Power - SAE J1995
91 kW
122 hp
82 kW
111 hp
82 kW
110 hp
Bore
120 mm
4.7 in
120 mm
4.7 in
100 mm
3.9 in
Displacement
3.6 l
221 in²
3.6 l
220 in²
3.8 l
232 in³
Net Power - ISO 9249
89 kW
120 hp
81 kW
109 hp
80 kW
107 hp
Net Power - SAE 1349
111 kW
82 hp
111 kW
82 hp
79 kW
106 hp
Peak Torque at 1,360 rpm SAE J1995
501 N·m
370 lb/ft
-
-
Peak Torque - 1,500 rpm - SAE J1995
551 N·m
406 lb/ft
451 N·m
333 lb/ft
374 N·m
276 ft·lbf
Engine Model
Cat® C3.6 TA (turbocharged after-cooled)
Cat® C3.6 TA (turbocharged after-cooled)
Cat® C3.6 TA (turbocharged after-cooled)
Cat® C3.6 TA (turbocharged after-cooled)
Cat C3.8 DIT (turbo)
Cat C3.8 DIT (turbo)
Stroke
98 mm
3.9 in
120 mm
4.7 in
120 mm
4.7 in
Net Power
-
-
79 kW
106 hp
Hydraulic System
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure
31000 kPa
4496 psi
-
28000 kPa
4061 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow
129 l/min
34 gal/min
-
-
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*
150 l/min
40 gal/min
-
150 l/min
40 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
24130 kPa
3500 psi
-
-
Hydraulic Flow - XE - Hydraulic Power (calculated)
77.5 kW
103.9 hp
-
70 kW
94 hp
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
60.2 kW
80.7 hp
-
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
86 l/min
23 gal/min
129 l/min
34 gal/min
-
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
2800 kPa
4061 psi
28000 kPa
4061 psi
-
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
34.6 kW
46.4 hp
-
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 l/min
23 gal/min
86 l/min
23 gal/min
-
Hydraulic Flow - Standard - Loader Hydraulic Pressure
24130 kPa
3500 psi
24130 kPa
3500 psi
-
Standard Flow Mode - Loader Hydraulic Pressure
-
-
23000 kPa
3335 psi
Note
-
-
*When equipped with Cat 400 Series work tools.
*When equipped with Cat 400 Series work tools.
Standard Flow Mode - Hydraulic Power - Calculated
-
-
33 kW
44 hp
Standard Flow Mode - Loader Hydraulic Flow
-
-
86 l/min
23 gal/min
Weights*
Operating Weight
5763 kg
12705 lb
6122 kg
13497 lb
Counterweight Adds to Operating Weight
194 kg
428 lb
194 kg
428 lb
Counterweight Adds to Operating Weight - ROC (35%)
126 kg
279 lb
134 kg
296 lb
Counterweight Adds to Operating Weight - Tip Load
361 kg
796 lb
384 kg
847 lb
Enclosed Cab Adds to Operating Weight
99 kg
218 lb
-
Enclosed Cab Adds to Operating Weight - ROC (35%)
48 kg
105 lb
-
Enclosed Cab Adds to Operating Weight - Tip Load
136 kg
214 lb
-
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Service Refill Capacities
Cooling System
17.5 l
4.6 gal (US)
17.5 l
4.6 gal (US)
16 l
4.1 gal (US)
Engine Crankcase
9 l
2.4 gal (US)
9 l
2.4 gal (US)
13 l
3.5 gal (US)
Fuel Tank
136.1 l
36.9 gal (US)
136.1 l
36 gal (US)
120 l
31.7 gal (US)
Hydraulic System
41 l
10.8 gal (US)
41 l
10.8 gal (US)
55 l
14.5 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
26 l
6.9 gal (US)
39 l
10.3 gal (US)
Diesel Exhaust Fluid (DEF) Tank
11 l
2.9 gal (US)
-
19 l
5 gal (US)
Operating Specifications
Rated Operating Capacities - 35% Tipping Load
1280 kg
4205 lb
2023 kg
4461 lb
1620 kg
3560 lb
Breakout Force - Lift Cylinder
2913 kg
6422 lb
3960 kg
8730 lb
2795 kg
6162 lb
Breakout Force - Tilt Cylinder
4519 kg
9963 lb
6314 kg
13920 lb
3298 kg
7270 lb
Ground Contact Area - With 450 mm/17.7 in Track
1.81 m²
2808 in²
1.76 m²
2724 in²
1.59 m²
2463 in²
Ground Pressure - With 450 mm/17.7 in Track
31.3 kPa
4.5 psi
34.3 kPa
5 psi
33 kPa
4.8 psi
Rated Operating Capacities - 50% Tipping Load
1829 kg
4033 lb
2891 kg
6372 lb
2315 kg
5085 lb
Rated Operating Capacity with Optional Counterweight
1359 kg
2996 lb
-
2431 kg
5360 lb
Tipping Load
5450 kg
12015 lb
5781 kg
12745 lb
4625 kg
10170 lb
Ground Contact Area
-
-
1.41 m²
2184 in²
Ground Pressure
-
-
37.3 kPa
5.4 psi
Note
-
-
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Bucket Pin Height - Carry Position
205 mm
8.1 in
209 mm
8.2 in
180 mm
7.1 in
Bucket Pin Height - Maximum Lift
3415 mm
134.4 in
3724 mm
146.6 in
3208 mm
126.3 in
Bucket Pin Reach - Maximum Lift
415 mm
16.3 in
413 mm
16.3 in
493 mm
19.4 in
Clearance at Maximum Lift and Dump
2694 mm
106.1 in
3039 mm
119.6 in
2399 mm
94.5 in
Departure Angle
29.5°
29.5°
26°
26°
33°
33°
Ground Clearance
280 mm
11 in
280 mm
11 in
245 mm
9.6 in
Height - Top of Cab
2230 mm
87.8 in
2230 mm
87.8 in
2125 mm
83.6 in
Length - Track on Ground
1836 mm
72.3 in
1830 mm
72 in
1767 mm
69.6 in
Length - With Bucket on Ground
3880 mm
152.8 in
3998 mm
157.4 in
3931 mm
154.7 in
Length - Without Bucket
3250 mm
128 in
3360 mm
132.3 in
3189 mm
125.5 in
Maximum Overall Height
4193 mm
165.1 in
4520 mm
178 in
4032 mm
158.7 in
Maximum Reach - With Arms Parallel to Ground
1171 mm
46.1 in
1285 mm
50.6 in
1319 mm
51.9 in
Overall Length - Track
2341 mm
92.2 in
2180 mm
85.8 in
2270 mm
89.4 in
Rack Back Angle - Maximum Height
86.7°
86.7°
89°
89°
81°
81°
Reach at Maximum Lift/Dump
814 mm
32 in
882 mm
34.7 in
-
Roll Back Angle
27.3°
27.3°
27.2°
27.2°
25°
25°
Turning Radius from Center - Bucket (racked)
2320 mm
91.3 in
2400 mm
94.5 in
2314 mm
91.1 in
Turning Radius from Center - Coupler
1531 mm
60.3 in
1578 mm
62.1 in
1476 mm
58.1 in
Turning Radius from Center - Machine Rear
1931 mm
76 in
1887 mm
74.3 in
1881 mm
74 in
Vehicle Width (450 mm/17.7 in tracks)
1976 mm
77.8 in
2078 mm
81.8 in
-
Maximum Dump Angle
44.7°
44.7°
40.5°
40.5°
54°
54°
Reach - Maximum Lift/Dump
-
-
852 mm
33.6 in
Vehicle Width (400 mm/15.7 in tracks)
-
-
1931 mm
76 in
Note
-
-
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Cab
FOPS
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ROPS
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
FOPS Level II
ISO 3449:2005 Level II (Optional)
ISO 3449:2005 Level II (Optional)
ISO 3449:2005 Level II (Optional)
ISO 3449:2005 Level II (Optional)
-
Power Train
Travel Speed - Forward or Reverse - One Speed
8.4 km/h
5.2 mile/h
7.8 km/h
4.8 mile/h
8.4 km/h
5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed
12.5 km/h
7.8 mile/h
12.4 km/h
7.7 mile/h
13.5 km/h
8.4 mile/h
Dimensions*
Vehicle Width (400 mm/15.7 in tracks)
1926 mm
75.8 in
Weights
Operating Weight
5333 kg
11756 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Noise Level
Inside Cab*
83 dB(A)
83 dB(A)
Outside Cab**
104 dB(A)
104 dB(A)
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
