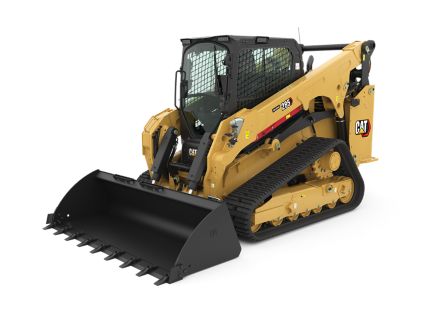

Skid Steer and Compact Track Loaders
Compare Models
UNITS:
Metric
Imperial
Engine
Gross Power - SAE J1995
82 kW
111 hp
82 kW
110 hp
50.1 kW
67.1 hp
Bore
120 mm
4.7 in
100 mm
3.9 in
84 mm
3.3 in
Displacement
3.6 l
220 in²
3.8 l
232 in³
2.2 l
134.3 in³
Net Power - ISO 9249
81 kW
109 hp
80 kW
107 hp
49.6 kW
66.5 hp
Net Power - SAE 1349
111 kW
82 hp
79 kW
106 hp
49.1 kW
65.8 hp
Peak Torque - 1,500 rpm - SAE J1995
451 N·m
333 lb/ft
374 N·m
276 ft·lbf
208 N·m
153 ft·lbf
Engine Model
Cat® C3.6 TA (turbocharged after-cooled)
Cat® C3.6 TA (turbocharged after-cooled)
Cat C3.8 DIT (turbo)
Cat C3.8 DIT (turbo)
Cat C2.2 CRDI
Cat C2.2 CRDI
Stroke
120 mm
4.7 in
120 mm
4.7 in
100 mm
3.9 in
Net Power
-
79 kW
106 hp
49.1 kW
65.8 hp
Hydraulic System
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
-
-
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
129 l/min
34 gal/min
-
-
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
28000 kPa
4061 psi
-
-
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
-
26.5 kW
35.5 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 l/min
23 gal/min
-
69 l/min
18 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
24130 kPa
3500 psi
-
23000 kPa
3336 psi
Standard Flow Mode - Loader Hydraulic Pressure
-
23000 kPa
3335 psi
-
Note
-
*When equipped with Cat 400 Series work tools.
*When equipped with Cat 400 Series work tools.
-
Standard Flow Mode - Hydraulic Power - Calculated
-
33 kW
44 hp
-
Standard Flow Mode - Loader Hydraulic Flow
-
86 l/min
23 gal/min
-
Hydraulic Flow - XE - Hydraulic Power (calculated)
-
70 kW
94 hp
-
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*
-
150 l/min
40 gal/min
-
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure
-
28000 kPa
4061 psi
-
Hydraulic Flow - High Flow - Loader Hydraulic Flow
-
-
99 l/min
26 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
-
-
23000 kPa
3336 psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
-
-
38 kW
50.9 hp
Weights*
Operating Weight
6122 kg
13497 lb
Counterweight Adds to Operating Weight
194 kg
428 lb
Counterweight Adds to Operating Weight - ROC (35%)
134 kg
296 lb
Counterweight Adds to Operating Weight - Tip Load
384 kg
847 lb
Note
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Service Refill Capacities
Cooling System
17.5 l
4.6 gal (US)
16 l
4.1 gal (US)
12 l
3.2 gal (US)
Engine Crankcase
9 l
2.4 gal (US)
13 l
3.5 gal (US)
10 l
2.6 gal (US)
Fuel Tank
136.1 l
36 gal (US)
120 l
31.7 gal (US)
57 l
15.1 gal (US)
Hydraulic System
41 l
10.8 gal (US)
55 l
14.5 gal (US)
45 l
11.9 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
39 l
10.3 gal (US)
34 l
9 gal (US)
Diesel Exhaust Fluid (DEF) Tank
-
19 l
5 gal (US)
-
Operating Specifications
Rated Operating Capacities - 35% Tipping Load
2023 kg
4461 lb
1620 kg
3560 lb
695 kg
1530 lb
Breakout Force - Lift Cylinder
3960 kg
8730 lb
2795 kg
6162 lb
-
Breakout Force - Tilt Cylinder
6314 kg
13920 lb
3298 kg
7270 lb
1775 kg
3913 lb
Ground Contact Area - With 450 mm/17.7 in Track
1.76 m²
2724 in²
1.59 m²
2463 in²
-
Ground Pressure - With 450 mm/17.7 in Track
34.3 kPa
5 psi
33 kPa
4.8 psi
-
Rated Operating Capacities - 50% Tipping Load
2891 kg
6372 lb
2315 kg
5085 lb
995 kg
2185 lb
Tipping Load
5781 kg
12745 lb
4625 kg
10170 lb
1985 kg
4370 lb
Ground Contact Area
-
1.41 m²
2184 in²
-
Ground Pressure
-
37.3 kPa
5.4 psi
-
Rated Operating Capacity with Optional Counterweight
-
2431 kg
5360 lb
1090 kg
2400 lb
Note
-
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Ground Contact Area - With 320 mm/12.6 in Track
-
-
0.89 m²
1373 in²
Ground Pressure - With 320 mm/12.6 in Track
-
-
37.3 kPa
5.4 psi
Ground Contact Area - With 400 mm/15.7 in Track
-
-
1.11 m²
1716 in²
Ground Pressure - With 400 mm/15.7 in Track
-
-
30.6 kPa
4.4 psi
Dimensions
Bucket Pin Height - Carry Position
209 mm
8.2 in
180 mm
7.1 in
218 mm
8.6 in
Bucket Pin Height - Maximum Lift
3724 mm
146.6 in
3208 mm
126.3 in
2825 mm
111.2 in
Bucket Pin Reach - Maximum Lift
413 mm
16.3 in
493 mm
19.4 in
-
Clearance at Maximum Lift and Dump
3039 mm
119.6 in
2399 mm
94.5 in
2057 mm
81 in
Departure Angle
26°
26°
33°
33°
34.5°
34.5°
Ground Clearance
280 mm
11 in
245 mm
9.6 in
195 mm
7.7 in
Height - Top of Cab
2230 mm
87.8 in
2125 mm
83.6 in
2034 mm
80.1 in
Length - Track on Ground
1830 mm
72 in
1767 mm
69.6 in
1384 mm
54.5 in
Length - With Bucket on Ground
3998 mm
157.4 in
3931 mm
154.7 in
3234 mm
127.3 in
Length - Without Bucket
3360 mm
132.3 in
3189 mm
125.5 in
2522 mm
99.3 in
Maximum Overall Height
4520 mm
178 in
4032 mm
158.7 in
3645 mm
143.5 in
Maximum Reach - With Arms Parallel to Ground
1285 mm
50.6 in
1319 mm
51.9 in
1356 mm
53.4 in
Overall Length - Track
2180 mm
85.8 in
2270 mm
89.4 in
1808 mm
71.2 in
Rack Back Angle - Maximum Height
89°
89°
81°
81°
85.5°
85.5°
Reach at Maximum Lift/Dump
882 mm
34.7 in
-
-
Roll Back Angle
27.2°
27.2°
25°
25°
-
Turning Radius from Center - Bucket (racked)
2400 mm
94.5 in
2314 mm
91.1 in
-
Turning Radius from Center - Coupler
1578 mm
62.1 in
1476 mm
58.1 in
1159 mm
45.6 in
Turning Radius from Center - Machine Rear
1887 mm
74.3 in
1881 mm
74 in
1458 mm
57.4 in
Vehicle Width (450 mm/17.7 in tracks)
2078 mm
81.8 in
-
-
Maximum Dump Angle
40.5°
40.5°
54°
54°
50.3°
50.3°
Reach - Maximum Lift/Dump
-
852 mm
33.6 in
563 mm
22.2 in
Vehicle Width (400 mm/15.7 in tracks)
-
1931 mm
76 in
1756 mm
69.1 in
Note
-
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Vehicle Width (320 mm/12.6 in tracks)
-
-
1676 mm
66 in
Turning Radius from Center - Bucket
-
-
2069 mm
81.5 in
Cab
ROPS
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 Level II (Optional)
ISO 3449:2005 Level II (Optional)
-
-
Power Train
Travel Speed - Forward or Reverse - One Speed
7.8 km/h
4.8 mile/h
8.4 km/h
5.2 mile/h
8.1 km/h
5 mile/h
Travel Speed - Forward or Reverse - Two Speed
12.4 km/h
7.7 mile/h
13.5 km/h
8.4 mile/h
12.2 km/h
7.6 mile/h
Weights
Operating Weight
5333 kg
11756 lb
3372 kg
7434 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Noise Level
Inside Cab*
83 dB(A)
83 dB(A)
-
Outside Cab**
104 dB(A)
104 dB(A)
-
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Outside Cab***
-
103 dB(A)
103 dB(A)
Inside Cab**
-
83 dB(A)
83 dB(A)
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
