Excavators

Compare Models

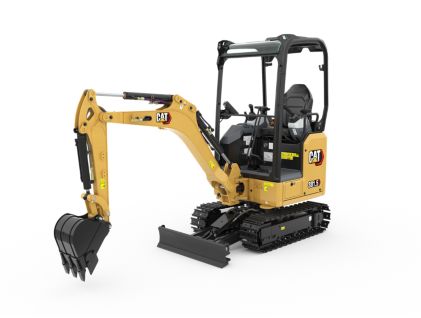

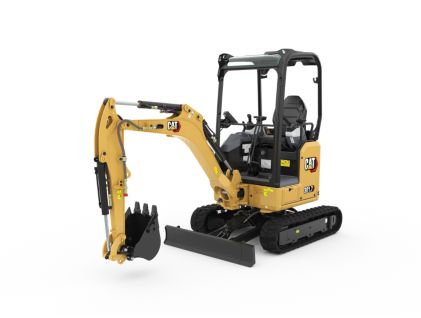

301.5
UNITS:
Metric
Imperial
Net Power
15.7 kW
21 HP

15.7 kW
21 HP

15.7 kW
21 HP
Engine Model
C1.1
C1.1

C1.1
C1.1

C1.1
C1.1
Displacement
1.1 l
69 in³

1.1 l
69 in³

1.1 l
69 in³
Stroke
81 mm
3.2 in

81 mm
3.2 in

81 mm
3.2 in
Bore
77 mm
3 in

77 mm
3 in

77 mm
3 in
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note
Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (2)
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)
Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.

Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.

Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC
15.7 kW
21 HP

15.7 kW
21 HP

15.7 kW
21 HP
Gross Power - SAE J1995:2014
16.1 kW
21.6 HP

16.1 kW
21.6 HP

16.1 kW
21.6 HP
Operating Weight
1775 kg
3913 lb

1915 kg
4222 lb

2029 kg
4473 lb
Minimum Operating Weight with Canopy*
1580 kg
3483 lb

1790 kg
3946 lb

1725 kg
3803 lb
Note (1)
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.

*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.

*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Maximum Operating Weight with Canopy**
1775 kg
3913 lb

1915 kg
4222 lb

1905 kg
4211 lb
Note (2)
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
EU: CE Plate Weight***
1740 kg
3836 lb

1890 kg
4167 lb

-
Note (3)
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Maximum Operating Weight with Cab**
-

-

2029 kg
4473 lb
Minimum Operating Weight with Cab*
-

-

1848 kg
4075 lb
EU: CE Plate Weight with Cab***
-

-

2000 kg
4409 lb
EU: CE Plate Weight with Canopy***
-

-

1880 kg
4145 lb
Dig Depth
2540 mm
100 in

2540 mm
100 in

2570 mm
101.2 in
Maximum Blade Height
275 mm
10.8 in

270 mm
10.6 in

270 mm
10.6 in
Stick Length
1160 mm
45.7 in

1160 mm
45.7 in

1160 mm
45.7 in
Boom Height - Shipping Position
1040 mm
40.9 in

1040 mm
40.9 in

1020 mm
40.2 in
Maximum Reach
3960 mm
155.9 in

4130 mm
162.6 in

4030 mm
158.7 in
Maximum Dig Height
3490 mm
137.4 in

3490 mm
137.4 in

3620 mm
142.5 in
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Tail Swing
820 mm
32.3 in

650 mm
25.6 in

995 mm
39.2 in
O/A Undercarriage Length
1460 mm
57.5 in

1590 mm
62.6 in

1590 mm
62.6 in
Track Width - Expanded
1300 mm
51.18 in

1300 mm
51.18 in

1300 mm
51.18 in
Boom In Reach
1450 mm
57.1 in

1620 mm
63.8 in

1420 mm
55.9 in
O/A Shipping Height
2310 mm
90.9 in

2300 mm
90.6 in

2300 mm
90.6 in
Maximum Blade Depth
260 mm
10.2 in

265 mm
10.4 in

265 mm
10.4 in
Maximum Reach - Ground Level
3890 mm
153.1 in

4060 mm
159.8 in

3960 mm
155.9 in
Overall Shipping Length*
3590 mm
141.3 in

3590 mm
141.3 in

3710 mm
146.1 in
Maximum Dump Clearance
2510 mm
98.8 in

2510 mm
98.8 in

2640 mm
103.9 in
Swing Bearing - Height
445 mm
17.5 in

442 mm
17.4 in

442 mm
17.4 in
Minimum Ground Clearance Below Undercarriage
155 mm
6.1 in

140 mm
5.5 in

150 mm
5.9 in
Boom Swing - Left
65 °
65 °

65 °
65 °

65 °
65 °
Vertical Wall
1890 mm
74.4 in

1890 mm
74.4 in

1940 mm
76.4 in
Track Width - Retracted
990 mm
39 in

990 mm
39 in

990 mm
39 in
Track Belt/Shoe Width
230 mm
9.1 in

230 mm
9.1 in

230 mm
9.1 in
Boom Swing - Right
50 °
50 °

50 °
50 °

50 °
50 °
Height
225 mm
8.9 in

225 mm
8.9 in

225 mm
8.9 in
Note
*Expanded – 1300 mm (51 in)
*Expanded – 1300 mm (51 in)

*Expanded – 1300 mm (51 in)
*Expanded – 1300 mm (51 in)

*Expanded – 1300 mm (51 in)
*Expanded – 1300 mm (51 in)
Width*
990 mm
39 in

990 mm
39 in

990 mm
39 in
Swing Bearing - Height
445 mm
17.5 in

442 mm
17.4 in

442 mm
17.4 in
O/A Undercarriage Length
1460 mm
57.5 in

1590 mm
62.6 in

1590 mm
62.6 in
Maximum Reach - Ground Level
3730 mm
146.9 in

3900 mm
153.5 in

3800 mm
149.6 in
Boom Swing - Left
65 °
65 °

65 °
65 °

65 °
65 °
Maximum Reach
3800 mm
149.6 in

3970 mm
156.3 in

3870 mm
152.4 in
O/A Shipping Height
2310 mm
90.9 in

2300 mm
90.6 in

2300 mm
90.6 in
Maximum Blade Depth
260 mm
10.2 in

265 mm
10.4 in

265 mm
10.4 in
Minimum Ground Clearance Below Undercarriage
155 mm
6.1 in

140 mm
5.5 in

150 mm
5.9 in
Vertical Wall
1800 mm
70.9 in

1800 mm
70.9 in

1850 mm
72.8 in
Dig Depth
2340 mm
92.1 in

2350 mm
92.5 in

2370 mm
93.3 in
Track Width - Expanded
1300 mm
51.18 in

1300 mm
51.18 in

1300 mm
51.18 in
Track Belt/Shoe Width
230 mm
9.1 in

230 mm
9.1 in

230 mm
9.1 in
Stick Length
960 mm
37.8 in

960 mm
37.8 in

960 mm
37.8 in
Maximum Dig Height
3430 mm
135 in

3430 mm
135 in

3550 mm
139.8 in
Overall Shipping Length*
3620 mm
142.5 in

3620 mm
142.5 in

3720 mm
146.5 in
Boom In Reach
1460 mm
57.5 in

1630 mm
64.2 in

1420 mm
55.9 in
Maximum Blade Height
275 mm
10.8 in

270 mm
10.6 in

270 mm
10.6 in
Maximum Dump Clearance
2450 mm
96.5 in

2450 mm
96.5 in

2560 mm
100.8 in
Boom Swing - Right
50 °
50 °

50 °
50 °

50 °
50 °
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Boom Height - Shipping Position
1090 mm
42.9 in

1090 mm
42.9 in

1070 mm
42.1 in
Tail Swing
820 mm
32.3 in

650 mm
25.6 in

995 mm
39.2 in
Track Width - Retracted
990 mm
39 in

990 mm
39 in

990 mm
39 in
Pump Flow at 2,400 rpm
66 l/min
17.4 gal/min

66 l/min
17.4 gal/min

66 l/min
17.4 gal/min
Digging Force - Stick - Long
7.2 kN
1616.4 lbf

8.3 kN
1865.9 lbf

9.8 kN
2203.1 lbf
Operating Pressure - Swing
103 bar
1493.9 psi

147 bar
2132.1 psi

147 bar
2132.1 psi
Digging Force - Stick - Standard
8.2 kN
1843.4 lbf

9.5 kN
2135.7 lbf

11.3 kN
2540.3 lbf
Auxiliary Circuit - Primary - Flow
33 l/min
8.7 gal/min

33 l/min
8.7 gal/min

33 l/min
8.7 gal/min
Auxiliary Circuit - Secondary - Pressure
213 bar
3089.3 psi

245 bar
3553.4 psi

245 bar
3553.4 psi
Operating Pressure - Travel
213 bar
3089.3 psi

245 bar
3553.4 psi

245 bar
3553.4 psi
Operating Pressure - Equipment
213 bar
3089.3 psi

245 bar
3553.4 psi

245 bar
3553.4 psi
Auxiliary Circuit - Secondary - Flow
14 l/min
3.7 gal/min

14 l/min
3.7 gal/min

14 l/min
3.7 gal/min
Digging Force - Bucket
14.1 kN
3169.8 lbf

16.2 kN
3641.9 lbf

19.6 kN
4406.3 lbf
Auxiliary Circuit - Primary - Pressure
213 bar
3089.3 psi

245 bar
3553.4 psi

245 bar
3553.4 psi
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump

Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump

Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump
Maximum Traction Force - High Speed
10.3 kN
2315.5 lbf

11.9 kN
2675.2 lbf

11.9 kN
2675.2 lbf
Ground Pressure - Minimum Weight
27.3 kPa
4 psi

27.9 kPa
4 psi

26.8 kPa
3.9 psi
Ground Pressure - Maximum Weight
30.6 kPa
4.4 psi

30 kPa
4.4 psi

29.6 kPa
4.3 psi
Travel Speed - High
4.4 km/h
2.7 mile/h

4.4 km/h
2.7 mile/h

4.4 km/h
2.7 mile/h
Travel Speed - Low
2.9 km/h
1.8 mile/h

2.9 km/h
1.8 mile/h

2.9 km/h
1.8 mile/h
Maximum Traction Force - Low Speed
16 kN
3597 lbf

18.4 kN
4136.5 lbf

18.4 kN
4136.5 lbf
Gradeability - Maximum
30 degrees
30 degrees

30 degrees
30 degrees

30 degrees
30 degrees
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
ISO 12117-2:2008

ISO 12117-2:2008
ISO 12117-2:2008
Tip Over Protective Structure (TOPS)
ISO 12117:1997
ISO 12117:1997

ISO 12117:1997
ISO 12117:1997
Top Guard
ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)

ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)
Average Exterior Sound Pressure (ISO 6395:2008)
93 dB(A)
93 dB(A)

93 dB(A)
93 dB(A)

93 dB(A)
93 dB(A)
Note
European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”

European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”

European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”
Operator Sound Pressure (ISO 6396:2008)
-

-

73 dB(A)
73 dB(A)
Cooling System
3.9 l
1 gal (US)

3.9 l
1 gal (US)

3.9 l
1 gal (US)
Engine Oil
4.4 l
1.2 gal (US)

4.4 l
1.2 gal (US)

4.4 l
1.2 gal (US)
Hydraulic System
26 l
6.9 gal (US)

26 l
6.9 gal (US)

26 l
6.9 gal (US)
Hydraulic Tank
18 l
4.8 gal (US)

18 l
4.8 gal (US)

18 l
4.8 gal (US)
Fuel Tank
22 l
5.8 gal (US)

22 l
5.8 gal (US)

26 l
6.9 gal (US)
Machine Swing Speed
9.8 r/min
9.8 r/min

9.8 r/min
9.8 r/min

9.8 r/min
9.8 r/min
Long Stick
8 kg
18 lb

10 kg
22 lb

8 kg
18 lb
Steel Tracks
57 kg
126 lb

50 kg
110 lb

50 kg
110 lb
Expandable Undercarriage
129 kg
284 lb

Standard
Standard

123 kg
271 lb
Heavy Counterweight
-

67 kg
148 lb

-
Tip Over Protective Structure (TOPS)
ISO 12117:1997
ISO 12117:1997
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
ISO 12117-2:2008
Top Guard
ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)
X
This site uses and sets "cookies" on your computer to help make this website better. By continuing to use this site without changing your settings, you are agreeing to our use of cookies.
Confirm
